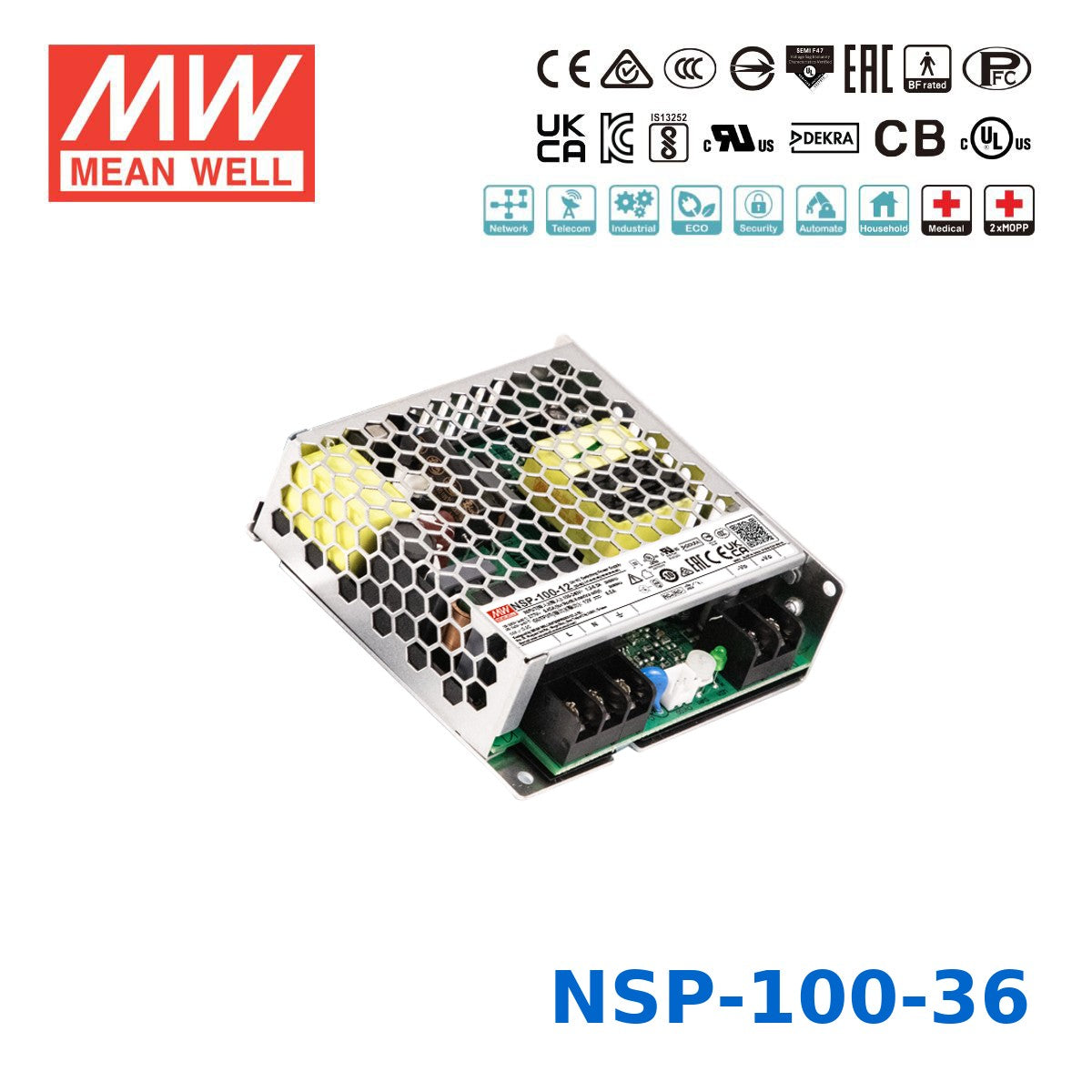

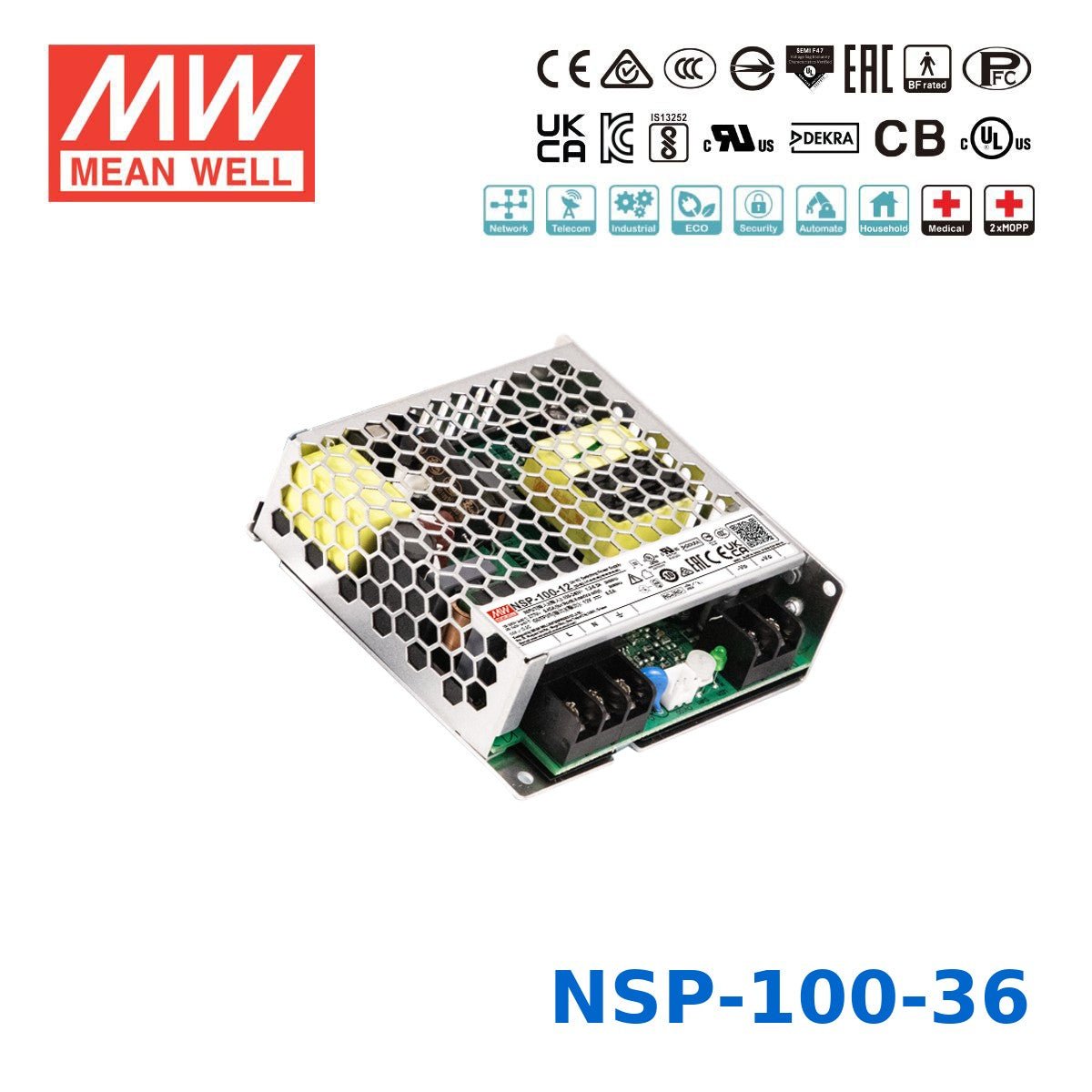

Mean Well 100.8W High Reliable Multi-Industries Power Supply 36V 2.8A
Description
Description
The MEAN WELL NSP-100 series is a 100W high-reliability AC/DC enclosed power supply designed for multi-industry applications, including industrial automation, telecommunications, security systems, and medical devices. Featuring a universal 85–305VAC input with active PFC and efficiency up to 92%, it delivers stable power performance with ultra-low standby consumption below 0.5W. The fanless design and compact 99×97×30 mm form factor enable reliable operation from -40°C to +85°C. With 200% peak power capability, remote ON/OFF control, and comprehensive protections, the NSP-100 series ensures long-term performance under demanding conditions while complying with IEC/EN/UL 62368-1, 60601-1 (BF rated, 2×MOPP), and other global safety standards.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating100.8 Watt
-
Output Voltage36 Volt
-
Rated Current2.8 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.66 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Mean Well NSP-100-36 designed for?
The NSP-100-36 is intended for high-reliability applications in industrial automation, telecommunications, security systems, and medical devices. This model provides a regulated 36V DC output at 2.8A with 100.8W rated power, which suits equipment that needs stable enclosed AC/DC power in demanding environments.
What are the key electrical specifications of the NSP-100-36?
This model is rated for 100.8W and delivers a 36V DC output at up to 2.8A. It accepts a universal 85-305VAC or 120-431VDC input range, includes active PFC, and reaches efficiency up to 92%.
Is the NSP-100-36 suitable for medical applications?
The NSP-100-36 is built to support medical-use requirements, with IEC/EN/UL 60601-1 compliance, BF-rated isolation, and 2xMOPP protection. It also features leakage current below 350uA, which is important for medical environments that require stricter safety performance.
Can this power supply operate in harsh or wide-temperature environments?
Yes. The NSP-100-36 is designed for operation from -40 C to +85 C, with derating above +60 C, and uses a fanless enclosed design with conformal-coated PCB construction for improved long-term reliability. Its installation ratings also support OVC III up to 2000 m and OVC II up to 5000 m.
Can the NSP-100-36 handle short peak-demand conditions?
Yes. This model supports 200% peak power for up to 5 seconds, which can help with applications that have brief startup or transient load demands. That makes it better suited to equipment with short-duration power surges than a supply limited to continuous rated output only.
What protection and reliability features are included in the NSP-100-36?
The NSP-100-36 includes overload, short-circuit, overvoltage, and overtemperature protection. It also has low no-load power consumption below 0.5W, remote ON/OFF control, a compact 99 x 97 x 30 mm form factor, and a 5-year warranty for long-service applications.
