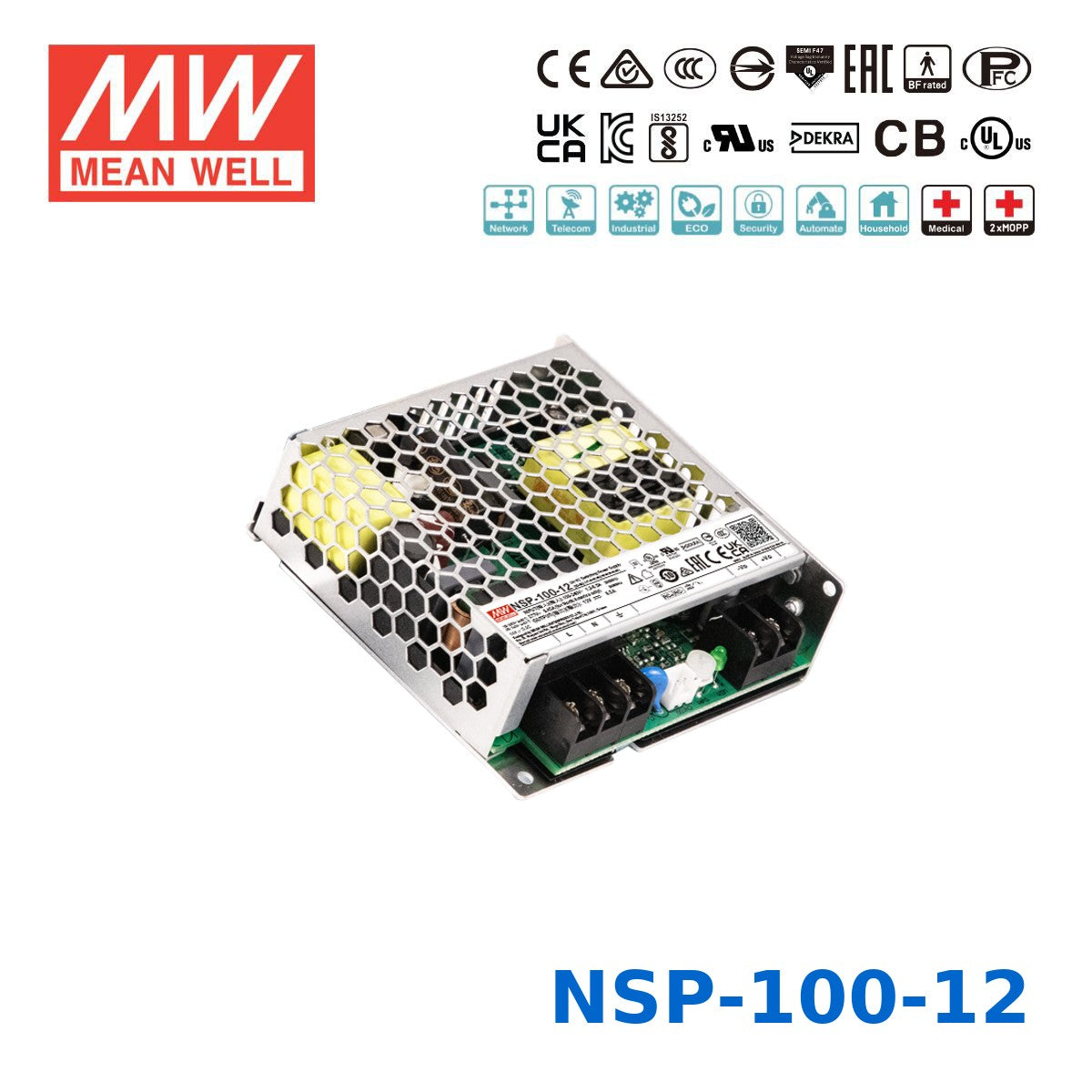

Mean Well 102W High Reliable Multi-Industries Power Supply 12V 8.5A
Description
Description
The MEAN WELL NSP-100 series is a 100W high-reliability AC/DC enclosed power supply designed for multi-industry applications, including industrial automation, telecommunications, security systems, and medical devices. Featuring a universal 85–305VAC input with active PFC and efficiency up to 92%, it delivers stable power performance with ultra-low standby consumption below 0.5W. The fanless design and compact 99×97×30 mm form factor enable reliable operation from -40°C to +85°C. With 200% peak power capability, remote ON/OFF control, and comprehensive protections, the NSP-100 series ensures long-term performance under demanding conditions while complying with IEC/EN/UL 62368-1, 60601-1 (BF rated, 2×MOPP), and other global safety standards.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating102 Watt
-
Output Voltage12 Volt
-
Rated Current8.5 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.66 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well NSP-100-12?
The NSP-100-12 is rated for 102W total output with a 12V DC output and 8.5A rated current. It is part of Mean Well's NSP-100 high-reliability enclosed AC/DC power supply series.
What applications is the NSP-100-12 designed for?
This model is designed for multi-industry use including industrial automation, telecommunications, security systems, and medical devices. Its high-reliability design, compact enclosed format, and broad safety approvals make it suited to demanding professional equipment rather than general consumer use.
Can the NSP-100-12 operate in harsh temperature conditions?
Yes. The NSP-100-12 is specified for operation from -40°C to +85°C, with derating above +60°C. Its fanless construction and conformal coated PCB also support reliable use in challenging industrial environments.
Does the NSP-100-12 support medical or safety-critical equipment requirements?
The product description states compliance with IEC/EN/UL 60601-1 and notes BF rated, 2xMOPP performance, along with leakage current below 350uA. It also meets IEC/EN/UL 62368-1 and other global safety standards, which makes it relevant for medical and other high-reliability applications where those approvals matter.
What input range does the NSP-100-12 accept?
The NSP-100-12 accepts a universal 85-305VAC input range and also supports 120-431VDC input. It includes active power factor correction and is specified for efficiency up to 92%.
What protection and power headroom features does the NSP-100-12 include?
This model includes overload, short circuit, overvoltage, and overtemperature protection. It also supports 200% peak power capability for up to 5 seconds, which can help with brief surge or startup demands in compatible equipment.
Is the NSP-100-12 suitable for space-constrained or low-noise equipment designs?
Yes. The unit uses a compact 99 x 97 x 30 mm enclosed form factor and weighs 0.3 kg, which helps in tighter equipment layouts. Its fanless design supports silent operation and reduces maintenance compared with actively cooled power supplies.
