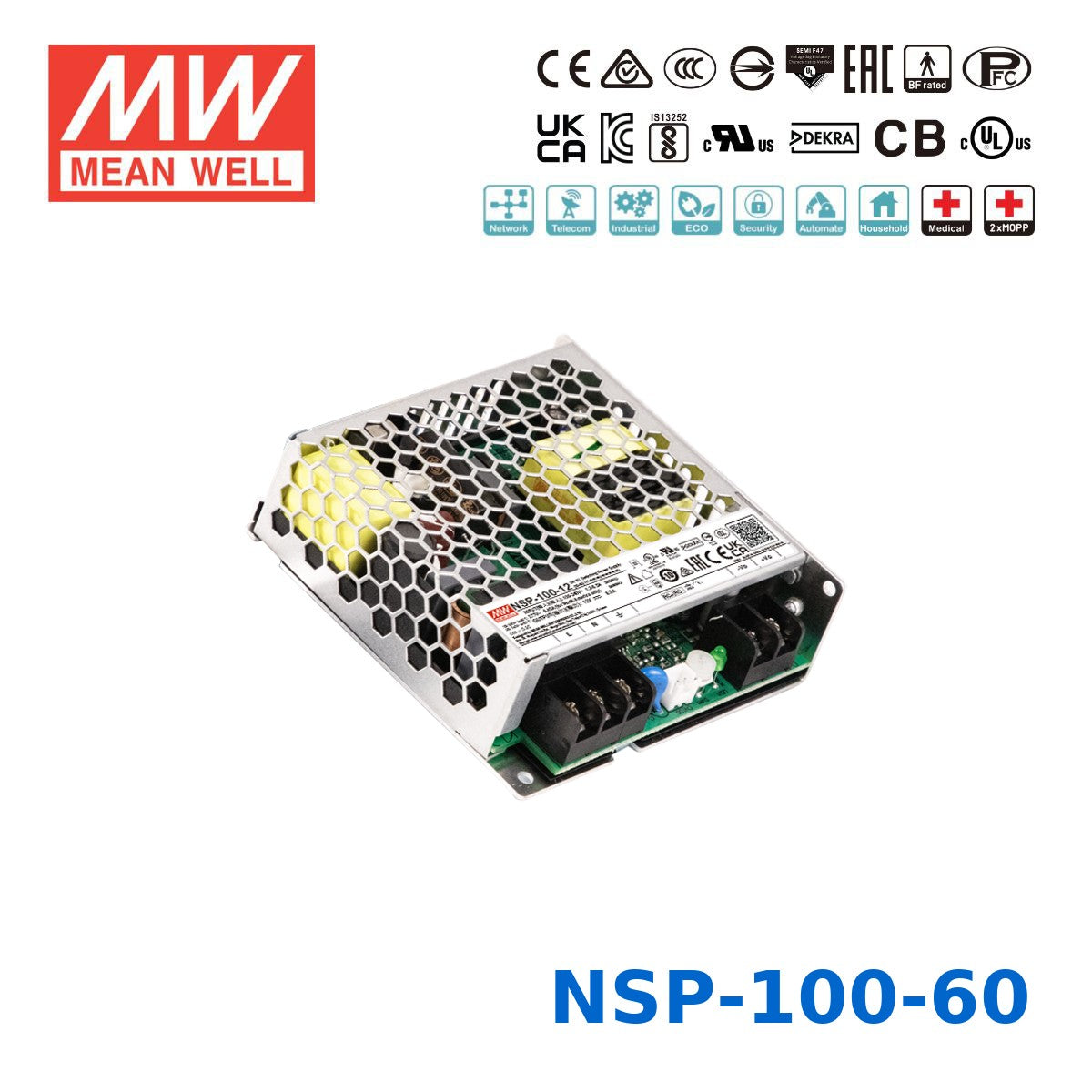

Mean Well 102W High Reliable Multi-Industries Power Supply 60V 1.7A
Description
Description
The MEAN WELL NSP-100 series is a 100W high-reliability AC/DC enclosed power supply designed for multi-industry applications, including industrial automation, telecommunications, security systems, and medical devices. Featuring a universal 85–305VAC input with active PFC and efficiency up to 92%, it delivers stable power performance with ultra-low standby consumption below 0.5W. The fanless design and compact 99×97×30 mm form factor enable reliable operation from -40°C to +85°C. With 200% peak power capability, remote ON/OFF control, and comprehensive protections, the NSP-100 series ensures long-term performance under demanding conditions while complying with IEC/EN/UL 62368-1, 60601-1 (BF rated, 2×MOPP), and other global safety standards.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating102 Watt
-
Output Voltage60 Volt
-
Rated Current1.7 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.66 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well NSP-100-60?
The NSP-100-60 is rated for 102W total output. It provides a nominal 60V DC output at 1.7A, making it suitable for applications that need a higher-voltage enclosed AC/DC power supply. This model is part of Mean Well's high-reliability NSP-100 series.
What types of applications is the NSP-100-60 designed for?
This model is designed for multi-industry use, including industrial automation, telecommunications, security systems, and medical devices. Its high-reliability design, compact enclosed form factor, and broad safety approvals make it a strong fit for demanding professional environments. It is intended for OEM and industrial use where dependable long-term power performance matters.
Can the NSP-100-60 operate in harsh temperature conditions?
Yes. The NSP-100-60 is specified for operation from -40°C to +85°C, with derating required above +60°C. Its fanless construction and conformal coated PCB also support reliability in challenging environments where durability and low maintenance are important.
Does the NSP-100-60 support medical or high-safety applications?
The NSP-100-60 is certified to IEC/EN/UL 60601-1 and is described as BF rated with 2×MOPP compliance. It also features very low leakage current below 350 microamps, which is relevant for medical-focused applications. Buyers should still confirm the full system-level compliance requirements for their specific end equipment.
How efficient is the Mean Well NSP-100-60 power supply?
This model offers efficiency up to 92% and includes active power factor correction, with PF greater than 0.98 at full load. It also has ultra-low no-load power consumption below 0.5W. These characteristics help reduce wasted energy in always-on industrial and OEM systems.
What makes the NSP-100-60 different from a standard enclosed power supply?
Compared with more basic enclosed AC/DC supplies, the NSP-100-60 emphasizes high reliability, wide operating temperature range, medical-related approvals, and 200% peak power capability for up to 5 seconds. It also combines a universal 85-305VAC input range, fanless operation, and remote ON/OFF control in a compact 99×97×30 mm package. That makes it better suited to demanding industrial and high-reliability applications than a general-purpose model.
