Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

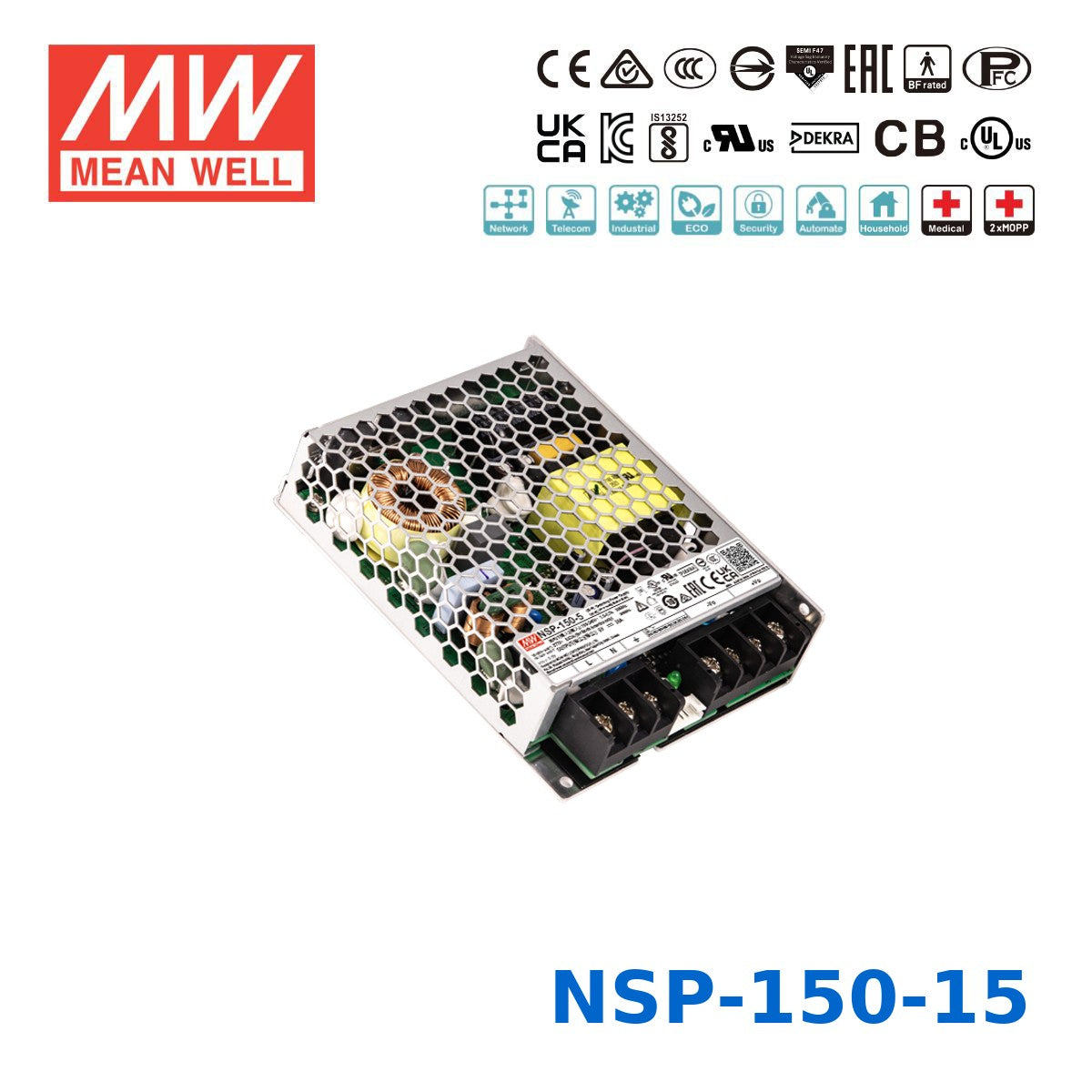

Mean Well 150W High Reliable Multi-Industries Power Supply 15V 10A
Description
Description
The MEAN WELL NSP-150 series is a 150W high-reliability AC/DC enclosed power supply designed for a wide range of industrial, medical, and automation applications. Featuring active PFC, universal 85–305VAC input, and efficiency up to 93%, it delivers stable and efficient performance in compact form. With 200% peak power capability, remote ON/OFF control, remote sense, and DC OK signal functions, it ensures optimal power management and system monitoring. The NSP-150 series operates fanlessly from -40°C to +85°C, meets OVC III installation standards, and complies with 2×MOPP medical safety ratings, ensuring both reliability and safety across diverse environments.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating150 Watt
-
Output Voltage15 Volt
-
Rated Current10 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.08 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.88 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well NSP-150-15 provide?
The NSP-150-15 is a 150W enclosed AC/DC power supply with a 15V DC output rated at 10A. It is intended for applications that need a regulated 15V supply with high reliability and compact packaging.
What kinds of applications is the NSP-150-15 suited for?
This model is positioned for industrial automation, telecommunications, PoE-related systems, and medical equipment where a reliable 15V power source is needed. Its active PFC, DC OK signal, remote ON/OFF function, and high-reliability design make it suitable for systems that benefit from monitoring and controlled power management.
Can the NSP-150-15 operate in harsh or high-temperature environments?
Yes. The unit is specified for fanless operation from -40°C to +85°C, with derating required above +60°C. It also uses a conformal coated PCB, which helps improve resistance in demanding industrial environments.
How is the NSP-150-15 different from a standard enclosed power supply?
The NSP-150-15 stands out with high efficiency up to 93%, active PFC, 200% peak power capability for up to 5 seconds, and built-in monitoring and control functions such as DC OK, remote ON/OFF, and remote sense. It also carries broad safety approvals, including medical-related standards and 2×MOPP compliance, which is not typical of basic general-purpose enclosed supplies.
Is the NSP-150-15 compatible with global AC input ranges?
Yes. It supports a universal input range of 85-305VAC and also accepts 120-431VDC input. That wide input range makes it easier to use across regions and in equipment that may face varying mains conditions.
Does the NSP-150-15 support medical or safety-sensitive equipment?
This series includes 2×MOPP compliance, BF-rated design characteristics, and leakage current below 350uA, which are relevant for medical and safety-focused applications. It is also certified to standards including IEC/EN/UL 60601-1 and 62368-1, though final suitability still depends on the full end-system design and approval requirements.
