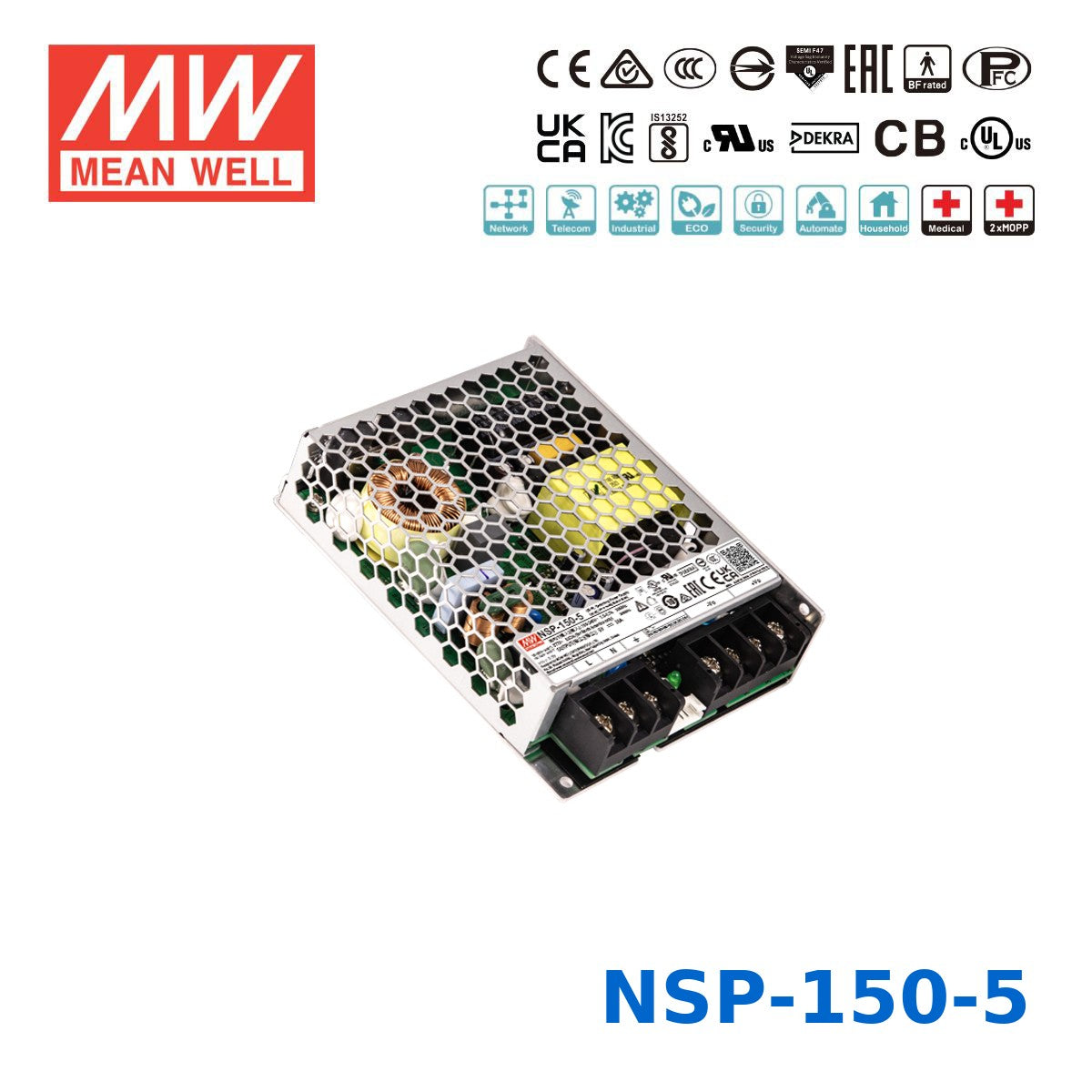

Mean Well 150W High Reliable Multi-Industries Power Supply 5V 30A
Description
Description
The MEAN WELL NSP-150 series is a 150W high-reliability AC/DC enclosed power supply designed for a wide range of industrial, medical, and automation applications. Featuring active PFC, universal 85–305VAC input, and efficiency up to 93%, it delivers stable and efficient performance in compact form. With 200% peak power capability, remote ON/OFF control, remote sense, and DC OK signal functions, it ensures optimal power management and system monitoring. The NSP-150 series operates fanlessly from -40°C to +85°C, meets OVC III installation standards, and complies with 2×MOPP medical safety ratings, ensuring both reliability and safety across diverse environments.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating150 Watt
-
Output Voltage5 Volt
-
Rated Current30 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.08 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.88 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Mean Well NSP-150-5 best suited for?
The NSP-150-5 is designed for industrial, automation, telecommunications, PoE, and medical equipment where a regulated 5V output is required. Its 150W rating, 30A output current, and high-reliability design make it a strong fit for systems that need stable low-voltage DC power in demanding environments.
What are the main electrical specifications of the NSP-150-5?
This model provides a 5V DC output rated at 30A, with a total power rating of 150W. It accepts a universal 85-305VAC or 120-431VDC input range and includes active power factor correction for efficient operation across a wide input range.
How does the NSP-150-5 differ from a standard enclosed power supply?
The NSP-150-5 is built as a high-reliability unit with features not always found on basic enclosed supplies, including active PFC, remote ON/OFF, remote sense, and a DC OK signal. It also offers up to 93% efficiency, 200% peak power for up to 5 seconds, conformal coating, and a long MTBF above 2,000,000 hours.
Can the NSP-150-5 be used in harsh or wide-temperature environments?
Yes. The unit is rated for fanless operation from -40°C to +85°C, with derating above +60°C, which makes it suitable for industrial environments with significant temperature variation. Its conformal coated PCB also helps improve resistance to environmental stress.
Does the NSP-150-5 support system monitoring and remote control functions?
Yes. This model includes remote ON/OFF control, remote sense with up to 0.3V compensation, and a DC OK signal output for monitoring power status. Those features are useful in higher-end industrial or medical systems that need centralized power supervision.
Is the NSP-150-5 suitable for medical or safety-critical equipment?
It is designed for high-reliability applications and complies with multiple safety standards, including IEC/EN/UL 60601-1, with 2xMOPP compliance and BF-rated low leakage current below 350uA. That makes it appropriate for medical-related designs where certified isolation and low leakage current are important requirements.
