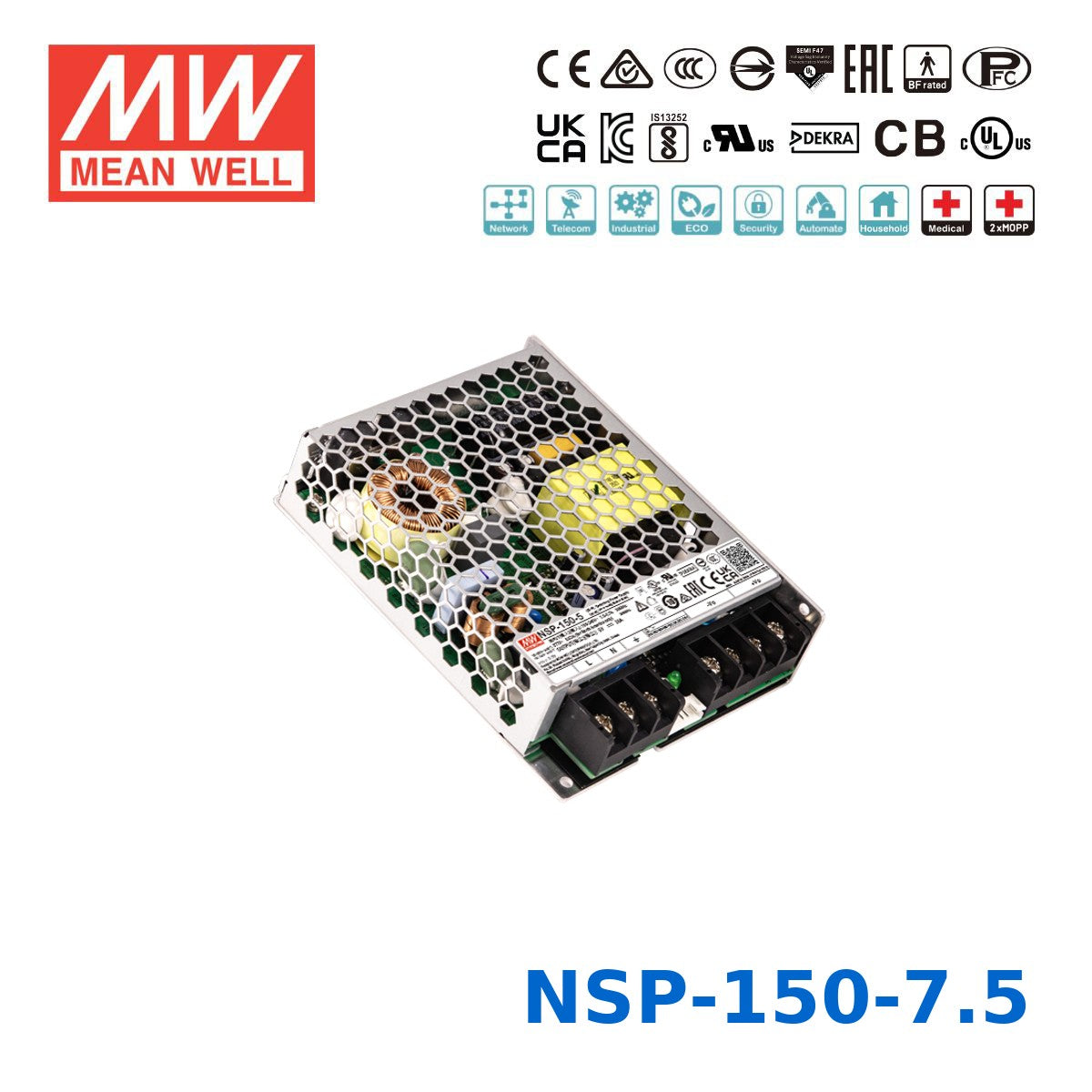

Mean Well 150W High Reliable Multi-Industries Power Supply 7.5V 20A
Description
Description
The MEAN WELL NSP-150 series is a 150W high-reliability AC/DC enclosed power supply designed for a wide range of industrial, medical, and automation applications. Featuring active PFC, universal 85–305VAC input, and efficiency up to 93%, it delivers stable and efficient performance in compact form. With 200% peak power capability, remote ON/OFF control, remote sense, and DC OK signal functions, it ensures optimal power management and system monitoring. The NSP-150 series operates fanlessly from -40°C to +85°C, meets OVC III installation standards, and complies with 2×MOPP medical safety ratings, ensuring both reliability and safety across diverse environments.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating150 Watt
-
Output Voltage7.5 Volt
-
Rated Current20 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.08 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.88 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well NSP-150-7.5 provide?
The NSP-150-7.5 is a 150W enclosed AC/DC power supply with a regulated 7.5V DC output rated at 20A. This makes it suitable for systems that need high current at a low output voltage from a compact industrial-grade supply.
What input range does the NSP-150-7.5 support?
This model accepts a universal 85-305VAC input range and also supports 120-431VDC input. It also includes active power factor correction, with PF greater than 0.98 at 115VAC and greater than 0.93 at 230VAC.
Can the NSP-150-7.5 handle short peak loads above its rated power?
Yes. The NSP-150-7.5 supports 200% peak power capability for up to 5 seconds, which can help with demanding startup or transient load conditions. Its standard protections also include short circuit, overload, overvoltage, and overtemperature with auto recovery.
Is the NSP-150-7.5 suitable for harsh industrial environments?
It is designed for demanding environments, with fanless convection cooling, a conformal coated PCB, and an operating temperature range of -40°C to +85°C. Output derating applies above +60°C, so thermal conditions still need to be considered in high-heat applications.
What monitoring and control features are available on the NSP-150-7.5?
This model includes remote ON/OFF control, remote sense, and a DC OK signal for system monitoring. Remote sense supports up to 0.3V compensation, which can help maintain output accuracy in installations where voltage drop matters.
Is the NSP-150-7.5 appropriate for medical or high-reliability equipment?
The NSP-150-7.5 is built for high-reliability applications and is specified as 2xMOPP compliant with BF rating and leakage current below 350uA. It is also certified to IEC/EN/UL 60601-1 along with multiple industrial safety standards, so it is a strong option where medical or mission-critical compliance matters.
Why choose the NSP-150-7.5 over a more basic 150W enclosed power supply?
Compared with a basic 150W supply, the NSP-150-7.5 stands out for its wide 85-305VAC input range, active PFC, up to 93% efficiency, 200% peak capability, and advanced monitoring features. It also combines compact size, fanless operation, medical safety approvals, and a 5-year warranty for more demanding OEM and industrial use.
