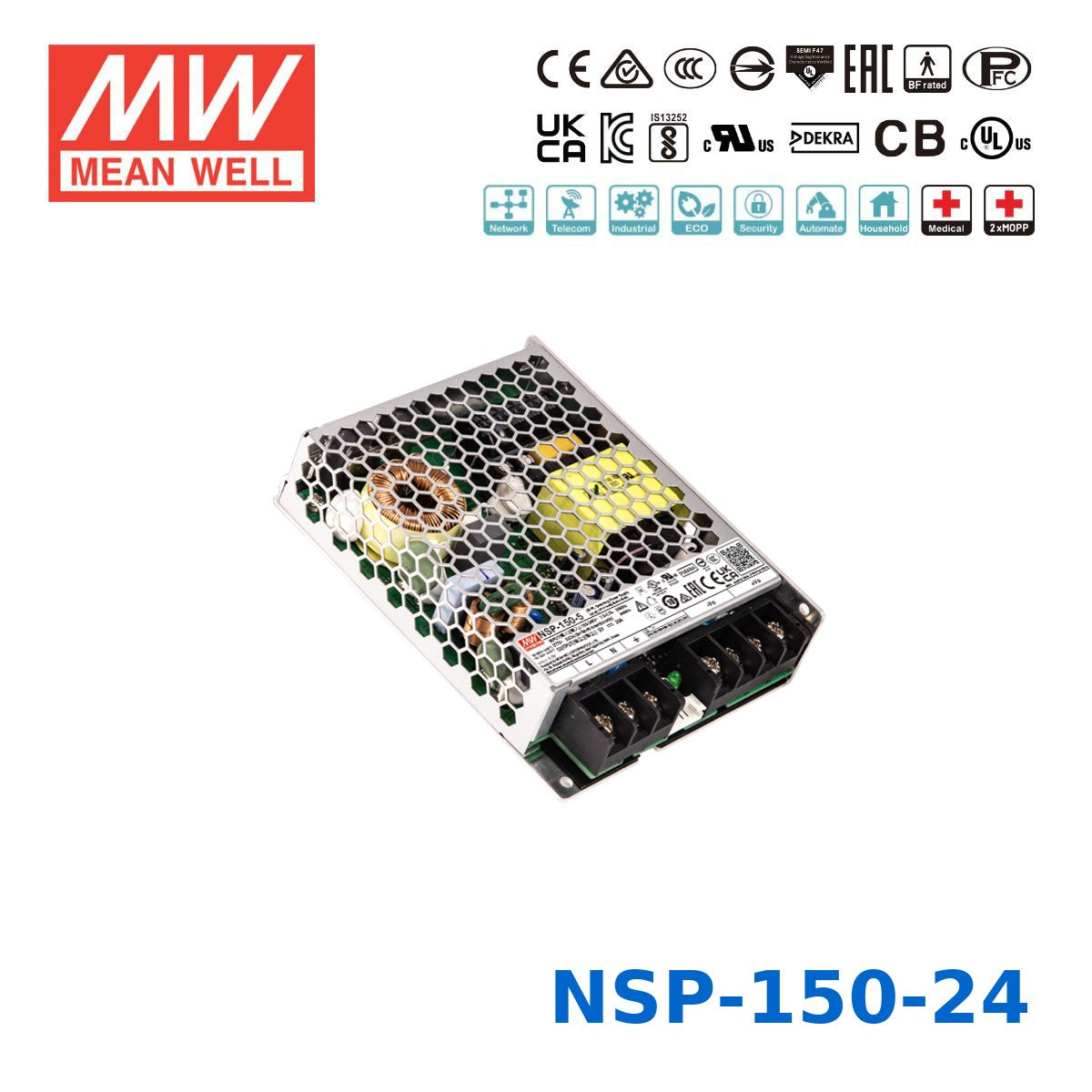

Mean Well 151.2W High Reliable Multi-Industries Power Supply 24V 6.3A
Description
Description
The MEAN WELL NSP-150 series is a 150W high-reliability AC/DC enclosed power supply designed for a wide range of industrial, medical, and automation applications. Featuring active PFC, universal 85–305VAC input, and efficiency up to 93%, it delivers stable and efficient performance in compact form. With 200% peak power capability, remote ON/OFF control, remote sense, and DC OK signal functions, it ensures optimal power management and system monitoring. The NSP-150 series operates fanlessly from -40°C to +85°C, meets OVC III installation standards, and complies with 2×MOPP medical safety ratings, ensuring both reliability and safety across diverse environments.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating151.2 Watt
-
Output Voltage24 Volt
-
Rated Current6.3 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.08 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.88 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well NSP-150-24?
The NSP-150-24 provides a regulated 24V DC output at 6.3A. Its rated power is 151.2W, making it suitable for systems that need a stable 24V industrial power source.
What types of applications is the NSP-150-24 designed for?
This model is intended for high-reliability industrial, automation, telecommunications, PoE, and medical equipment applications. Its feature set includes active PFC, remote ON/OFF control, remote sense, and a DC OK signal for system monitoring.
Can the NSP-150-24 operate in harsh temperature conditions?
Yes, the NSP-150-24 is designed for a wide operating temperature range from -40°C to +85°C. The unit is fanless and uses convection cooling, with derating required above +60°C.
What input range does the Mean Well NSP-150-24 support?
The power supply accepts a universal input range of 85-305VAC or 120-431VDC. This wide input range helps it fit a broad range of industrial and commercial power environments.
What makes the NSP-150-24 a high-reliability power supply?
The NSP-150-24 combines up to 93% efficiency, active PFC, conformal coating, and comprehensive protection functions including short circuit, overload, overvoltage, and overtemperature protection. It also offers an MTBF greater than 2,000,000 hours and carries a 5-year warranty.
Does the NSP-150-24 support medical or safety-critical equipment requirements?
This model is compliant with 2×MOPP medical safety requirements and is BF rated, with leakage current below 350μA. It is also certified to multiple safety standards including IEC/EN/UL 62368-1 and 60601-1, which supports use in demanding regulated environments.
Does the NSP-150-24 offer extra power for short peak loads?
Yes, the NSP-150-24 supports 200% peak power capability for up to 5 seconds. This can help applications that experience brief startup surges or short-duration load spikes.
