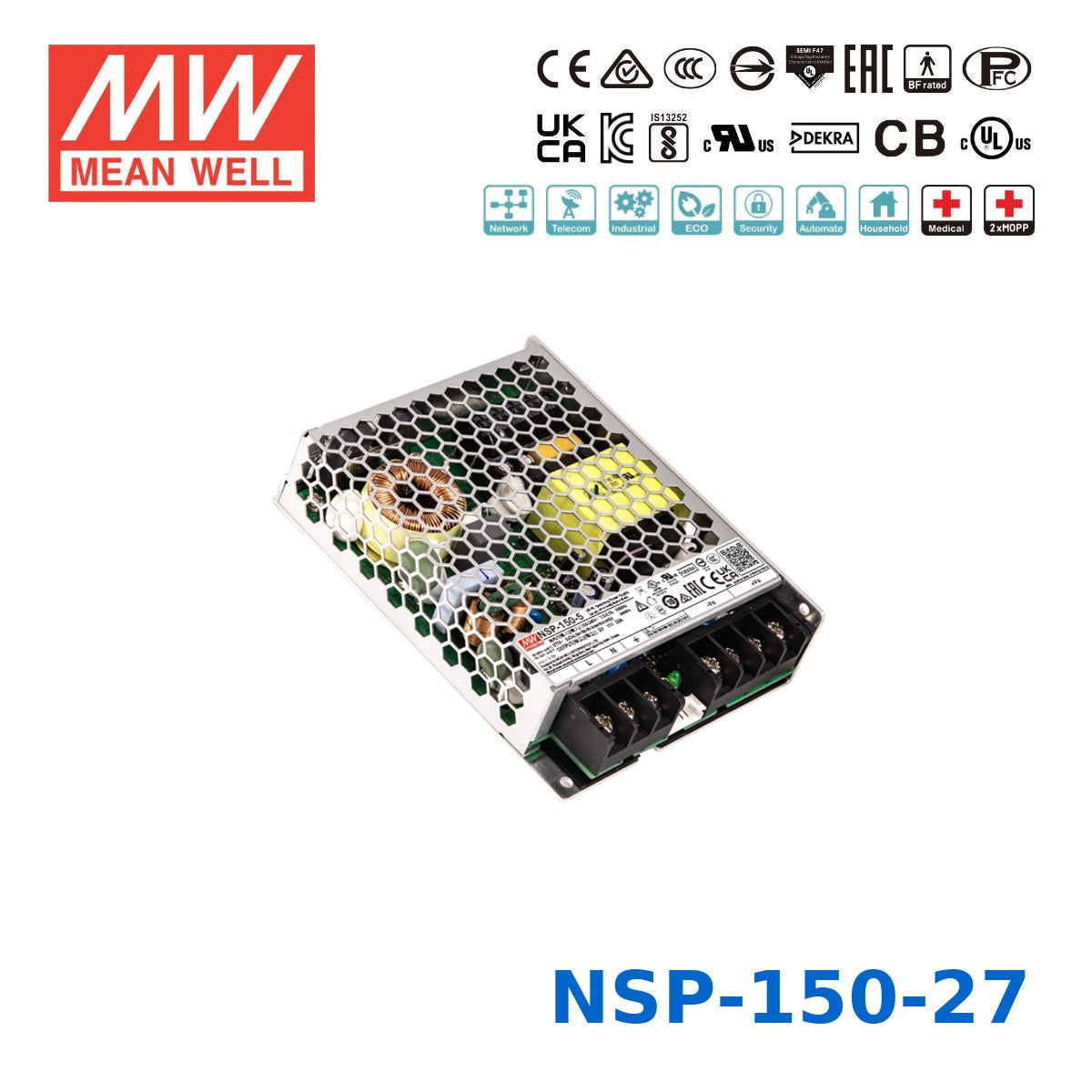

Mean Well 151.2W High Reliable Multi-Industries Power Supply 27V 5.6A
Description
Description
The MEAN WELL NSP-150 series is a 150W high-reliability AC/DC enclosed power supply designed for a wide range of industrial, medical, and automation applications. Featuring active PFC, universal 85–305VAC input, and efficiency up to 93%, it delivers stable and efficient performance in compact form. With 200% peak power capability, remote ON/OFF control, remote sense, and DC OK signal functions, it ensures optimal power management and system monitoring. The NSP-150 series operates fanlessly from -40°C to +85°C, meets OVC III installation standards, and complies with 2×MOPP medical safety ratings, ensuring both reliability and safety across diverse environments.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating151.2 Watt
-
Output Voltage27 Volt
-
Rated Current5.6 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.08 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.88 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the NSP-150-27 power supply?
The Mean Well NSP-150-27 provides a 27V DC output with a rated current of 5.6A. Its listed power rating is 151.2W, which makes it suitable for equipment that needs a stable 27V industrial power source.
What types of applications is the NSP-150-27 designed for?
This model is intended for high-reliability industrial, medical, and automation applications. The product description also identifies it as a fit for industrial automation, telecommunications, PoE-related systems, and medical equipment where dependable enclosed AC/DC power conversion is required.
Does the NSP-150-27 support demanding operating environments?
Yes. The NSP-150-27 is rated for fanless operation from -40°C to +85°C, with derating above +60°C, and it uses a conformal coated PCB for added environmental resistance. It is also specified for OVC III installations up to 2000m and OVC II up to 5000m.
What makes the NSP-150-27 a high-reliability power supply?
This model combines active PFC, up to 93% efficiency, fanless convection cooling, and built-in protection functions including short circuit, overload, overvoltage, and overtemperature protection with auto recovery. It also has a stated MTBF of over 2,000,000 hours and is backed by a 5-year warranty.
Does the NSP-150-27 include monitoring and control features?
Yes. The NSP-150-27 includes remote ON/OFF control, remote sense with up to 0.3V compensation, and a DC OK signal output for system monitoring. These features help support systems that need status feedback and tighter output management.
What input range does the NSP-150-27 accept?
The NSP-150-27 accepts a universal input range of 85-305VAC or 120-431VDC. That wide input range makes it suitable for use across different power environments without needing multiple regional variants.
Is the NSP-150-27 suitable for medical or safety-critical equipment?
It is designed with strong safety credentials, including 2xMOPP compliance, BF-rated suitability, and leakage current below 350uA. The unit is also certified to multiple safety standards, including IEC/EN/UL 62368-1, 60601-1, 61010-1/-2-201, 61558-1/-2-16, 60335-1, and 62477-1.
