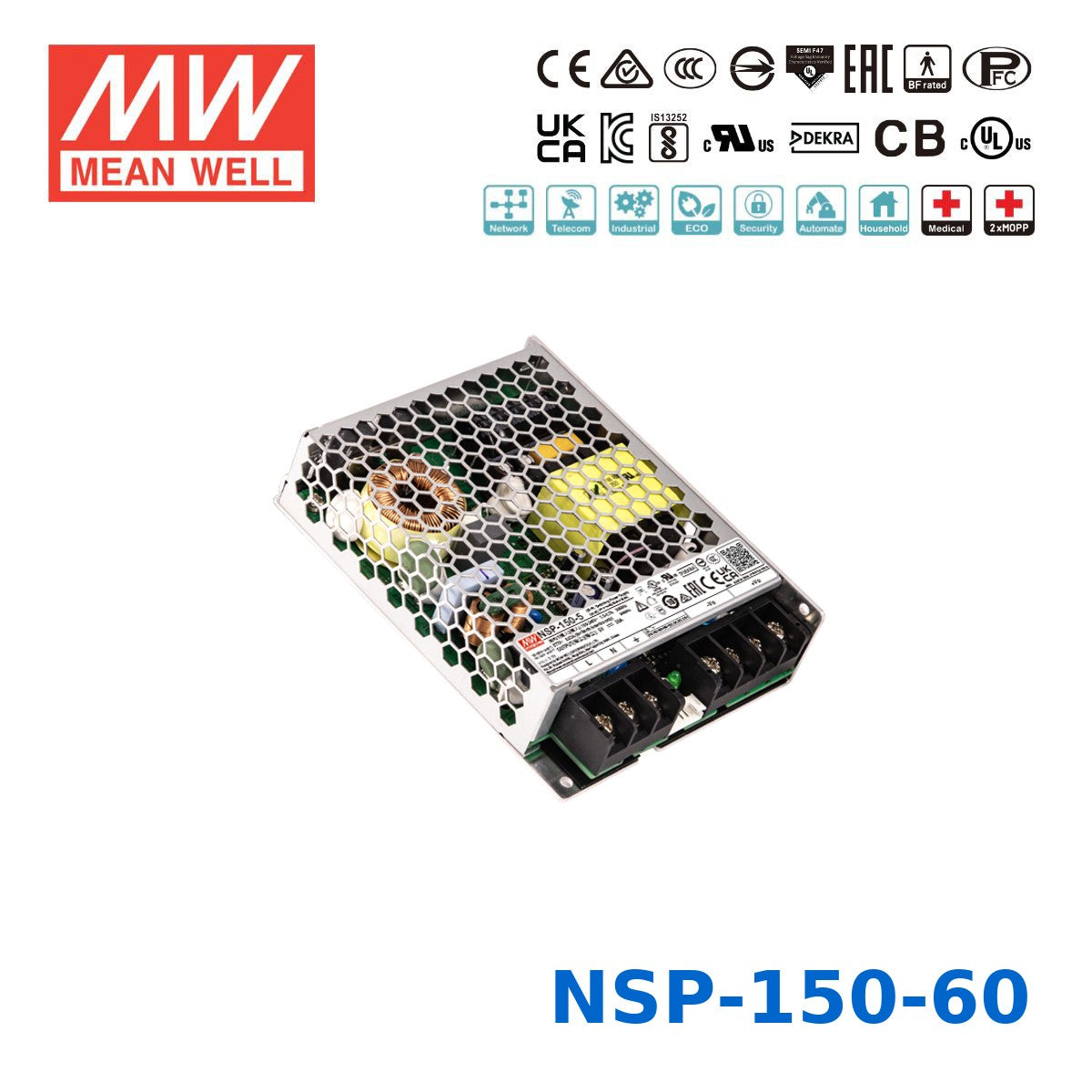

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well 153W High Reliable Multi-Industries Power Supply 60V 2.55A
Description
Description
The MEAN WELL NSP-150 series is a 150W high-reliability AC/DC enclosed power supply designed for a wide range of industrial, medical, and automation applications. Featuring active PFC, universal 85–305VAC input, and efficiency up to 93%, it delivers stable and efficient performance in compact form. With 200% peak power capability, remote ON/OFF control, remote sense, and DC OK signal functions, it ensures optimal power management and system monitoring. The NSP-150 series operates fanlessly from -40°C to +85°C, meets OVC III installation standards, and complies with 2×MOPP medical safety ratings, ensuring both reliability and safety across diverse environments.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating153 Watt
-
Output Voltage60 Volt
-
Rated Current2.55 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.08 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.88 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the Mean Well NSP-150-60?
The NSP-150-60 is rated for 60V DC output at 2.55A, with a total power rating of 153W. It is part of Mean Well's high-reliability enclosed AC/DC power supply range for demanding industrial and medical applications.
What types of applications is the NSP-150-60 designed for?
This model is intended for multi-industry use, including industrial automation, telecommunications, PoE-related systems, and medical equipment. Its high reliability, fanless design, and broad safety approvals make it suitable for environments where stable long-term operation matters.
How does the NSP-150-60 handle demanding operating environments?
The NSP-150-60 operates in temperatures from -40°C to +85°C, with derating above +60°C. It also uses fanless convection cooling and a conformal coated PCB, which supports reliability in challenging industrial environments.
Does the NSP-150-60 support medical or high-safety applications?
Yes. This model is described as 2×MOPP compliant, BF rated, and carries safety certifications including IEC/EN/UL 60601-1 along with multiple industrial safety standards. It also features very low leakage current below 350μA, which is important in safety-sensitive applications.
What makes the NSP-150-60 different from a standard enclosed power supply?
Compared with a basic enclosed AC/DC power supply, the NSP-150-60 adds high-reliability features such as active PFC, 200% peak power capability for up to 5 seconds, remote ON/OFF control, remote sense, and a DC OK signal. It is also designed for a wider range of industrial and medical use cases than a typical general-purpose model.
What input range does the NSP-150-60 support?
The NSP-150-60 accepts a universal input range of 85-305VAC or 120-431VDC. This broad range helps it fit applications deployed across different power environments without requiring a region-specific version.
Is the NSP-150-60 suitable for systems that need monitoring or control features?
Yes. This model includes remote ON/OFF control, remote sense with up to 0.3V compensation, and a DC OK signal output for system monitoring. Those features make it a stronger fit for controlled or monitored equipment than a basic fixed-output supply.
What warranty and expected service life does the NSP-150-60 offer?
Mean Well specifies a 5-year warranty for the NSP-150-60. The product description also lists an MTBF above 2,000,000 hours based on Telcordia SR-332, supporting its positioning as a long-life high-reliability power supply.
