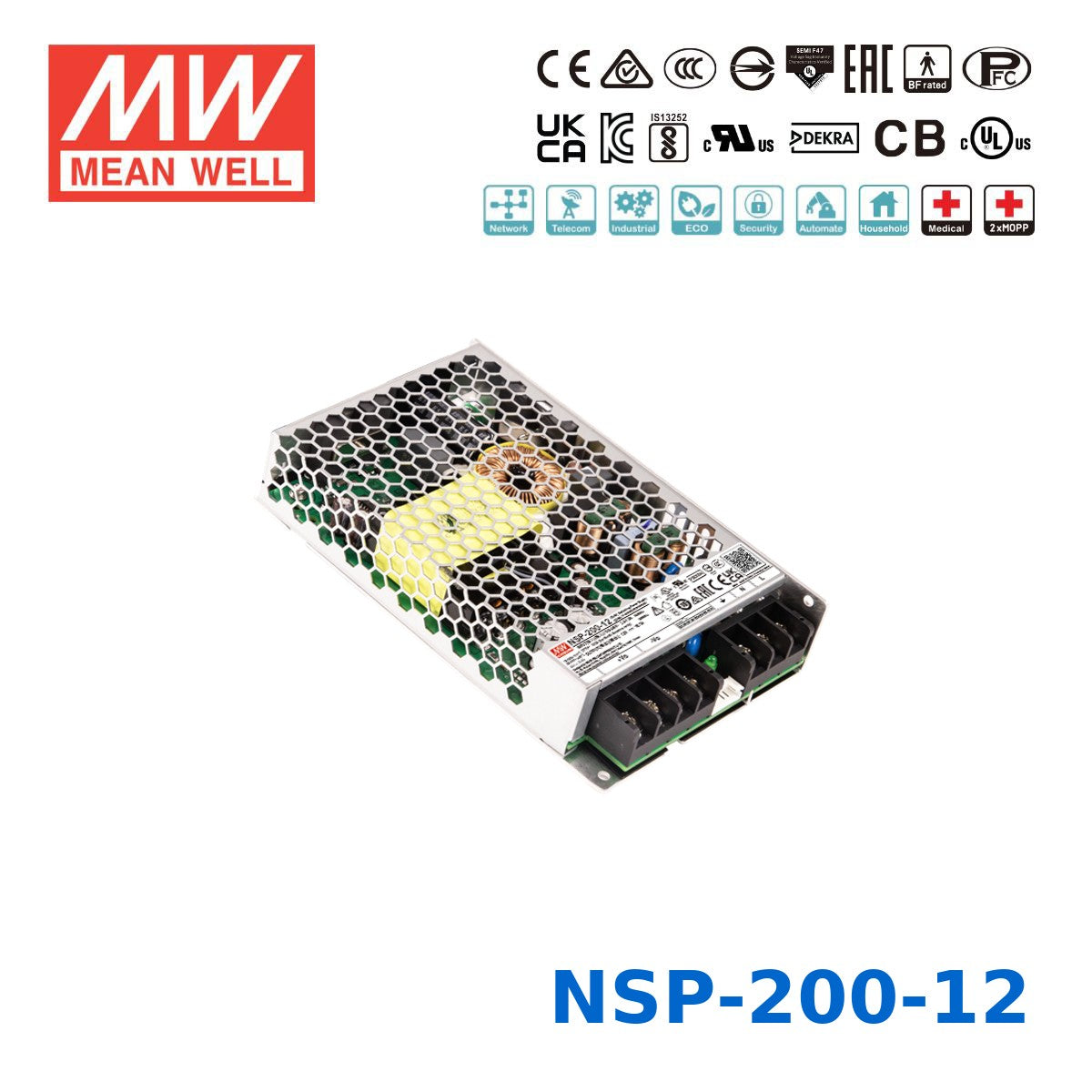

Mean Well 200.4W High Reliable Multi-Industries Power Supply 12V 16.7A
Description
Description
The MEAN WELL NSP-200 series is a 200W high-reliability AC/DC enclosed power supply engineered for a wide range of industrial, medical, and automation applications. With a universal 85–305VAC input and built-in active PFC, it delivers up to 94.5% efficiency and extremely low no-load power consumption for improved energy savings. The compact 159×97×30 mm design supports fanless convection cooling and operates across an ultra-wide temperature range from –40°C to +85°C. The NSP-200 series features 200% peak power capability, constant current limiting, remote ON/OFF control, remote sense, and a DC OK signal for system monitoring. Certified to global safety standards—including IEC/EN/UL 62368-1, 60601-1 (2×MOPP, BF rated), 60335-1, 61010-1, and 62477-1—the NSP-200 series ensures robust performance for industrial controllers, medical devices, security equipment, telecommunications, PoE systems, and automation projects.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating200.4 Watt
-
Output Voltage12 Volt
-
Rated Current16.7 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.18 in
-
Weight1.1 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Mean Well NSP-200-12 best suited for?
The NSP-200-12 is designed for industrial, medical, automation, telecom, PoE, security, and home automation equipment that needs a regulated 12V DC output. Its 200.4W rating and 16.7A current capacity make it a strong fit for higher-demand 12V systems where reliability and long operating life matter.
What are the main electrical specifications of the NSP-200-12?
This model provides a 12V DC output rated at up to 16.7A, with a total power rating of 200.4W. It accepts a universal 85-305VAC input range, or 120-431VDC, and includes active power factor correction for efficient operation across global mains conditions.
Can the NSP-200-12 operate in harsh temperature conditions?
Yes. The unit is specified for operation from -40°C to +85°C, with derating required above +60°C. Its fanless convection-cooled design and conformal coated PCB help support use in demanding industrial environments.
Is the NSP-200-12 suitable for medical or high-reliability equipment?
Yes, this model is positioned as a high-reliability power supply and includes IEC/EN/UL 60601-1 medical safety certification with 2xMOPP and BF-rated compliance. It also has very low leakage current below 350uA, which is important for medical and sensitive electronic applications.
How does the NSP-200-12 compare with standard 12V enclosed power supplies?
Compared with many standard enclosed AC/DC supplies, the NSP-200-12 stands out for its wide 85-305VAC input range, high efficiency up to 94.5%, and 200% peak power capability on 12-60V models. It also adds higher-end features such as remote ON/OFF, remote sense, and a DC OK signal for system monitoring.
What protection and monitoring features are built into the NSP-200-12?
The NSP-200-12 includes short circuit, overload, overvoltage, and overtemperature protection. For system-level control and status feedback, it also provides constant current limiting, remote ON/OFF control, remote sense with up to 0.3V compensation, and a built-in DC OK signal.
