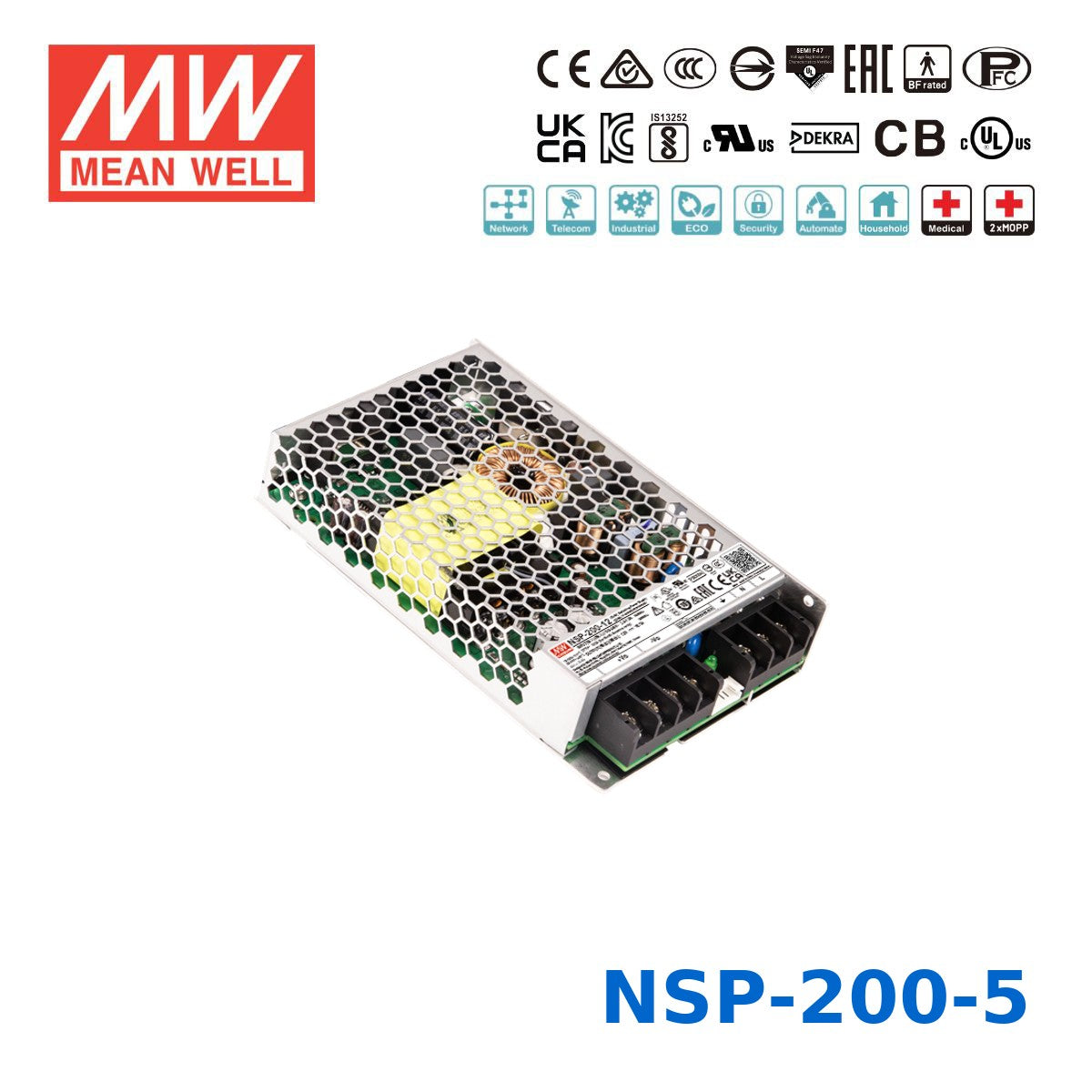

Mean Well 200W High Reliable Multi-Industries Power Supply 5V 40A
Description
Description
The MEAN WELL NSP-200 series is a 200W high-reliability AC/DC enclosed power supply engineered for a wide range of industrial, medical, and automation applications. With a universal 85–305VAC input and built-in active PFC, it delivers up to 94.5% efficiency and extremely low no-load power consumption for improved energy savings. The compact 159×97×30 mm design supports fanless convection cooling and operates across an ultra-wide temperature range from –40°C to +85°C. The NSP-200 series features 200% peak power capability, constant current limiting, remote ON/OFF control, remote sense, and a DC OK signal for system monitoring. Certified to global safety standards—including IEC/EN/UL 62368-1, 60601-1 (2×MOPP, BF rated), 60335-1, 61010-1, and 62477-1—the NSP-200 series ensures robust performance for industrial controllers, medical devices, security equipment, telecommunications, PoE systems, and automation projects.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating200 Watt
-
Output Voltage5 Volt
-
Rated Current40 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.18 in
-
Weight1.1 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output of the Mean Well NSP-200-5 power supply?
The NSP-200-5 is a 200W enclosed AC/DC power supply with a 5V DC output rated at up to 40A. It is designed for applications that need high current at low voltage in a compact industrial-grade form factor.
What types of applications is the NSP-200-5 suited for?
This model is intended for high-reliability industrial and commercial systems such as automation equipment, industrial controllers, security devices, telecommunications equipment, PoE-related systems, and some medical applications. Its broad certifications and robust protection features make it suitable for demanding OEM and B2B environments.
Can the NSP-200-5 operate in harsh temperature conditions?
Yes. The NSP-200-5 is specified for operation from -40°C to +85°C, with derating required above +60°C. It also uses fanless convection cooling and a conformal coated PCB to support reliable performance in challenging environments.
Does the NSP-200-5 support medical or safety-critical equipment requirements?
The NSP-200 series includes medical-related compliance such as IEC/EN/UL 60601-1 with 2xMOPP and BF-rated characteristics, along with multiple industrial safety standards. That makes this model a strong candidate for regulated equipment, but final suitability depends on the full system design and approval requirements.
What makes the NSP-200-5 different from a standard enclosed 5V power supply?
Compared with basic enclosed supplies, the NSP-200-5 emphasizes high reliability, wide input range, very high efficiency, low no-load power consumption, and broader safety coverage. It also includes features such as active PFC, remote ON/OFF, remote sense, and a DC OK signal for system monitoring.
What input range does the NSP-200-5 accept?
The NSP-200-5 accepts a universal 85-305VAC input range and also supports 120-431VDC input. This wide input capability helps OEMs and industrial buyers standardize across different regions and power environments.
Is the NSP-200-5 designed for energy-efficient operation?
Yes. The NSP-200 series reaches efficiency up to 94.5% and has very low no-load power consumption, specified below about 0.3-0.5W depending on the model conditions. That helps reduce wasted energy and heat in always-on or high-duty-cycle systems.
What protection and monitoring features are included in the NSP-200-5?
The NSP-200-5 includes protection against short circuit, overload, overvoltage, and overtemperature. It also provides a DC OK signal for status monitoring, which is useful in equipment that needs fault visibility or supervisory control.
