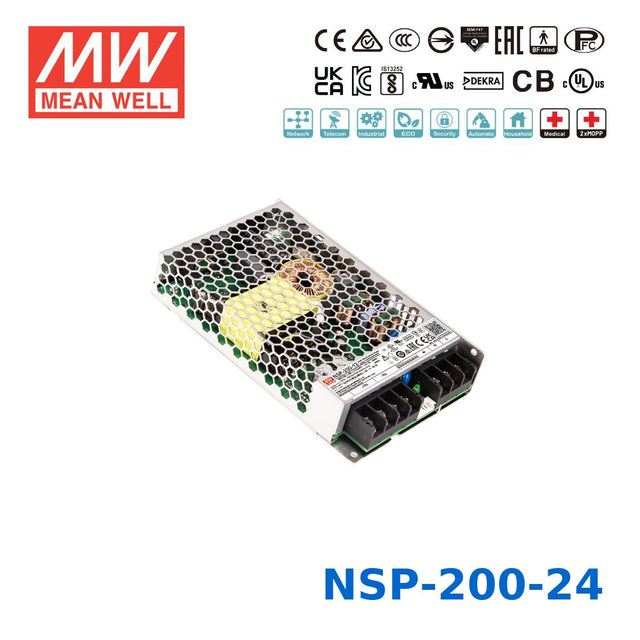

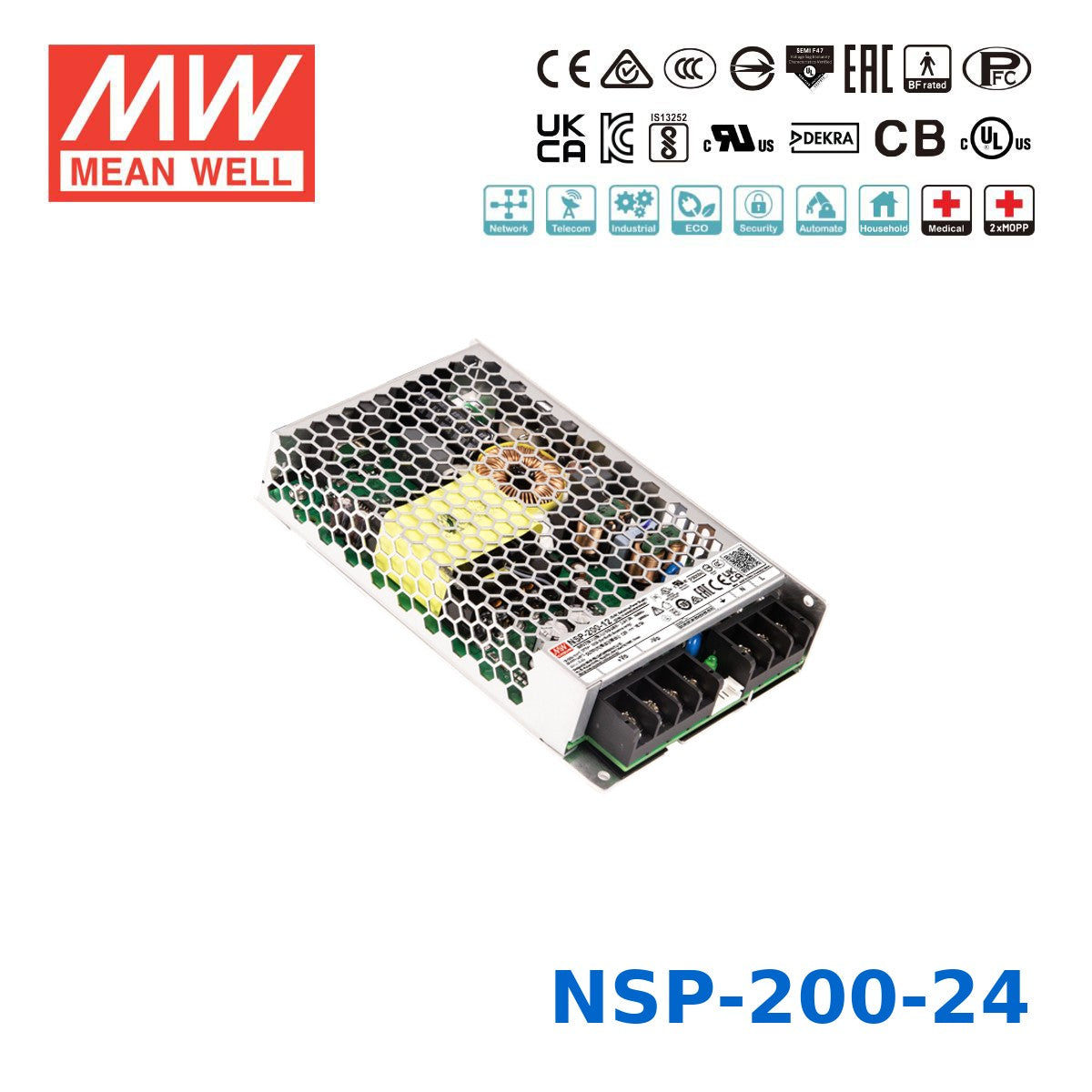

Mean Well 201.6W High Reliable Multi-Industries Power Supply 24V 8.4A
Description
Description
The MEAN WELL NSP-200 series is a 200W high-reliability AC/DC enclosed power supply engineered for a wide range of industrial, medical, and automation applications. With a universal 85–305VAC input and built-in active PFC, it delivers up to 94.5% efficiency and extremely low no-load power consumption for improved energy savings. The compact 159×97×30 mm design supports fanless convection cooling and operates across an ultra-wide temperature range from –40°C to +85°C. The NSP-200 series features 200% peak power capability, constant current limiting, remote ON/OFF control, remote sense, and a DC OK signal for system monitoring. Certified to global safety standards—including IEC/EN/UL 62368-1, 60601-1 (2×MOPP, BF rated), 60335-1, 61010-1, and 62477-1—the NSP-200 series ensures robust performance for industrial controllers, medical devices, security equipment, telecommunications, PoE systems, and automation projects.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating201.6 Watt
-
Output Voltage24 Volt
-
Rated Current8.4 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.18 in
-
Weight1.1 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the NSP-200-24?
The NSP-200-24 is a 24V AC/DC enclosed power supply rated for 8.4A continuous output. Its power rating is 201.6W, making it suitable for systems that need a stable 24V industrial power source.
What types of applications is the NSP-200-24 designed for?
This model is intended for high-reliability applications across industrial, medical, automation, telecom, security, and PoE-related systems. Its feature set, including remote ON/OFF, DC OK monitoring, and high efficiency, makes it a strong fit for demanding OEM and control environments.
Can the NSP-200-24 operate in harsh temperature conditions?
Yes. The NSP-200-24 is specified for operation from -40°C to +85°C, which supports use in challenging environments. Output derating applies above +60°C, so high-temperature operation should be evaluated against the application's load requirements.
What makes the NSP-200-24 suitable for high-reliability or regulated environments?
This model includes a conformal coated PCB, active PFC, multiple protection functions, and a DC OK signal for status monitoring. It is also certified to a broad set of standards including IEC/EN/UL 62368-1, 60601-1, 60335-1, 61010-1, and 62477-1, which supports use in regulated and mission-critical equipment.
Does the NSP-200-24 support medical equipment applications?
Yes, the NSP-200-24 includes IEC/EN/UL 60601-1 medical safety approvals and is described as 2xMOPP and BF rated. It also features very low leakage current, which is important in medical-related power supply selection.
What input range does the NSP-200-24 accept?
The NSP-200-24 accepts a universal 85-305VAC input range and also supports 120-431VDC input. This wide input capability helps it fit projects deployed across different regions and power environments.
Is the NSP-200-24 fan-cooled or fanless?
The NSP-200-24 uses fanless convection cooling in a compact enclosed form factor. Its dimensions are 159 x 97 x 30 mm, which helps where quiet operation and compact packaging are priorities.
What protection and monitoring features are included in the NSP-200-24?
The power supply includes protection for short circuit, overload, overvoltage, and overtemperature conditions. It also provides remote ON/OFF control, remote sense up to 0.3V compensation, and a built-in DC OK signal for system status monitoring.
