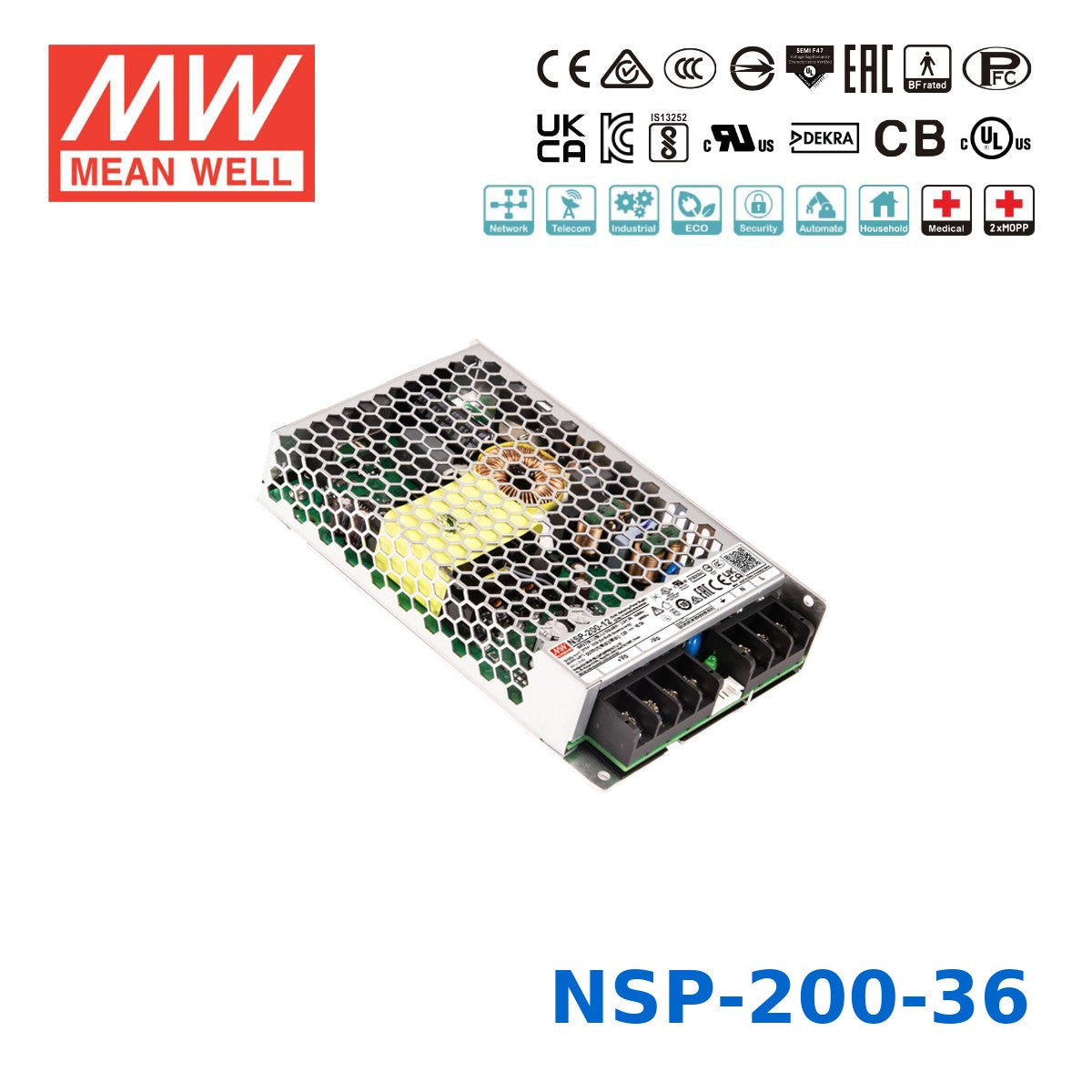

Mean Well 201.6W High Reliable Multi-Industries Power Supply 36V 5.6A
Description
Description
The MEAN WELL NSP-200 series is a 200W high-reliability AC/DC enclosed power supply engineered for a wide range of industrial, medical, and automation applications. With a universal 85–305VAC input and built-in active PFC, it delivers up to 94.5% efficiency and extremely low no-load power consumption for improved energy savings. The compact 159×97×30 mm design supports fanless convection cooling and operates across an ultra-wide temperature range from –40°C to +85°C. The NSP-200 series features 200% peak power capability, constant current limiting, remote ON/OFF control, remote sense, and a DC OK signal for system monitoring. Certified to global safety standards—including IEC/EN/UL 62368-1, 60601-1 (2×MOPP, BF rated), 60335-1, 61010-1, and 62477-1—the NSP-200 series ensures robust performance for industrial controllers, medical devices, security equipment, telecommunications, PoE systems, and automation projects.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating201.6 Watt
-
Output Voltage36 Volt
-
Rated Current5.6 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.18 in
-
Weight1.1 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well NSP-200-36?
The NSP-200-36 provides a nominal 36V DC output at 5.6A, with a total power rating of 201.6W. It is part of Mean Well's high-reliability NSP-200 series for demanding industrial and medical applications.
What types of applications is the NSP-200-36 designed for?
This model is intended for industrial automation, medical equipment, security systems, telecommunications, PoE systems, and similar high-reliability applications. Its certifications, DC OK signal, remote ON/OFF control, and remote sense support make it suitable for professional embedded power designs.
Can the NSP-200-36 operate in harsh temperature environments?
Yes. The NSP-200-36 is rated for operation from -40°C to +85°C, with derating required above +60°C. It also uses fanless convection cooling and a conformal coated PCB for better durability in demanding environments.
What makes the NSP-200-36 a high-reliability power supply?
This model combines high efficiency up to 94.5%, active PFC, low no-load power consumption, and built-in protections for short circuit, overload, overvoltage, and overtemperature. It also includes remote sense, remote ON/OFF control, and a DC OK signal for system monitoring in critical applications.
Is the Mean Well NSP-200-36 suitable for medical equipment use?
Yes, the NSP-200-36 is certified to IEC/EN/UL 60601-1 and supports 2xMOPP medical compliance with BF rated characteristics. It also features very low leakage current below 350uA, which is important in medical-grade power applications.
What input range does the NSP-200-36 support?
The NSP-200-36 accepts a universal input range of 85-305VAC or 120-431VDC. This wide input capability makes it suitable for global equipment designs and applications where input conditions may vary.
Does the NSP-200-36 support peak power demands?
Yes. Mean Well specifies 200% peak power capability for NSP-200 models in the 12V to 60V range, which includes the 36V version. This helps the unit handle temporary high-demand loads more effectively than a standard fixed-output supply.
What warranty is included with the NSP-200-36?
The NSP-200-36 includes a 5-year warranty from Mean Well. That warranty period aligns with the product's positioning as a long-life, high-reliability enclosed power supply for professional applications.
