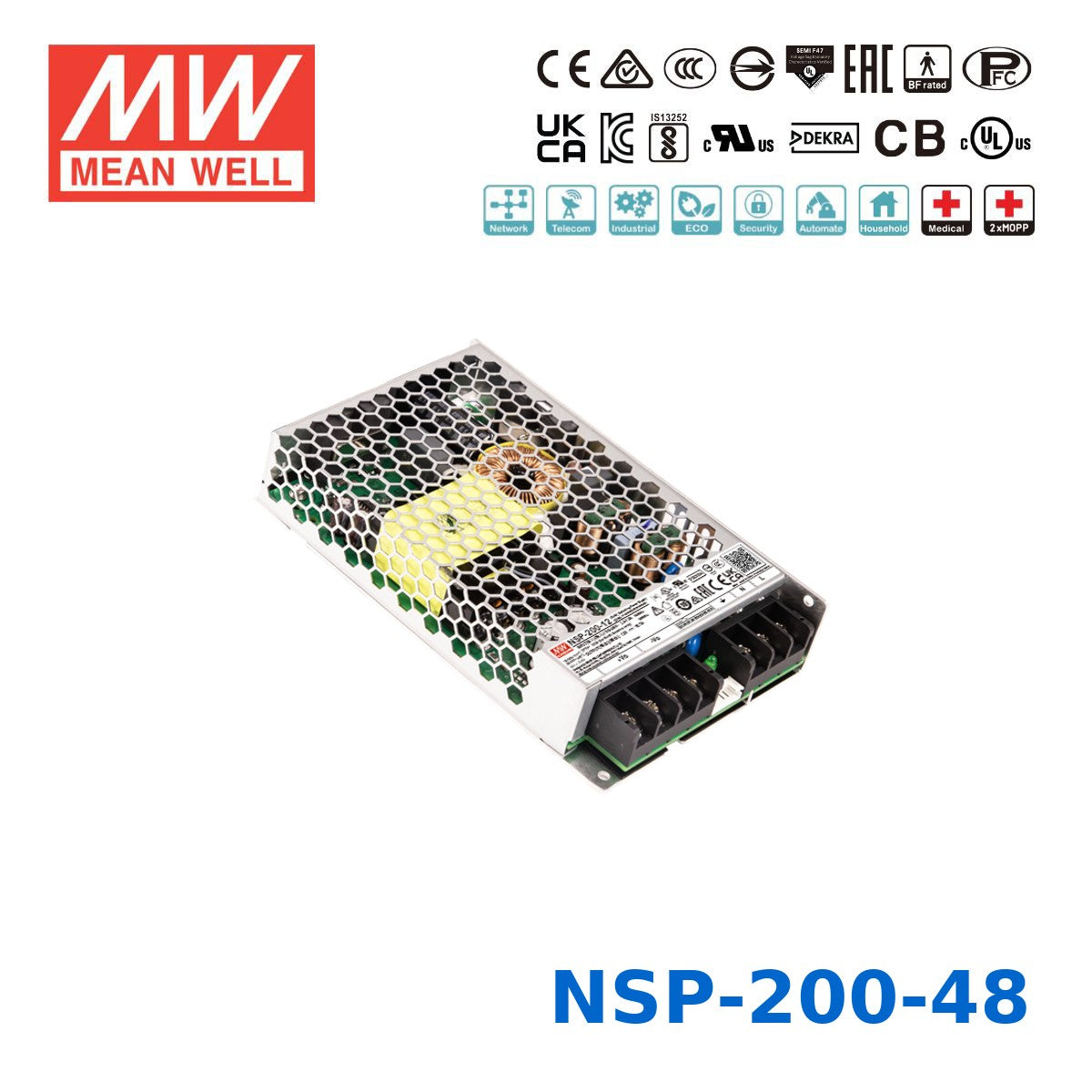

Mean Well 201.6W High Reliable Multi-Industries Power Supply 48V 4.2A
Description
Description
The MEAN WELL NSP-200 series is a 200W high-reliability AC/DC enclosed power supply engineered for a wide range of industrial, medical, and automation applications. With a universal 85–305VAC input and built-in active PFC, it delivers up to 94.5% efficiency and extremely low no-load power consumption for improved energy savings. The compact 159×97×30 mm design supports fanless convection cooling and operates across an ultra-wide temperature range from –40°C to +85°C. The NSP-200 series features 200% peak power capability, constant current limiting, remote ON/OFF control, remote sense, and a DC OK signal for system monitoring. Certified to global safety standards—including IEC/EN/UL 62368-1, 60601-1 (2×MOPP, BF rated), 60335-1, 61010-1, and 62477-1—the NSP-200 series ensures robust performance for industrial controllers, medical devices, security equipment, telecommunications, PoE systems, and automation projects.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating201.6 Watt
-
Output Voltage48 Volt
-
Rated Current4.2 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.18 in
-
Weight1.1 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the NSP-200-48 provide?
The Mean Well NSP-200-48 delivers a regulated 48V DC output at up to 4.2A, for a total power rating of 201.6W. It is part of the high-reliability NSP-200 enclosed AC/DC power supply series.
What kinds of applications is the NSP-200-48 designed for?
This model is intended for demanding industrial and commercial use cases such as automation equipment, industrial controllers, telecommunications, PoE systems, security equipment, and medical devices. Its high-reliability design and broad safety approvals make it suitable for multi-industry OEM and system integration projects.
Is the NSP-200-48 suitable for harsh temperature environments?
Yes. The NSP-200-48 is specified for operation from -40°C to +85°C, with derating above +60°C. It also uses fanless convection cooling and a conformal coated PCB to support reliable performance in challenging environments.
What makes the NSP-200-48 a high-reliability power supply?
This model combines up to 94.5% efficiency, active PFC, low no-load power consumption, comprehensive protection functions, and a built-in DC OK signal for status monitoring. It also supports remote ON/OFF control, remote sense, and 200% peak power capability within the 12V to 60V models in the NSP-200 series.
What input range does the NSP-200-48 support?
The NSP-200-48 accepts a universal input range of 85-305VAC or 120-431VDC. This wide input range helps it fit a broad range of global industrial and embedded power applications.
What safety and compliance standards does the NSP-200-48 meet?
The NSP-200-48 is certified to major safety standards including IEC/EN/UL 62368-1, 60601-1, 60335-1, 61558-1/-2-16, 61010-1/-2-201, and 62477-1. The NSP-200 series also includes 2xMOPP medical compliance with BF rated classification and EMC compliance to standards such as EN55032 and EN55035.
Does the NSP-200-48 include protection and monitoring features for system-level use?
Yes. This model includes protection against short circuit, overload, overvoltage, and overtemperature. It also provides a DC OK signal for monitoring, along with remote ON/OFF control and remote sense compensation up to 0.3V.
