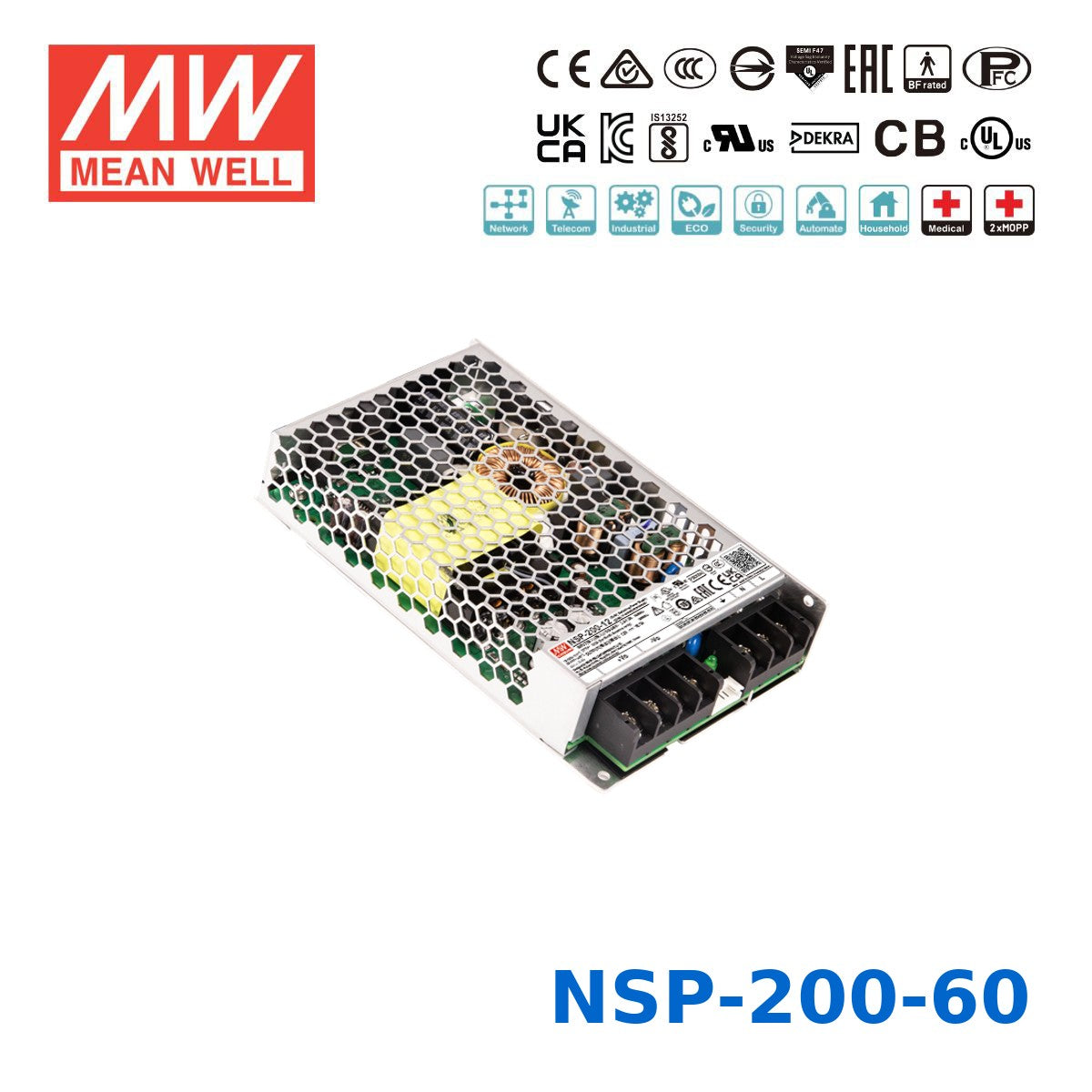

Mean Well 201.6W High Reliable Multi-Industries Power Supply 60V 3.36A
Description
Description
The MEAN WELL NSP-200 series is a 200W high-reliability AC/DC enclosed power supply engineered for a wide range of industrial, medical, and automation applications. With a universal 85–305VAC input and built-in active PFC, it delivers up to 94.5% efficiency and extremely low no-load power consumption for improved energy savings. The compact 159×97×30 mm design supports fanless convection cooling and operates across an ultra-wide temperature range from –40°C to +85°C. The NSP-200 series features 200% peak power capability, constant current limiting, remote ON/OFF control, remote sense, and a DC OK signal for system monitoring. Certified to global safety standards—including IEC/EN/UL 62368-1, 60601-1 (2×MOPP, BF rated), 60335-1, 61010-1, and 62477-1—the NSP-200 series ensures robust performance for industrial controllers, medical devices, security equipment, telecommunications, PoE systems, and automation projects.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating201.6 Watt
-
Output Voltage60 Volt
-
Rated Current3.36 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.18 in
-
Weight1.1 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the NSP-200-60 power supply?
The Mean Well NSP-200-60 is rated for 201.6W total output power. It provides a 60V DC output with a rated current of 3.36A. This makes it suitable for systems that need a higher-voltage enclosed AC/DC supply in a compact form factor.
What types of applications is the NSP-200-60 designed for?
This model is intended for high-reliability applications across industrial, medical, automation, telecom, PoE, security, and home automation equipment. Its feature set includes remote ON/OFF, remote sense, DC OK monitoring, and broad safety approvals. Those attributes make it a strong fit for OEM and system-integrator use in demanding environments.
Is the NSP-200-60 suitable for medical equipment?
Yes, the NSP-200-60 is part of a series certified to IEC/EN/UL 60601-1 with 2xMOPP and BF-rated characteristics. It also features very low leakage current of less than 350uA. Buyers should still confirm the full end-equipment compliance requirements for their specific medical device.
How does the NSP-200-60 handle harsh operating environments?
The NSP-200-60 supports fanless convection cooling and operates across an ultra-wide temperature range from -40C to +85C. Derating applies above +60C, which is important for high-temperature enclosures. The conformal coated PCB also helps improve durability in challenging industrial environments.
What input range does the NSP-200-60 accept?
This model supports a universal input range of 85-305VAC or 120-431VDC. That wide input window helps simplify use across different regions and power systems. It also includes active power factor correction for improved power performance.
What makes the NSP-200-60 different from a standard 200W enclosed power supply?
Compared with more basic 200W enclosed supplies, the NSP-200-60 emphasizes high reliability, broad certifications, and advanced control features. It offers up to 94.5% efficiency, 200% peak power capability on 12-60V models, remote sense, remote ON/OFF, and a DC OK signal. That combination is especially useful in industrial and medical systems where monitoring and performance margins matter.
What protection and monitoring features are included in the NSP-200-60?
The NSP-200-60 includes protection for short circuit, overload, overvoltage, and overtemperature conditions. It also provides constant current limiting for demanding loads. For system status monitoring, the unit includes a built-in DC OK signal and supports remote sense compensation up to 0.3V.
What warranty is offered with the NSP-200-60?
The NSP-200-60 is backed by a 5-year warranty. That warranty period aligns with the series' positioning as a high-reliability power supply for professional applications. It can be an important consideration for OEMs and industrial buyers focused on lifecycle and maintenance planning.
