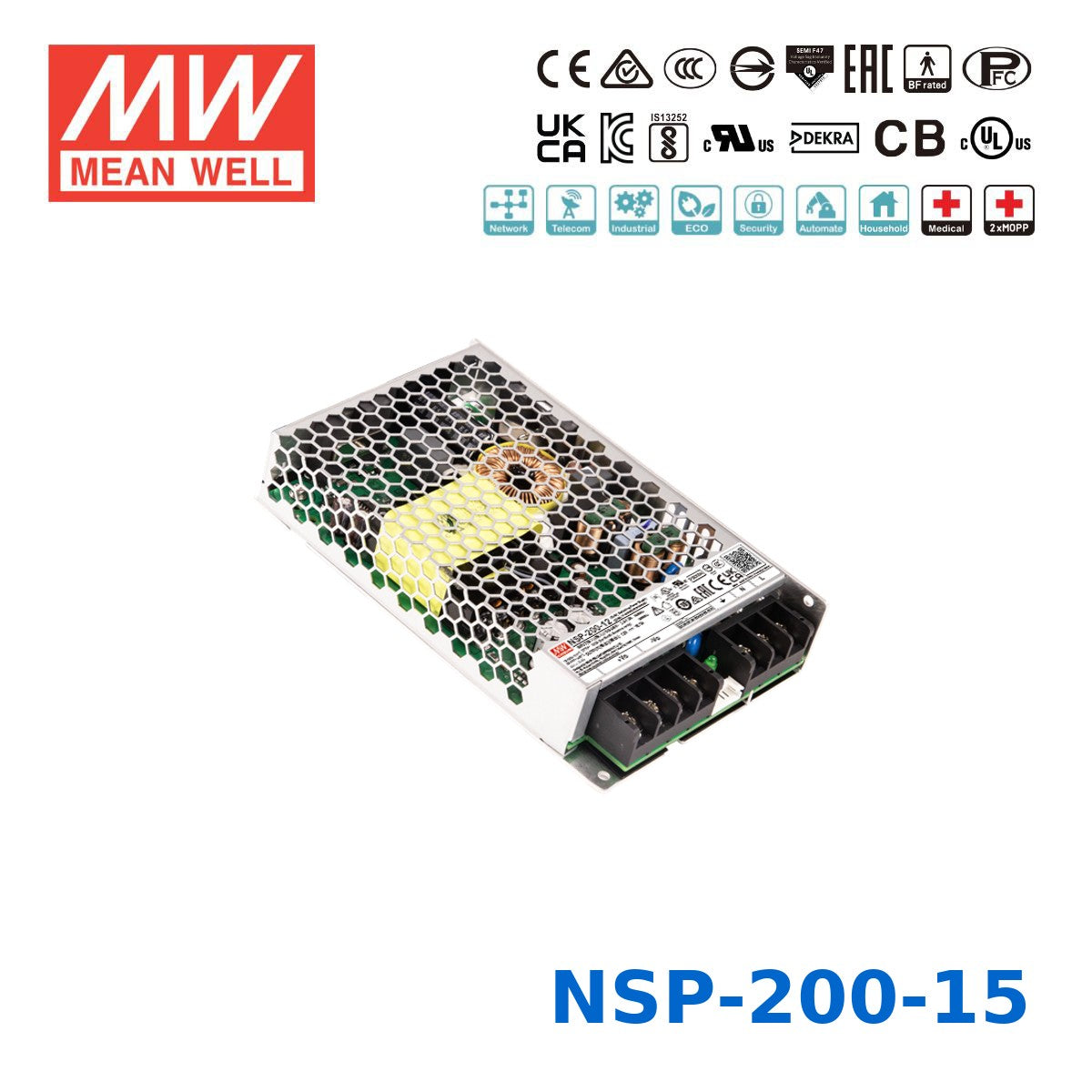

Mean Well 201W High Reliable Multi-Industries Power Supply 15V 13.4A
Description
Description
The MEAN WELL NSP-200 series is a 200W high-reliability AC/DC enclosed power supply engineered for a wide range of industrial, medical, and automation applications. With a universal 85–305VAC input and built-in active PFC, it delivers up to 94.5% efficiency and extremely low no-load power consumption for improved energy savings. The compact 159×97×30 mm design supports fanless convection cooling and operates across an ultra-wide temperature range from –40°C to +85°C. The NSP-200 series features 200% peak power capability, constant current limiting, remote ON/OFF control, remote sense, and a DC OK signal for system monitoring. Certified to global safety standards—including IEC/EN/UL 62368-1, 60601-1 (2×MOPP, BF rated), 60335-1, 61010-1, and 62477-1—the NSP-200 series ensures robust performance for industrial controllers, medical devices, security equipment, telecommunications, PoE systems, and automation projects.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating201 Watt
-
Output Voltage15 Volt
-
Rated Current13.4 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.18 in
-
Weight1.1 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the NSP-200-15 provide?
The Mean Well NSP-200-15 is a 201W enclosed AC/DC power supply with a 15V DC output and a rated current of 13.4A. It is designed for applications that need a stable higher-current 15V supply in a compact industrial form factor.
What kinds of equipment is the NSP-200-15 suited for?
This model is intended for industrial, medical, automation, telecom, PoE, and security-related systems where a reliable 15V power source is required. Its high-reliability design, DC OK signal, remote ON/OFF, and remote sense support make it a good fit for monitored and performance-sensitive equipment.
Can the NSP-200-15 operate in harsh temperature conditions?
Yes. The NSP-200-15 is rated for operation from -40°C to +85°C, with derating required above +60°C. It also uses fanless convection cooling and a conformal coated PCB, which helps it suit demanding industrial environments.
Does the NSP-200-15 support medical or safety-critical equipment requirements?
This model is part of a series certified to multiple global safety standards, including IEC/EN/UL 62368-1 and IEC/EN/UL 60601-1. The series also includes 2xMOPP medical compliance and BF-rated design characteristics, making it relevant for medical and other high-reliability applications where those approvals matter.
How efficient is the NSP-200-15 for continuous operation?
The NSP-200 series reaches efficiency up to 94.5% and is designed with very low no-load power consumption. That combination helps reduce wasted energy and heat, which is useful in systems expected to run for long periods.
What makes the NSP-200-15 different from standard enclosed power supplies?
Compared with general-purpose enclosed supplies, the NSP-200-15 emphasizes high reliability, wide operating temperature range, active PFC, low leakage current, and broad safety approvals. It also includes features such as 200% peak power capability, constant current limiting, remote sense, remote ON/OFF, and a DC OK signal for system-level monitoring.
Is the NSP-200-15 appropriate for systems with unstable or wide-range AC input?
Yes. The NSP-200-15 accepts a universal 85-305VAC input range, which makes it suitable for equipment used across different mains environments. It also supports 120-431VDC input, adding flexibility for broader industrial deployment.
