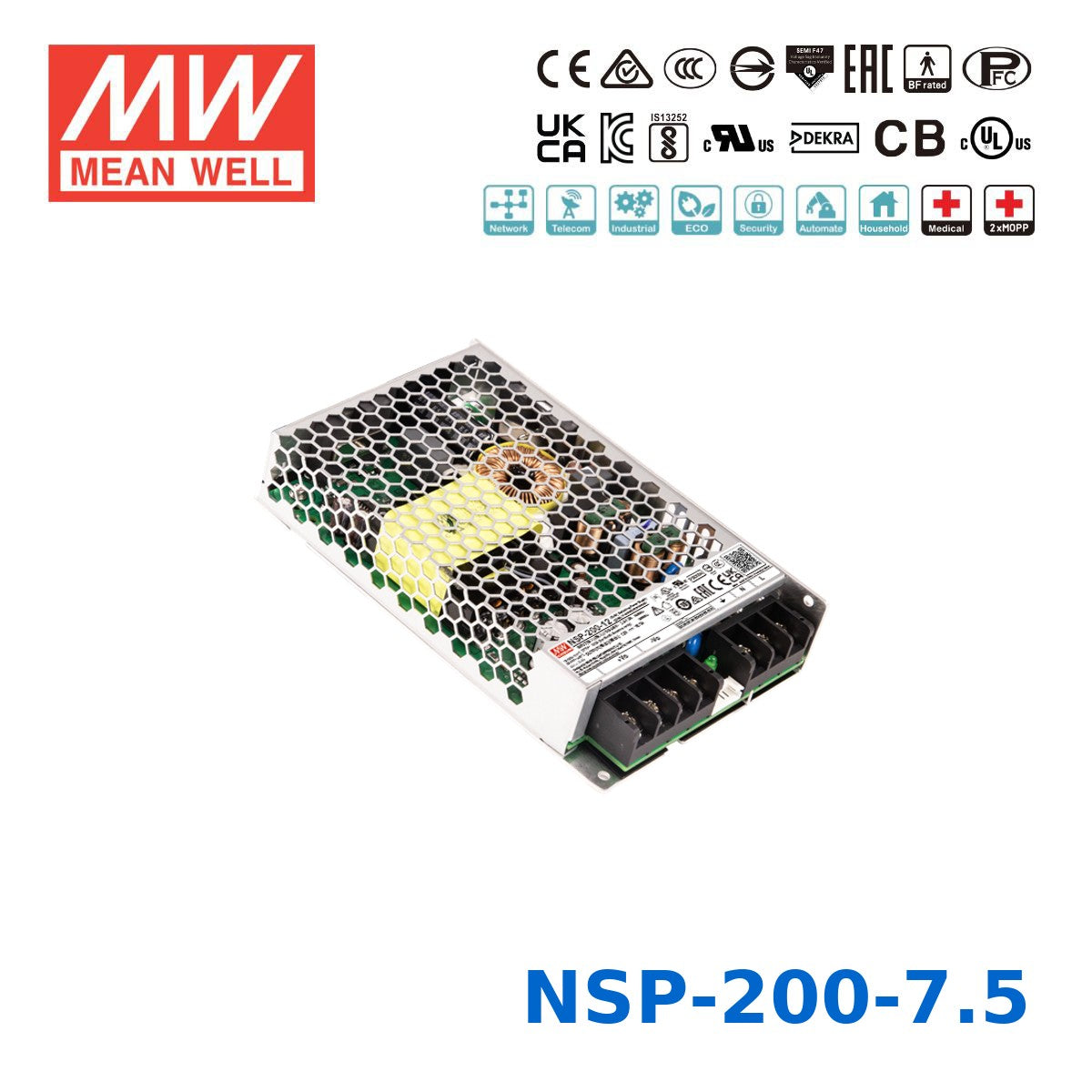

Mean Well 201W High Reliable Multi-Industries Power Supply 7.5V 26.8A
Description
Description
The MEAN WELL NSP-200 series is a 200W high-reliability AC/DC enclosed power supply engineered for a wide range of industrial, medical, and automation applications. With a universal 85–305VAC input and built-in active PFC, it delivers up to 94.5% efficiency and extremely low no-load power consumption for improved energy savings. The compact 159×97×30 mm design supports fanless convection cooling and operates across an ultra-wide temperature range from –40°C to +85°C. The NSP-200 series features 200% peak power capability, constant current limiting, remote ON/OFF control, remote sense, and a DC OK signal for system monitoring. Certified to global safety standards—including IEC/EN/UL 62368-1, 60601-1 (2×MOPP, BF rated), 60335-1, 61010-1, and 62477-1—the NSP-200 series ensures robust performance for industrial controllers, medical devices, security equipment, telecommunications, PoE systems, and automation projects.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating201 Watt
-
Output Voltage7.5 Volt
-
Rated Current26.8 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.18 in
-
Weight1.1 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output ratings of the Mean Well NSP-200-7.5?
The NSP-200-7.5 is a 201W enclosed AC/DC power supply with a 7.5V DC output and 26.8A rated current. It is designed for high-reliability applications and supports a wide 85-305VAC input range with active power factor correction.
What types of applications is the NSP-200-7.5 intended for?
This model is intended for demanding industrial and high-reliability use cases such as industrial controllers, automation equipment, security systems, telecommunications equipment, PoE systems, and medical devices. Its DC OK signal, remote ON/OFF control, remote sense, and broad safety certifications make it suitable for systems that need monitoring and dependable operation.
Can the NSP-200-7.5 be used in harsh temperature environments?
Yes. The NSP-200-7.5 is specified for operation from -40°C to +85°C, with derating above +60°C. It also uses fanless convection cooling and a conformal coated PCB, which supports use in tougher industrial environments.
Does the NSP-200-7.5 support medical or safety-critical equipment requirements?
This model includes IEC/EN/UL 60601-1 approval with 2xMOPP and BF-rated compliance, along with certifications to 62368-1, 60335-1, 61010-1, and 62477-1. Those approvals make it a strong candidate for regulated equipment where safety standards and low leakage current are important.
What makes the NSP-200-7.5 different from a standard enclosed power supply?
Compared with basic enclosed power supplies, the NSP-200-7.5 is positioned as a high-reliability model with up to 94.5% efficiency, very low no-load power consumption, remote sense, remote ON/OFF control, a DC OK signal, and broad industrial and medical certifications. It is also built for a wider operating temperature range and includes protective features such as short circuit, overload, overvoltage, and overtemperature protection.
Is the NSP-200-7.5 suitable for systems that need status monitoring or remote control?
Yes. The NSP-200-7.5 includes a built-in DC OK signal for power status monitoring, plus remote ON/OFF control for system-level management. It also supports remote sense with up to 0.3V compensation, which is useful where voltage accuracy at the load matters.
