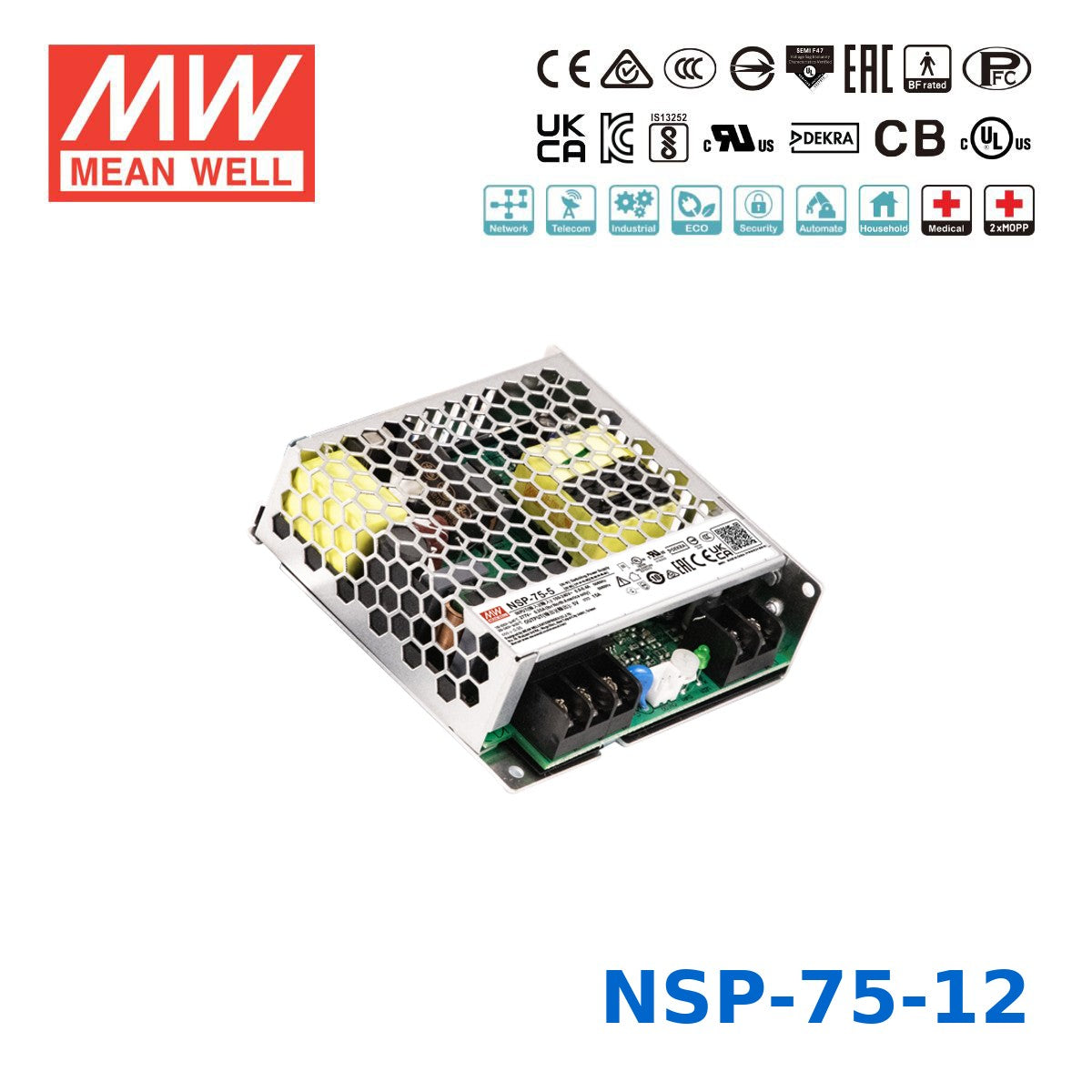

Mean Well 75.6W High Reliable Multi-Industries Power Supply 12V 6.3A
Description
Description
The MEAN WELL NSP-75 series is a 75W high-reliability AC/DC enclosed power supply designed for industrial, medical, and multi-industry applications. With a universal 85–305VAC input range and up to 92% efficiency, it ensures stable operation in a wide temperature range from -40°C to +85°C. Featuring a fanless design, 200% peak power capability, and remote ON/OFF control, the NSP-75 delivers exceptional reliability and performance in compact form. It meets global safety standards including IEC/EN/UL 62368-1, 60601-1 (medical BF rated, 2×MOPP), 60335-1, 61558-1/-2-16, and 61010-1/-2-201, making it suitable for medical equipment, automation systems, and telecommunications.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating75.6 Watt
-
Output Voltage12 Volt
-
Rated Current6.3 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.66 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well NSP-75-12 used for?
The NSP-75-12 is a 75.6W enclosed AC/DC power supply designed for high-reliability applications. It is positioned for industrial equipment, medical devices, automation systems, telecommunications, and home systems where stable 12V DC output is required.
What are the output ratings of the NSP-75-12?
This model provides a 12V DC output with a rated current of 6.3A. Its total power rating is 75.6W, which makes it suitable for equipment that needs a regulated 12V supply within that power range.
What input voltage range does the NSP-75-12 support?
The NSP-75-12 accepts a universal input range of 85-305VAC or 120-431VDC. That wide range helps it fit global power environments and a variety of commercial and industrial applications.
Can the NSP-75-12 be used in harsh temperature conditions?
Yes. This model is rated for operation from -40°C to +85°C, with derating above +60°C. That makes it a strong option for demanding indoor industrial environments where temperature range matters.
What makes the NSP-75-12 a high-reliability power supply?
The NSP-75-12 combines up to 92% efficiency, a fanless design, conformal coating, and multiple built-in protections including overload, short circuit, overvoltage, and overtemperature protection. It also includes active PFC, remote ON/OFF control, and a 5-year warranty for long-term reliability.
Is the NSP-75-12 suitable for medical or regulated equipment applications?
This model is certified to multiple global safety standards, including IEC/EN/UL 62368-1 and 60601-1. It is described as medical BF rated with 2 x MOPP compliance, and it also features low leakage current below 350uA for applications where those requirements are important.
