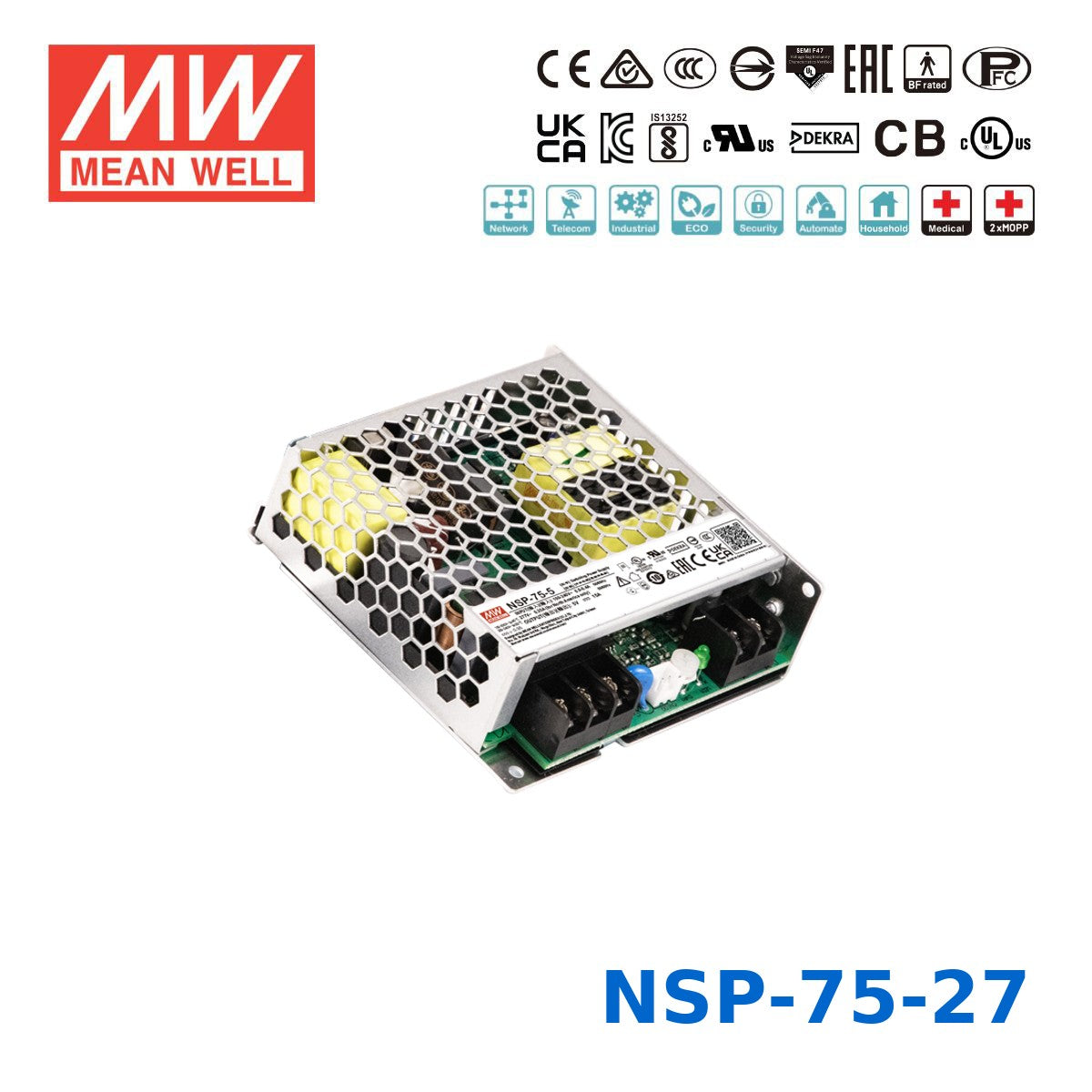

Mean Well 75.6W High Reliable Multi-Industries Power Supply 27V 2.8A
Description
Description
The MEAN WELL NSP-75 series is a 75W high-reliability AC/DC enclosed power supply designed for industrial, medical, and multi-industry applications. With a universal 85–305VAC input range and up to 92% efficiency, it ensures stable operation in a wide temperature range from -40°C to +85°C. Featuring a fanless design, 200% peak power capability, and remote ON/OFF control, the NSP-75 delivers exceptional reliability and performance in compact form. It meets global safety standards including IEC/EN/UL 62368-1, 60601-1 (medical BF rated, 2×MOPP), 60335-1, 61558-1/-2-16, and 61010-1/-2-201, making it suitable for medical equipment, automation systems, and telecommunications.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating75.6 Watt
-
Output Voltage27 Volt
-
Rated Current2.8 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.66 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well NSP-75-27?
The NSP-75-27 is rated for 27V DC output at 2.8A, with a total power rating of 75.6W. It is designed as a high-reliability enclosed AC/DC power supply for demanding industrial and medical applications.
What types of applications is the NSP-75-27 suitable for?
This model is intended for industrial control, automation, telecommunications, medical equipment, and other high-reliability multi-industry uses. Its medical compliance, fanless design, and compact enclosed form factor make it a strong fit for professional OEM and system applications.
Can the NSP-75-27 operate in harsh temperature conditions?
Yes. The NSP-75-27 supports a wide operating temperature range from -40°C to +85°C. Output derating applies above +60°C, which is important for higher-temperature environments.
What input range does the Mean Well NSP-75-27 support?
The NSP-75-27 accepts a universal input range of 85-305VAC or 120-431VDC. This broad input range helps it fit global equipment designs and installations that require flexibility across different power systems.
How does the NSP-75-27 differ from a standard enclosed power supply?
Compared with a basic enclosed power supply, the NSP-75-27 emphasizes high reliability, low leakage current, medical compliance, and operation across a very wide temperature range. It also includes features such as active PFC, remote ON/OFF control, conformal coating, and a fanless design.
What protection and compliance features does the NSP-75-27 include?
This model includes overload, short circuit, overvoltage, and overtemperature protection. It is certified to multiple global safety standards, including IEC/EN/UL 62368-1 and 60601-1, and is described as medical BF rated with 2xMOPP compliance.
Is the NSP-75-27 a good choice for noise-sensitive or reliability-focused systems?
Yes. The NSP-75-27 uses a fanless design, which supports silent operation and reduces moving-part wear. Combined with up to 92% efficiency and conformal coating, it is positioned for long-term reliability in professional equipment.
