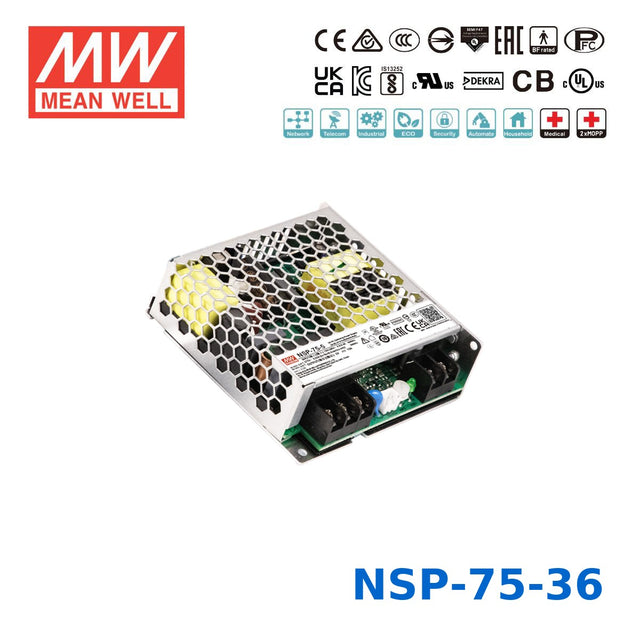

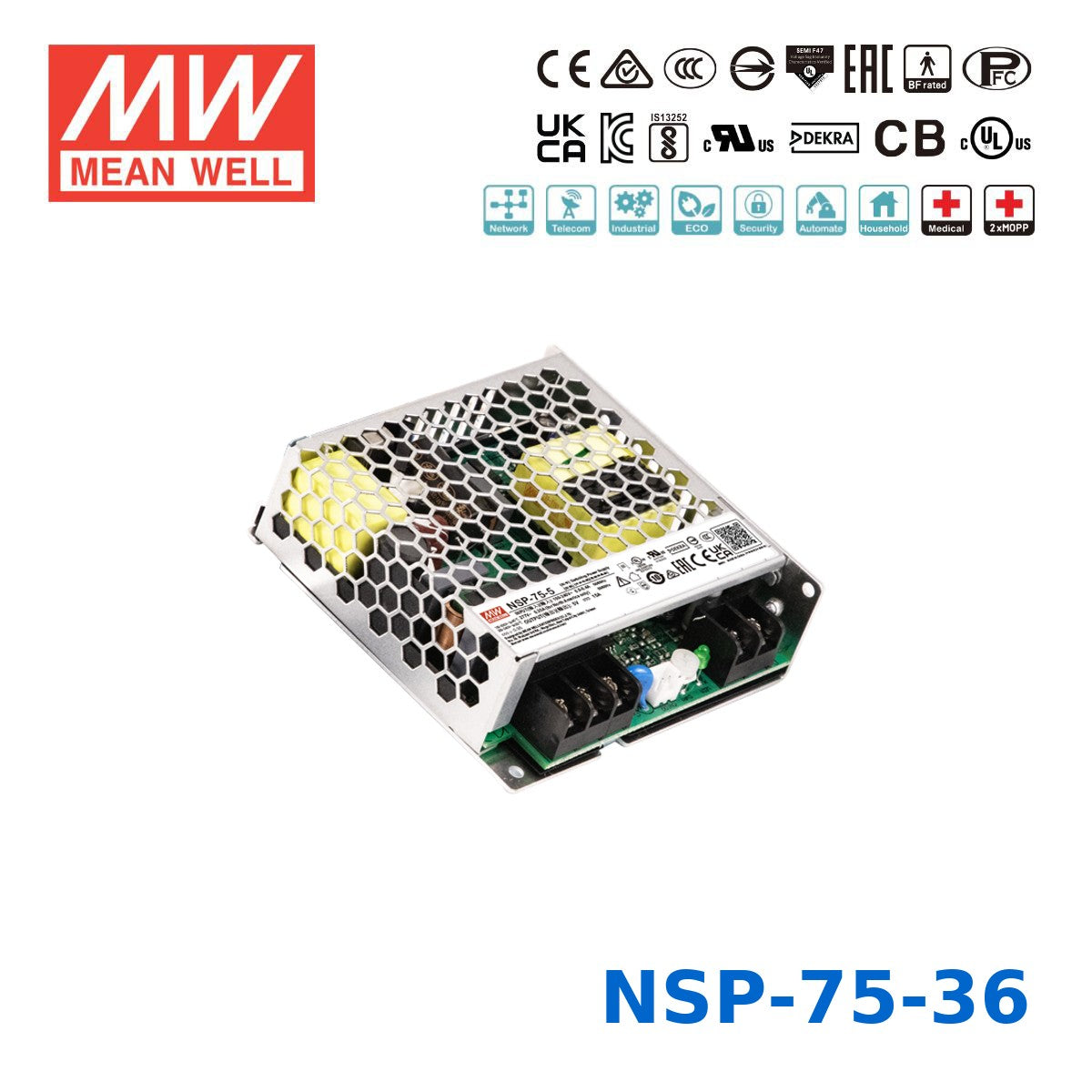

Mean Well 75.6W High Reliable Multi-Industries Power Supply 36V 2.1A
Description
Description
The MEAN WELL NSP-75 series is a 75W high-reliability AC/DC enclosed power supply designed for industrial, medical, and multi-industry applications. With a universal 85–305VAC input range and up to 92% efficiency, it ensures stable operation in a wide temperature range from -40°C to +85°C. Featuring a fanless design, 200% peak power capability, and remote ON/OFF control, the NSP-75 delivers exceptional reliability and performance in compact form. It meets global safety standards including IEC/EN/UL 62368-1, 60601-1 (medical BF rated, 2×MOPP), 60335-1, 61558-1/-2-16, and 61010-1/-2-201, making it suitable for medical equipment, automation systems, and telecommunications.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating75.6 Watt
-
Output Voltage36 Volt
-
Rated Current2.1 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.66 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main output specifications of the NSP-75-36?
The Mean Well NSP-75-36 is a 75.6W enclosed AC/DC power supply with a 36V DC output and a rated current of 2.1A. It is designed for high-reliability applications that need stable regulated power in a compact form factor.
What types of applications is the NSP-75-36 designed for?
This model is intended for industrial, medical, automation, telecommunications, and other multi-industry applications. Its high-reliability design, fanless operation, and broad safety compliance make it suitable for equipment used in demanding professional environments.
Can the NSP-75-36 be used in harsh temperature environments?
Yes, the NSP-75-36 supports an operating temperature range from -40°C to +85°C. Derating is required above +60°C, so it is important to account for thermal conditions in higher-temperature applications.
What input range does the NSP-75-36 support?
The NSP-75-36 accepts a universal input range of 85-305VAC or 120-431VDC. This wide input range makes it practical for global equipment designs and installations across different power environments.
What makes the NSP-75-36 suitable for medical and high-reliability equipment?
This model features very low leakage current below 350uA and includes 2xMOPP medical compliance. It also meets IEC/EN/UL 60601-1 along with multiple other global safety standards, supporting use in regulated and reliability-sensitive systems.
Does the NSP-75-36 include protection and efficiency features for continuous operation?
Yes, the NSP-75-36 includes overload, short circuit, overvoltage, and overtemperature protection. It also offers efficiency up to 92%, active PFC, fanless cooling, and no-load power consumption below 0.5W for dependable long-term operation.
How compact is the NSP-75-36 power supply?
The unit measures 99 x 97 x 30 mm and weighs 0.3 kg. Its enclosed, compact design helps it fit into equipment where space is limited without giving up industrial-grade performance.
What warranty is provided with the NSP-75-36?
The NSP-75-36 comes with a 5-year warranty from Mean Well. That extended warranty supports its positioning as a high-reliability power supply for professional and industrial use.
