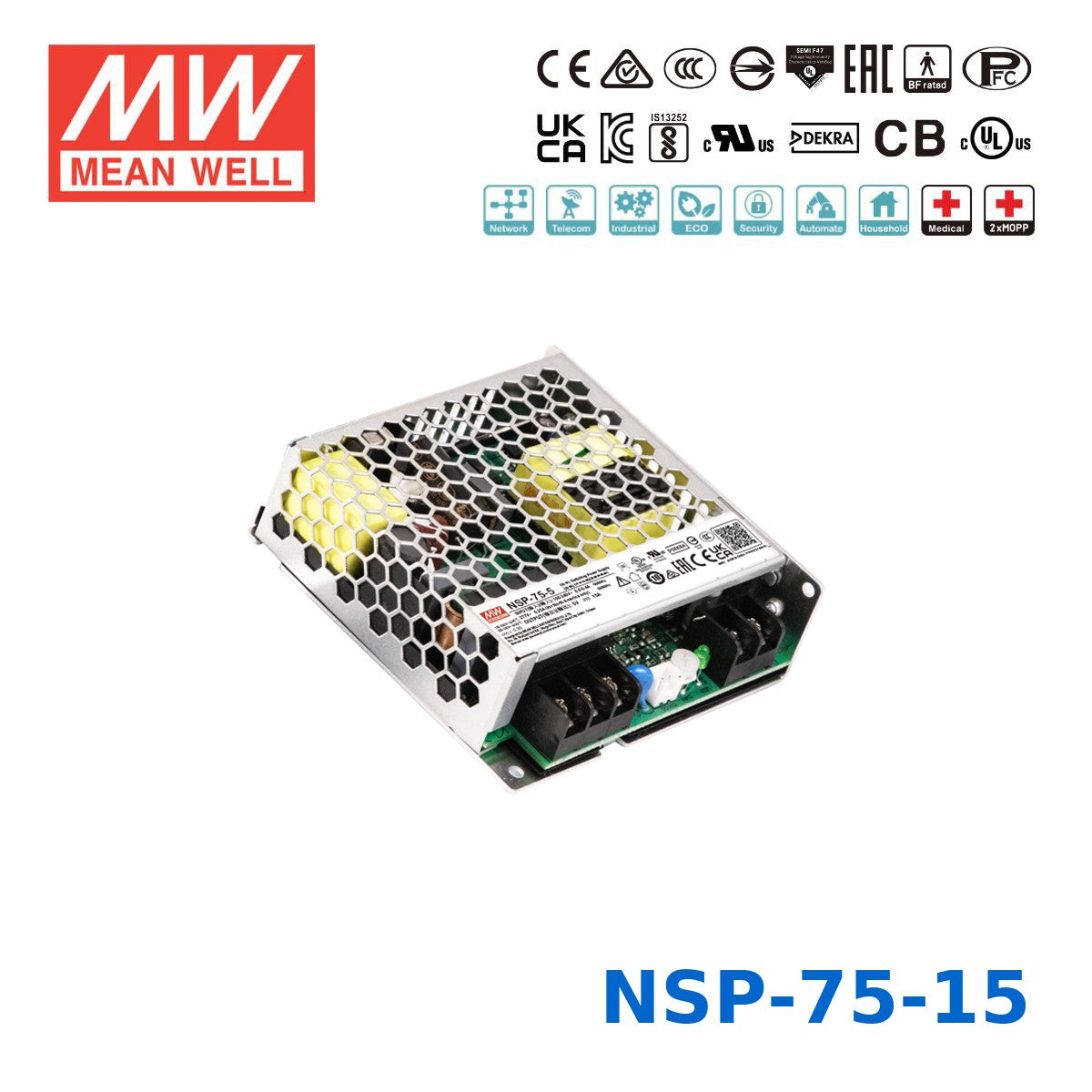

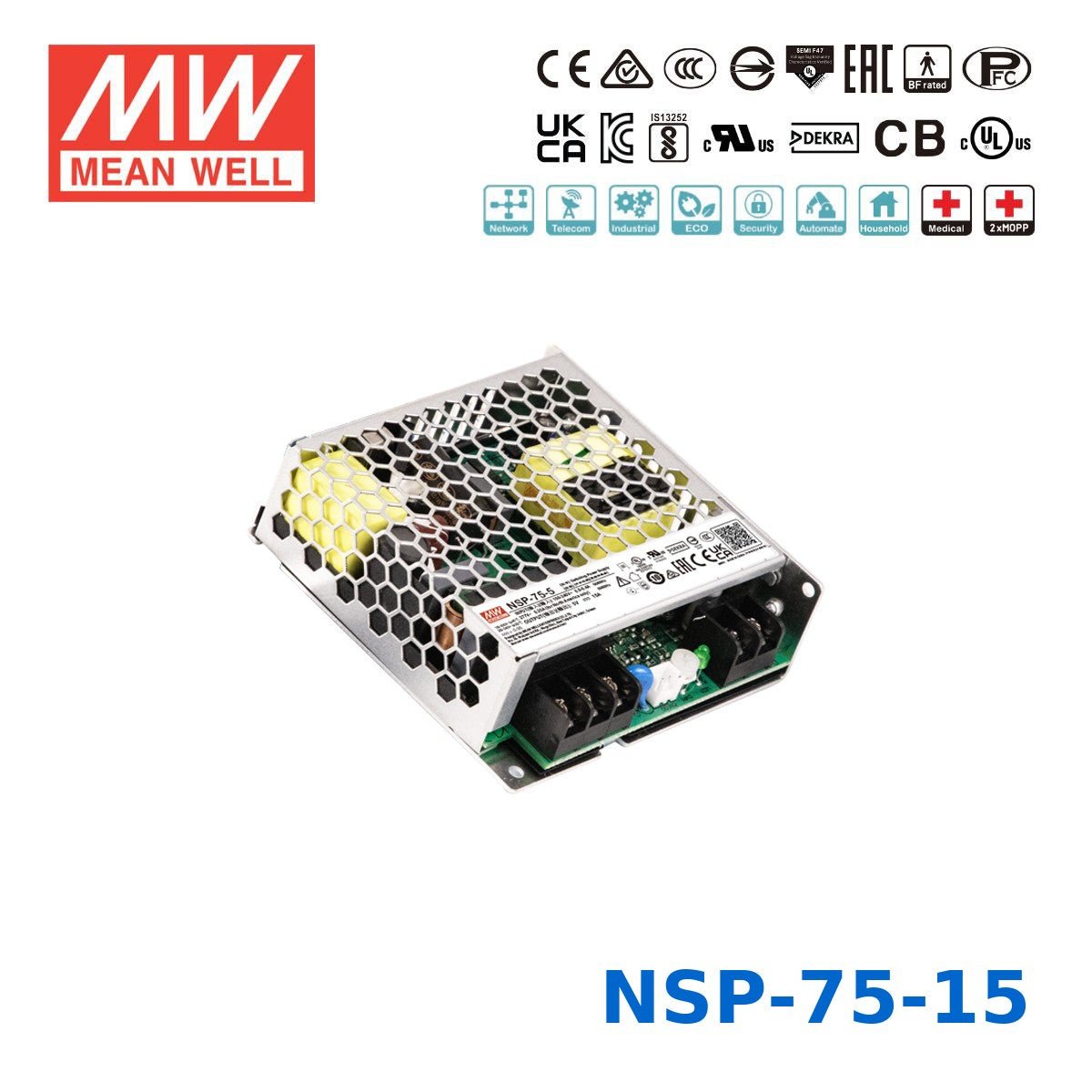

Mean Well 75W High Reliable Multi-Industries Power Supply 15V 5A
Description
Description
The MEAN WELL NSP-75 series is a 75W high-reliability AC/DC enclosed power supply designed for industrial, medical, and multi-industry applications. With a universal 85–305VAC input range and up to 92% efficiency, it ensures stable operation in a wide temperature range from -40°C to +85°C. Featuring a fanless design, 200% peak power capability, and remote ON/OFF control, the NSP-75 delivers exceptional reliability and performance in compact form. It meets global safety standards including IEC/EN/UL 62368-1, 60601-1 (medical BF rated, 2×MOPP), 60335-1, 61558-1/-2-16, and 61010-1/-2-201, making it suitable for medical equipment, automation systems, and telecommunications.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating75 Watt
-
Output Voltage15 Volt
-
Rated Current5 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.66 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well NSP-75-15 used for?
The NSP-75-15 is a 75W enclosed AC/DC power supply designed for industrial, medical, automation, telecommunications, and other high-reliability applications. This 15V model provides up to 5A output and is intended for equipment that needs stable DC power in a compact fanless form.
What are the main electrical specifications of the NSP-75-15?
This model is rated for 75W total output power with a 15V DC output and 5A rated current. It accepts a universal 85-305VAC input range, and the series also supports 120-431VDC input.
Is the NSP-75-15 suitable for harsh or demanding environments?
Yes. It is designed to operate from -40°C to +85°C, with derating above +60°C, and it uses conformal coating for added environmental protection. The fanless design also helps reduce dust intake and supports reliable operation in demanding environments.
Can the NSP-75-15 be used in medical or safety-critical equipment?
It is designed for medical and other high-reliability applications, with compliance including IEC/EN/UL 60601-1 and 2xMOPP medical protection. The product description also notes BF-rated medical compliance and low leakage current below 350uA.
How does the NSP-75-15 differ from a standard enclosed power supply?
Compared with a typical general-purpose enclosed supply, the NSP-75-15 is positioned as a high-reliability model with broad safety certifications, conformal coating, remote ON/OFF control, and a wide operating temperature range. It also offers up to 92% efficiency and a fanless design for quieter, lower-maintenance operation.
Does the NSP-75-15 include protection and efficiency features for continuous operation?
Yes. It includes overload, short circuit, overvoltage, and overtemperature protection to support dependable operation. The unit is rated for up to 92% efficiency, has active PFC, and consumes less than 0.5W at no load.
What warranty comes with the Mean Well NSP-75-15?
The NSP-75-15 includes a 5-year warranty. That makes it a strong fit for buyers looking for a long-service-life power supply for industrial or professional equipment.
