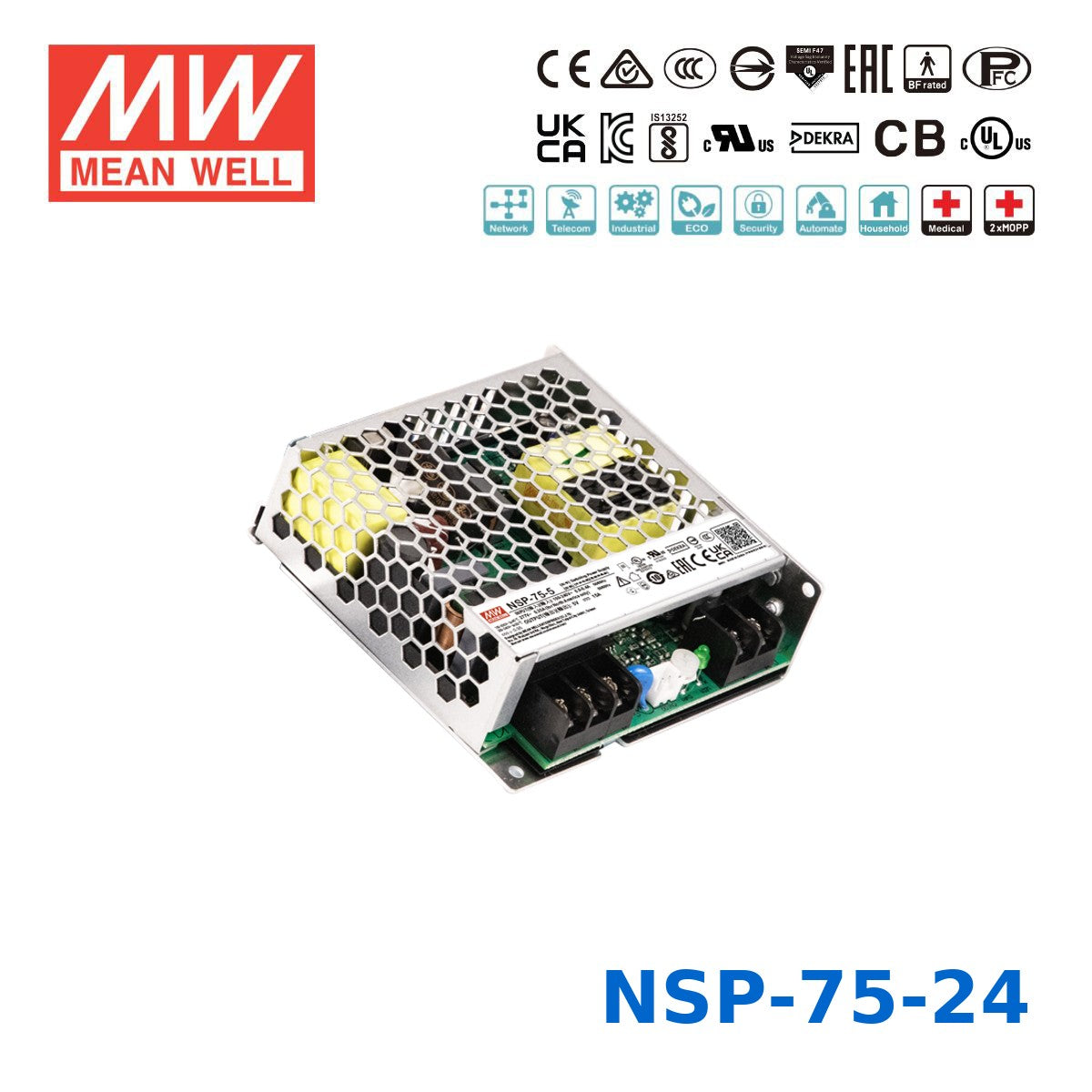

Mean Well 76.8W High Reliable Multi-Industries Power Supply 24V 3.2A
Description
Description
The MEAN WELL NSP-75 series is a 75W high-reliability AC/DC enclosed power supply designed for industrial, medical, and multi-industry applications. With a universal 85–305VAC input range and up to 92% efficiency, it ensures stable operation in a wide temperature range from -40°C to +85°C. Featuring a fanless design, 200% peak power capability, and remote ON/OFF control, the NSP-75 delivers exceptional reliability and performance in compact form. It meets global safety standards including IEC/EN/UL 62368-1, 60601-1 (medical BF rated, 2×MOPP), 60335-1, 61558-1/-2-16, and 61010-1/-2-201, making it suitable for medical equipment, automation systems, and telecommunications.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating76.8 Watt
-
Output Voltage24 Volt
-
Rated Current3.2 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.66 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well NSP-75-24?
The NSP-75-24 provides a regulated 24V DC output at 3.2A. Its power rating is 76.8W, which makes it suitable for equipment that needs a stable 24V supply within that load range.
What types of applications is the NSP-75-24 designed for?
This model is designed for high-reliability industrial, medical, automation, telecommunications, and multi-industry applications. Its certifications, fanless design, and conformal coating make it a strong fit for professional equipment where long-term reliability matters.
Can the Mean Well NSP-75-24 operate in demanding temperature conditions?
Yes. The NSP-75-24 is rated for operation from -40°C to +85°C, with derating above +60°C. That wide temperature range makes it appropriate for harsh or variable operating environments where standard enclosed power supplies may be more limited.
Is the NSP-75-24 suitable for medical equipment?
Yes, this model is intended for medical as well as industrial use. It meets IEC/EN/UL 60601-1 requirements, is BF rated, and provides 2 x MOPP isolation, which supports use in medical-related applications where those standards are required.
What makes the NSP-75-24 different from a standard enclosed power supply?
Compared with more basic enclosed AC/DC power supplies, the NSP-75-24 emphasizes high reliability, broad certification coverage, and operation in demanding environments. It also offers up to 92% efficiency, active PFC, fanless cooling, remote ON/OFF control, and conformal coating in a compact enclosure.
Does the NSP-75-24 include built-in protection features?
Yes. The NSP-75-24 includes overload, short circuit, overvoltage, and overtemperature protection. These built-in protections help support stable operation in professional equipment and reduce risk from abnormal operating conditions.
What input range does the Mean Well NSP-75-24 support?
The NSP-75-24 supports a universal input range of 85-305VAC or 120-431VDC. This wide input range gives it flexibility for use across different regions and power environments without requiring a narrowly matched AC input.
