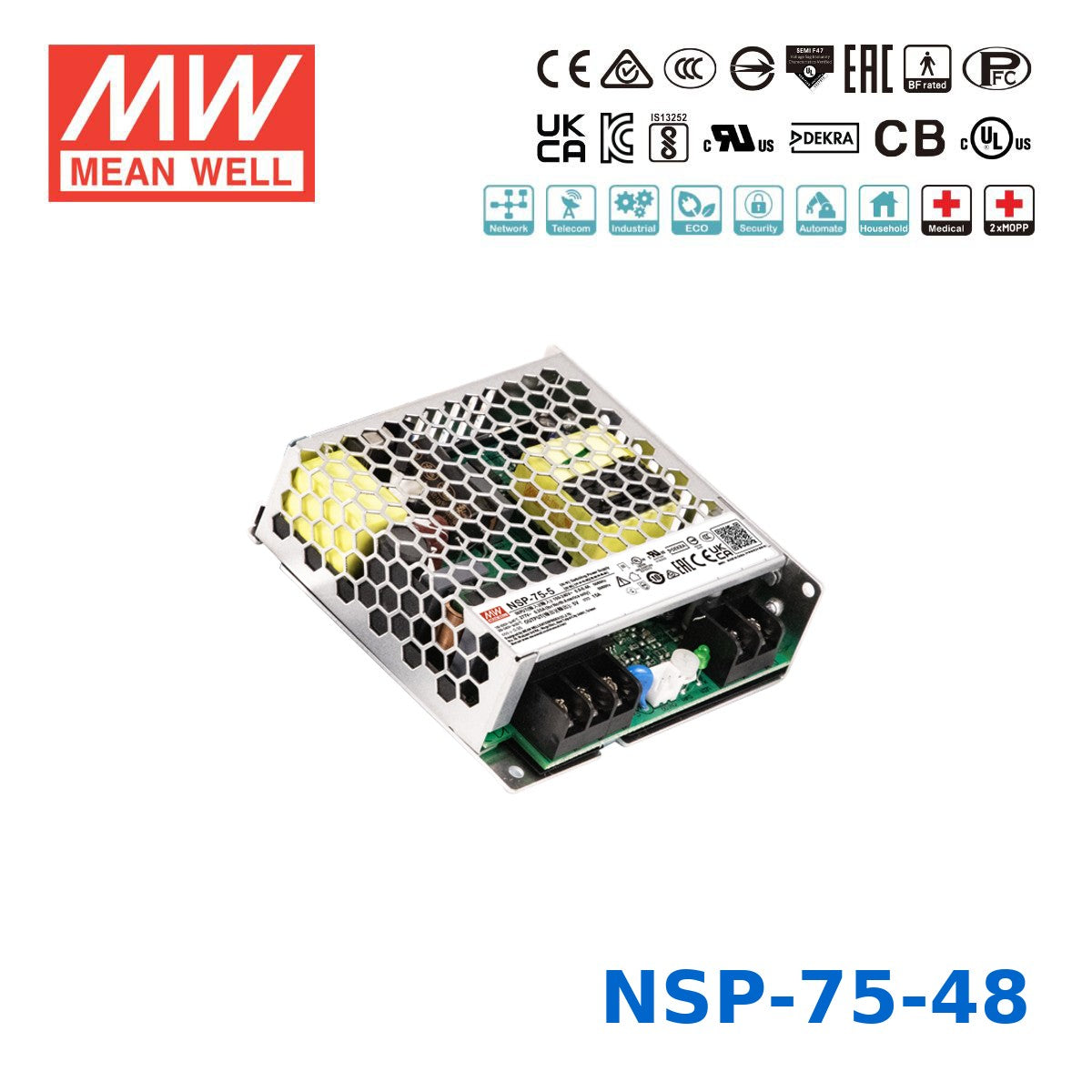

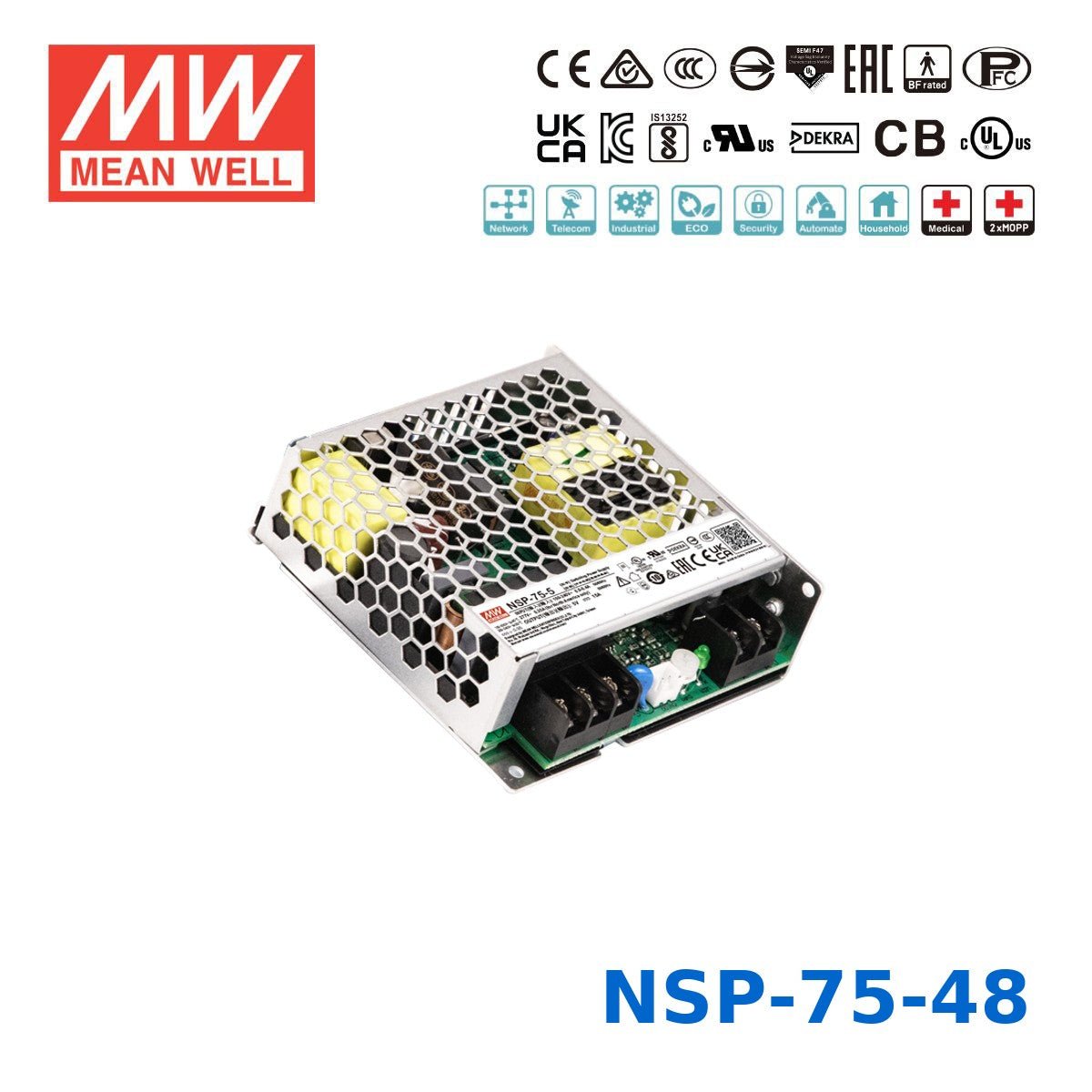

Mean Well 76.8W High Reliable Multi-Industries Power Supply 48V 1.6A
Description
Description
The MEAN WELL NSP-75 series is a 75W high-reliability AC/DC enclosed power supply designed for industrial, medical, and multi-industry applications. With a universal 85–305VAC input range and up to 92% efficiency, it ensures stable operation in a wide temperature range from -40°C to +85°C. Featuring a fanless design, 200% peak power capability, and remote ON/OFF control, the NSP-75 delivers exceptional reliability and performance in compact form. It meets global safety standards including IEC/EN/UL 62368-1, 60601-1 (medical BF rated, 2×MOPP), 60335-1, 61558-1/-2-16, and 61010-1/-2-201, making it suitable for medical equipment, automation systems, and telecommunications.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating76.8 Watt
-
Output Voltage48 Volt
-
Rated Current1.6 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.66 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the output rating of the Mean Well NSP-75-48?
The NSP-75-48 is rated for 48V DC output at 1.6A, with a total power rating of 76.8W. It is designed as a high-reliability enclosed AC/DC power supply for applications that need stable 48V power.
What types of applications is the NSP-75-48 designed for?
This model is intended for industrial, medical, automation, telecommunications, and other multi-industry applications. Its high-reliability design, fanless construction, and broad safety certifications make it suitable for demanding professional equipment environments.
Can the Mean Well NSP-75-48 operate in harsh temperature conditions?
Yes. The NSP-75-48 is specified for operation from -40°C to +85°C, with derating required above +60°C. That wide operating range makes it a practical option for challenging indoor industrial and equipment environments.
What input range does the NSP-75-48 support?
The power supply accepts a universal 85-305VAC input range and also supports 120-431VDC input. This wide input range helps it fit a variety of global and industrial power environments.
What makes the NSP-75-48 a high-reliability power supply?
The NSP-75-48 combines up to 92% efficiency, fanless cooling, conformal coating, and built-in protection against overload, short circuit, overvoltage, and overtemperature. It is also certified to multiple global safety standards, including medical-related 60601-1 compliance with 2×MOPP.
Is the NSP-75-48 suitable for noise-sensitive or maintenance-conscious equipment designs?
Yes. Its fanless design supports silent operation and reduces reliance on moving parts, which can be beneficial in systems where low acoustic noise and long-term reliability matter. The unit also has low no-load power consumption of less than 0.5W.
What warranty is offered with the Mean Well NSP-75-48?
This model includes a 5-year warranty. That warranty period aligns with its positioning as a high-reliability power supply for professional and industrial use.
