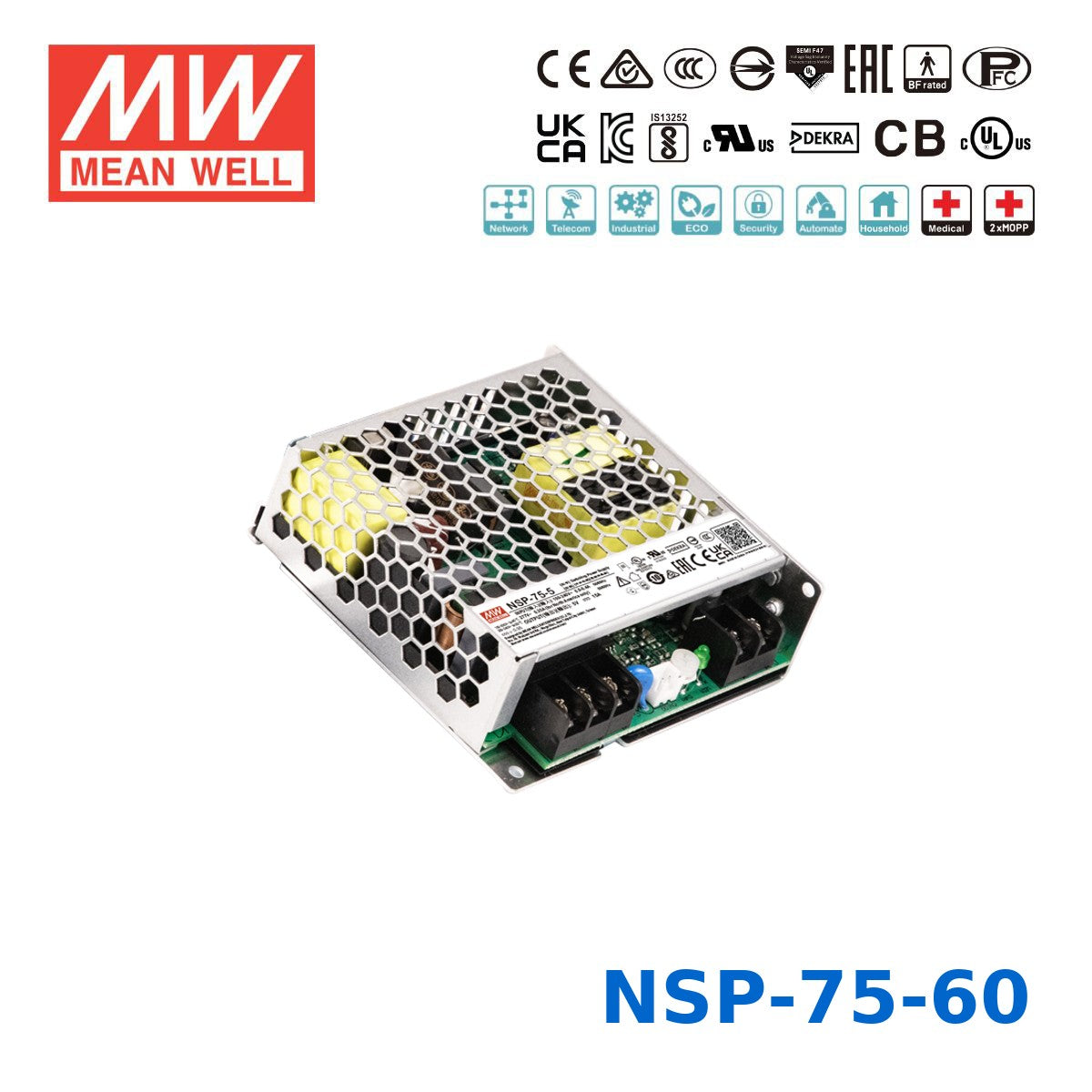

Mean Well 78W High Reliable Multi-Industries Power Supply 60V 1.3A
Description
Description
The MEAN WELL NSP-75 series is a 75W high-reliability AC/DC enclosed power supply designed for industrial, medical, and multi-industry applications. With a universal 85–305VAC input range and up to 92% efficiency, it ensures stable operation in a wide temperature range from -40°C to +85°C. Featuring a fanless design, 200% peak power capability, and remote ON/OFF control, the NSP-75 delivers exceptional reliability and performance in compact form. It meets global safety standards including IEC/EN/UL 62368-1, 60601-1 (medical BF rated, 2×MOPP), 60335-1, 61558-1/-2-16, and 61010-1/-2-201, making it suitable for medical equipment, automation systems, and telecommunications.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating78 Watt
-
Output Voltage60 Volt
-
Rated Current1.3 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.66 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Mean Well NSP-75-60 best suited for?
The NSP-75-60 is designed for industrial, medical, automation, telecommunications, and other high-reliability equipment that needs a regulated 60V DC output. Its enclosed fanless design, wide input range, and global safety approvals make it a strong fit for OEM and professional system use.
What are the main electrical specifications of the NSP-75-60?
This model provides a 60V DC output at 1.3A with a rated power of 78W. It accepts a universal 85-305VAC input or 120-431VDC input, which helps it fit a wide range of commercial and industrial power environments.
Is the NSP-75-60 suitable for harsh industrial environments?
Yes. The NSP-75-60 is built for demanding environments with an operating temperature range of -40°C to +85°C, with derating above +60°C. It also includes conformal coating and built-in protection against overload, short circuit, overvoltage, and overtemperature.
Can the NSP-75-60 be used in medical or safety-sensitive equipment?
This model is suitable for medical and other safety-focused applications because the NSP-75 series meets IEC/EN/UL 60601-1 and is described as BF rated with 2xMOPP compliance. It also carries approvals for 62368-1, 60335-1, 61558-1/-2-16, 61010-1/-2-201, and 62477-1.
What makes the NSP-75-60 different from a standard enclosed power supply?
Compared with more basic enclosed power supplies, the NSP-75-60 is positioned as a high-reliability model with up to 92% efficiency, active PFC, very low leakage current, and a fanless compact design. It also supports remote ON/OFF control and 200% peak power capability, which adds flexibility for demanding equipment designs.
Does the NSP-75-60 support compact equipment designs?
Yes. The unit measures 99 x 97 x 30 mm and weighs 0.3 kg, which helps when space and weight matter in enclosed equipment. Its fanless construction also supports quieter operation and reduces dependence on active cooling components.
What warranty is included with the Mean Well NSP-75-60?
The NSP-75-60 includes a 5-year warranty. That longer warranty period aligns with the series focus on high reliability for professional and industrial use.
