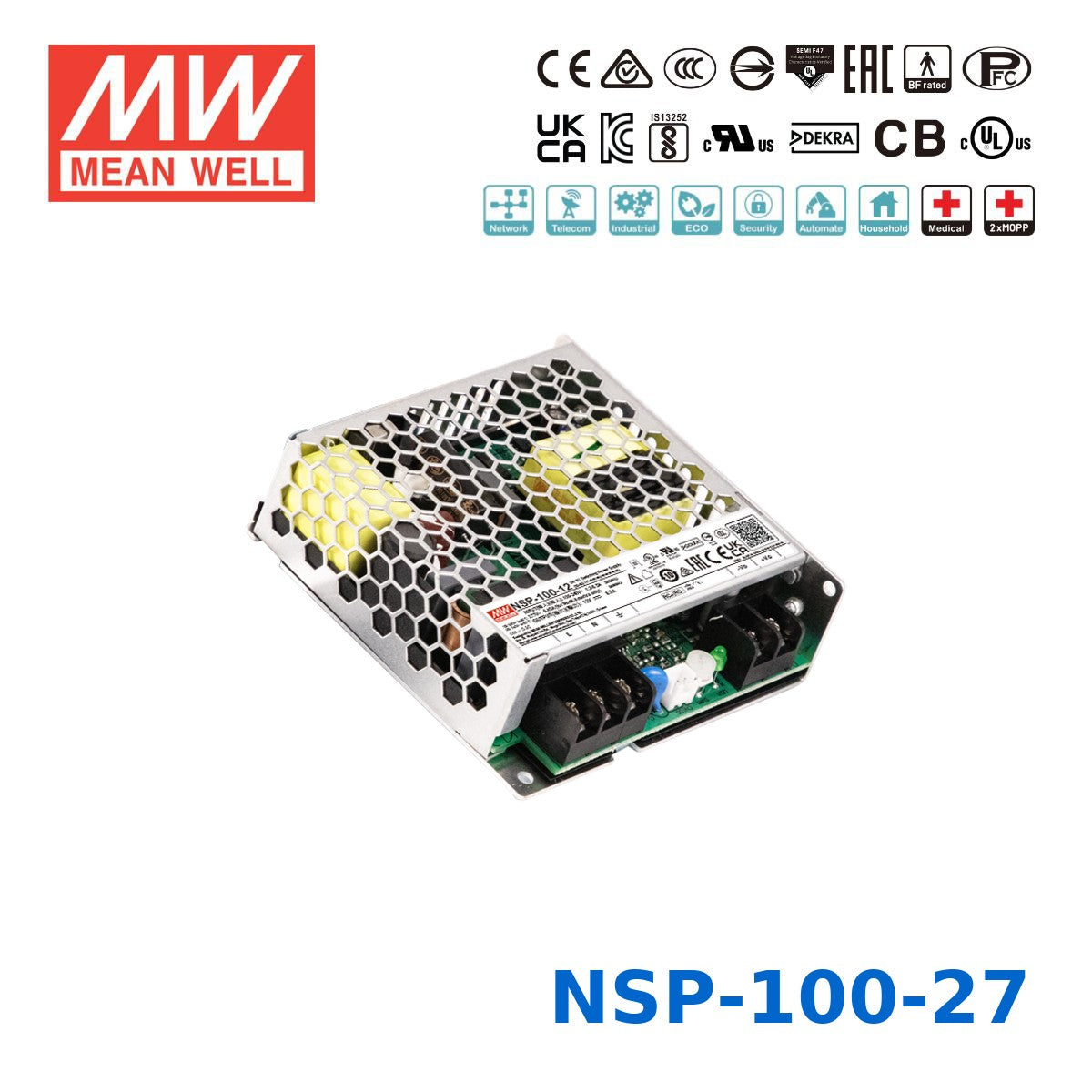

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.
Mean Well 99.9W High Reliable Multi-Industries Power Supply 27V 3.7A
Description
Description
The MEAN WELL NSP-100 series is a 100W high-reliability AC/DC enclosed power supply designed for multi-industry applications, including industrial automation, telecommunications, security systems, and medical devices. Featuring a universal 85–305VAC input with active PFC and efficiency up to 92%, it delivers stable power performance with ultra-low standby consumption below 0.5W. The fanless design and compact 99×97×30 mm form factor enable reliable operation from -40°C to +85°C. With 200% peak power capability, remote ON/OFF control, and comprehensive protections, the NSP-100 series ensures long-term performance under demanding conditions while complying with IEC/EN/UL 62368-1, 60601-1 (BF rated, 2×MOPP), and other global safety standards.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesNSP Series
-
Power Rating99.9 Watt
-
Output Voltage27 Volt
-
Rated Current3.7 Ampere
-
Input Voltage85V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.18 in
-
Weight0.66 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What output does the Mean Well NSP-100-27 provide?
The NSP-100-27 is a 99.9W enclosed AC/DC power supply with a 27V DC output rated at 3.7A. It is designed for applications that need a stable 27V supply in a compact, fanless form factor.
What kinds of applications is the NSP-100-27 intended for?
This model is designed for multi-industry use, including industrial automation, telecommunications, security systems, and medical devices. Its high-reliability construction, wide input range, and broad safety certifications make it suitable for demanding commercial and industrial equipment.
Can the NSP-100-27 be used in medical or safety-sensitive equipment?
The NSP-100-27 is certified to IEC/EN/UL 60601-1 and is described as BF rated with 2×MOPP compliance. That makes it a strong candidate for medical-related equipment where those approvals are required, although final suitability still depends on the end-product design and certification path.
How does the NSP-100-27 perform in harsh temperature conditions?
This power supply is rated for operation from -40°C to +85°C, with derating above +60°C. Its fanless design and conformal coated PCB support reliable use in challenging industrial environments where dust, temperature variation, or maintenance access may be concerns.
What makes the NSP-100-27 different from a standard 100W enclosed power supply?
Compared with a basic 100W enclosed supply, the NSP-100-27 adds high-reliability features such as active PFC, up to 92% efficiency, under 0.5W no-load consumption, 200% peak power for 5 seconds, and remote ON/OFF control. It also carries a broader set of safety approvals for industrial, household, laboratory, and medical-oriented applications.
Is the NSP-100-27 a good fit for always-on equipment or low-maintenance systems?
Yes. The fanless design supports quiet, maintenance-free operation, while its efficiency of up to 92% and no-load consumption below 0.5W help reduce wasted energy in continuously powered systems. The 5-year warranty also supports long-service applications.
