Mean Well

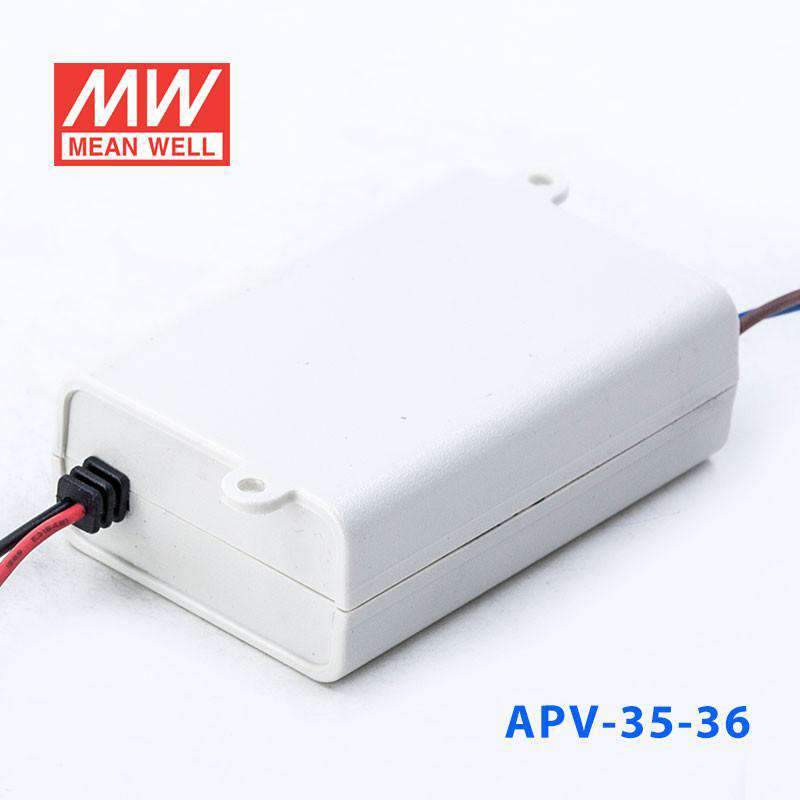

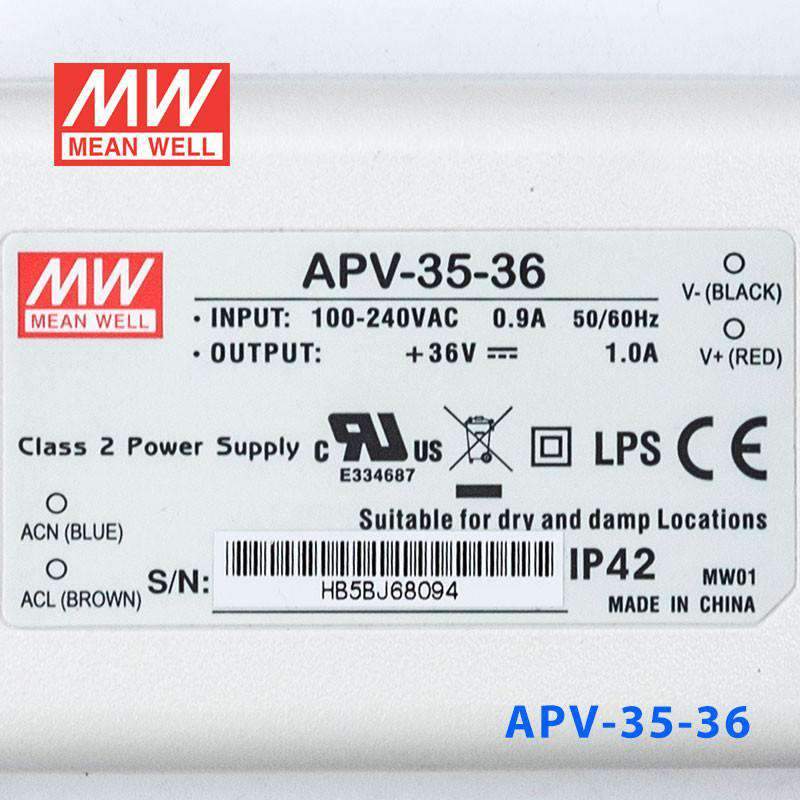

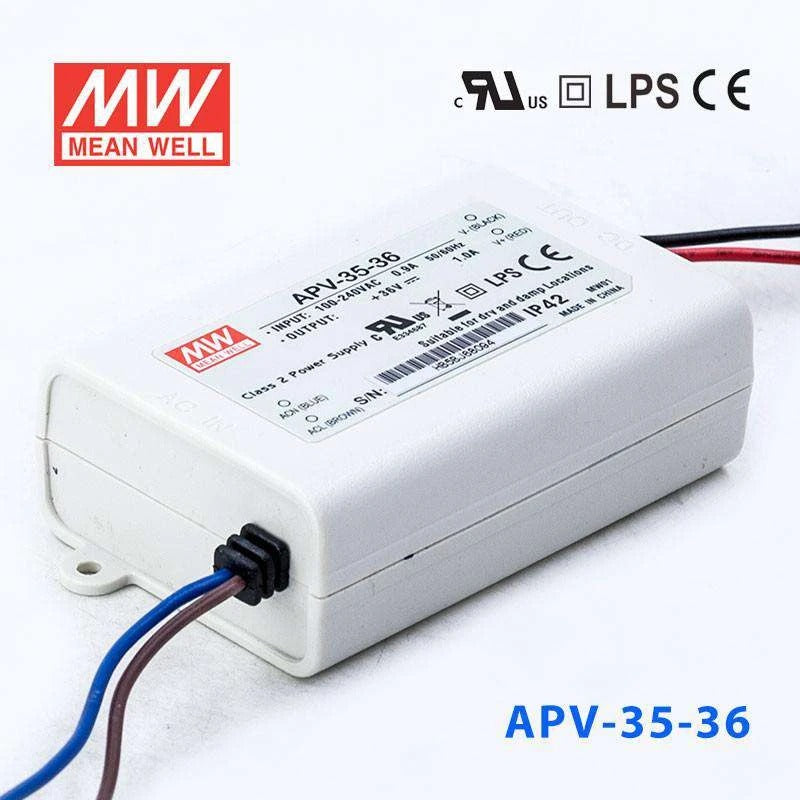

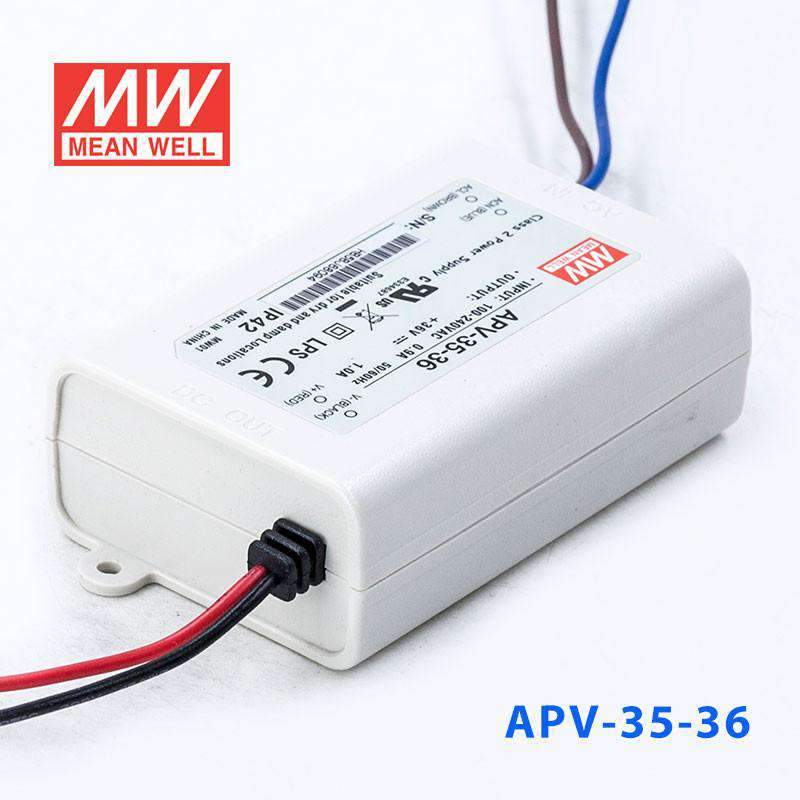

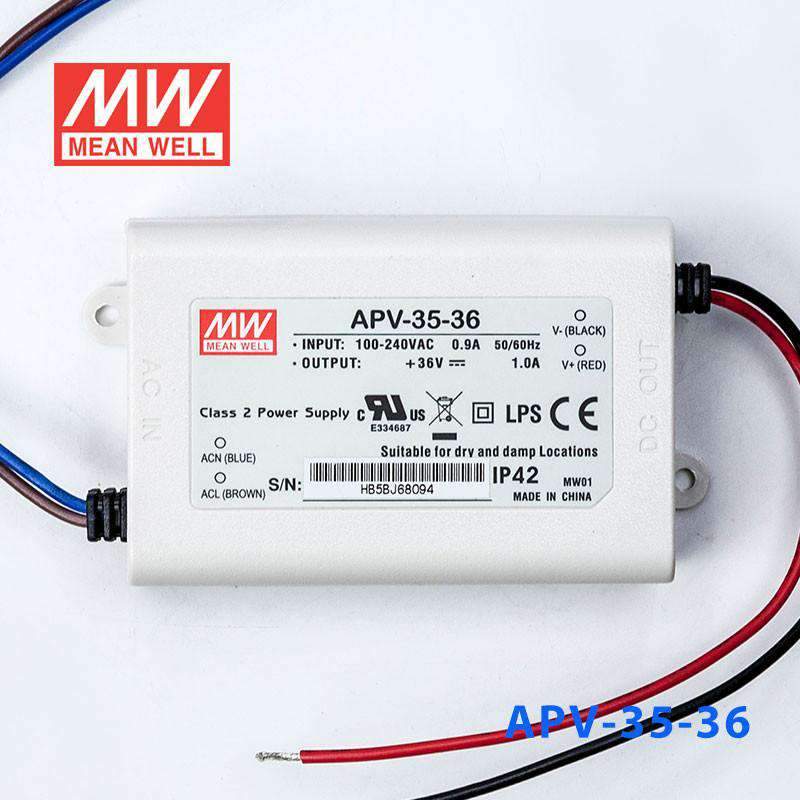

Mean Well APV-35-36 Power Supply 36W 36V

Name: Mean Well APV-35-36 Power Supply 36W 36V
Brand: Mean Well
SKU: APV-35-36
Price: 15.96 USD
Availability: InStock

3 units in stock

$15.96 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

AC input voltage range	90~264VAC ; 127~370VDC
AC inrush current	Cold start, 45A at 230VAC
Overload Range	>105% rated output current
Protection Type	Hiccup up mode, auto-recovery
Over voltage protection	110%~145% rated output voltage
Withstand voltage	I/P-O/P: 3kVAC
Working temperature	-30~+70°C (refer to output derating curve)
Vibration	10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes
Safety standards	UL8750 approved (except for APC-25-350&APC-35-350/500);Design refer to TUV EN60950-1
EMC standards	EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11
Connection Input	UL rated, 18AWGx2C (15cm)
Connection Output	UL rated, 18AWGx2C (15cm)
Dimension (LxWxH)(mm)	84x 57x 29.5
