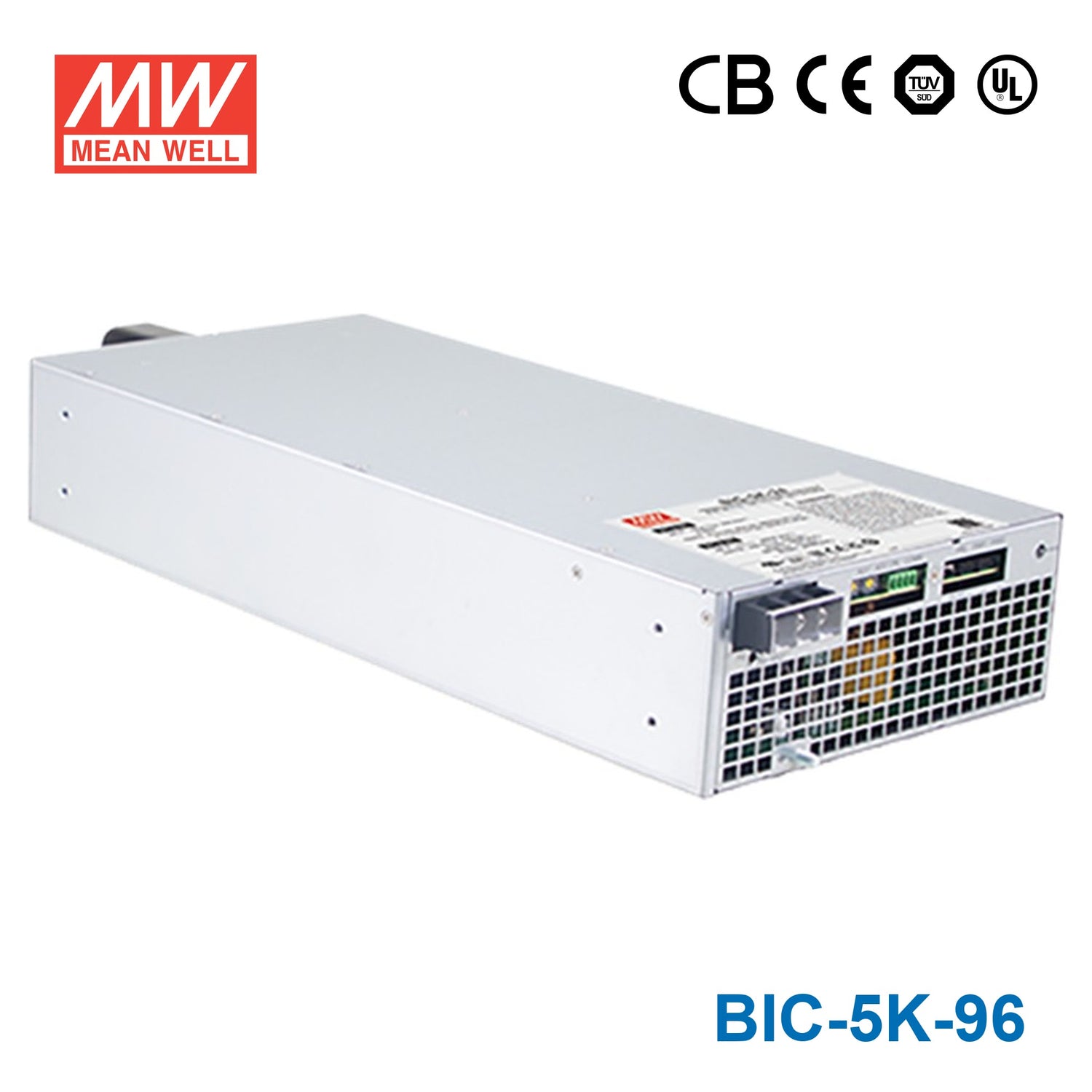

Mean Well BIC-5K-96 5000W Bidirectional Power Supply, 96V DC 52A

Name: Mean Well BIC-5K-96 5000W Bidirectional Power Supply, 96V DC 52A
Brand: Mean Well
SKU: BIC-5K-96
Price: 1783.87 USD
Availability: InStock

5kW AC⇄DC bidirectionalCANBus communicationparallel up to 30kWconformal coating5yr warranty

SKU BIC-5K-96

$1,783.87 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

BIC-5K-96 is the 96V output model of this series: rated current 52A, rated power 4992W, typical efficiency 93%.

The BIC-5K series is a 5KW bidirectional power supply featuring AC-DC ← DC-AC conversion with energy recovery functionality. This product adopts a fully digitalized design, characterized by high efficiency, intelligence, compact size, and comprehensive safety certifications. It is commonly used in applications such as battery factory grading/forming testing equipment, home energy storage systems, kinetic energy recovery systems, and distributed grids (V2G). The BIC-5K series is a high-reliability green energy power solution that supports energy saving and carbon reduction.

Features

Combining AC → DC and DC → AC bidirection power, 5KW full-power operation in both directions
Ultra-fast bidirectional time of 1ms(AC ⇄ DC)
Global certificates in multi-fields (ITE 62368-1, Energy converter 62477-1, AC Grid system 50549-1)
180~305Vac(277Vac available)
High efficiency up to 93.5%
THD <3% in both conversion mode
Parallel operation up to 30KW(5+1 unit)
Support CANBus or MODBus-RTU(RS-485) protocol communication
Complete protections: Anti-islanding protection, AC fail protection, DC OVP,OLP, OCP, OTP
Over voltage category Ⅲ (OVC Ⅲ)
-30℃~+70℃ wide operating temperature
FAN noise < 43~54dB
Support 3× with multiple units configuration
Conformal coating
5 years warranty

Specifications

BIC-5K-96Specifications from the official datasheet (2026-01-22 edition)

AC to DC Direction

DC VOLTAGE: 96V
RATED CURRENT: 52A
RATED POWER: 4992W
FULL POWER VOLTAGE RANGE: 96 ~ 112V
RIPPLE & NOISE (max.)^Note.2: 900mVp-p
VOLTAGE RANGE: 76 ~ 112V
CURRENT RANGE: 0 ~ 52A
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 8000ms, 150ms/230Vac at full load
AC VOLTAGE RANGE: 180 ~ 305Vac
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): ≧0.99/230Vac at full load
EFFICIENCY (Typ.)^Note.4: 93%
AC CURRENT (Typ.): 27A/230Vac
INRUSH CURRENT (Typ.): 120A/230Vac
LEAKAGE CURRENT (Peak): 7.07mA/305Vac
TOTAL HARMONIC DISTORTION: <3%(@load=100%/230Vac)

DC to AC Direction

INPUT POWER (Max.): 5550W
FULL POWER VOLTAGE RANGE: 96 ~ 112V
DC VOLTAGE RANGE: 76 ~ 112V
MAX. INPUT CURRENT: 57A
RATED OUTPUT POWER (Typ.): 5000W
VOLTAGE RANGE: 180 ~ 305Vac determined by AC main (277Vac available)
FREQUENCY RANGE: 47 ~ 63Hz determined by AC main
AC CURRENT (Typ.): 22.5A/230Vac
POWER FACTOR (Typ.): 0.99/230Vac at full load
EFFICIENCY (Typ.)^Note.4: 93%
TOTAL HARMONIC DISTORTION: <3%(@load=100%/230Vac)

PROTECTION

OVER LOAD: 105 ~ 115% rated output power AC to DC Constant current limiting, shut down DC O/P voltage 5 sec. after DC O/P voltage is down low, re-power on to recover DC to AC Not accurable with constant power design
SHORT CIRCUIT: Shut down O/P current, re-power on to recover
OVER VOLTAGE: 115 ~ 121V Protection type : Shut down O/P voltage, re-power on to recover
OVER TEMPERATURE: Shut down O/P voltage, recovers automatically after temperature goes down
ISLANDING PROTECTION: Shut down AC O/P voltage, re-power on to recover

FUNCTION

BIDIRECTION SWITCH TIME (Typ.): 3ms
PARALLEL: Up to 30KW(5+1) units, Please refer to the Function Manual
CANBUS or MODBUS: Communication provides function such as control, setting and monitoring
REMOTE ON-OFF CONTROL: By electrical signal or dry contact Short: Power ON Open: Power OFF Please refer to the Function Manual infollowing
FAN NOISE (Typ.) Note.6^Note.6: Built-in intelligent fan speed control detect by PSU's internal temperature
FAN NOISE (Typ.) 10% load with Ta=25℃: 43dB
FAN NOISE (Typ.) 70% load with Ta=25℃: 44dB

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: CB IEC62368-1/IEC62477-1 ; UL UL62368-1, CAN/CSA C22.2 No.62368-1 ; TUV BS EN/EN62368-1, BS EN/EN62477-1, BS EN/EN50549-1 ; EAC TP TC 004 approved
OVER VOLTAGE CATEGORY: IEC/EN/UL 62368-1 (OVC Ⅲ, altitude up to 2000m) IEC/EN 62477-1 (OVC Ⅲ, altitude up to 2000m)
WITHSTAND VOLTAGE^Note.7: I/P-O/P:6KVdc I/P-FG:4KVdc O/P-FG:4KVdc
ISOLATION RESISTANCE^Note.7: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500Vdc / 25℃/ 70% RH
EMC EMISSION: BS EN/EN55032, BS EN/EN61000-6-4

Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) Class A
Radiated BS EN/EN55032 (CISPR32) Class A
Harmonic Current BS EN/EN61000-3-12 Class A
Voltage Flicker BS EN/EN61000-3-11
EMC IMMUNITY: BS EN/EN55035, BS EN/EN61000-6-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-34 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 209.4K hrs min. Telcordia SR-332 (Bellcore) ; 17.8K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 460*211*83.5mm (L*W*H)
PACKING: 12Kg; 1pcs/ 12Kg/ 1.25CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Efficiency is tested 75% load, linear load at 230Vac input voltage and 24V/48V/96V/380Vdc output voltage
5. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives.
6. FAN noise test set up according to ISO-7779.
7. During withstand voltage and isolation resistance testing, the screw "A" shall be temporarily removed, and shall be installed back after the testing.
8. The Regulatory Compliance Mark (RCM) is applied on a voluntary basis. The equipment meets the relevant IEC or AS/NZS standards, or AS/NZS 3820 where applicable. The use of the RCM mark complies with AS/NZS 4417.1.

Technical drawings

BIC-5K-96 DERATING CURVE — DERATING CURVE

BIC-5K-96 CHARGING CURVE — CHARGING CURVE

BIC-5K-96 DC to AC (Energy recycling and discharging) — DC to AC (Energy recycling and discharging)

BIC-5K-96 Bi-direction battery mode — Bi-direction battery mode

BIC-5K-96 ※ Please refer to the user manual for detailed instructions. — ※ Please refer to the user manual for detailed instructions.

BIC-5K-96 MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

Battery cell formation & grading
V2G (Vehicle-to-grid) system
Marine battery charger module
Electric scooter or vehicle charger station
Kinetic energy recovery system
Electrolysis system
Wastewater treatment system

Downloads

Datasheet1

BIC-5K-96 datasheetBIC_5K_spec.pdf · 2026-01-22 edition PDF Download
