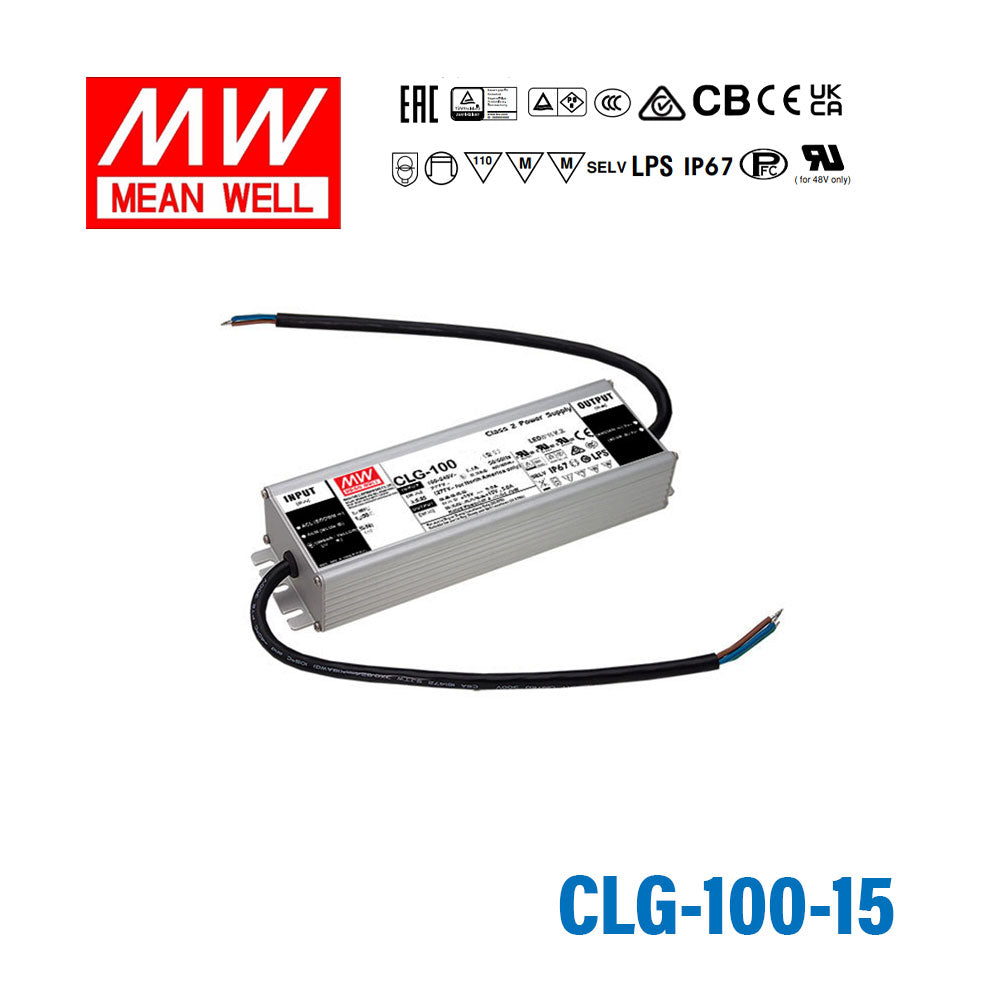

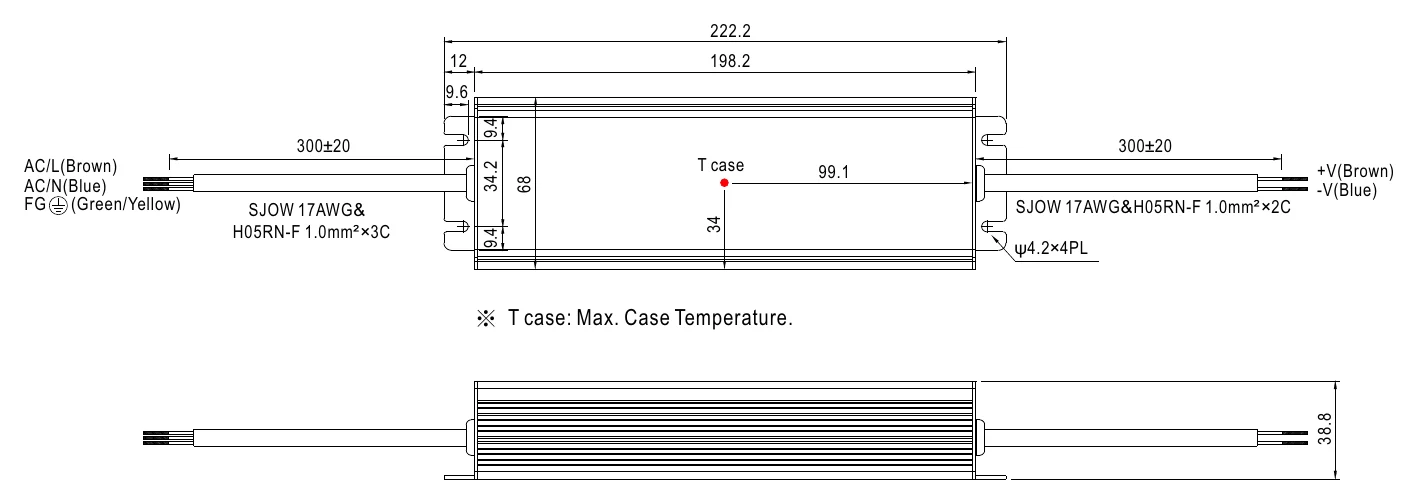

Mean Well CLG-100-15 LED Switching Power Supply

Name: Mean Well CLG-100-15 LED Switching Power Supply
Brand: Mean Well
SKU: CLG-100-15
Price: 82.39 USD
Availability: InStock

SKU CLG-100-15

$82.39 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

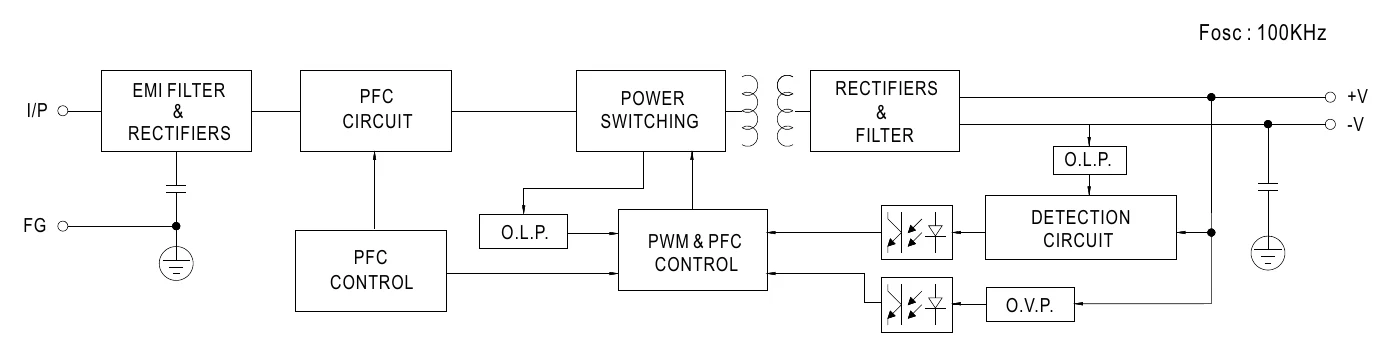

Overview

CLG-100-15 is the 15V output model of this series: rated current 5A, rated power 75W, typical efficiency 85%.

CLG-100-15Specifications from the official datasheet (2021-06-25 edition)Download datasheet PDF

DC VOLTAGE: 15V
CONSTANT CURRENT REGION^Note.7: 11.25 ~ 15V
RATED CURRENT^Note.5: 5A
RATED POWER^Note.5: 75W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: Fixed. Can be modified between 0% ~ -15% rated output voltage
CURRENT ADJ. RANGE: Fixed. Can be modified between 3% ~ -25% rated output current
VOLTAGE TOLERANCE^Note.3: ±3.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME: 500ms, 80ms / 230VAC 1200ms, 80ms / 115VAC at full load
HOLD UP TIME (Typ.): 60ms / 230VAC 30ms / 115VAC at full load

VOLTAGE RANGE^Note.4: 90 ~ 295VAC 127 ~ 417VDC
FREQUENCY RANGE: 47 ~ 63Hz

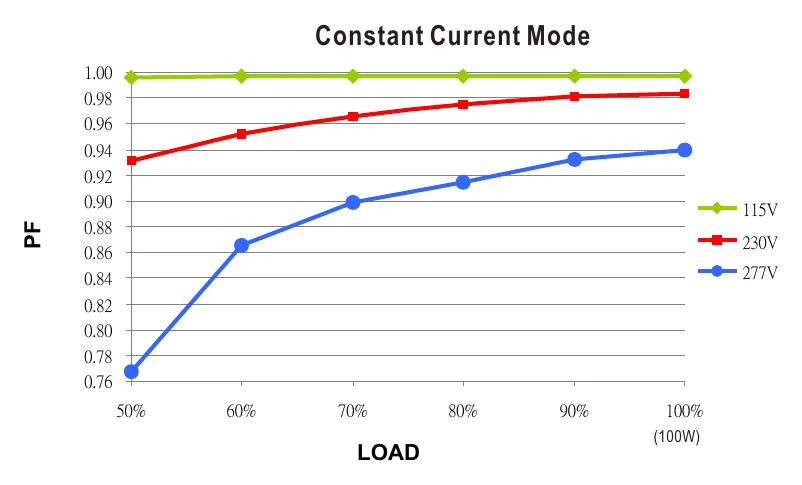

POWER FACTOR (Typ.): PF>0.95/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION: THD< 20% when output loading≧75% at 115VAC/230VAC input and output loading≧75% at 277VAC input

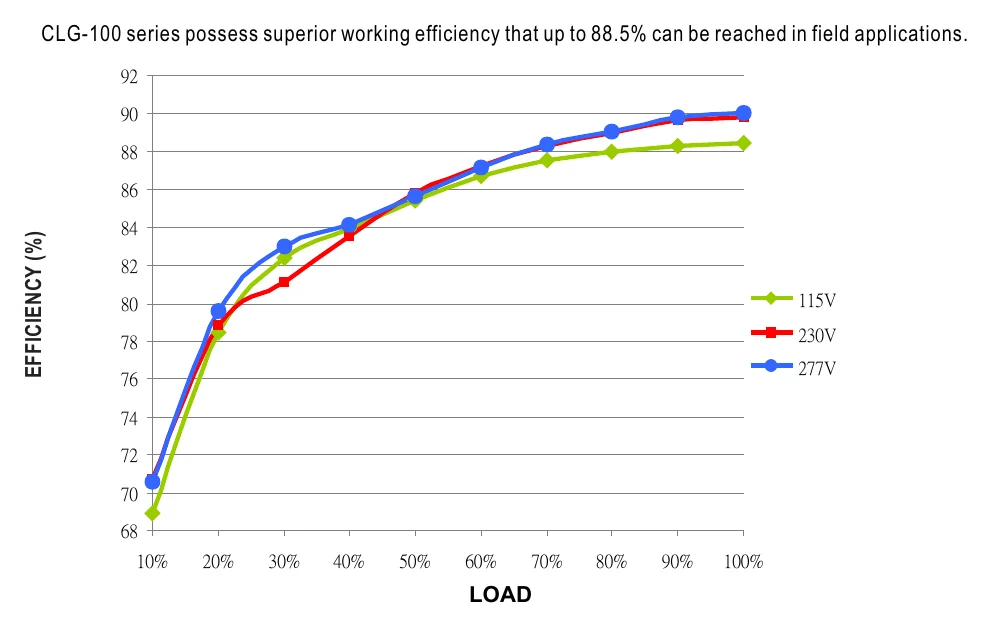

EFFICIENCY (Typ.): 85%
AC CURRENT (Typ.): 12V:0.8A/115VAC 0.4A/230VAC 0.3A/277VAC 15V:0.9A/115VAC 0.45A/230VAC 0.35A/277VAC 20V ~ 48V:1.1A/115VAC 0.55A/230VAC 0.45A/277VAC
INRUSH CURRENT(Typ.): COLD START 40A(twidth=1030μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 5 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 240VAC

OVER CURRENT (Typ.): 95 ~ 102% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 16.5 ~ 20V Protection type : Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

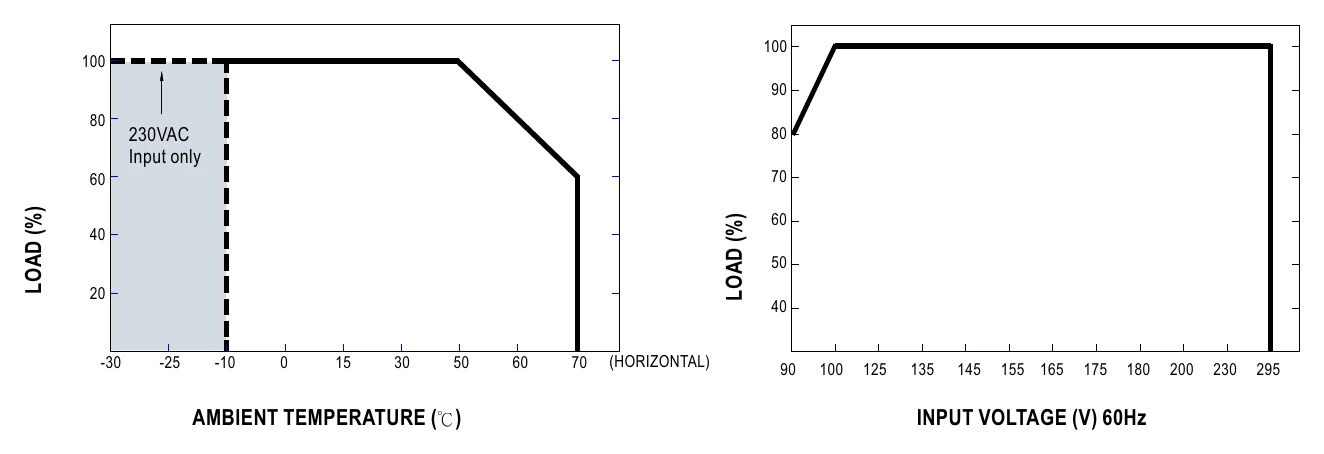

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY STANDARDS^Note.8: UL879, UL1310, UL8750, CSA C22.2 No. 207-M89, BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, CAN/CSA C22.2 No. 223-M91(except for 48V), CAN/CSA C22.2 No. 250.13-12, GB19510.1, GB19510.14,J61347-1, J61347-2-13, EAC TP TC 004, IP67 approved; design refer to UL60950
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN55032 Class B, BS EN/EN61000-3-2 Class C (≧75% load) ; BS EN/EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, BS EN/EN55024, light industry level (surge 4KV), EAC TP TC 020

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the static characteristics for more details.
5. This is the maximum possible output current and power, over load protection may be activated slightly below this level to comply with the requirement of UL1310 class 2.
6. 3 years warranty is guaranteed for operating ambient temperature no higher than 68℃.
7. Please refer to "DRIVING METHODS OF LED MODULE".
8. Safety and EMC design refer to BS EN/EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18.
9. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
