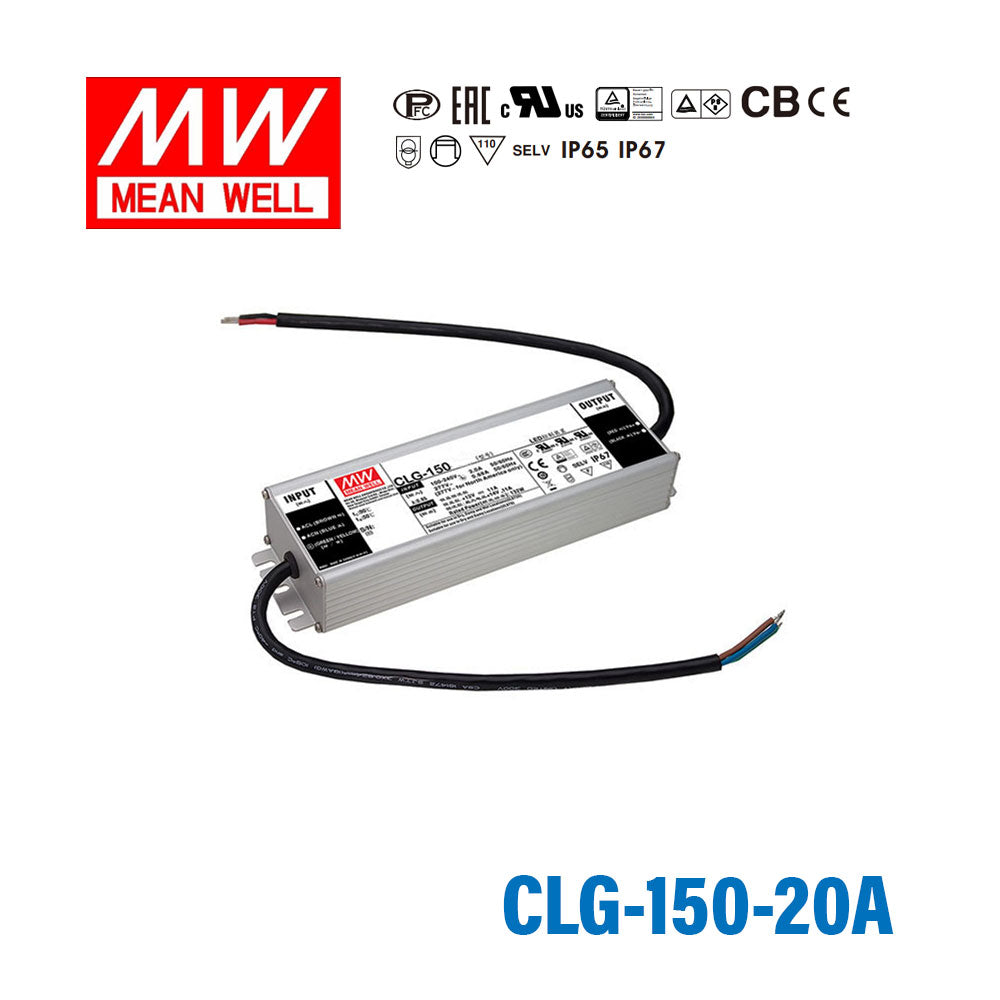

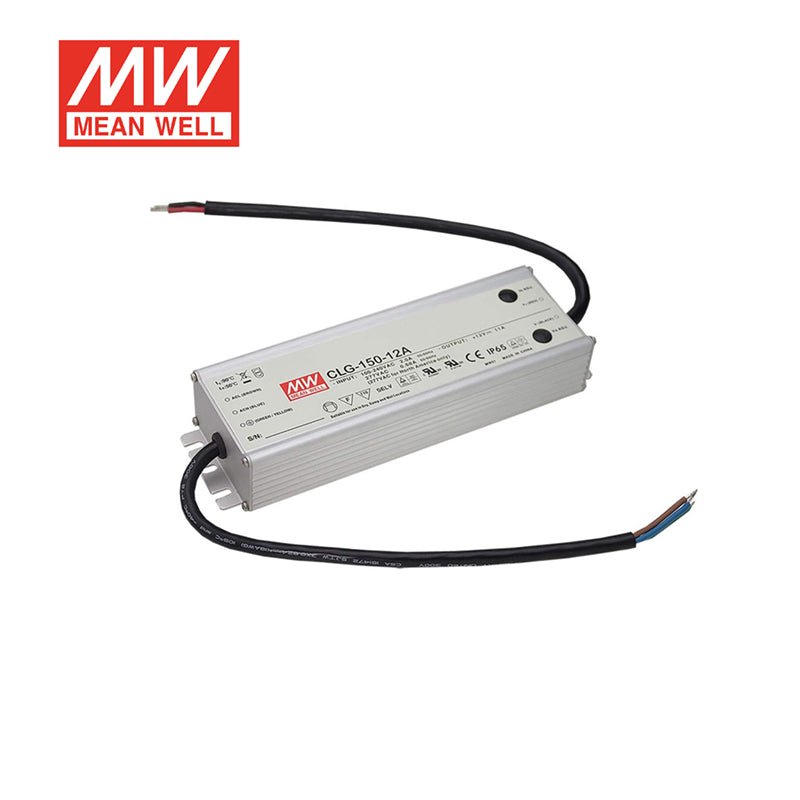

Mean Well CLG-150-20A LED Switching Power Supply

Name: Mean Well CLG-150-20A LED Switching Power Supply
Brand: Mean Well
SKU: CLG-150-20A
Price: 34.07 USD
Availability: InStock

SKU CLG-150-20A

$34.07 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

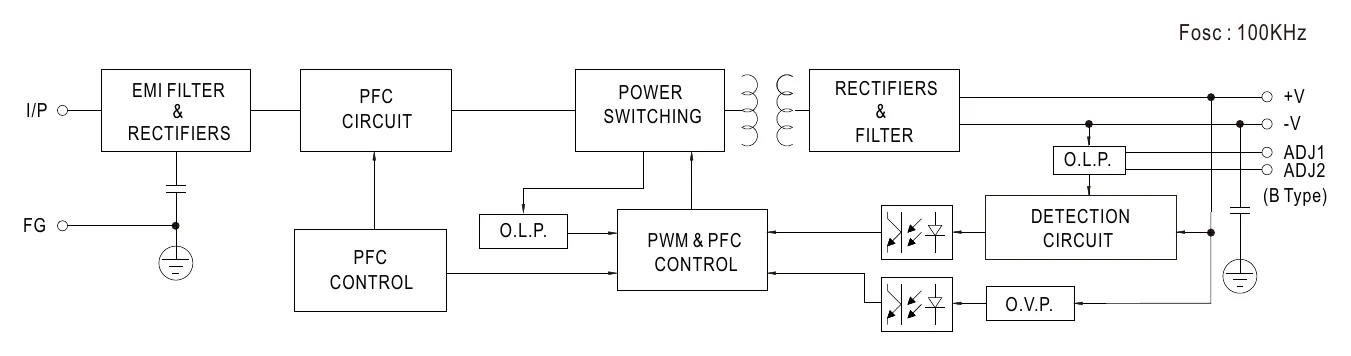

Overview

CLG-150-20A is the 20V output model of this series: rated current 7.5A, rated power 150W, typical efficiency 90%.

CLG-150-20ASpecifications from the official datasheet (2019-09-06 edition)Download datasheet PDF

DC VOLTAGE: 20V
CONSTANT CURRENT REGION^Note.4: 15 ~ 20V
RATED CURRENT: 7.5A
RATED POWER: 150W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE^Note.6: 17 ~ 22V

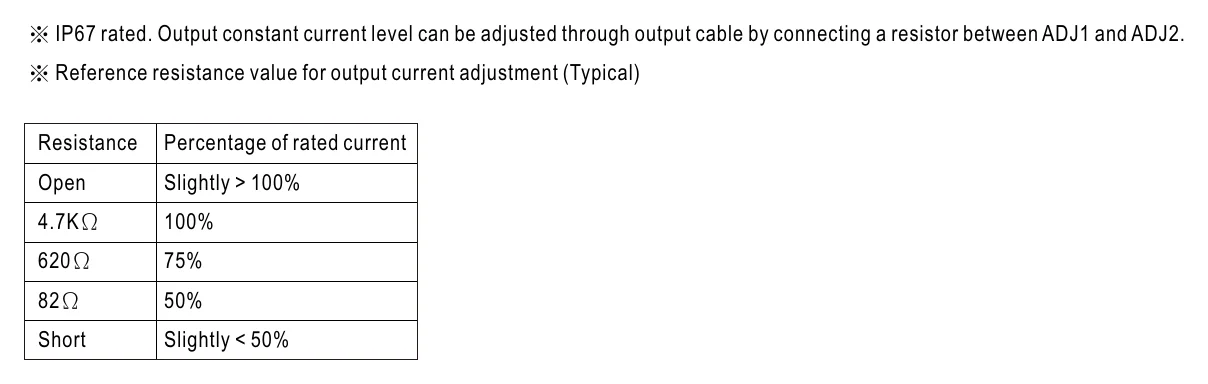

CURRENT ADJ. RANGE: Can be adjusted by internal potentiometer A type and C type only
CURRENT ADJ. RANGE: 3.75 ~ 7.5A
VOLTAGE TOLERANCE^Note.3: ± 2.0%
LINE REGULATION: ± 0.5%
LOAD REGULATION: ± 1.0%
SETUP, RISE TIME: 3000ms, 80ms/115VAC 500ms, 80ms/230VAC at full load
HOLD UP TIME (Typ.): 50ms / 230VAC 16ms / 115VAC at full load

VOLTAGE RANGE^Note.5: 90 ~ 295VAC 127 ~ 417VDC
FREQUENCY RANGE: 47 ~ 63Hz

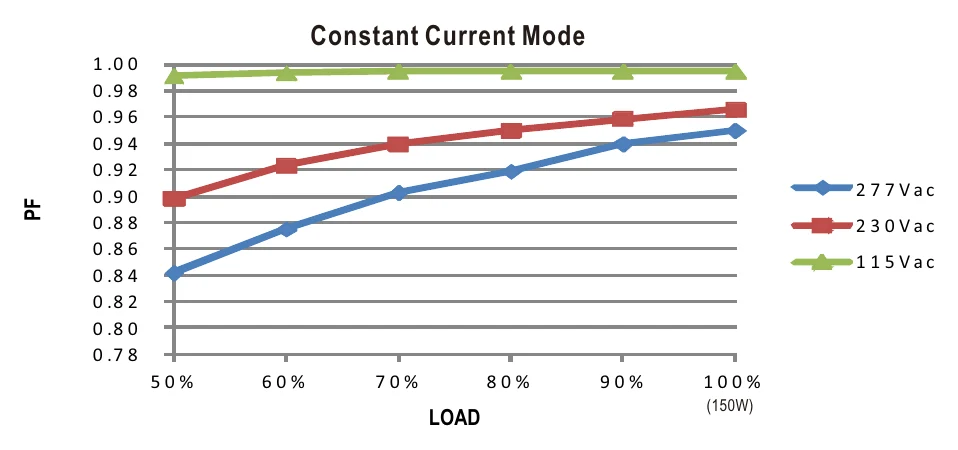

POWER FACTOR (Typ.): PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION: THD< 20% when output loading≧75% at 115VAC/230VAC input and output loading≧75% at 277VAC input

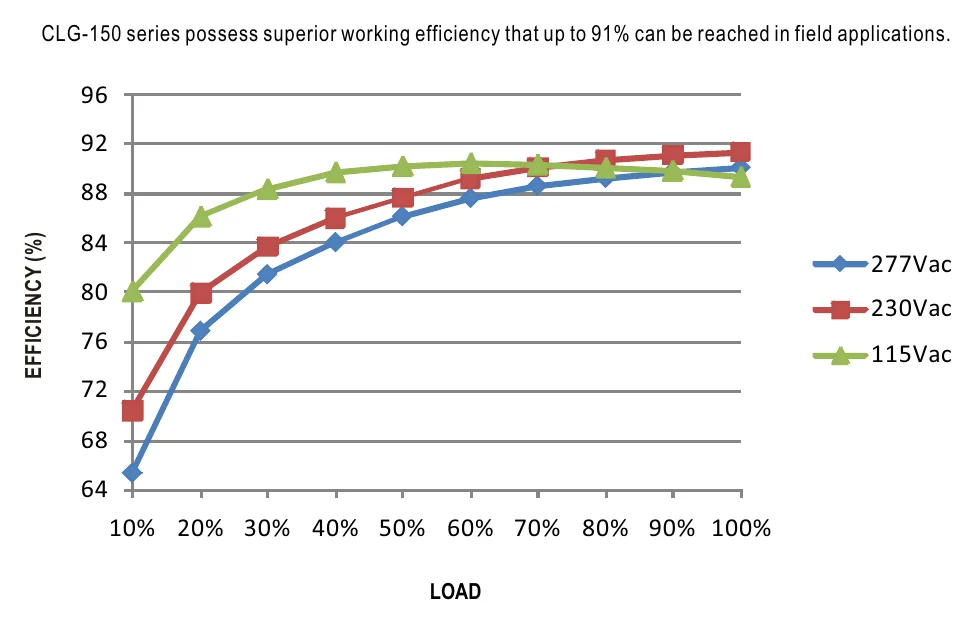

EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 2A / 115VAC 1A / 230VAC 0.68A / 277VAC
INRUSH CURRENT(max.): COLD START 65A(twidth=595μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 5 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <1mA / 240VAC

OVER CURRENT (Typ.)^Note.4: 95 ~ 108% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 23 ~ 28V Protection type : Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

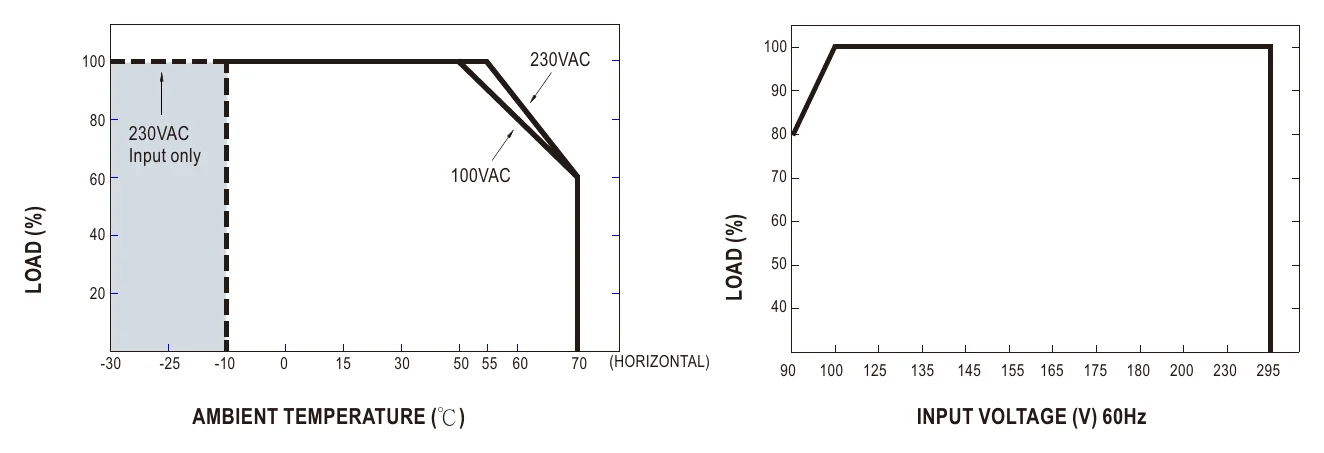

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ± 0.03%/℃ (0 ~ 50℃ )
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY STANDARDS^Note.7: UL8750, CSA C22.2 No. 250.0-08, UL1012, CAN/CSA-C22.2 No. 107.1-01, UL879, CSA C22.2 No.207-M89, EN61347-1, EN61347-2-13 independent(except for CLG-150 C type),UL60950-1, TUV EN60950-1,IP65 or IP67, J61347-1, J61347-2-13(except for CLG-150 C type) , EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55015, EN55032 Class B, EN61000-3-2 Class C (≧75% load) ; EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), EAC TP TC 020

MTBF: 303.7K hrs min. MIL-HDBK-217F (25℃)

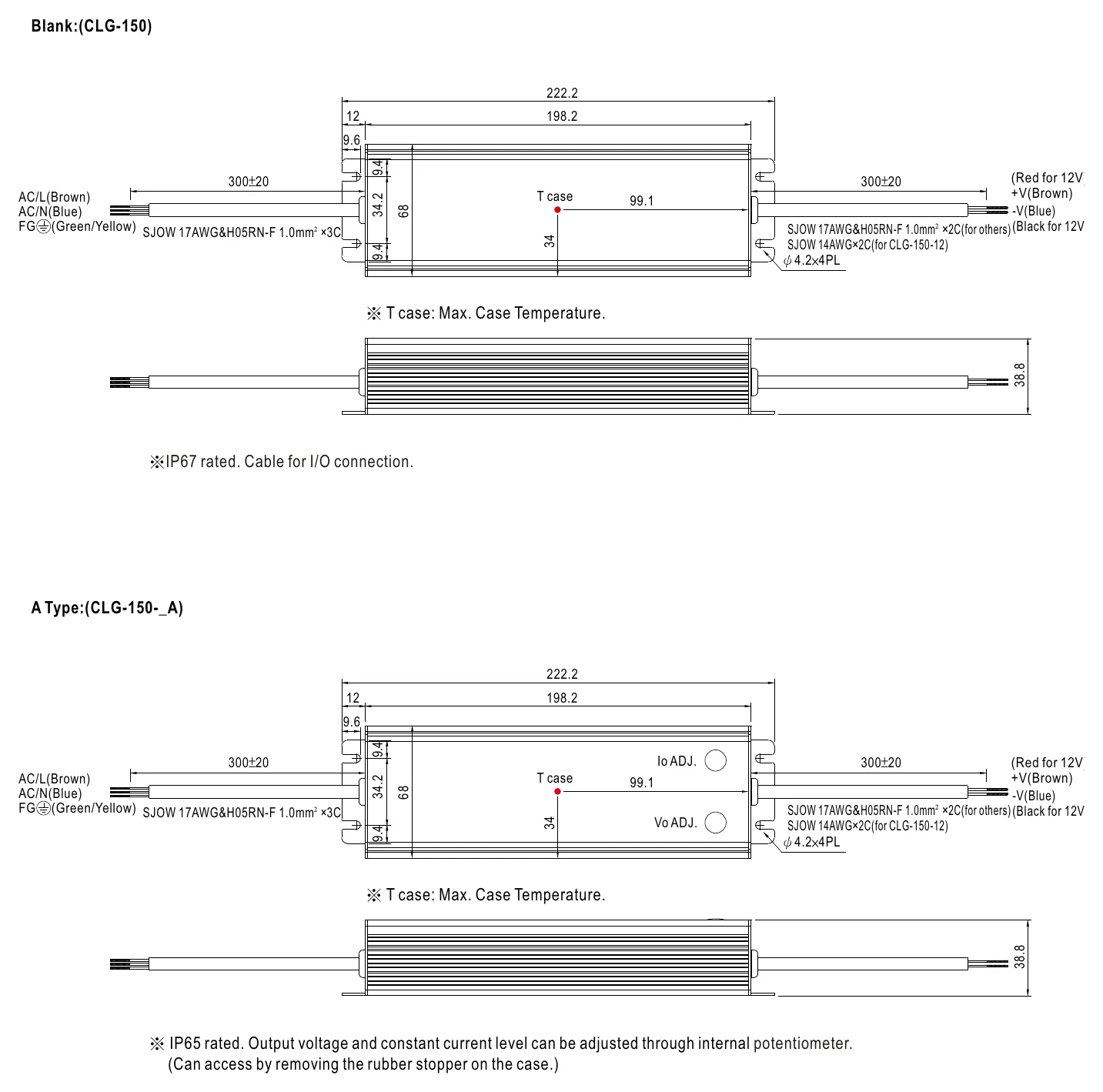

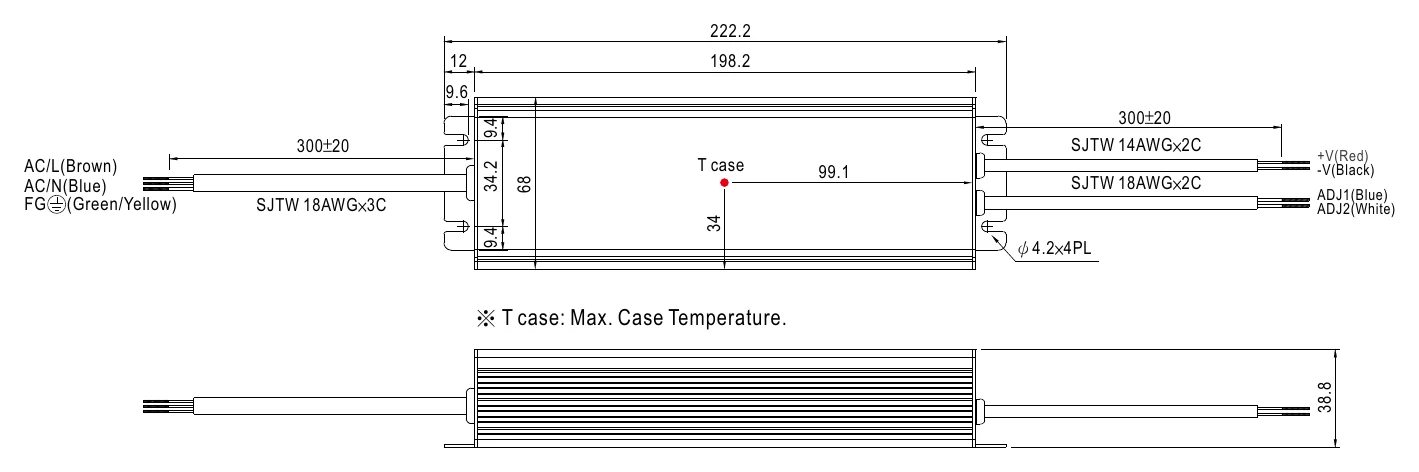

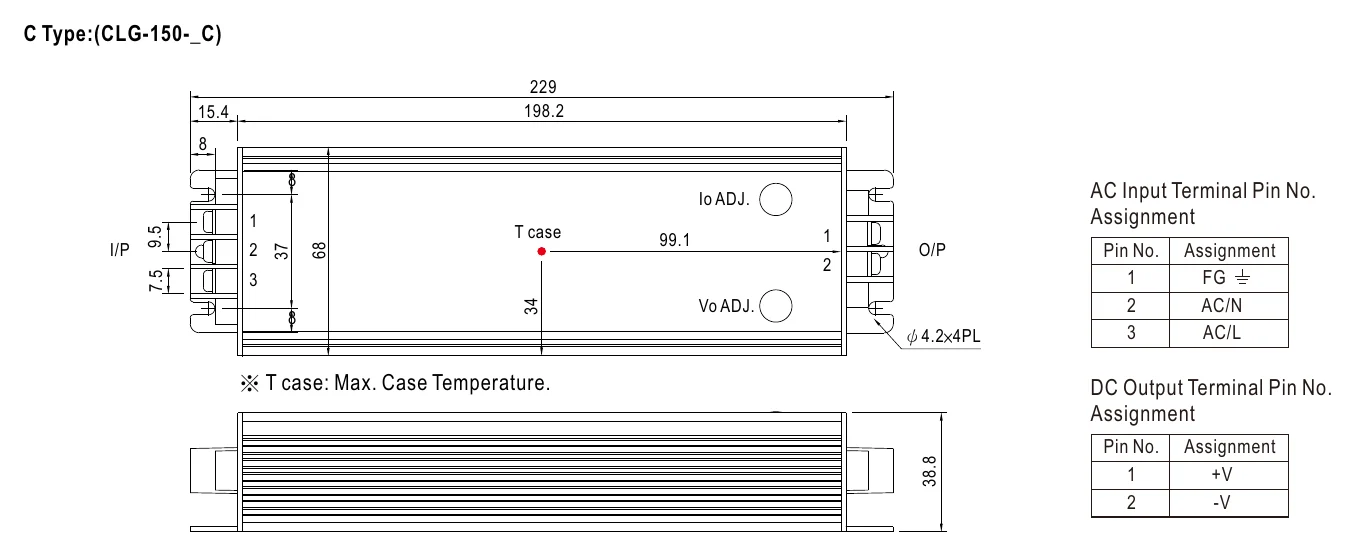

DIMENSION: 222.2*68*38.8mm (L*W*H)(CLG-150-Blank/A/B) 229*68*38.8mm (L*W*H)(CLG-150-C)
PACKING: 1.0Kg; 12pcs/13Kg/0.58CUFT(CLG-150-Blank/A/B) 1Kg; 12pcs/13Kg/0.96CUFT(CLG-150-C)

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. Derating may be needed under low input voltages. Please check the static characteristics for more details.
6. A type and C type only.
7. Safety and EMC design refer to EN60598-1, subject 8750(UL), CNS15233, GB7000.1, FCC part18.
8. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
