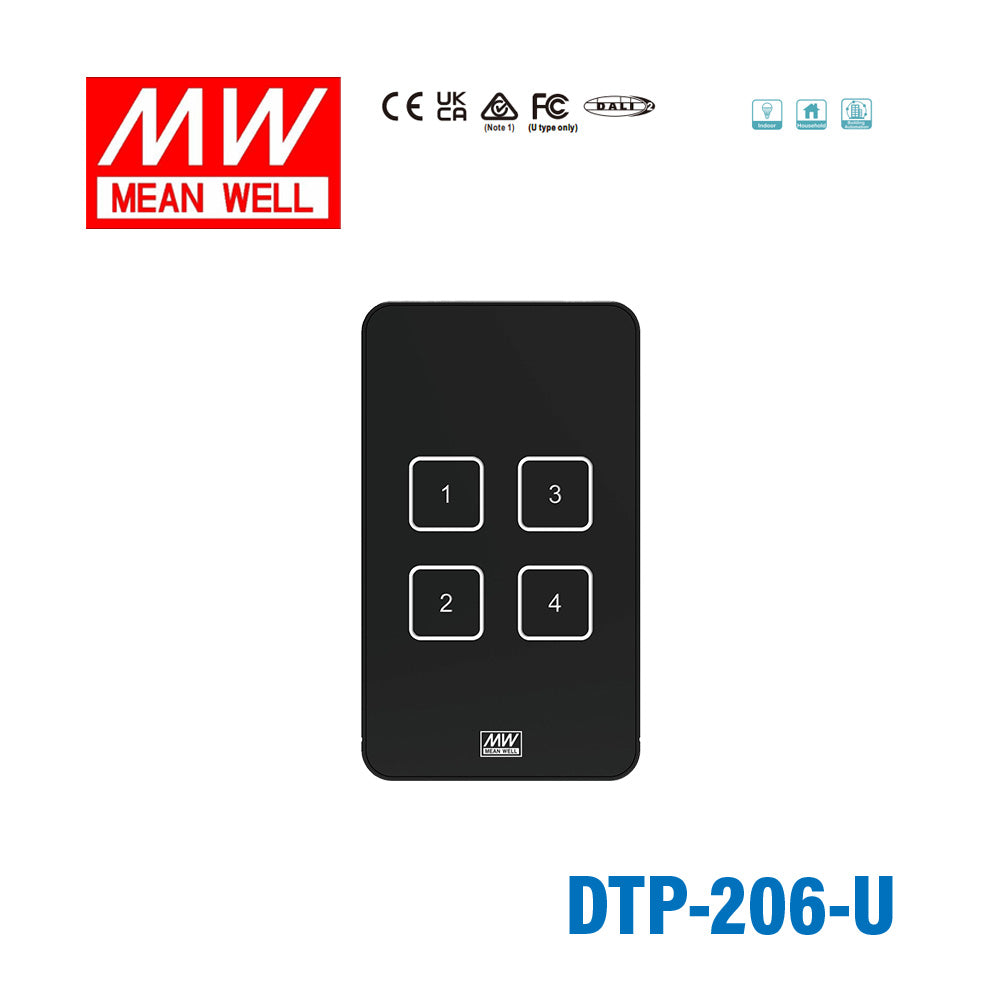

Mean Well DALI2 Panel 6-Keys U Type
Overview
Type Blank: DALI-2 Touch panel with digit printing.

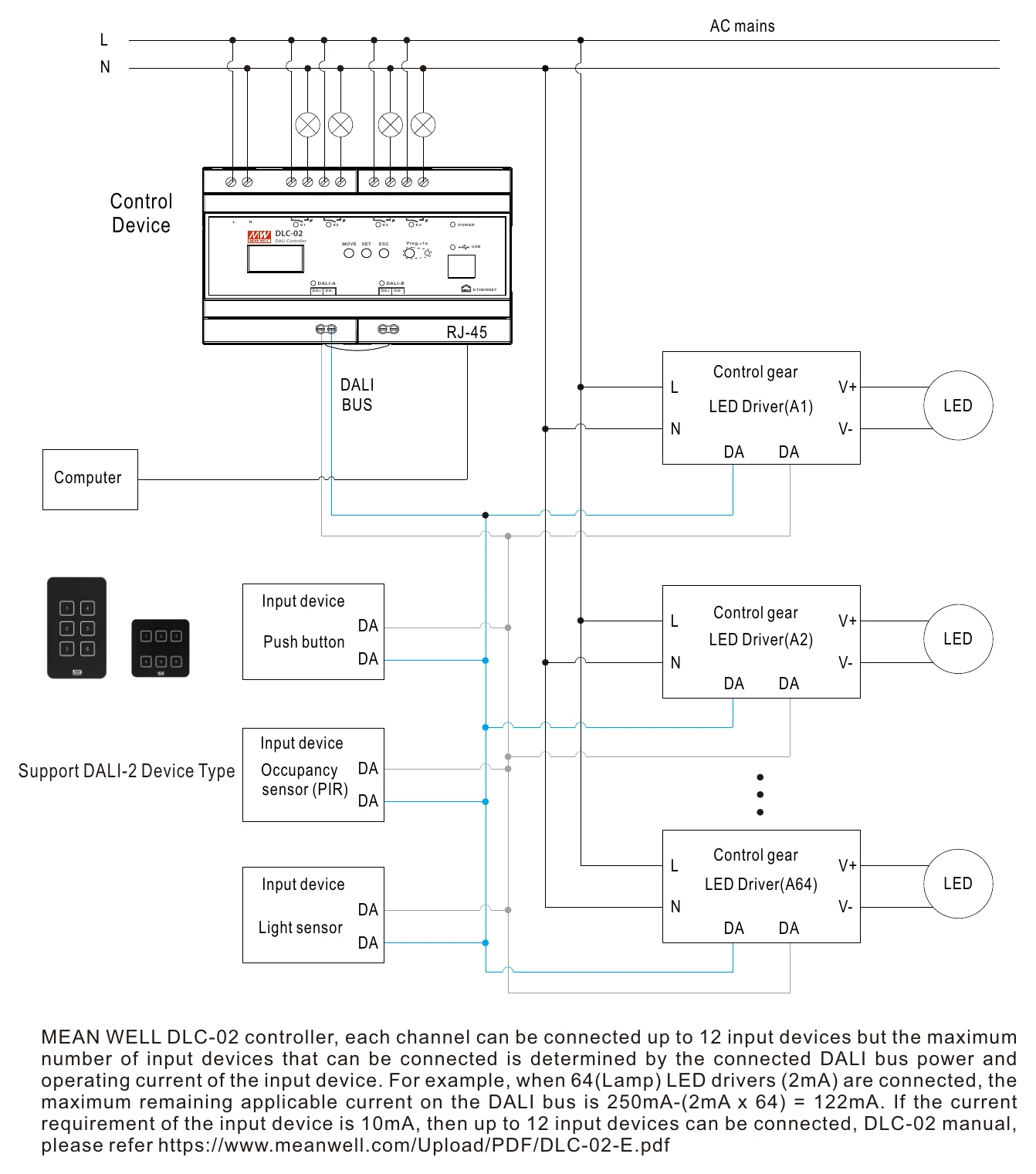

The DTP-2XX series compliant with DALI IEC62386 standard as a DALI-2 input device, it is powered by the DALI bus and has a variety of buttons. It designs with a tempered glass and a sliding cover. The cover is easy to install and can also provide customized laser-engraved symbols. There is a built-in toggle switch to adjust the button backlight and volume, allowing users to customize settings according to their needs. This touch panel can be used with the MEAN WELL DLC-02 DALI controller, LED power supply, and various DALI sensors to form a DALI-2 digital lighting system, which can control the on/off, color temperature, color, brightness, scene, grouping, scheduling, and various event adjustments, thus meeting most lighting control needs. If you need a DALI digital lighting solution, please contact MEAN WELL sales representative.
Features
- DALI-2 certified touch panel
- Compliant with IEC-62386-301 push button
- Compliant with IEC-62386-332 feedback
- Compatible for DALI-2 controllers

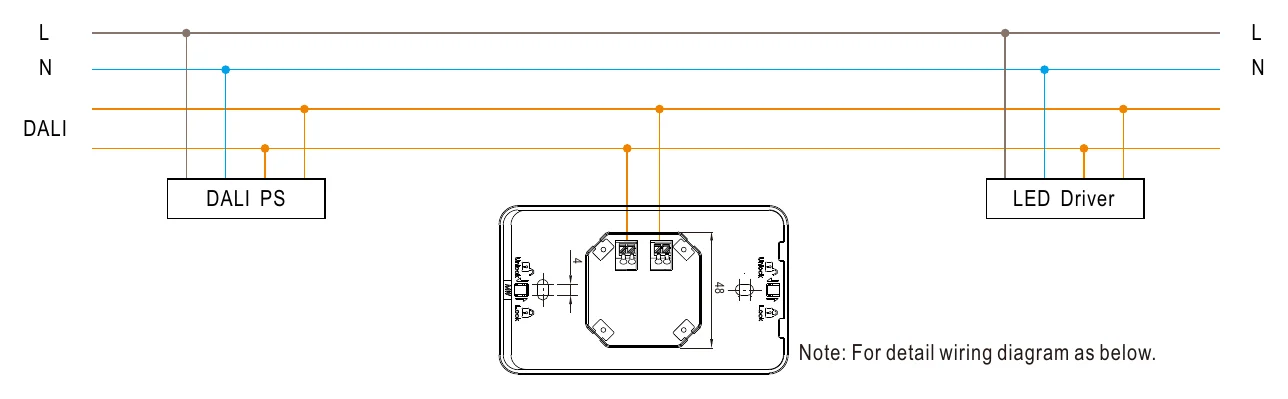

- Powered by DALI Bus
- Configurable functionality via MEAN WELL DLC-02 software
- Each button can trigger multiple modes: Short Click/Double Click/Long Press, to trigger scene or grouping functions
- Backlight brightness adjustable
- Touch panel volume adjustable
- 5 years warranty
Specifications
SPECIFICATION
- NUMBER OF BUTTONS
- 6
INPUT
- INPUT VOLTAGE
- DALI bus 9.5V~22.5V DC according to IEC62386 regulation
- CURRENT CONSUMPTION
- Typ. Current <4mA (at 16V) Inrush Current <10mA
- START-UP TIME
- 300ms
- PROTOCOL
- DALI-2
FUNCTION
- DALI STANDARD
- IEC62386-101, 103, 301, 332
- BUTTON EVENT
- Short click, Double click, Long press
- BACKLIGHT
- Three adjustable levels: high brightness, low brightness, and off
- VOLUME
- Optional to turn on or off
ENVIRONMENT
- OPERATING TEMP.
- -20 ~ +50℃
- OPERATING HUMIDITY
- 10 ~ 93% RH; refer to EN50090-2-2
- STORAGE TEMPERATURE & HUMIDITY
- -25 ~ +70℃, 10 ~ 95% RH
SAFETY & EMC
- SAFETY STANDARD
- BS EN/EN61347-1; BS EN/EN61347-2-11
- EMC EMISSON
- BS EN/EN55015 ; FCC Part 15 CLASS B
- EMC IMMUNITY
- BS EN/EN61547
- WITHSTAND VOLTAGE
- DALI port-Case:1.5KVAC
OTHERS
- WIRE SIZE
- 0.5~1.5 mm²(AWG 20~16)
- SIZE/UNIT(L*W*H)
- 120 * 70 * 26.5mm
- PACKING
- 0.14Kg ; 48pcs / 7.8Kg / 2.33CUFT
- MATERIAL
- ABS+PC(Black)
Certifications & ratings
- Marked features
- Indoor, Household, Building Automation
MODEL ENCODING
- Blank (this model)
- DALI-2 Touch panel with digit printing
- －□□
- Customer code for customized function symbol (size:16.5*16.5 mm)
Test conditions and notes1
- 1.RCM is on a voluntary basis .

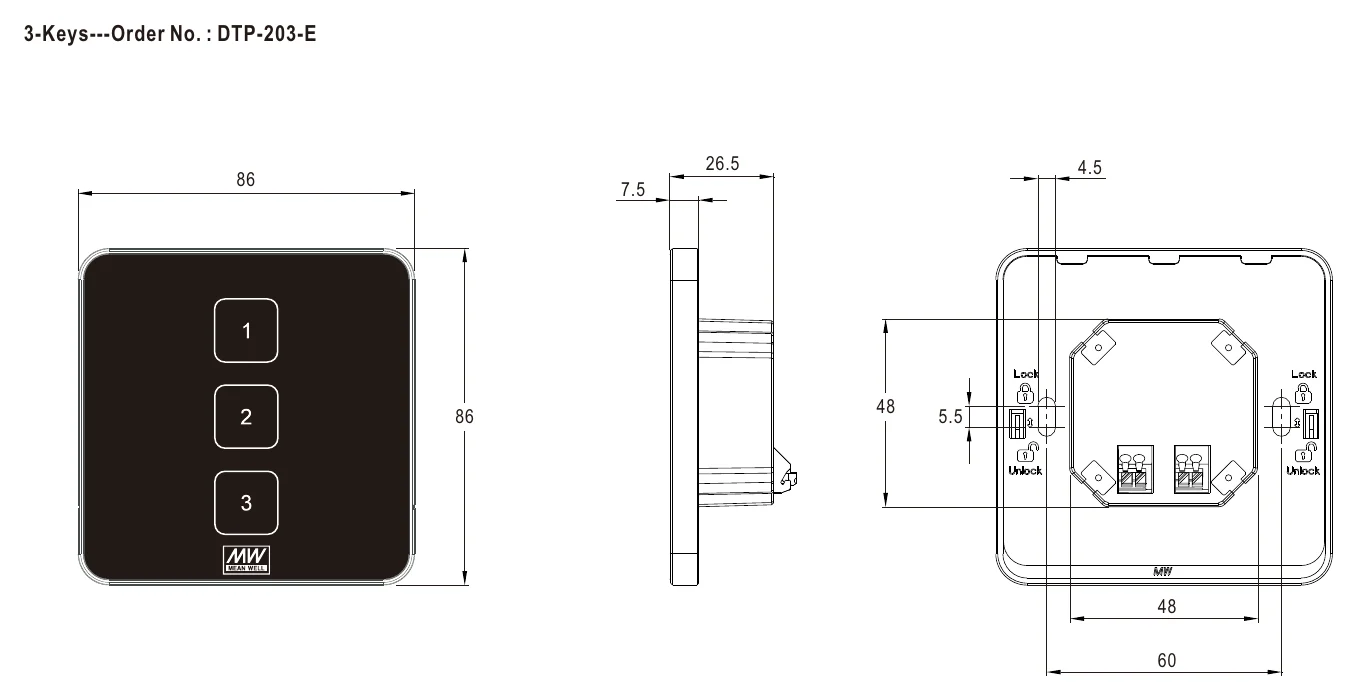

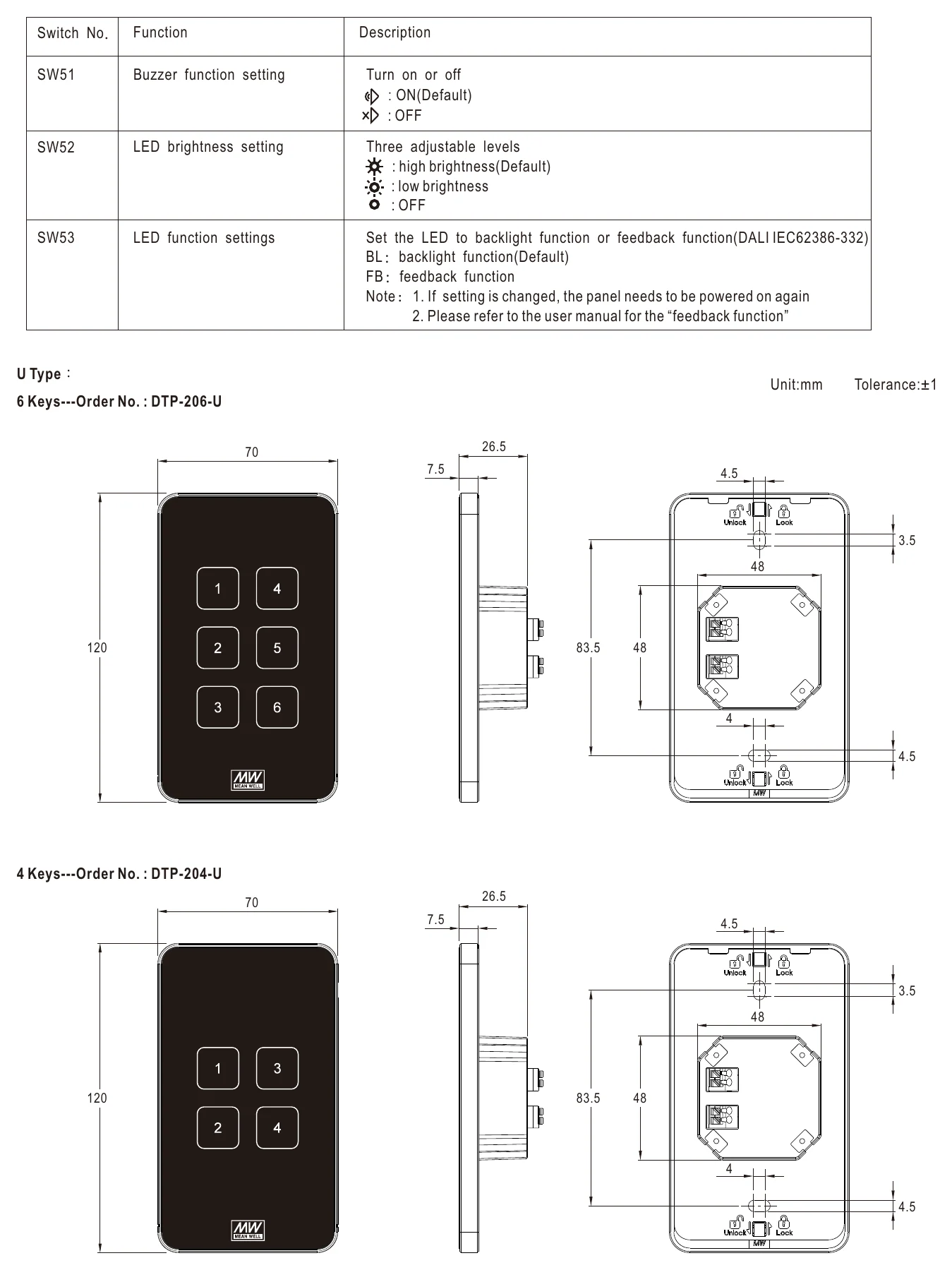

Technical drawings
Typical applications
- Office lighting
- Commercial lighting
- Warehouse lighting
- Home automation
- Luxury villa lighting
Downloads
