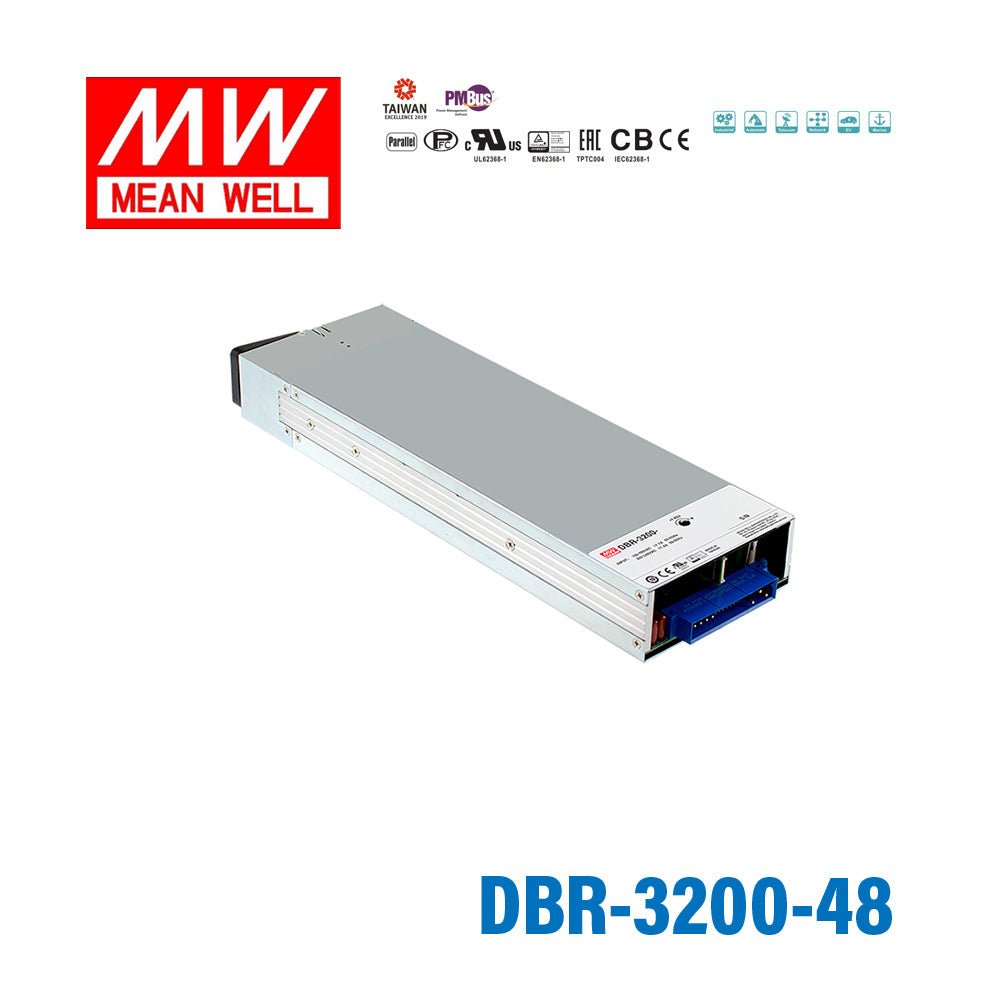

Mean Well DBR-3200-48 Rack Mountable Front End Battery Charger 3200W 48V
output voltage and current programmable, active current sharing up to 12800W for one 19" rack shelf, built-in OR-ing FET, support hot swap
$765.76 USD
Unit price /
Unavailable
Shipping calculated at checkout.
Notify me when it's back in stock
|
Your order will be processed within 24 hours
Mean Well DBR-3200-48 Rack Mountable Front End Battery Charger 3200...
$765.76 USD
Unit price /
Unavailable
Description
Description
Features
| Charger for lead-acid batteries(Gel, flooded and AGM) and Li-ion batteries(lithium iron and lithium manganese) |
| Built-in default 3 stage charging curves and programmable curve |
| Built-in I²C interface, PMBus protocol(Optional CANBus protocol) |
| Universal AC input/Full range |
| Built-in active PFC function |
| Forced air cooling by built-in thermal controlled DC fans |
| Optional conformal coating |
| Built-in OR-ing FET, support hot swap(hot plug) |
| Active current sharing up to 12800W for one 19"" rack shelf |
| Protections: Battery under voltage/Battery no connection/Short circuit/Over voltage/Over temperature |
| 5 years warranty |
General Specification
| AC input voltage range | 90~264VAC ; 127~370VDC |
| AC inrush current (max.) | COLD START 55A/230VAC |
| DC adjustment range | up to 125% rated output voltage |
| Leakage current from battery | <1.5mA / 230VAC |
| Over temperature protection | Shut down o/p voltage, auto recovery |
| Over voltage protection | 115%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3KVAC, I/P-FG: 2KVAC, O/P-FG: 1.5KVAC |
| Working temperature | -30~+70ºC (refer to output derating curve) |
| Safety standards | UL62368-1, CSA C22.2 , TUV EN62368-1, EAC TP TC 004 approved |
| EMC standards | EN55032 class B, EN61000-4-2,4,6,8,11 |
| Case No | 256 |
| Dimension (LxWxH) (mm) | 325*107*41mm |
| Packing | 4pcs/11.6Kg |
Specifications
Specifications
-
BrandMean Well
-
Power Rating3200 Watt
-
Output Voltage48 Volt
-
Rated Current55 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length12.8 in
-
Width4.21 in
-
Height1.61 in
-
Weight5.84 lb
