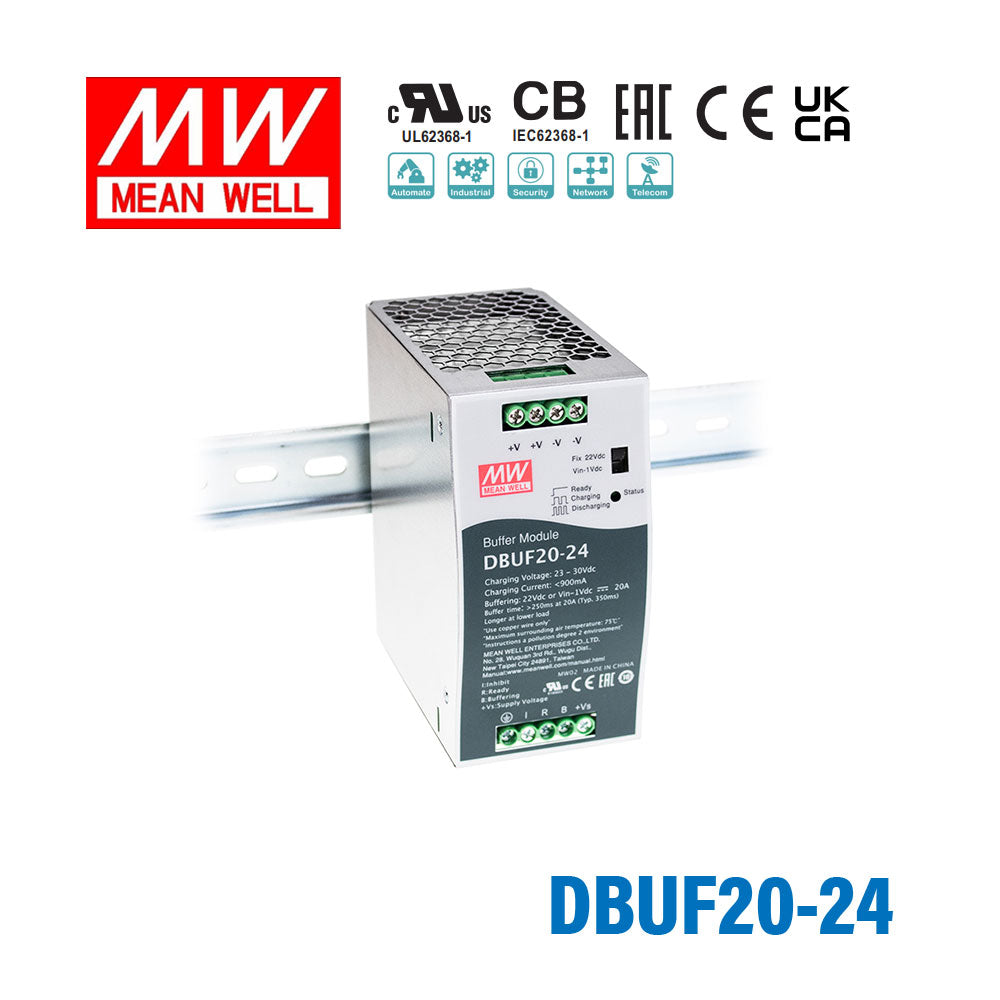

Mean Well DBUF20-24 DIN Rail Type Buffer Module 20A 24V

buffering with capacitor, support parallel connection to extend buffering time
$111.23 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Buffering with electrolytic capacitors instead of lead acid batteries
Type buffering time of 350ms@22Vdc/20A
Buffer mode selectable by switch
LED indicator for signal status
Supports parallel connection to extend buffering time
Cooling by free air convection
-25~75°C wide operating
3 years warranty


General Specification

DC input voltage  24Vdc
Charging voltage 23~30Vdc
Charging current 900mA Max
Overload protection 105%~125% rated output power at buffer mode
Over voltage protection 31~37.5V only, shut down o/p voltage
Output current 20A
Ripple & Noise 200mVp-p
Working temperature -25~+75°C (refer to output derating curve)
TVS For Signals 35V
Safety standards IEC62368-1, UL62368-1 approved
EMC standards EN55032 class B, EN61000-4-2,3,4,5,6,8
Case No 979E
Dimension (LxWxH) 63x125.2x114.9
Packing 12pcs / 12.8kg

Specifications

  • Brand
    Mean Well
  • Series
    D-BUF
  • No of Output
    1
  • Standards Met
    CB,CE,EAC,UL
  • Operating Temperature
    -25°C~75°C
  • Warranty
    3 Year
  • Length
    4.93 in
  • Width
    4.52 in
  • Height
    2.48 in
  • Weight
    2.34 lb

File Downloads

::specification::
