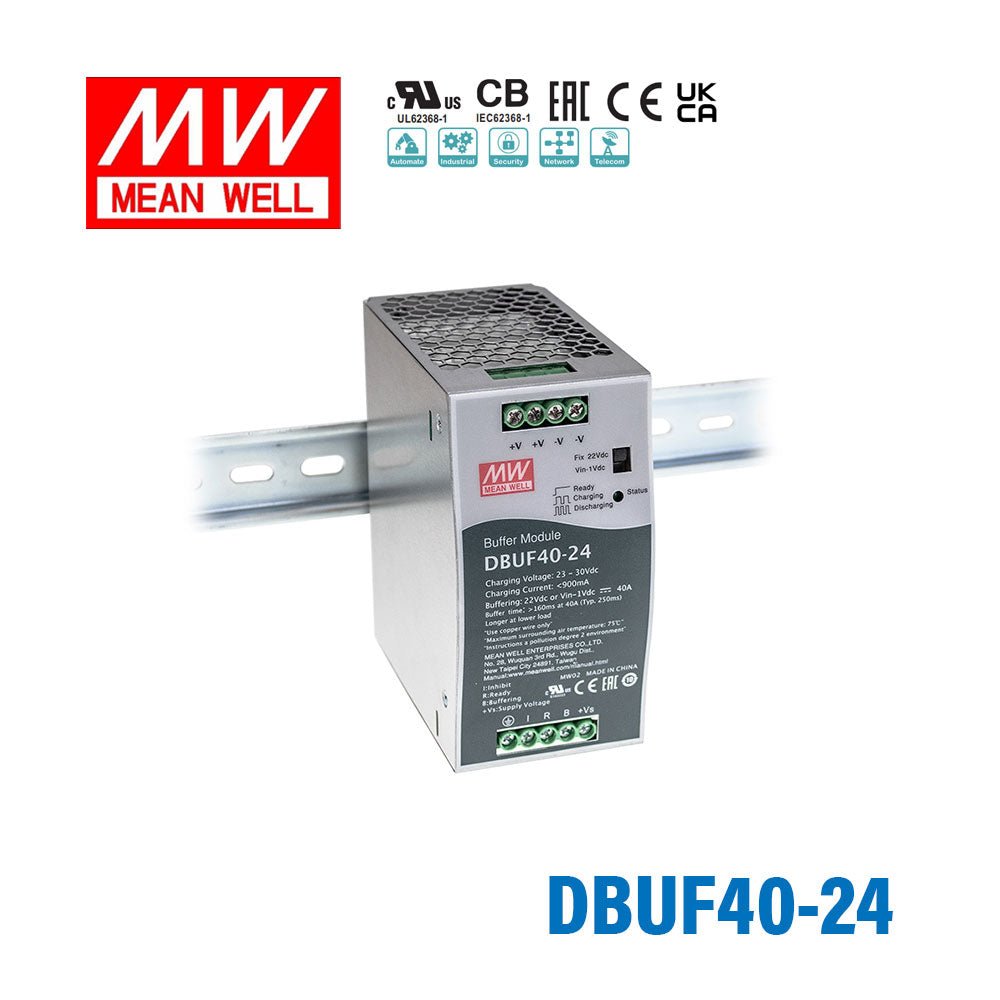

Mean Well DBUF40-24 Buffer Module Power 24V 40A Supply - DIN Rail
buffering with capacitor, support parallel connection to extend buffering time
SKU:
DBUF40-24
$138.77 USD
Unit price /
Unavailable
Shipping calculated at checkout.
|
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well DBUF40-24 Buffer Module Power 24V 40A Supply - DIN Rail
$138.77 USD
Unit price /
Unavailable
Description
Description
Features
| Buffering with electrolytic capacitors instead of lead acid batteries |
| Type buffering time of 250ms@22Vdc/40A |
| Buffer mode selectable by switch |
| LED indicator for signal status |
| Supports parallel connection to extend buffering time |
| Cooling by free air convection |
| -25~75°C wide operating |
| 3 years warranty |
General Specification
| DC input voltage | 24Vdc |
| Charging voltage | 23~30Vdc |
| Charging current | 900mA Max |
| Overload protection | 105%~125% rated output power at buffer mode |
| Over voltage protection | 31~37.5V only, shut down o/p voltage |
| Output current | 40A |
| Ripple & Noise | 350mVp-p |
| Working temperature | -25~+75°C (refer to output derating curve) |
| TVS For Signals | 35V |
| Safety standards | IEC62368-1, UL62368-1 approved |
| EMC standards | EN55032 class B, EN61000-4-2,3,4,5,6,8 |
| Case No | 979E |
| Dimension (LxWxH) | 63x125.2x114.9 |
| Packing | 12pcs / 12.8kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesD-BUF
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operating Temperature-25°C~75°C
-
Warranty3 Year
-
Length4.93 in
-
Width4.52 in
-
Height2.48 in
-
Weight2.34 lb
