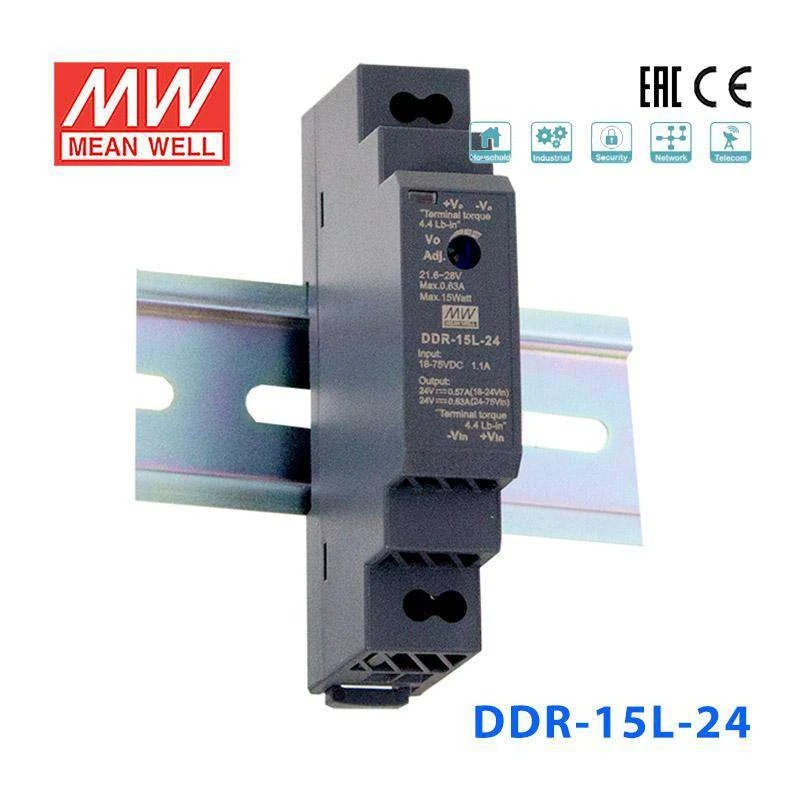

Mean Well DDR-15L-24 DC-DC Converter - 15W

Name: Mean Well DDR-15L-24 DC-DC Converter - 15W - 18~75V in 24V out 630mA
Brand: Mean Well
SKU: DDR-15L-24
Price: 22.36 USD
Availability: InStock

Overview

DDR-15L-24 is the 24V output model of this series: rated current 0.63A, rated power 15W, typical efficiency 87%.

DDR-15 series is a 15W DIN Rail type DC-DC converter with main features including DIN rail-type easy installation, ultra slim width (17.5mm), 4: 1 ultra wide input voltage, -40~+85℃ wide operating temperature, 4KVdc I/O isolation, adjustable output voltage ( 10%) and full protection level and voltage drop compensation along cable...etc. This series has two input options: 9~36V /18~75V and various output options: 3.3V / 5V / 12V / 15V / 24V and can be used for industrial control, security control, communication system and other fields. Suitable applications are DC buck/boost regulator, increasing system insulation, etc.

Features

Width only 17.5mm (1SU)
4:1 ultra wide input range
-40~+85℃ wide working temperature
No minimum load required
DC output adjustable (±10%)
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Input under voltage protection
4KVdc I/O isolation(Reinforced isolation)
3 years warranty

Specifications

DDR-15L-24Specifications from the official datasheet (2026-03-31 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 0.63A
CURRENT RANGE: 0 ~ 0.63A
RATED POWER: 15W
RIPPLE & NOISE (max.)^Note.2: 100mVp-p
VOLTAGE ADJ. RANGE: 21.6 ~ 28V
VOLTAGE TOLERANCE^Note.3: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 120ms, 85ms at full load
HOLD UP TIME (Typ.): L-type: 16ms@48Vdc input
EXTERNAL CAPACITANCE LOAD (Max.): 680μF

INPUT

VOLTAGE RANGE^Note.4: 18 ~ 75Vdc
EFFICIENCY (Typ.): 87%
DC CURRENT (Typ.): 0.4A /48Vdc
INRUSH CURRENT (Typ.): 15A /48Vdc

PROTECTION

OVERLOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 28.8 ~ 32.4V Protection type : Shut down o/p voltage, re-power on to recover
REVERSE POLARITY: By internal MOSFET, no damage, recovers automatically after fault condition removed
UNDER VOLTAGE LOCKOUT: Power ON≥18V , OFF≤17V

ENVIRONMENT

WORKING TEMP.: -40 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 5 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 5 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
OPERATING ALTITUDE: 2000 meters

SAFETY & EMC

SAFETY STANDARDS: IEC 62368-1 (LVD) ,AS/NZS 62368.1 approved; Design refer to UL508
WITHSTAND VOLTAGE: I/P-O/P:4KVdc
ISOLATION RESISTANCE: I/P-O/P>100M Ohms / 500Vdc / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class B
Radiated BS EN/EN55032 Class B
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035 , BS EN/EN61000-6-2(BS EN/EN50082-2)

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 3, 6KV contact; criteria A
Radiated BS EN/EN61000-4-3 Level 3, 10V/m; criteria A
EFT / Burst BS EN/EN61000-4-4 Level 3, 2KV; criteria A
Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line; criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V; criteria A
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m; criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class B
Radiated	BS EN/EN55032	Class B
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 3, 6KV contact; criteria A
Radiated	BS EN/EN61000-4-3	Level 3, 10V/m; criteria A
EFT / Burst	BS EN/EN61000-4-4	Level 3, 2KV; criteria A
Surge	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line; criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V; criteria A
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A/m; criteria A

OTHERS

MTBF: 907K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 17.5*90*54.5mm (W*H*D)
PACKING: 68g; 160pcs/12Kg/1.19CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 48VDC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the derating curve for more details.
5. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

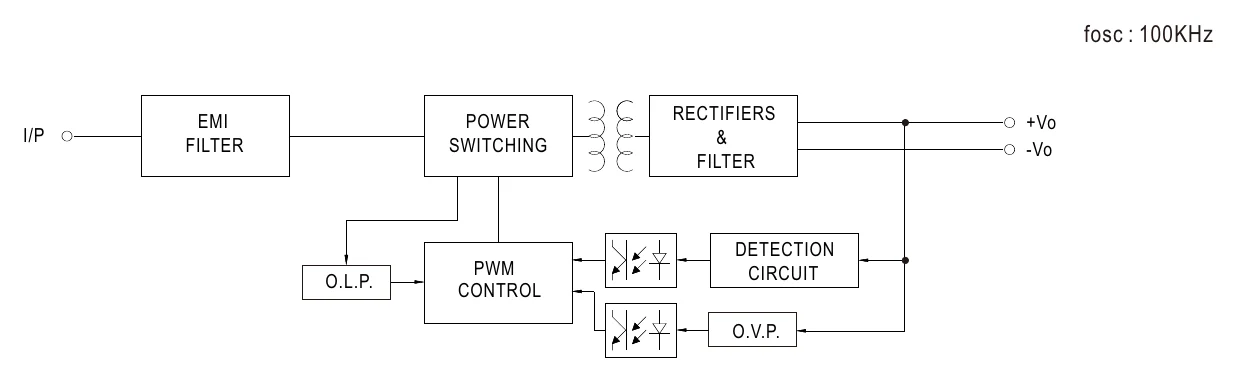

DDR-15L-24 Block Diagram — Block Diagram

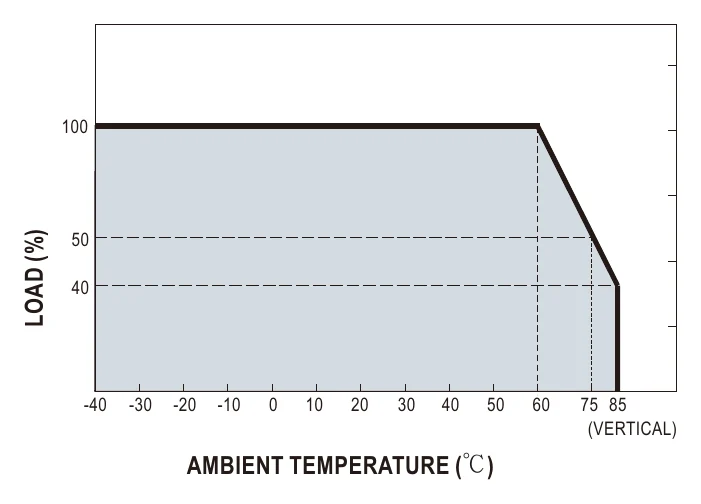

DDR-15L-24 Derating Curve — Derating Curve

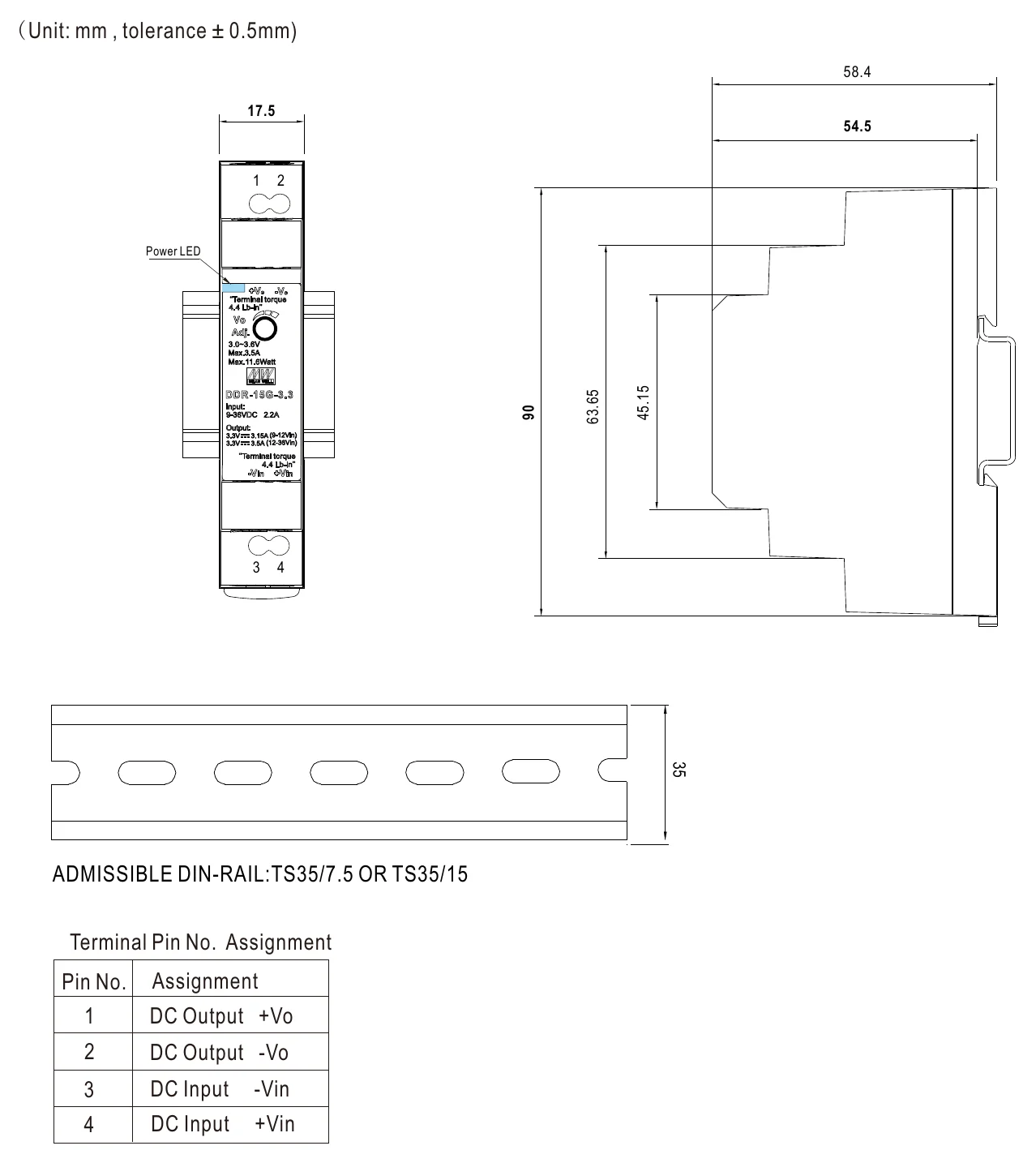

DDR-15L-24 Mechanical Specification — Mechanical Specification

Typical applications

Downloads

Certificates3

UL Certificate(DDR-15)(EN) PDF Download

CE Certificate(DDR-15)(EN) PDF Download

EMC Certificate(DDR-15)(EN) PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the DDR-15L-24 to step down a 48V telecom bus to 24V for door locks or access control devices?

Yes. The DDR-15L-24 accepts 18-75V DC input and outputs 24V at up to 0.63A (15W). This is sufficient to power 24V electromagnetic door locks, access control panels, or small alarm modules in telecom facilities running on a 48V DC bus.

Is the DDR-15L-24 appropriate for supplying 24V to a PLC auxiliary circuit from a 48V battery bank?

Yes. The 18-75V input range covers 48V battery systems with their typical voltage swing. The DDR-15L-24 provides 24V/0.63A, which is enough for low-power PLC I/O modules, status indicators, or small 24V solenoid valves in auxiliary automation circuits.

Can this unit power a 24V LED indicator strip inside a control panel?

The DDR-15L-24 provides 24V at up to 0.63A (15W). This is suitable for short runs of 24V LED indicator strips or panel lighting where total power consumption stays under 15W. Longer LED strip runs that need more than 0.63A require a higher-power supply.

Can the DDR-15L-24 handle high-vibration environments such as railway or mining equipment enclosures?

The DDR-15L-24 is rated for -40°C to +85°C (with derating per the derating curve) and is vibration-tested at 10-500Hz, 2G, 60 min. along each of the X, Y and Z axes, with mounting compliant to IEC60068-2-6. Railway standards such as EN 50155 or EN 50121 are not listed on its datasheet, so verify requirements for rail deployments.

Can I use the DDR-15L-24 to convert a 24V truck battery system to a regulated 24V for sensitive electronics?

The DDR-15L-24 requires a minimum input of 18V (it turns on at 18V and off at 17V or below), and a 24V nominal truck battery can dip below that during cranking. If your input stays within 18-75V under all operating conditions, the converter provides a regulated 24V output with 4KVdc input-to-output isolation; derating may be needed at low input voltage.

What DDR series models are available at the 15W power level with a 24V output?

Mean Well offers two 15W/24V DC-DC converters in this series: the DDR-15G-24 (9-36V input, 0.63A) and the DDR-15L-24 (18-75V input, 0.63A). The G variant suits lower-voltage DC buses such as 12V or 24V systems, while the L variant is designed for higher-voltage buses like 48V.
