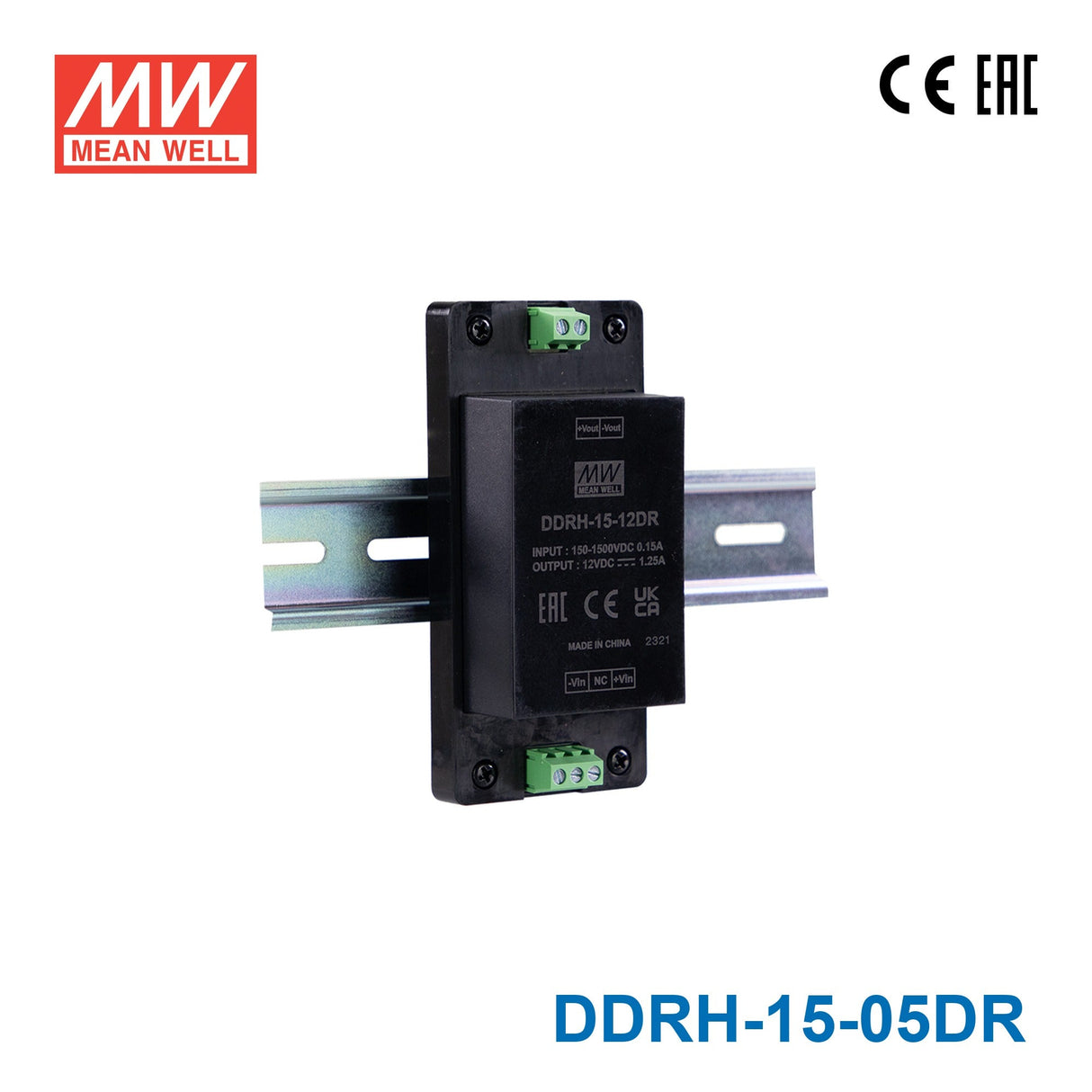

Mean Well DDRH-15-05DR Ultra Wide Input DC-DC Converter, 10W 5V, Din Rail Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well DDRH-15-05DR Ultra Wide Input DC-DC Converter, 10W 5V, Di...
The DDRH-15 is a 15W high-reliability ultra-wide input DC-DC converter designed for photovoltaic, renewable energy, and demanding high-voltage industrial applications. Its exceptional 150~1500Vdc input range — a 10:1 ratio — covers solar panels, battery strings, and high-voltage DC bus sources. With 4KVac reinforced I/O isolation, fanless free air convection cooling, and no minimum load requirement, the DDRH-15 provides stable, isolated power conversion across a wide -40~+80°C operating range.
Key Features
- ✓ Ultra-wide 150~1500Vdc input range — covers solar, ESS, and DC bus sources
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVac reinforced I/O isolation
- ✓ Cooling by free air convection — fanless design, no minimum load required
- ✓ Wide operating temperature: -40°C ~ +80°C
- ✓ Protections: Short circuit / Overload / Over voltage / Reverse polarity / Under voltage lockout
- ✓ DIN rail TS-35/7.5 or 15 compatible (DR type)
- ✓ Safety approvals: IEC62109-1 (LVD), EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDDRH Series
-
Power Rating15 Watt
-
Output Voltage5 Volt
-
Rated Current2 Ampere
-
Input Voltage150V~1500V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty3 Year
-
Length4.82 in
-
Width2.26 in
-
Height1.71 in
-
Weight0.47 lb
::specification::
Frequently Asked Questions
Can the DDRH-15-05DR power a 5V embedded controller or Raspberry Pi from a high-voltage DC bus?
The DDRH-15-05DR provides 5V at up to 2A (15W) and accepts 150–1500VDC input, making it suitable for supplying 5V embedded controllers, single-board computers, or logic boards in systems connected to medium- or high-voltage DC buses.
Is the DDRH-15-05DR suitable for use in DIN rail automation panels that require a 5V auxiliary supply?
Yes. The DDRH-15-05DR is a DIN rail-mount unit that provides a 5V/2A output for low-power auxiliary loads such as sensors, indicators, or communication modules within automation panels. Its 122.3 × 57.3 × 43.5 mm footprint fits standard DIN rail enclosures.
Can I use the DDRH-15-05DR in a traction or railway application powered by a 750V DC bus?
Yes. The DDRH-15-05DR accepts 150–1500VDC input with a 10:1 ultra-wide range, covering 750V DC traction bus voltages. It supplies 5V/2A for onboard electronics or communication equipment powered from traction bus rails.
Does the DDRH-15-05DR operate in cold outdoor environments or extreme temperatures?
Yes. The DDRH-15-05DR is rated for -40°C to +80°C and uses a fanless design, making it appropriate for outdoor enclosures, cold-climate installations, and environments where fan maintenance is impractical.
What is the difference between the DDRH-15-05DR, DDRH-15-05P, and DDRH-15-05ST?
All three models provide 15W at 5V/2A with the same 150–1500VDC input range. The DDRH-15-05DR is DIN rail-mount (122.3 × 57.3 × 43.5 mm, 0.215 kg), the DDRH-15-05P is PCB-mount (76.2 × 50.8 × 25.0 mm, 0.17 kg), and the DDRH-15-05ST is screw terminal-mount (122.3 × 57.3 × 32.0 mm, 0.21 kg). Choose based on the required mounting method.
