Mean Well DET01L-12 DC-DC Converter - 1W 5V DC in 12V out
Description
Description
- 3000VDC I/O isolation
- Internal SMD technology
- Protection: Short circuit
- Cooling by free air convection
- Non-conductive plastic case
- SMD package styles
- 100% full load burn-in test
- Low cost / High reliability
- Approved: UL / CUL
- 1 year warranty

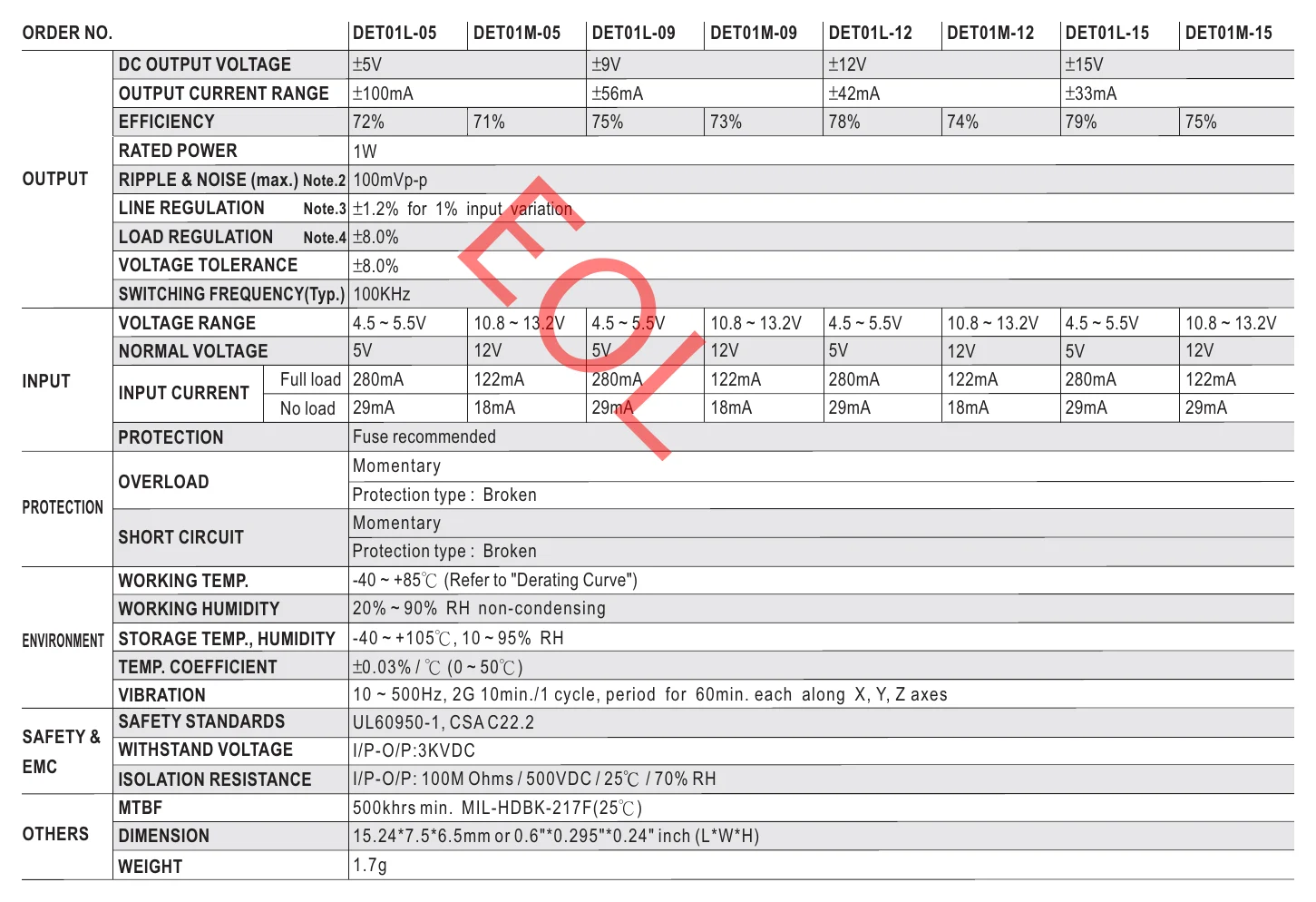

Specifications
Specifications
-
BrandMean Well
-
SeriesDENT Series
-
Power Rating1 Watt
-
Output Voltage12 Volt
-
Rated Current0.04 Ampere
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty1 Year
-
Length5.91 in
-
Width3.94 in
-
Height0.79 in
-
Weight2.2 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What does the Mean Well DET01L-12 do?
The DET01L-12 is a 1W DC-DC converter designed to convert 5V DC input to 12V DC output. It is intended for low-power DC power conversion in compact electronic equipment.
What are the main electrical specifications of the DET01L-12?
This model is rated for 1W output power and provides a 12V DC output. Its rated output current is 0.042A, and the product name identifies it as a 5V DC input, 12V DC output converter.
Is the DET01L-12 suitable for electrically isolated applications?
Yes. The DET01L-12 provides 3000VDC input-to-output isolation, which can be important in designs that require separation between input and output circuits. That makes it a stronger choice than non-isolated DC-DC converters for applications where isolation is required.
What protection and reliability features are included in this converter?
The DET01L-12 includes short-circuit protection and is built using internal SMD technology. It also undergoes a 100% full-load burn-in test and is described as a low-cost, high-reliability model.
What operating temperature range does the DET01L-12 support?
This model is specified for operation from -40°C to 85°C. That wide temperature range makes it suitable for use in demanding industrial or embedded environments where ambient conditions can vary significantly.
What approvals and warranty does the Mean Well DET01L-12 have?
The DET01L-12 is approved to UL and CUL standards. It also includes a 1-year warranty from the manufacturer.
