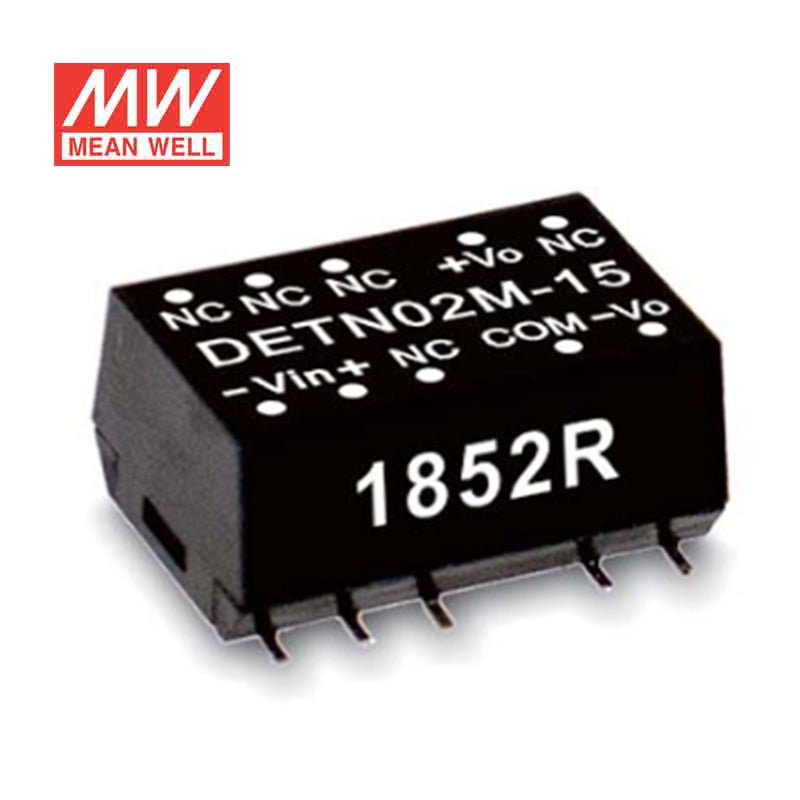

Mean Well DETN02N-15 DC-DC Converter - 2W - 21.6~26.4V in ±15V out
Description
Description
Features
| SMD package with industry-standard pinout |
| Wide operating temperature range -40~+100°C |
| Comply to BS EN/EN55032 radiated Class B without additional components |
| High efficiency up to 83% |
| Protections: Short circuit |
| 3KVDC I/O isolation |
| Low cost |
| Optional reel packing |
| 3 years warranty |
General Specification
| Voltage accuracy | ±2.0% |
| Vibration | 10 ~ 500Hz, 2G 10min./1 cycle, the period for 60min. each along X, Y, and Z axes |
| Cooling | Free-air convection |
| Short circuit protection | 0.5-second max |
| Working temperature | Standard model: -40 ~ +100℃ (Refer to "Derating Curve") ; Optional models (SC-suffix): -40 ~ +105℃ |
| EMC | Compliance to EN55032 class B, EN61000-4-2,3,4,5,6,8 |
| Temp. Coefficient | 0.03% / ℃ (0 ~ 90℃) |
| Dimension (LxWxH) (mm) | 15.24*10.9*7.1mm (0.6*0.43*0.28 inch) |
| Potting material | UL 94V-0 rated |
Specifications
Specifications
-
BrandMean Well
-
SeriesDENT Series
-
Power Rating2 Watt
-
Output Voltage15 Volt
-
Rated Current0.06 Ampere
-
Input Voltage21.6V~26.4V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~100°C
-
Warranty3 Year
-
Length0.6 in
-
Width0.43 in
-
Height0.28 in
-
Weight0 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DETN02N-15 for 15V analog circuitry in industrial or test equipment?
Yes, it is suitable for low-power analog or signal-conditioning circuits that require a 15V constant-voltage output and stay within 2W. The specified input range is 21-26VAC, and the unit operates from -40°C to +100°C.
Is this 15V converter appropriate for embedded control boards that need a small auxiliary rail?
It can be used as a low-power 15V auxiliary supply for embedded electronics when the load does not exceed 0.07A. Its small 15.24 × 10.9 × 7.1 mm footprint helps where board area is limited.
Can the DETN02N-15 support automation or instrumentation electronics with light 15V power demand?
It is intended for light 15V loads in automation or instrumentation designs where a constant-voltage output is required. With a 2W rating and 0.07A output current, it is better suited to low-power circuitry than larger field loads.
Does the DETN02N-15 work in high-heat or low-temperature equipment environments?
The published operating temperature range is -40°C to +100°C, which supports use across demanding thermal conditions. No IP rating is shown in the provided specs, so enclosure or outdoor suitability is not defined here.
What are the key differences between the DETN02N-15 and the other models in the series?
The main difference is output rating. DETN02N-05 is 5V at 0.2A, DETN02N-12 is 12V at 0.08A, and DETN02N-15 is 15V at 0.07A, while all three are 2W models.
