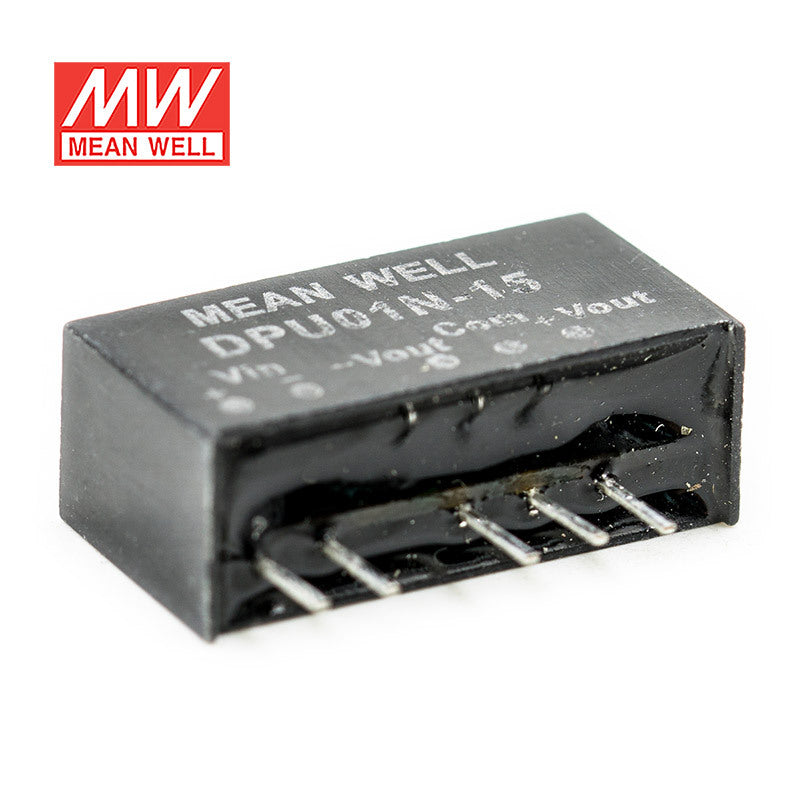

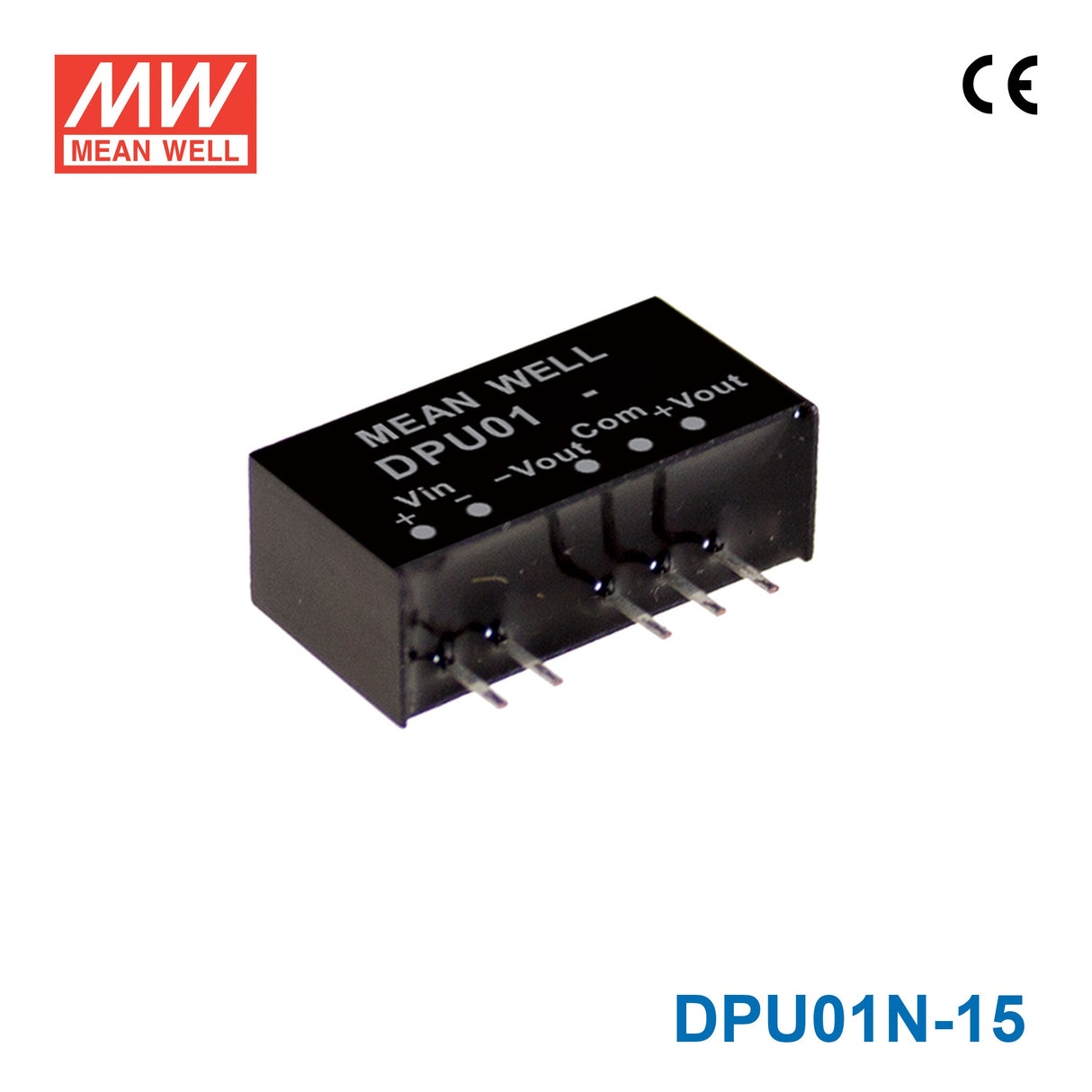

Mean Well DPU01N-15 DC-DC Converter - 1W - 21.6~26.4V in ±15V out

SKU:

DPU01N-15

$3.17 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

SIP6 package with industry-standard pinout

Wide operating temperature range -40~+90°C

High efficiency up to 84%

Comply to BS EN/EN55032 radiated Class A without additional components

Low cost

Protection: Short circuit

1.5KVDC I/O isolation

Low cost

3 years warranty

General Specification

Voltage accuracy	±3.0%
Vibration	10 ~ 500Hz, 2G 10min./1 cycle, the period for 60min. each along X, Y, and Z axes
Cooling	Free-air convection
Short circuit protection	1-second max
Working temperature	-40°C to +90°C
EMC	Compliance to EN55032 Class A, EN61000-4-2,3,4,5,6,8
Temp. Coefficient	0.03% / ℃ (0 ~ 85℃)
Dimension (LxWxH) (mm)	5/12Vin models:19.56.110.2mm (0.770.240.40 inch); 24Vin models:19.57.210.2mm (0.770.280.40 inch)
Potting material	UL 94V-0 rated

Specifications

Brand

Mean Well
Series

DPU Series
Power Rating

1 Watt
Output Voltage

15 Volt
Rated Current

0.03 Ampere
Input Voltage

21.6V~26.4V
No of Output

2
Dimming Control

None
Standards Met

CE
Operation Mode

Constant Voltage
Operating Temperature

-55°C~125°C
Warranty

3 Year
Length

0.77 in
Width

0.4 in
Height

0.28 in
Weight

0.01 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the DPU01N-15 for low-power analog rails in an industrial control board?

Yes. This converter is rated for 1W and provides a ±15V output from a 21.6~26.4VAC input range, which fits low-power analog sections that need constant-voltage rails. Its small 19.6 × 10.2 × 7.1 mm package also suits dense control-board layouts.

Is the DPU01N-15 suitable for an embedded sensor interface that needs +/-15V power?

It can fit embedded sensor or signal-conditioning sections that require ±15V and stay within the unit's 1W rating. The published output current is 0.03A, so it is intended for low-current loads rather than higher-power analog stages. The output mode is constant voltage.

Can this converter be used inside automation equipment with a 24VAC-class input?

The listed input range is 21.6~26.4VAC, so it aligns with equipment designed around that AC range. It converts that input to a ±15V constant-voltage output at 1W. That makes it a fit for low-power automation subcircuits rather than larger power loads.

Is the DPU01N-15 appropriate for harsh indoor temperature conditions?

The operating temperature range is -55°C to +125°C, which is very wide for indoor industrial or embedded equipment. No IP rating is listed in the provided specs. That means the temperature capability is defined, but outdoor or wet-exposure suitability is not confirmed here.

How does the DPU01N-15 compare with the other DPU01N models?

All three listed DPU01N models are 1W parts. The DPU01N-05 is listed as 5V output with 100A, the DPU01N-12 is 12V output with 0.04A, and the DPU01N-15 is 15V output with 0.03A. This model is the highest-output-voltage option among the three siblings shown.

Model	Power	Voltage	Current	IP Rating	Price
Mean Well DPU01N-12 DC-DC Converter - 1W - 21.6~26.4V in ±12V out	1W	12V	0.04A	Indoor	$3.17	View
Mean Well DPU01N-05 DC-DC Converter - 1W - 21.6~26.4V in ±5V out	1W	5V	0.1A	Indoor	$3.17	View
Mean Well DPU01M-15 DC-DC Converter - 1W - 10.8~13.2V in ±15V out	1W	15V	0.03A	Indoor	$3.17	View
Mean Well DPU01M-12 DC-DC Converter - 1W - 10.8~13.2V in ±12V out	1W	12V	0.04A	Indoor	$3.17	View
Mean Well DPU01M-05 DC-DC Converter - 1W - 10.8~13.2V in ±5V out	1W	5V	0.1A	Indoor	$3.17	View
Mean Well DPU01L-15 DC-DC Converter - 1W - 4.4~5.5V in ±15V out	1W	15V	0.03A	Indoor	$3.17	View
Mean Well DPU01L-12 DC-DC Converter - 1W - 4.4~5.5V in ±12V out	1W	12V	0.04A	Indoor	$3.17	View
Mean Well DPU01L-05 DC-DC Converter - 1W - 4.4~5.5V in ±5V out	1W	5V	0.1A	Indoor	$3.17	View
