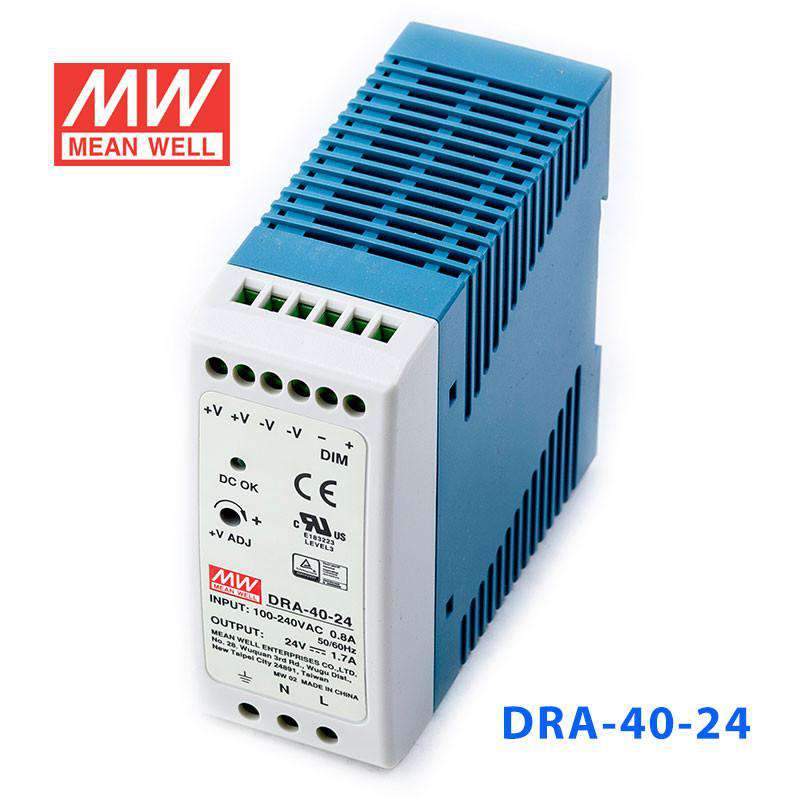

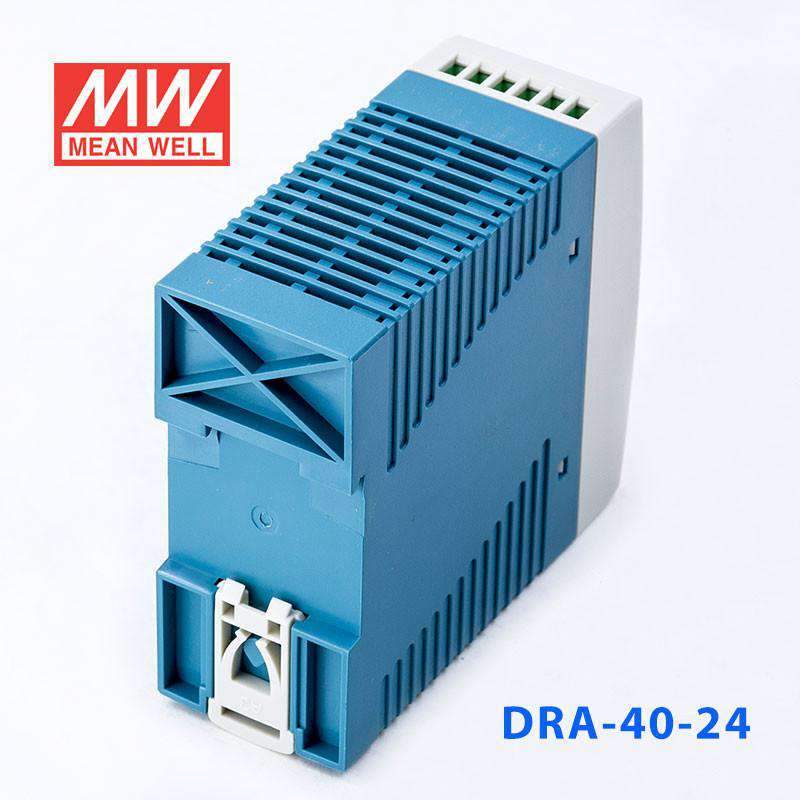

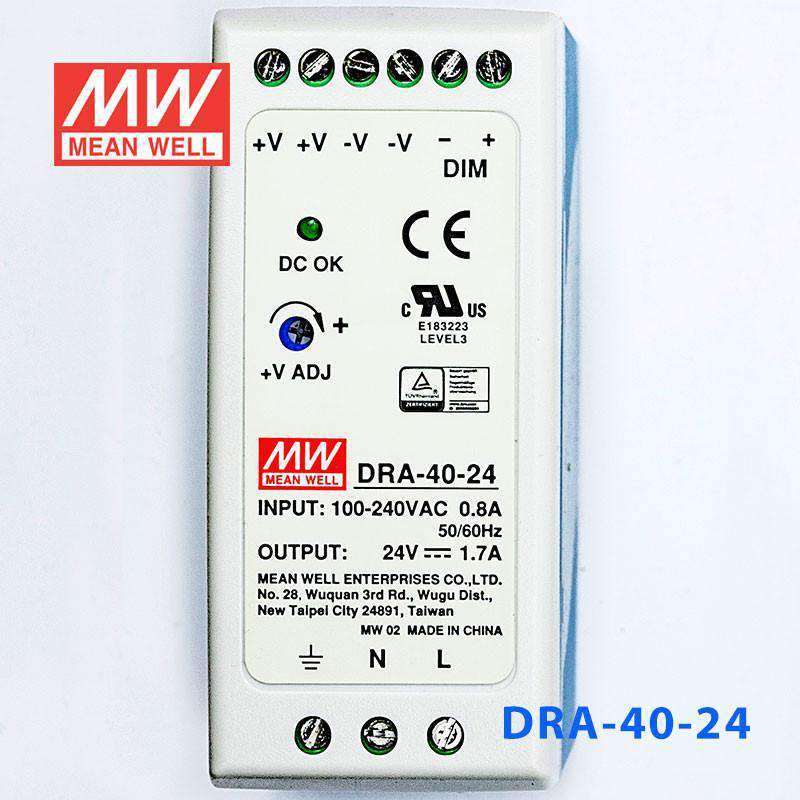

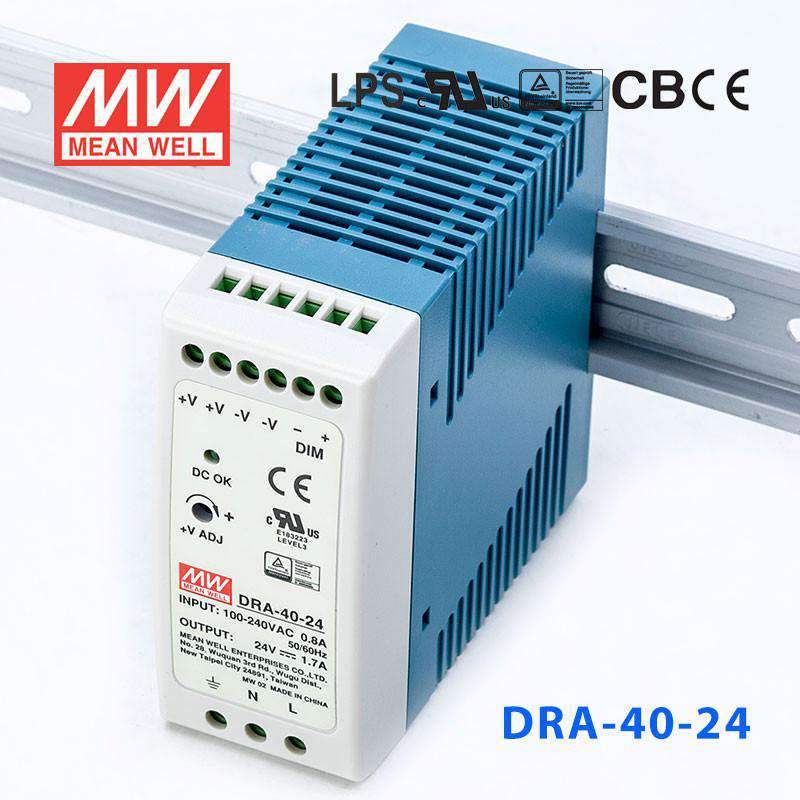

Mean Well DRA-40-24 Single Output Switching Power Supply 40W 24V 1.7A - DIN Rail

Name: Mean Well DRA-40-24 Single Output Switching Power Supply 40W 24V 1.7A - DIN Rail
Brand: Mean Well
SKU: DRA-40-24
Price: 27.47 USD
Availability: InStock

Io can be adjusted 10%~100% by 1-10VDCPWM or resistanceVo adjustablepass LPS

SKU DRA-40-24

$27.47 USD

Shipping calculated at checkout.

Select model — 4 in this family

DRA-40-24

DRA-40-12 12V 20W Low stock $27.46 USD

DRA-40-24 24V 40W Low stock $27.47 USD

DRA-60-12 12V 60W In stock $30.63 USD

DRA-60-24 24V 60W Low stock $30.64 USD

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

DRA-40-24 is the 24V output model of this series: rated current 1.7A, rated power 40.8W, typical efficiency 87%.

DRA-40 is one 40W AC/DC DIN rail power supply, featuring the adjustable output current. Users are able to easily change the constant output current level, via 1~10Vdc, PWM signal or resistance. DRA-40 can be mounted on DIN rail TS-35/7.5 or 15; in addition, the width of the unit is only 40mm that it is well suited for the installation in a limited spacing. DRA-40 accepts the universal AC input between 90VAC and 264VAC; the efficiency is up to 87% that the entire series can operate, under free air convection, from -30 ℃ through 70 ℃ .

Features

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage

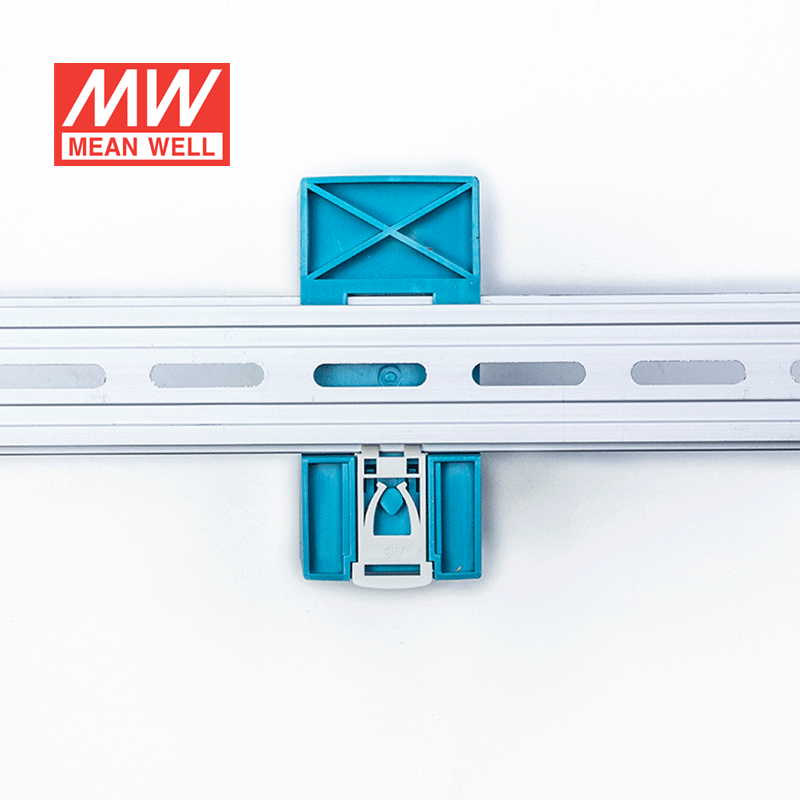

Can be installed on DIN rail TS-35/7.5 or 15
Output Voltage adjustable through internal potentiometer
Output Current adjustable through external 1~10Vdc, PWM signal or resistance
Cooling by free air convection
Pass LPS
LED indicator for power on
100% full load burn-in test
3 years warranty

Specifications

DRA-40-24Specifications from the official datasheet (2015-06-11 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 24V

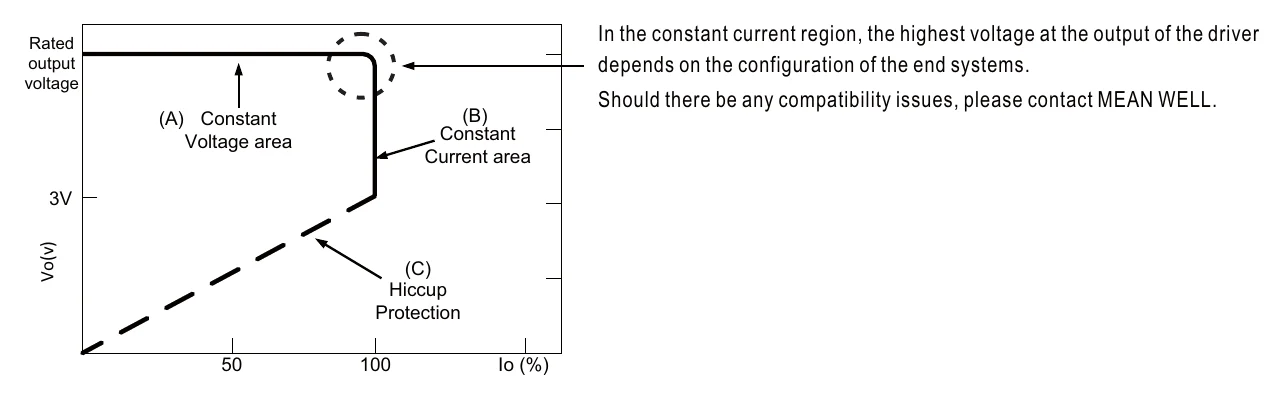

CONSTANT CURRENT REGION: 3~24V
RATED CURRENT: 1.7A
CURRENT RANGE: 0 ~ 1.7A
RATED POWER: 40.8W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: 24 ~ 30V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.4: 400ms, 90ms/230VAC 800ms, 90ms/115VAC at full load
HOLD UP TIME (Typ.): 50ms/230VAC 10ms/115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 264VAC 127 ~ 370VDC [DC input operation possible by connecting AC/L(+), AC/N(-)]
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 87%
AC CURRENT (Typ.): 0.8A/115VAC 0.6A/230VAC
INRUSH CURRENT (Typ.): COLD START 30A/115VAC 60A/230VAC

PROTECTION

OVERLOAD: 95 ~ 108% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 28.98 ~ 37.26V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 55℃) on output
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 5)

SAFETY STANDARDS: UL60950-1, TUV EN60950-1 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61204-3, light industry level, criteria A

OTHERS

MTBF: 439.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 40*90*100mm (W*H*D)
PACKING: 0.3Kg; 42pcs/13.6Kg/0.82CUFT

Test conditions and notes6

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
5. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)
6. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.

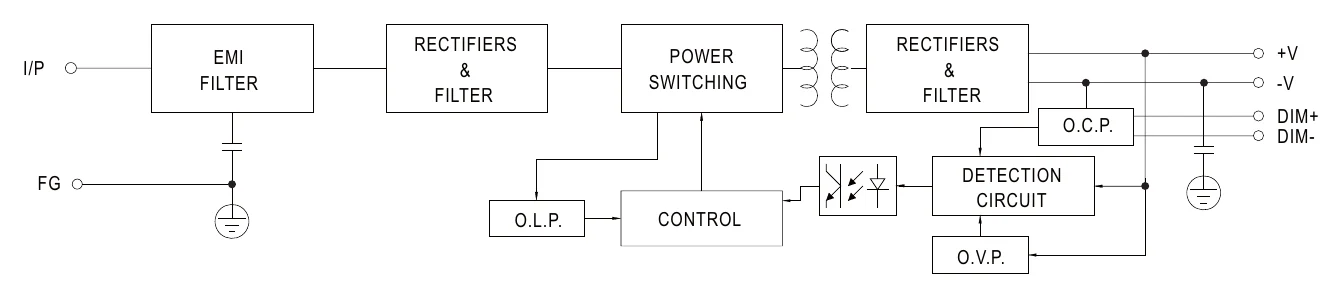

Technical drawings

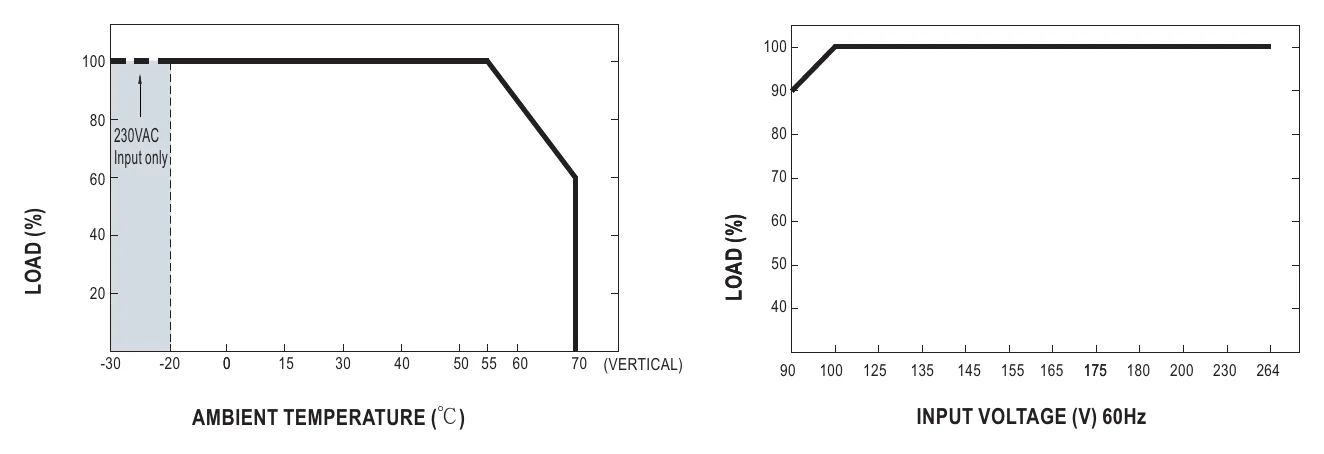

DRA-40-24 Derating Curve — Derating Curve

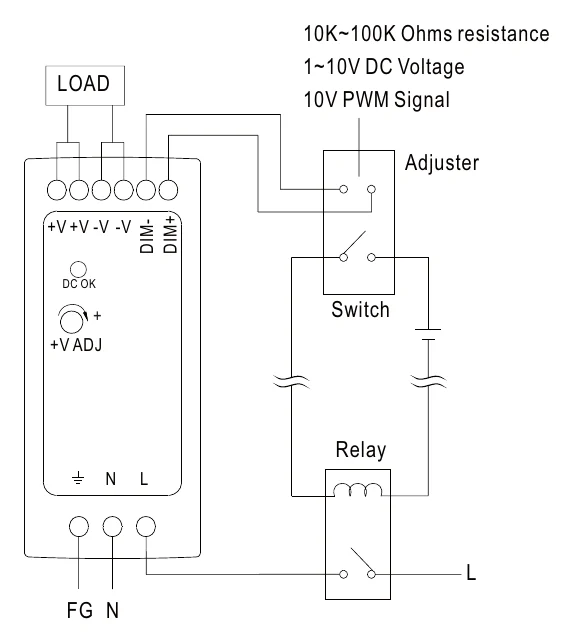

DRA-40-24 DRIVING METHODS OF APPLICATIONS (2) — DRIVING METHODS OF APPLICATIONS (2)

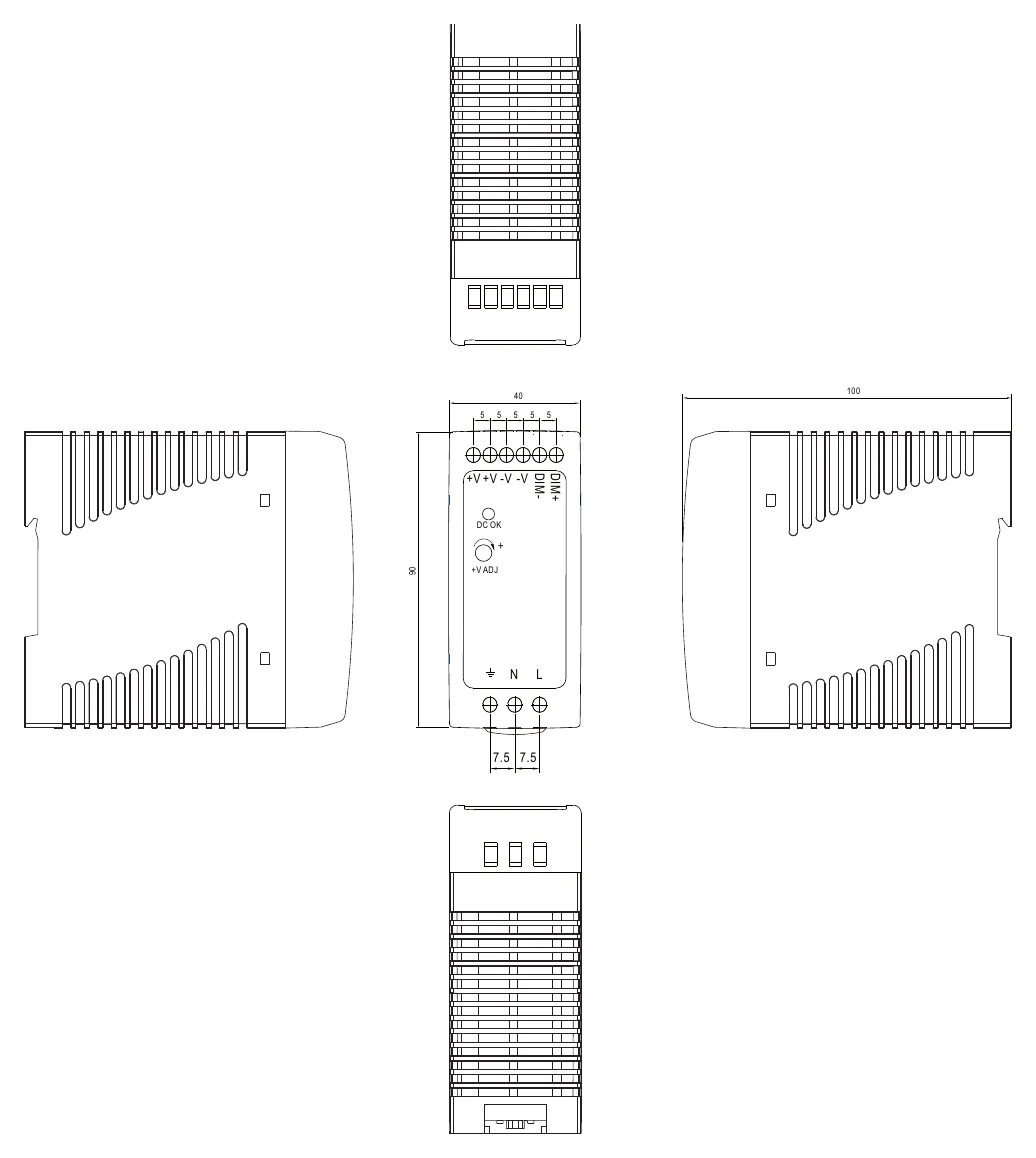

DRA-40-24 Mechanical Specification — Mechanical Specification

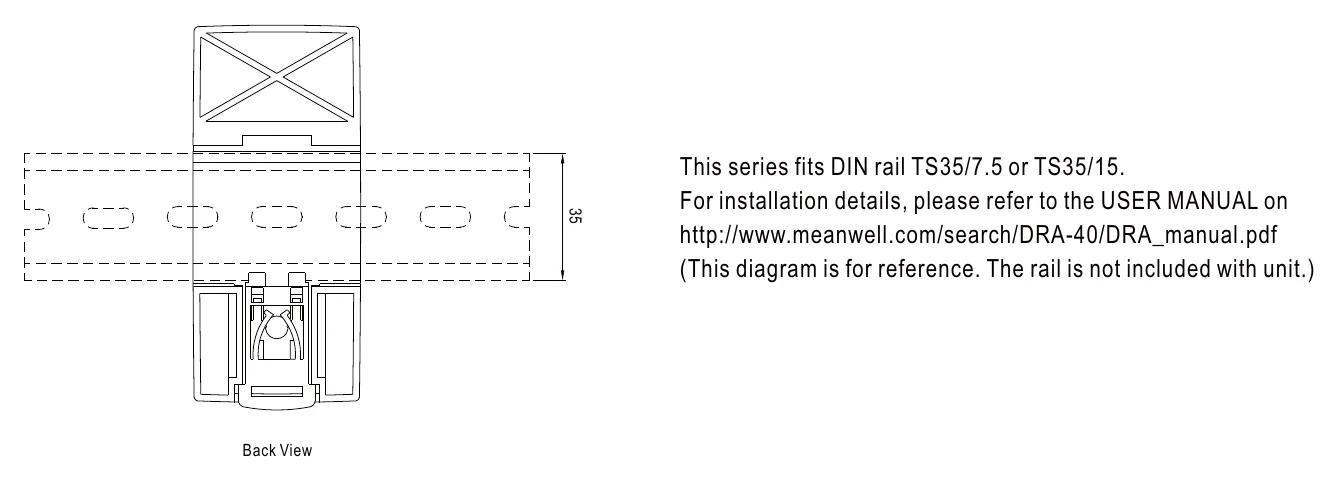

DRA-40-24 Installation Instruction — Installation Instruction

Typical applications

Machine vision inspection system
Plant cultivation system

Downloads

Datasheet1

DRA-40-24 datasheetdra_40_spec.pdf · 2015-06-11 edition PDF Download

Certificates4

UL Certificate (DRA-40)(EN) PDF Download

EMC Certificate (DRA-40)(EN) PDF Download

TUV Certificate (DRA-40)(EN) PDF Download

CB Certificate (DRA-40)(EN) PDF Download

Test reports1

Test Report (DRA-40-24)(EN) PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well DIN RAIL Catalog PDF Download

FAQ

Can I use the DRA-40-24 in a 24V industrial automation or PLC cabinet?

Yes. The DRA-40-24 provides 24V DC at up to 1.7A with 40.8W output, which fits 24V cabinet loads that stay within those ratings. Its DIN rail design and 100.0 × 90.0 × 40.0 mm housing are suited to control enclosure installation.

Is the DRA-40-24 appropriate for 24V building management control panels?

It can be a fit for building management panels that use a 24V DC bus and have lower current demand. With 1.7A output and 40.8W power, it is better suited to lighter 24V control loads than larger field power loads. Buyers should size it to the actual 24V current requirement of the cabinet.

Can this power supply be used where output adjustment is needed in a control enclosure?

Yes. The DRA-40-24 supports output current adjustment from 10% to 100% by 1-10VDC, PWM, or resistance, and the output voltage is adjustable. That makes it useful in 24V control cabinet applications where adjustable output behavior is specified.

Is the DRA-40-24 meant for use inside a control cabinet rather than exposed conditions?

Yes. This is a DIN rail power supply intended for enclosure-based use, with an operating temperature range of -30°C to +70°C. The listed specs do not describe an outdoor-rated standalone housing, so it is best aligned with protected control cabinet environments.

How does the DRA-40-24 compare with the other DRA series models?

The DRA-40-24 is 40.8W at 24V and 1.7A. The related models are DRA-40-12 at 40.08W, 12V, 3.34A, DRA-60-12 at 60W, 12V, 5A, and DRA-60-24 at 60W, 24V, 2.5A. The family differences come down to output voltage, output current, and power level.
