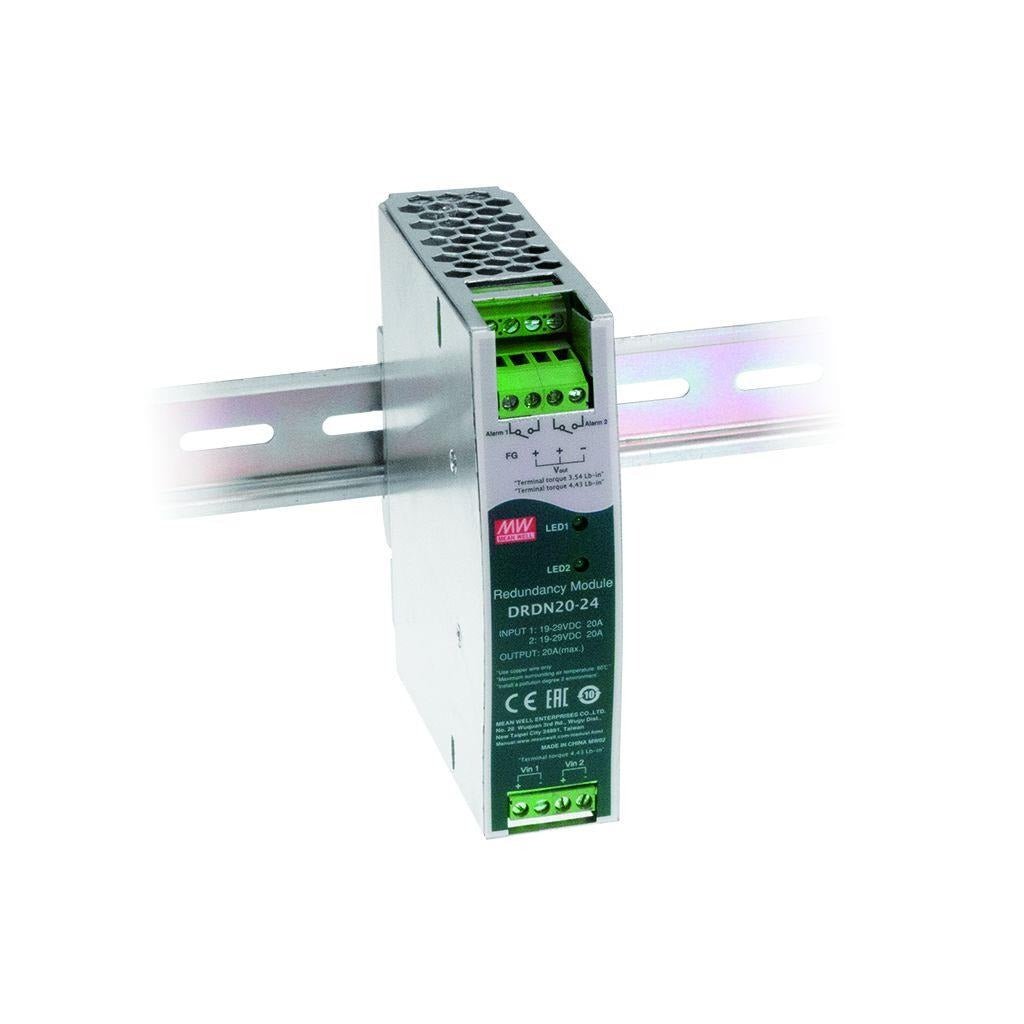

Mean Well DRDN20-24 Redundancy Module Power Supply 20A - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours

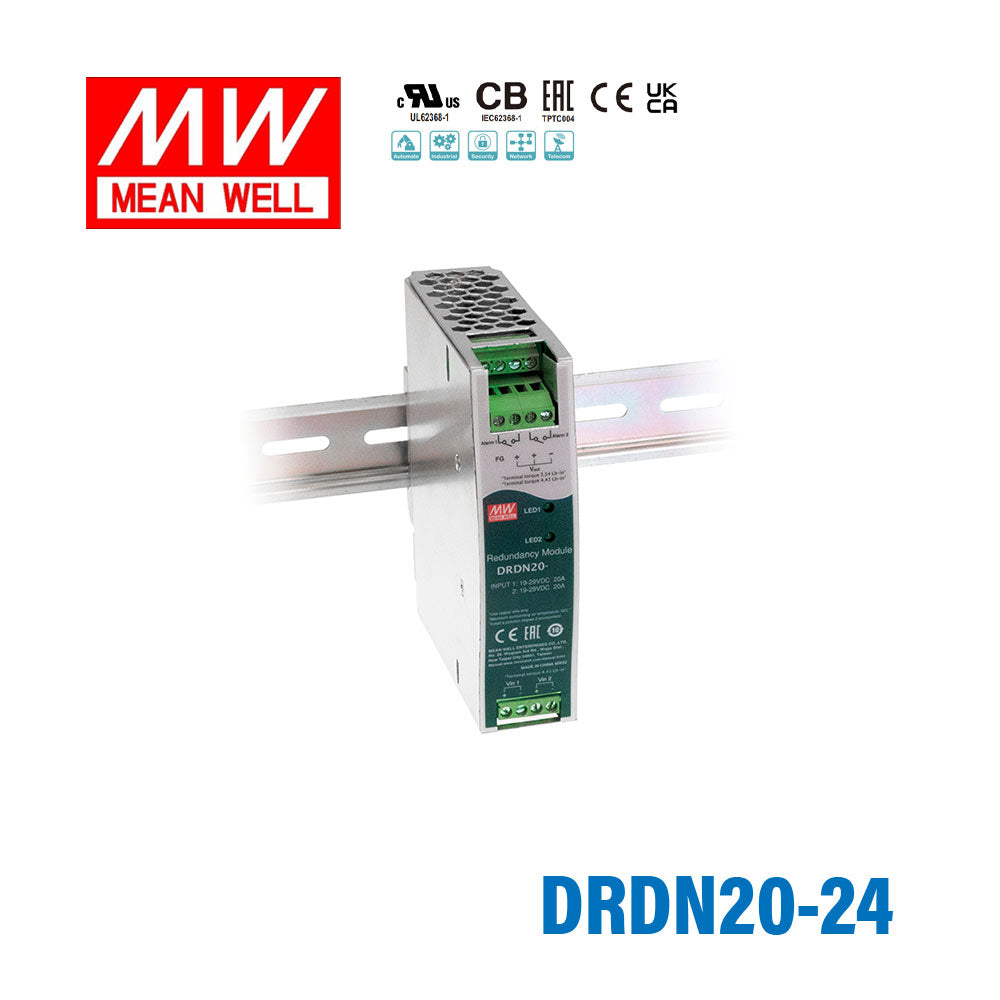

Mean Well DRDN20-24 Redundancy Module Power Supply 20A - DIN Rail
Description
Description
Features
| Support 1+1 and N+1 redundancy system |
| 2 channels input and 1 output |
| Suitable for redundancy operation of 12V/24V/48V system |
| Output current up to 20A |
| Cooling by free air convection |
| Built-in 2 channels DC Ok signal and alarm relay contact |
| 3 years warranty |
General Specification
| DC input voltage | 12-48V |
| Peak current | 0-30A per input; 5 Sec |
| DC voltage range | 12V: 9-14V; 24V: 19-29V; 48V: 36-60V |
| Overload protection | <30A, 5 Sec. No damage |
| Short circuit protection | <30A, 5 Sec. No damage |
| Number of Input | 2 |
| Withstand voltage | I/P-O/P - Chassis: 0.5KVac; I/P-O/P - Relay: 0.5KVac; Relay - Chassis: 0.5KVac; |
| Working temperature | -40~+80°C |
| DC OK signal | Relay contact |
| Safety standards | IEC62368-1, UL60950-1 |
| EMC standards | EN55032 class B, EN61000-4-2,3,4,5,6,8,10 |
| Connection | Screw terminal |
| Dimension (LxWxH) | 32x125.2x102 |
| Packing | 28pcs / 10.8kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesDR-DN
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage19V~29V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operating Temperature-40°C~80°C
-
Warranty3 Year
-
Length4.93 in
-
Width4.02 in
-
Height1.26 in
-
Weight0.77 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DRDN20-24 in a 24V PLC cabinet that needs redundant power paths?
Yes, this model is designed for 24V systems and is rated for 20A with 480W capacity. Its redundancy module design supports 1+1 and N+1 redundancy, which makes it suitable for PLC cabinets built around redundant 24V power architecture.
Is the DRDN20-24 a good fit for industrial automation panels with 24V control loads?
It is suitable for industrial automation panels that distribute 24V control power and need redundancy support. The unit is rated for 20A and 480W, and its 125.2 x 102.0 x 32.0 mm body helps preserve panel space on DIN rail.
Can this model be used in a building automation enclosure for 24V controllers and field panels?
Yes, it fits building automation enclosures where the control side is standardized on 24V and the redundant path must stay within 20A and 480W. Relay contacts for monitoring power status also help when cabinet alarms or supervisory signals are part of the design.
Can the DRDN20-24 be used for redundant 24V power in a compact DIN rail control cabinet?
Yes, the unit is intended for DIN rail installations and has a 32.0 mm profile within its 125.2 x 102.0 x 32.0 mm dimensions. That slim form factor is useful in compact control cabinets that still need 24V redundancy up to 20A.
How does the DRDN20-24 compare with the other DRDN20 models?
The DRDN20-24 is the 24V version of the DRDN20 series and is rated for 20A and 480W with a 19-29VAC input range. The DRDN20-12 is 12V, 20A, and 240W with 9-14VAC input, while the DRDN20-48 is 48V, 20A, and 960W with 36-60VAC input. All three use the same 125.2 x 102.0 x 32.0 mm housing, weigh 0.35 kg, operate from -40°C to +80°C, and carry CB, CE, EAC, and UL certifications.
Should the DRDN20-24 be used inside a cabinet or in an exposed environment?
The available specs support use in industrial control environments and list operation from -40°C to +80°C, but no IP rating is provided. In practice, that points to use inside a control cabinet or enclosure rather than in an exposed location.
