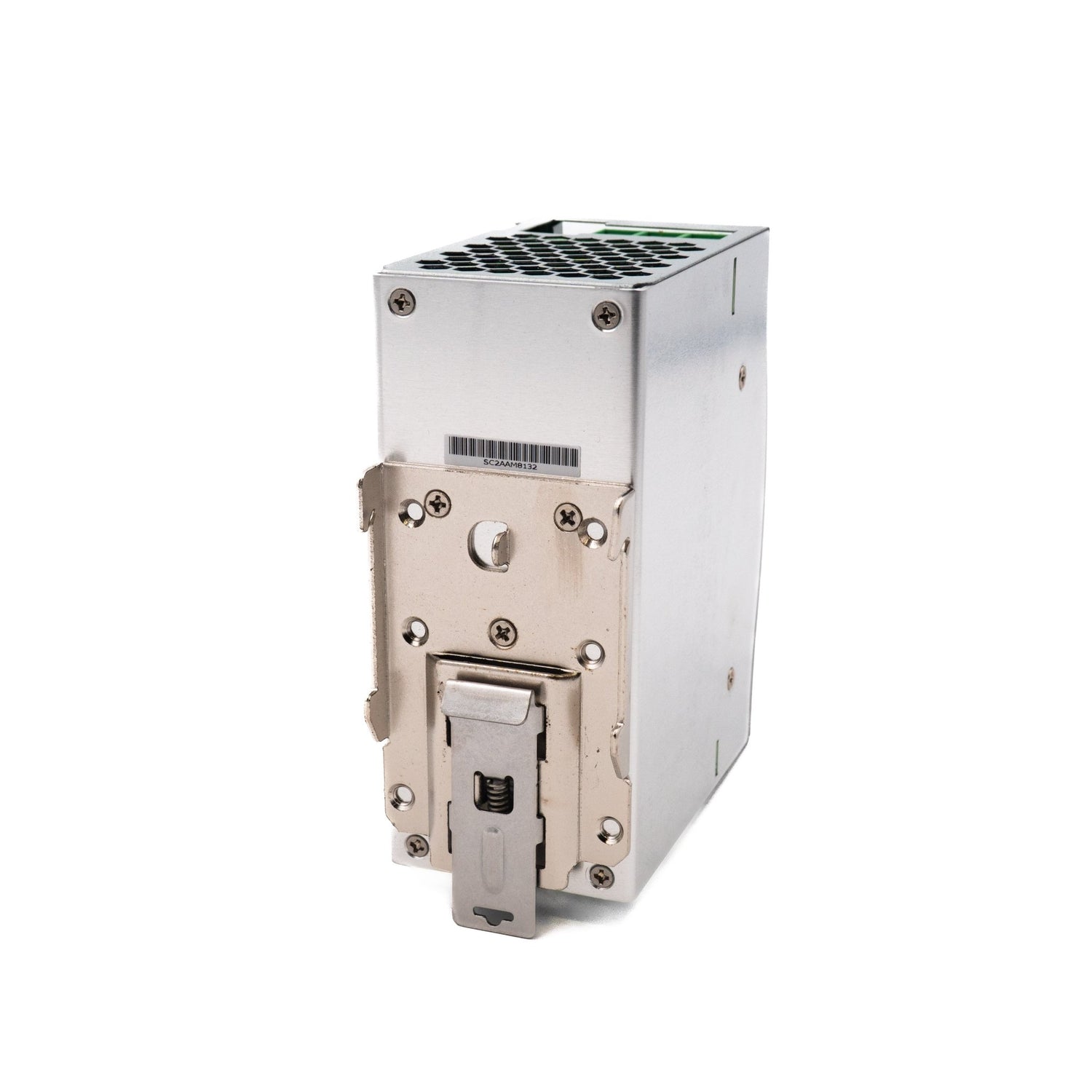

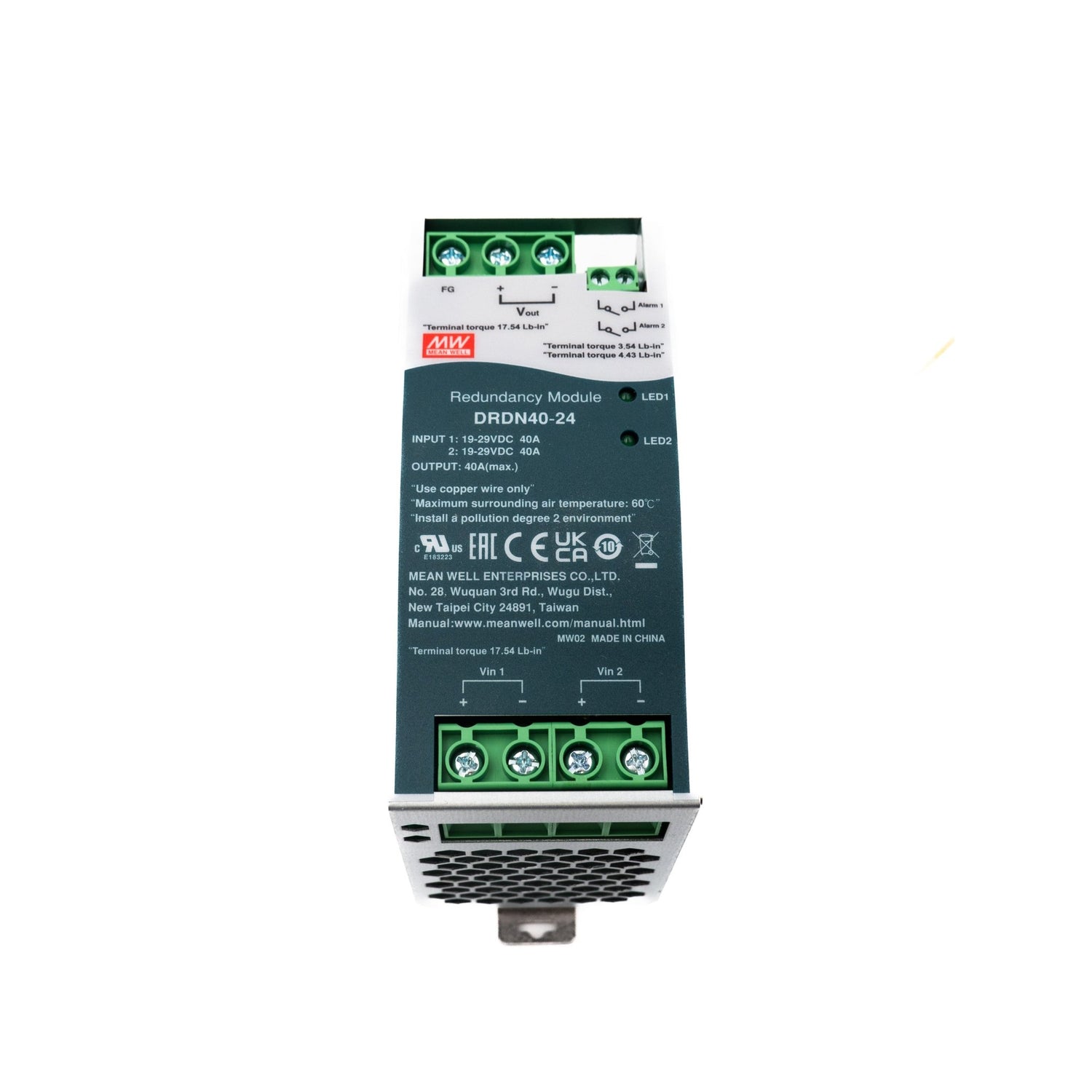

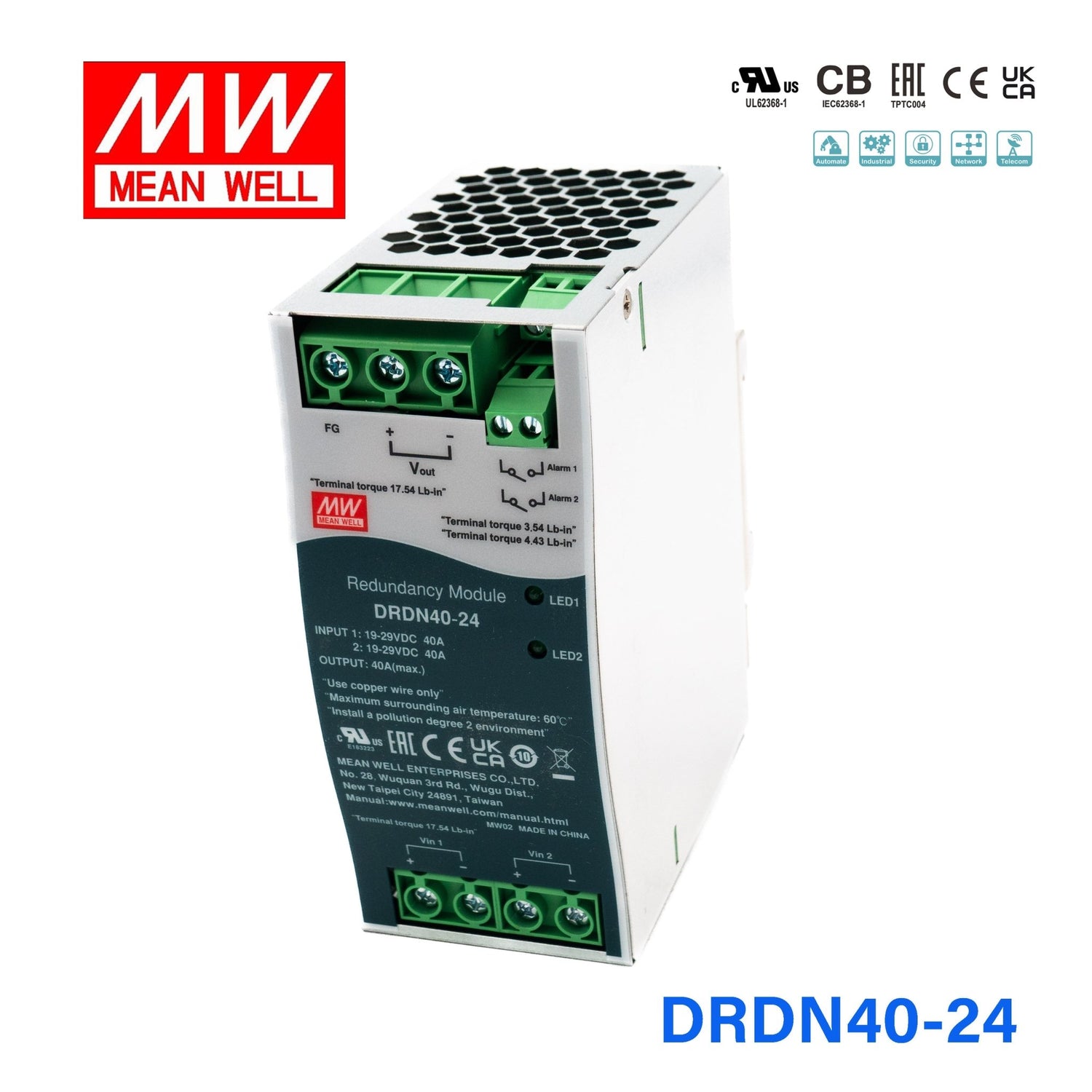

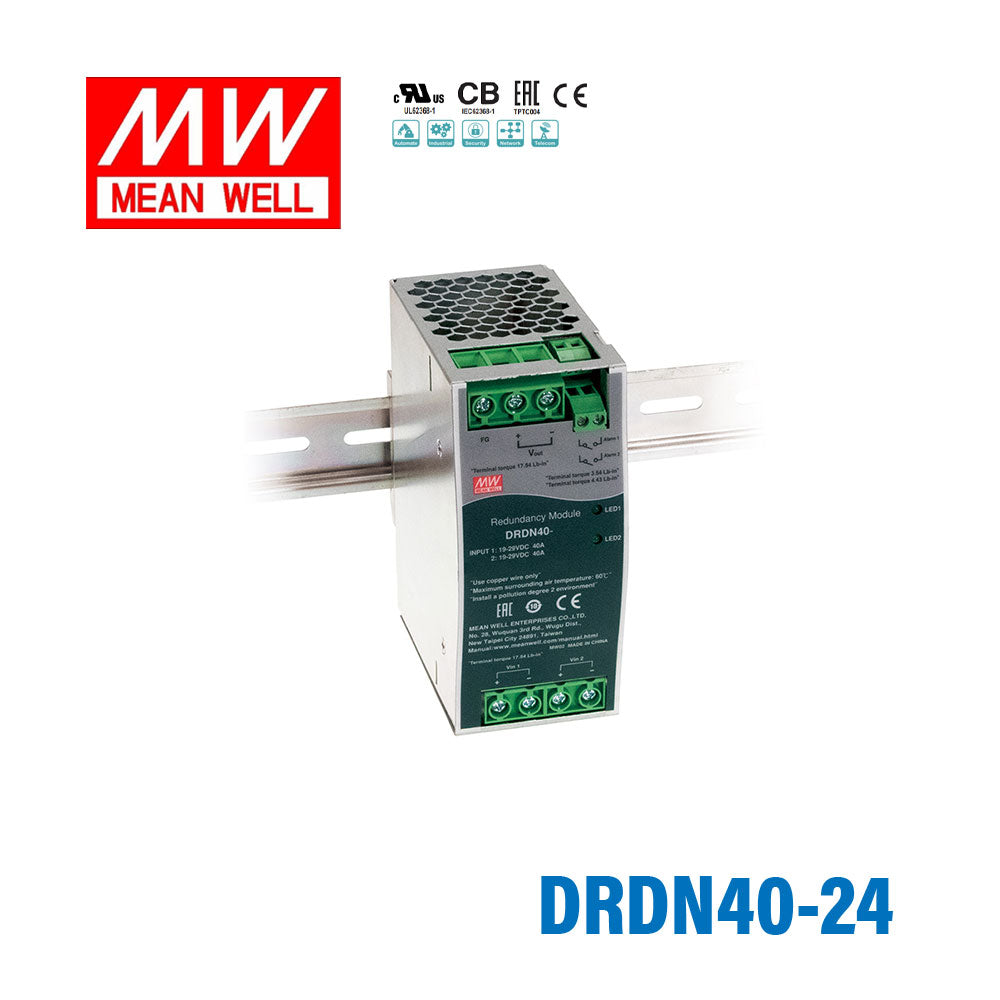

Mean Well DRDN40-24 Redundancy Module Power Supply 40A - DIN Rail

redundancy module, support 1+1 and N+1 redundancy, relay contacts for monitoring power status
$40.86 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Support 1+1 and N+1 redundancy system
2 channels input and 1 output
Suitable for redundancy operation of 12V/24V/48V system
Output current up to 40A
Cooling by free air convection
Built-in 2 channels DC OK signal and alarm relay contact
3 years warranty

General Specification

DC input voltage  12-48V
Peak current 0-60A per input; 5 Sec
DC voltage range 12V: 9-14V; 24V: 19-29V; 48V: 36-60V
Overload protection <60A, 5 Sec. No damage
Short circuit protection <60A, 5 Sec. No damage
Number of Input 2
Withstand voltage I/P-O/P - Chassis: 0.5KVac; I/P-O/P - Relay: 0.5KVac; Relay - Chassis: 0.5KVac;
Working temperature -40~+80°C
DC OK signal Relay contact
Safety standards IEC62368-1, UL60950-1
EMC standards EN55032 class B, EN61000-4-2,3,4,5,6,8,10
Connection  Screw terminal
Dimension (LxWxH) 55x125.2x100
Packing 20pcs / 11kg

Specifications

  • Brand
    Mean Well
  • Series
    DR-DN
  • Power Rating
    960 Watt
  • Output Voltage
    24 Volt
  • Rated Current
    40 Ampere
  • Input Voltage
    19V~29V
  • No of Output
    1
  • Standards Met
    CB,CE,EAC,UL
  • Operating Temperature
    -40°C~80°C
  • Warranty
    3 Year
  • Length
    4.93 in
  • Width
    3.94 in
  • Height
    2.17 in
  • Weight
    1.1 lb

File Downloads

::specification::
