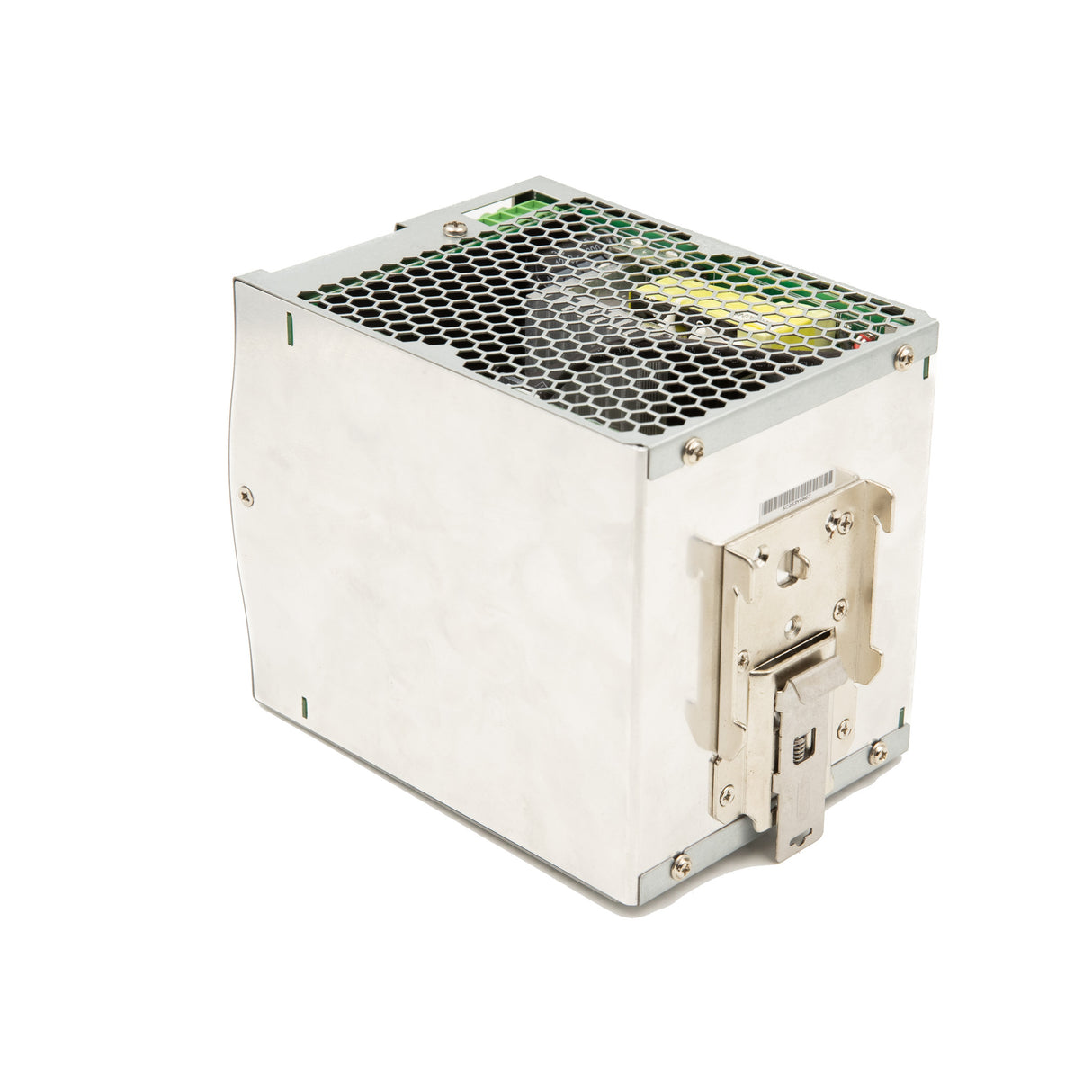

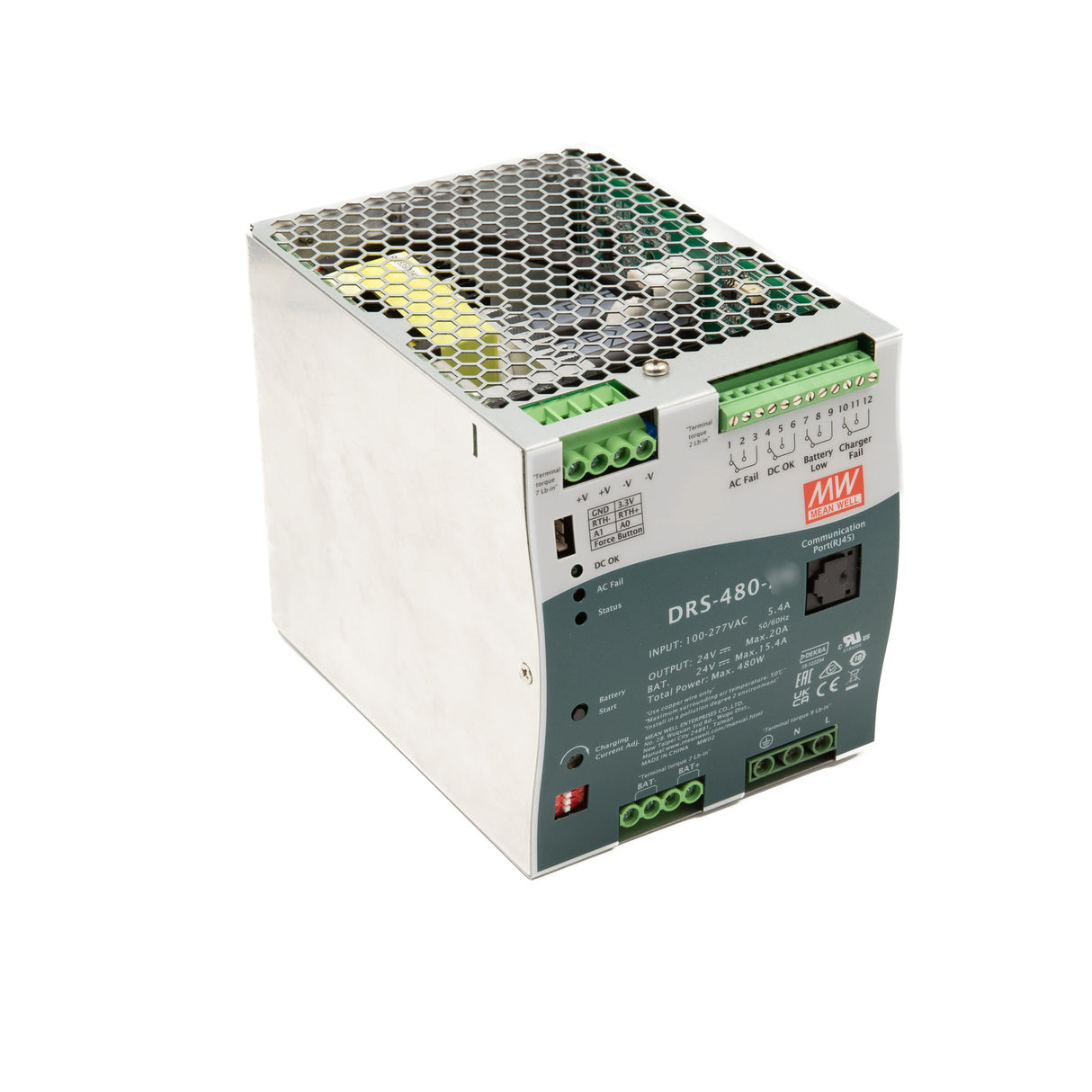

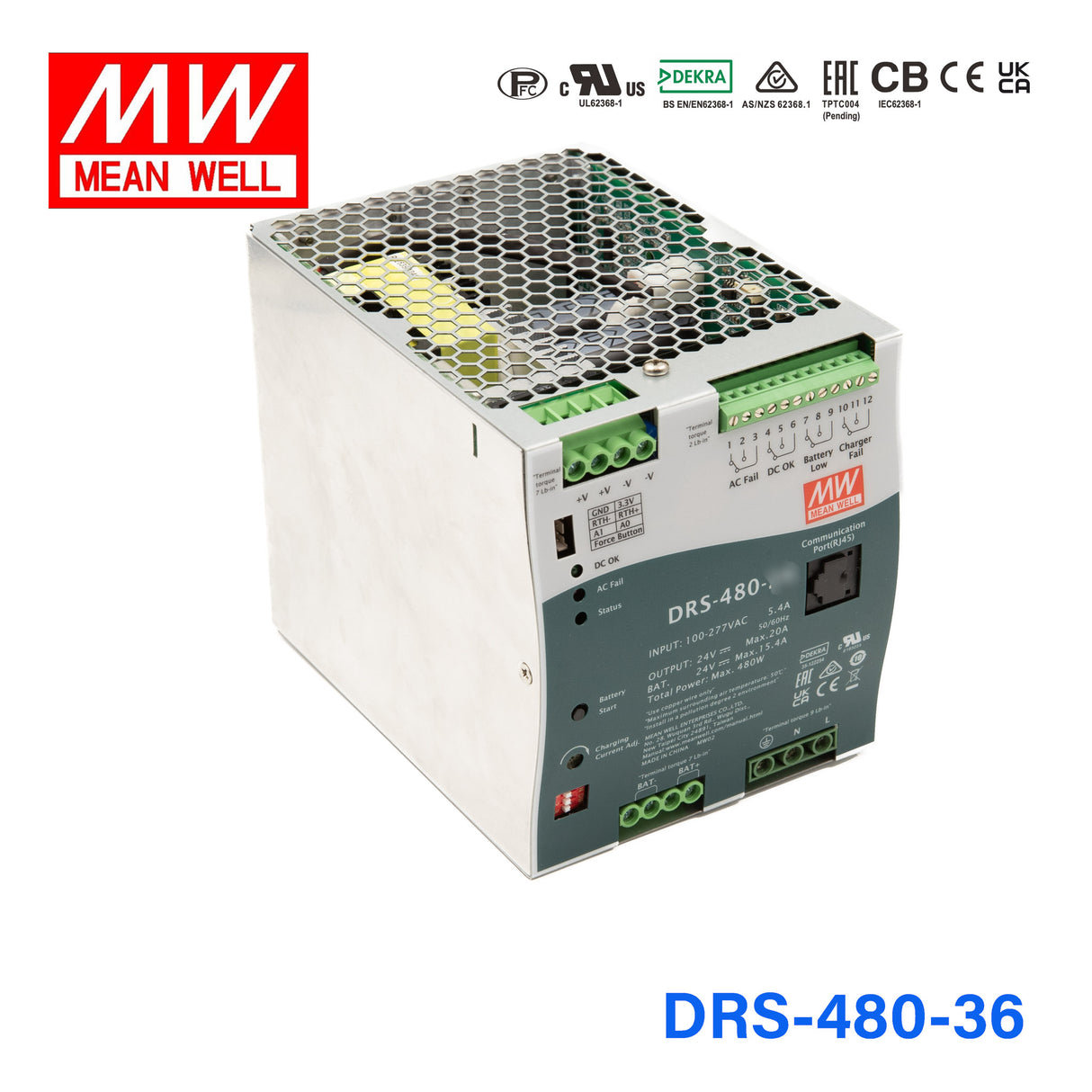

Mean Well DRS-480-36 All-In-One Intelligent Security Power 480W 10.2A

Name: Mean Well DRS-480-36 All-In-One Intelligent Security Power 480W 10.2A
Brand: Mean Well
SKU: DRS-480-36
Price: 220.0 USD
Availability: InStock

all-in-one function with power supplyDC-UPSbattery charger and status monitoring in one compact unitcharging curve can be set with SBP-001

SKU DRS-480-36

$220.00 USD

Shipping calculated at checkout.

Select model — 2 in this family

DRS-480-36

DRS-240-36 240W 48V Backorder $188.00 USD

DRS-480-36 480W 48V Backorder $220.00 USD

Product variants

Notify me when it's back in stock

Your order will be processed within 24 hours

Overview

DRS-480-36 is the 36V output model of this series: typical efficiency 93.5%.

DRS-480 is a 480W AC/DC DIN rail type security power supply series. In addition to the primary output, there is an additional charger circuit that will automatically adjust charge current depending on the primary output current. DRS-480 accepts the universal input between 90VAC and 305VAC, and supports output 24VDC, 36VDC, and 48VDC nominal systems. With high efficiency up to 93.5%, it can operate with free air convection cooling under -30℃ through 70℃ ambient temperature. In addition to the key protection features such as overload protection, over voltage protection, battery low voltage disconnect, and battery reverse polarity protection, the DRS-480 also provides Form-C contacts and LED indicator alarm signals for AC-fail, battery low, charger fail, and DC-OK to allow easy integration into security systems that comply with local alarm codes.

Features

Universal input 90~305VAC (277VAC available)
All-in-one function with Power supply, DC-UPS, battery charger and status monitoring in ONE compact unit
Signal and alarms design meet UL2524,NFPA 1221,BS EN/EN54-4 and GB17945 requirement, with adjustable parameters configurable by communication interface

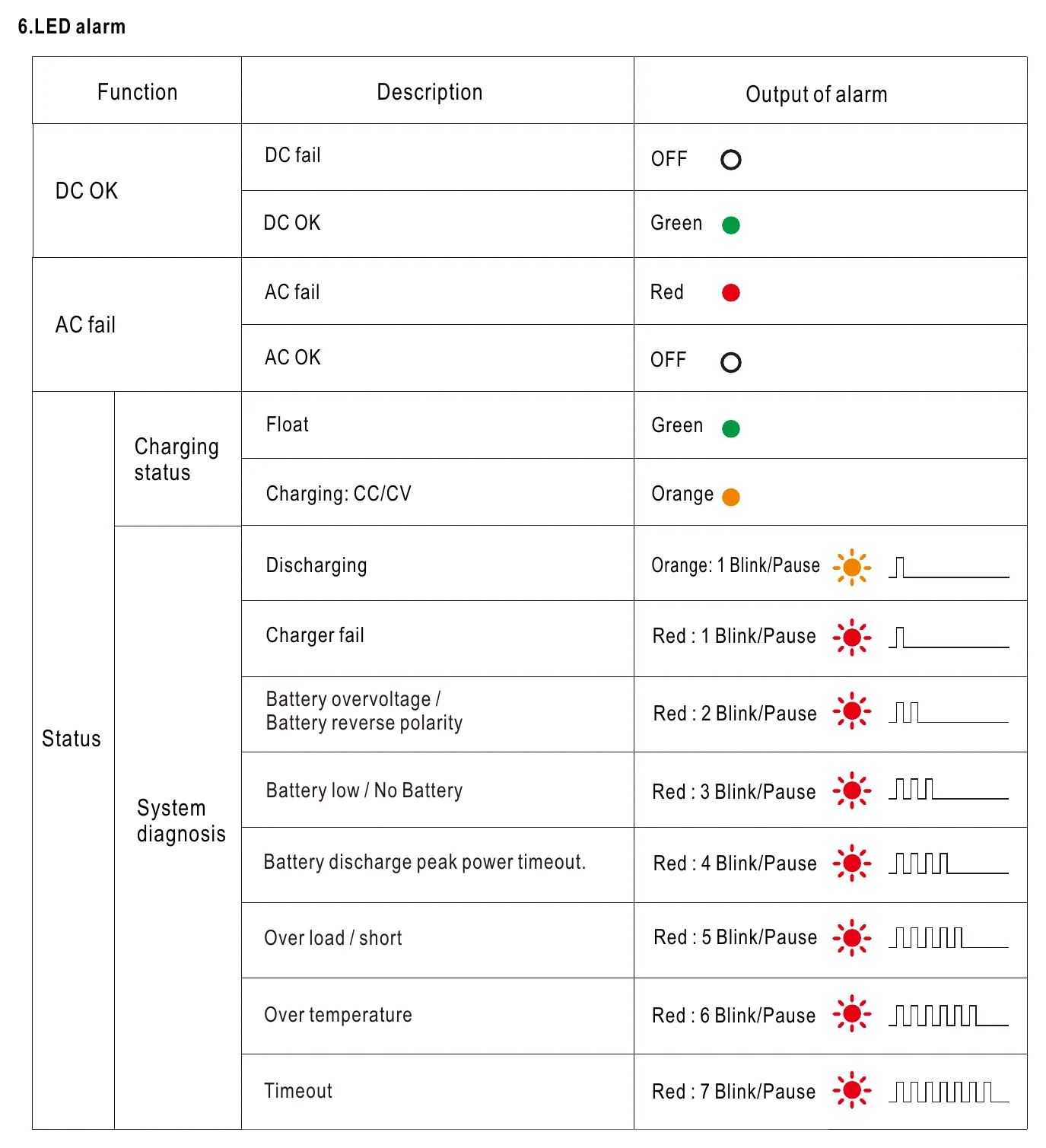

Form C relay contacts and LED indicators for AC Fail, Battery Low, Charger Fail, and DC-OK
Load-dependent high speed battery charging
Built-in MODBus or CANBus protocol
Protections: Short circuit / Overload / Over voltage / Over temperature(auto derating) / Battery reverse polarity (No damage) / Battery cut off
Battery low protection / Battery reverse polarity protection
-30 ~ +70℃ wide operating temperature
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15

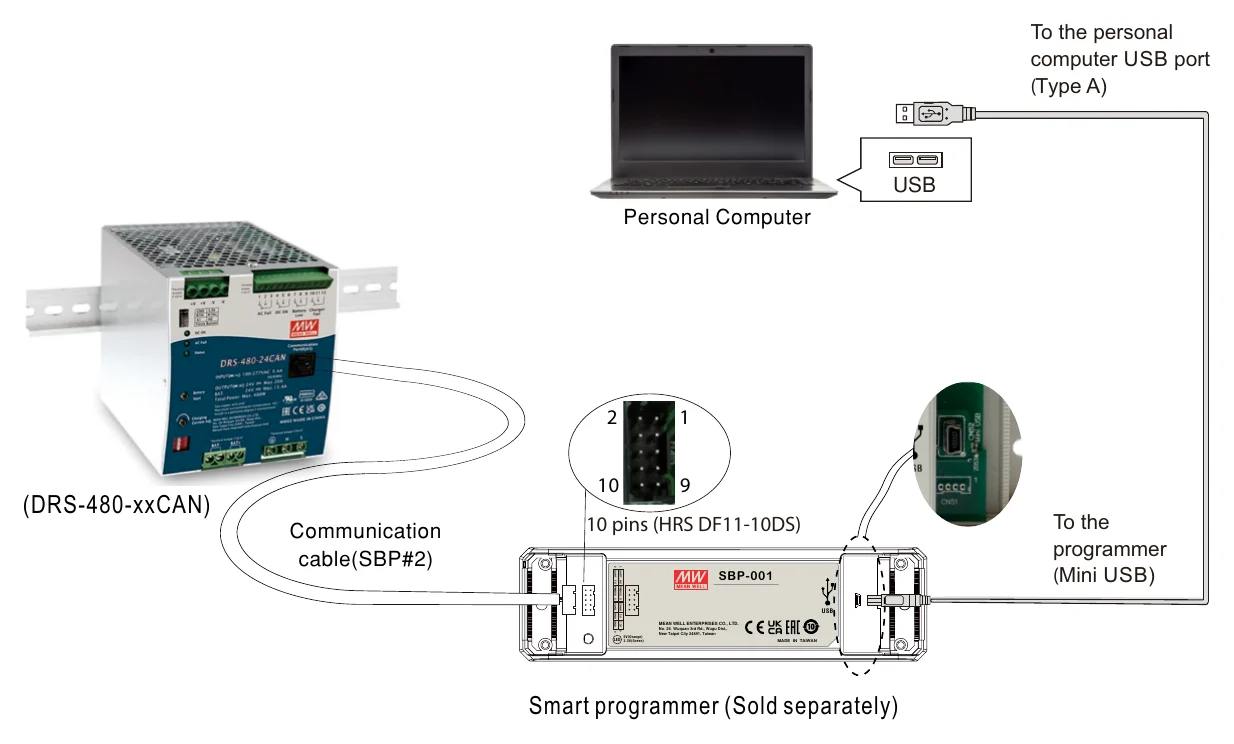

Charging curve can be set with SBP-001(only for CANBus model) (Smart programmer sold separately, please refer to: https://www.meanwell.com/webapp/product/search.aspx?prod=SBP-001)
20~100% charging current adjustable by VR
2 or 3-stage selectable by DIP S.W
Suitable for lead acid and lithium-ion batteries
3 years warranty

Specifications

DRS-480-36Specifications from the official datasheet (2026-09-09 edition)

OUTPUT

OUTPUT VOLTAGE^Note.2: 36V
LOAD CURRENT RANGE: 0 ~ 13.3A
BATTERY CURRENT (CC)(max.): 10.2A
RECOMMENDED BATTERY CAPACITY(AMP HOURS)^Note.3: 13 ~ 133AH
TOTAL OUTPUT POWER^Note.4: Combined power on all Channels must not exceed 480W, load has priority. 550W peak capability within 5s.
RIPPLE & NOISE (max.)^Note.5: 360mVp-p
VOLTAGE TOLERANCE^Note.6: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP RISETIME^Note.7: 2400ms, 1000ms/230VAC 2400ms, 1000ms/115VAC at full load
HOLD UP TIME (Typ.): 16ms/230VAC 10ms/115VAC at full load

INPUT

VOLTAGE RANGE: 90 ~ 305VAC 127 ~ 431VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC PF>0.98/115VAC at full load
EFFICIENCY (Typ.): 93.5%
AC CURRENT (Typ.): 5.4A/115VAC 2.7A/230VAC
INRUSH CURRENT (Typ.): COLD START 30A/115VAC 60A/230VAC

PROTECTION

SHORT CIRCUIT: Protection type: Constant current limiting, power will shutdown after 5 sec, re-power on to recover.
OVERLOAD: 105 ~ 135% rated output power Protection type: Constant current limiting, shutdown output voltage after 5 sec.
OVER TEMPERATURE: Automatically drop load with temperature only for bat. load. Protection type : Shut down o/p voltage, recover automatically after temperature goes down.
OVER VOLTAGE: Load main output : 48.6 ~ 55.9V Protection type : Shut down o/p voltage, re-power on to recover
BATTERY CUT OFF: 31.3±0.7V
REVERSE POLARITY: By internal MOSFET, no damage, recovers automatically after fault condition is removed.

FUNCTION

FORM-C RELAY AC FAIL: Signals AC failure and activates when input voltage drops below : 79~89VAC of 120AC, 132~187VAC of 220VAC. Relay contact output, ON : AC OK ; OFF : AC Fail ; max. rating : 30Vdc/1A
FORM-C RELAY CHARGER FAIL: Relay contact output, ON : Charger OK ; OFF : Charger Fail ; max. rating : 30Vdc/1A
FORM-C RELAY DC OK: Signals normal DC output and activates when output voltage > 90% rated value. Relay contact output, ON : DC OK ; OFF : DC Fail ; max. rating : 30Vdc/1A
FORM-C RELAY BATTERY LOW/ ABNORMAL/ DISCONNECTED: Relay contact output, ON : Battery OK ; OFF : Battery Low ; max. rating : 30Vdc/1A
BATTERY LOW voltage: Battery low voltage : < 33V±0.4V
BATTERY START: Restart system directly from battery and does not require AC power
DC-UPS: UPS switch to battery power within 10ms of AC failure
ADJUSTABLE CHARGING CURRENT: 20% ~ 100% charging current adjustable by VR

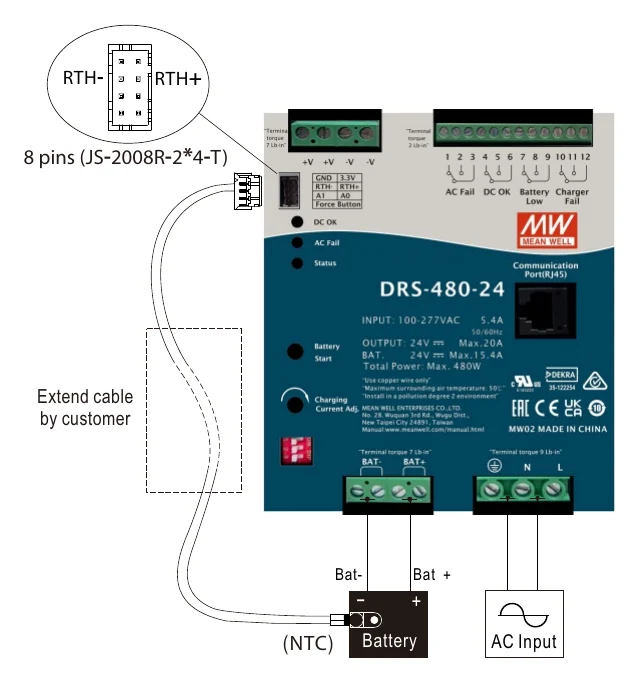

BATTERY TEMPERATURE COMPENSATION: The system can change the battery charging voltage by detecting the temperature (Please refer to page 9~10 for more details).

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃(Refer to “Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃ ) on Load output
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
OPERATING ALTITUDE^Note.8: 2000 meters / OVCⅢ
OVER VOLTAGE CATEGORY: Ⅲ; According to Dekra BS EN/EN62368-1; altitude up to 2000 meters

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, Dekra BS EN/EN62368-1, RCM AS/NZS 62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P: 4KVAC I/P-FG: 2KVAC O/P-FG: 1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/ 70%RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) Class B
Radiated BS EN/EN55032 (CISPR32) Class B
Harmonic Current BS EN/EN61000-3-2 -----
Voltage Flicker BS EN/EN61000-3-2 -----
EMC IMMUNITY: BS EN/EN55035 , BS EN/EN61204-3, BS EN/EN61000-6-2(BS EN/EN50082-2)

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact; criteria A
Radiated BS EN/EN61000-4-3 Level 3, 10V/m; criteria A
EFT / Burst BS EN/EN61000-4-4 Level 3, 2KV; criteria A
Surge BS EN/EN61000-4-5 Level 3, 1KV/Line-Line ;Level 3, 2KV/Line-Line-Chassis ;criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V; criteria A
Magnetic Field BS EN/EN61000-4-8 Level 4, 30A/m; criteria A
FIRE DETECTION AND FIRE ALARM SYSTEM: Compliance to BS EN/EN54-4

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32)	Class B
Radiated	BS EN/EN55032 (CISPR32)	Class B
Harmonic Current	BS EN/EN61000-3-2	-----
Voltage Flicker	BS EN/EN61000-3-2	-----

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact; criteria A
Radiated	BS EN/EN61000-4-3	Level 3, 10V/m; criteria A
EFT / Burst	BS EN/EN61000-4-4	Level 3, 2KV; criteria A
Surge	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line ;Level 3, 2KV/Line-Line-Chassis ;criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V; criteria A
Magnetic Field	BS EN/EN61000-4-8	Level 4, 30A/m; criteria A

OTHERS

MTBF: 556.6K hrs min. Telcordia SR-332 (Bellcore); 74.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 110*125.2*150.7mm (W*H*D)
PACKING: 1.92Kg; 6pcs/ 12.5Kg / 1.42CUFT

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Variable with charger voltage when battery is connected.
3. This is Mean Well's suggested range. Please consult your battery manufacturer for their suggestions about maximum charging current limitation.
4. If load current increases, the system will prioritize load current demand and automatically reduce the battery charging current.
5. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
6. Tolerance : includes set up tolerance, line regulation and load regulation.
7. Length of setup time is measured at cold first start, Turning ON/OFF the power supply may lead to increase of the setup time.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15cm clearance is recommended.
10. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

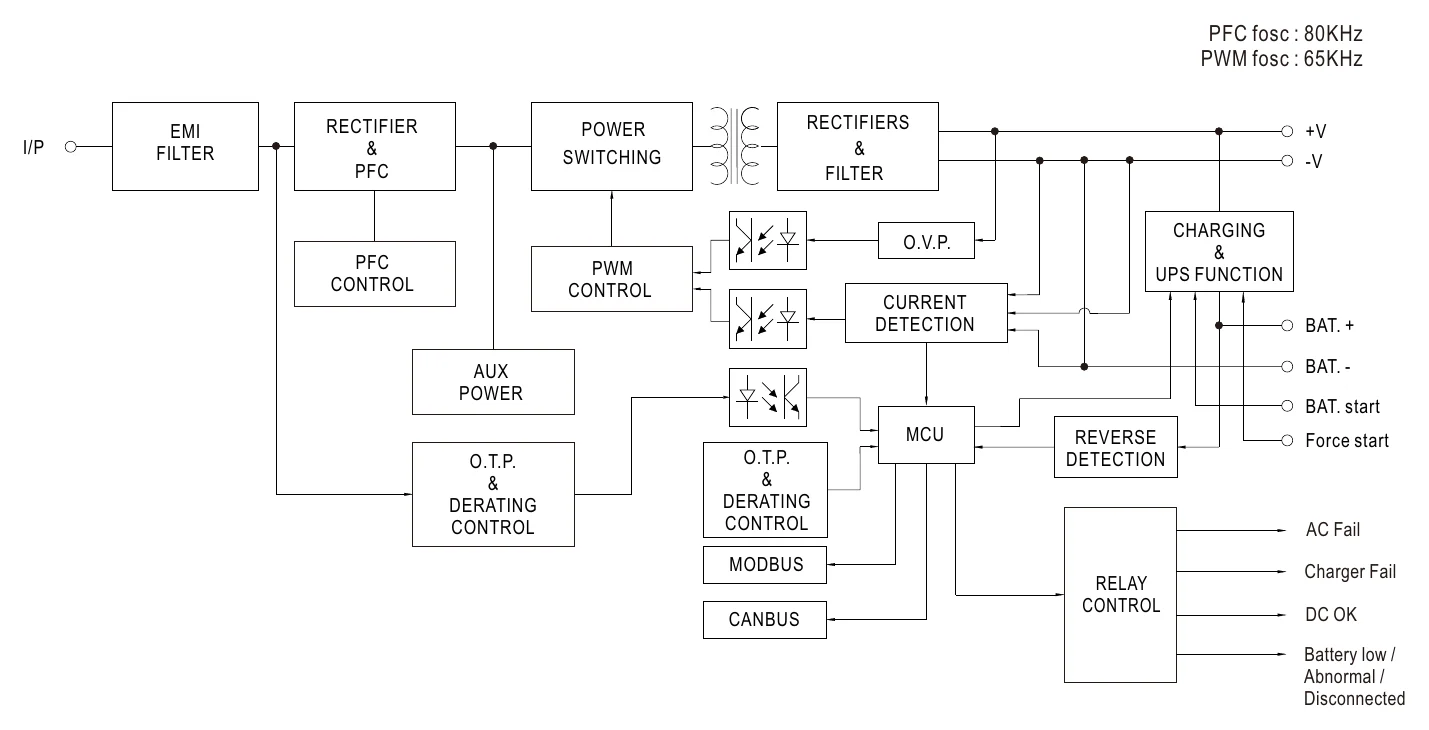

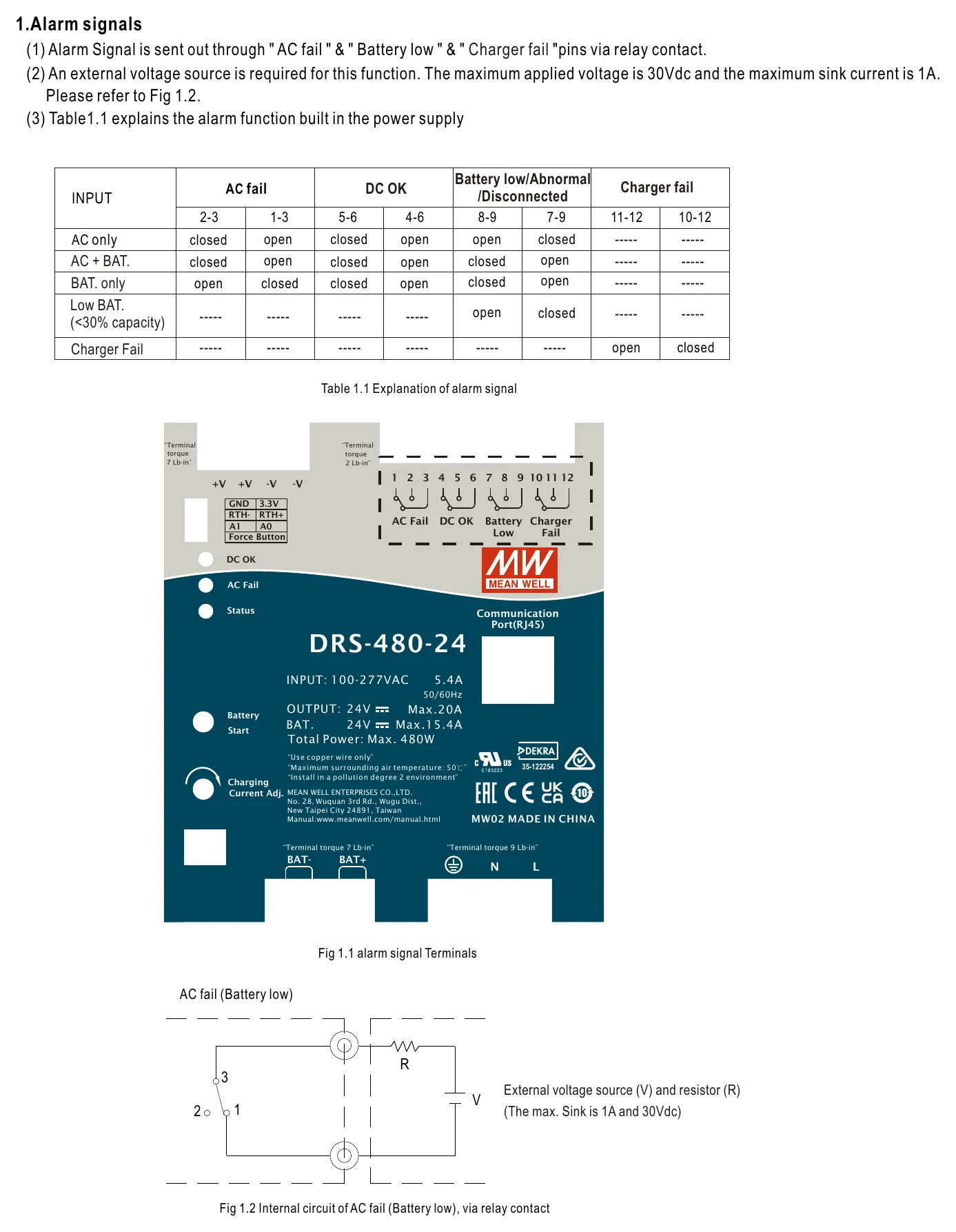

DRS-480-36 Block Diagram — Block Diagram

DRS-480-36 Function manual — Function manual

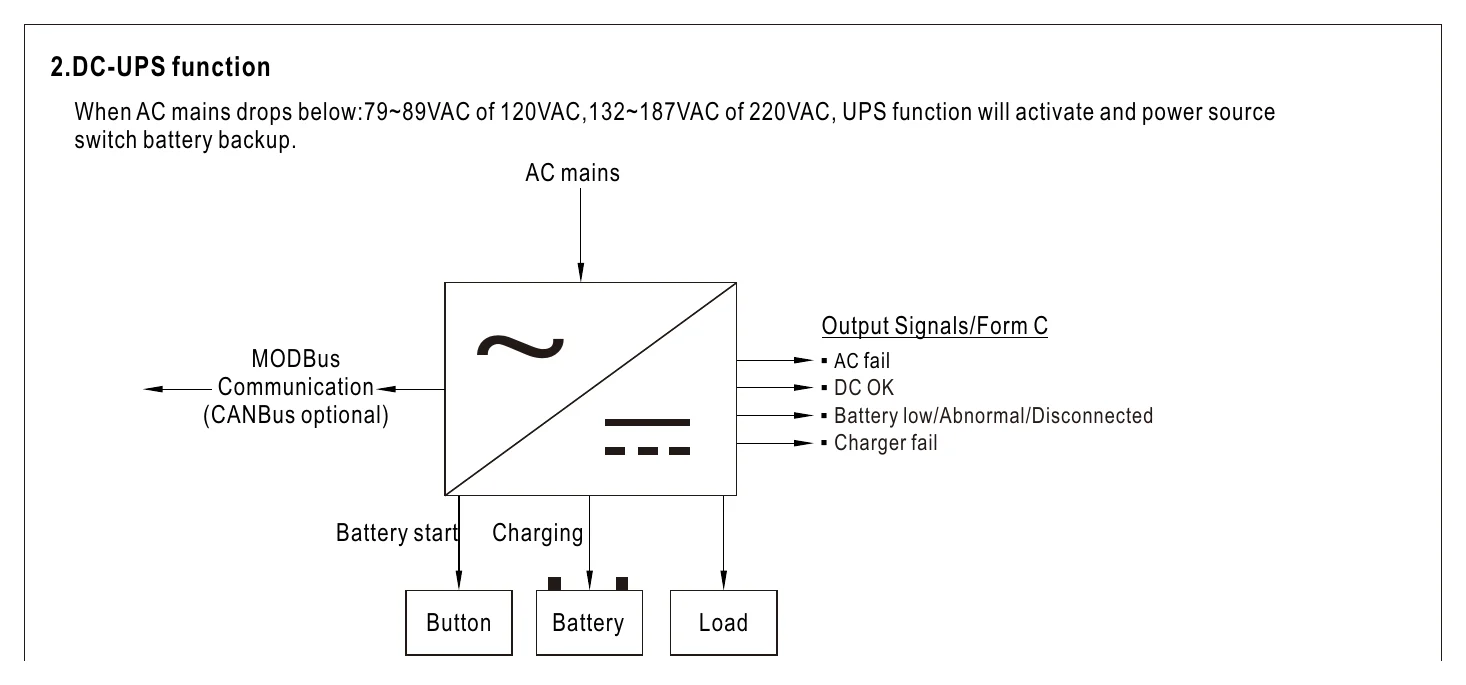

DRS-480-36 2.DC-UPS function — 2.DC-UPS function

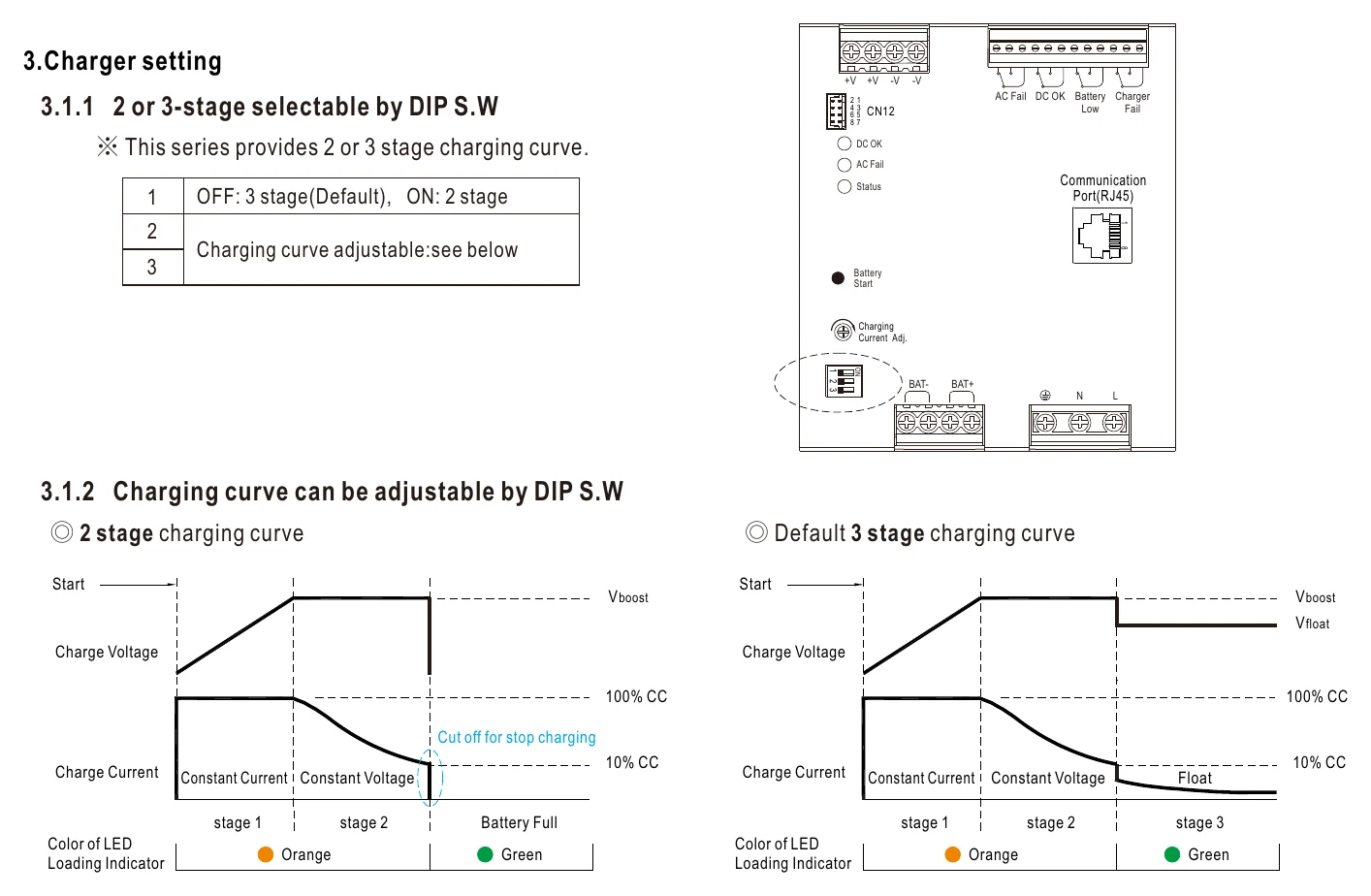

DRS-480-36 3.Charger setting — 3.Charger setting

DRS-480-36 2UART_TXPMBUS_C — 2UART_TXPMBUS_C

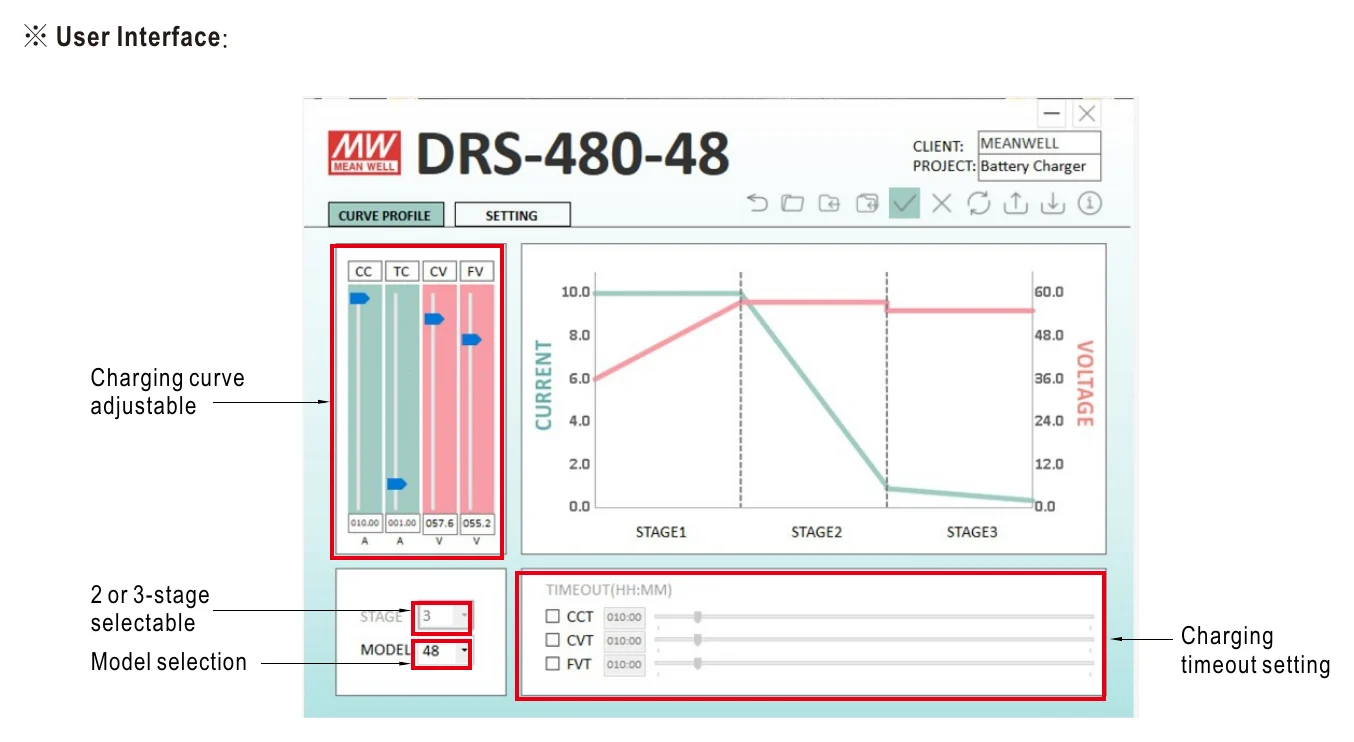

DRS-480-36 ※ User Interface — ※ User Interface

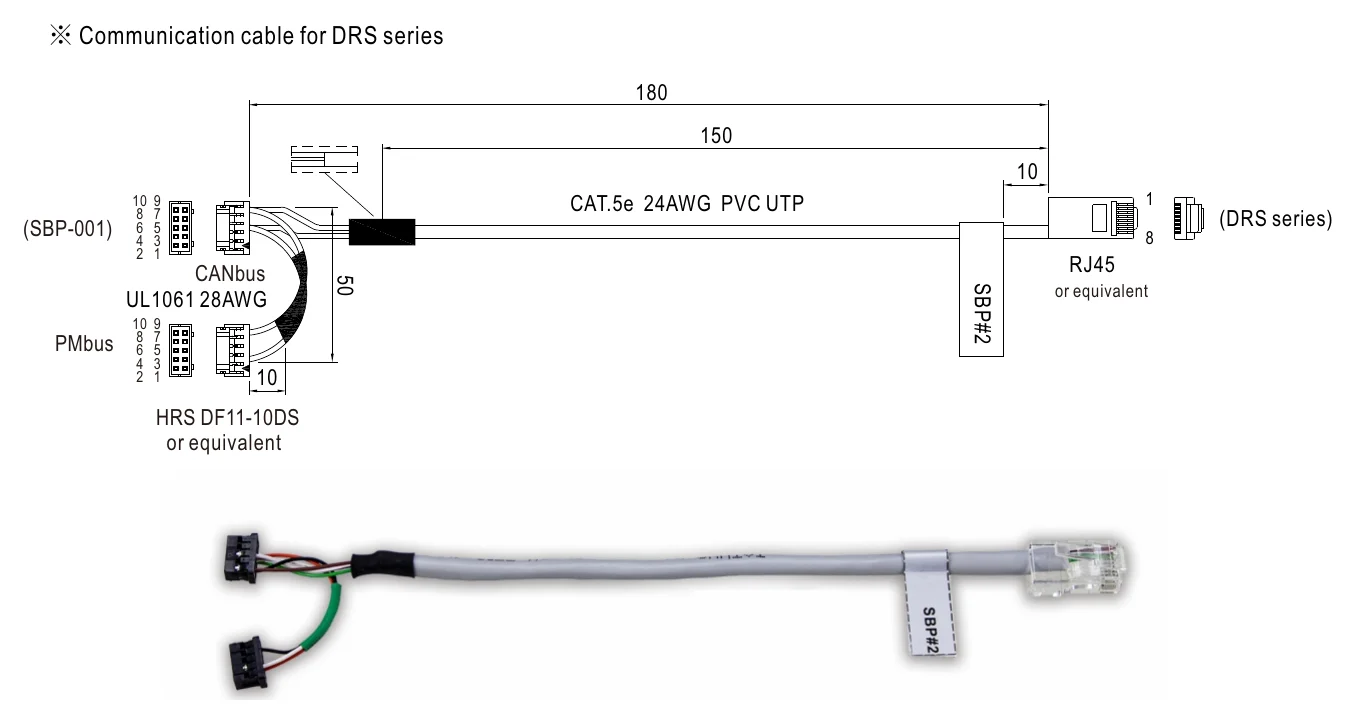

DRS-480-36 ※ Communication cable for DRS series — ※ Communication cable for DRS series

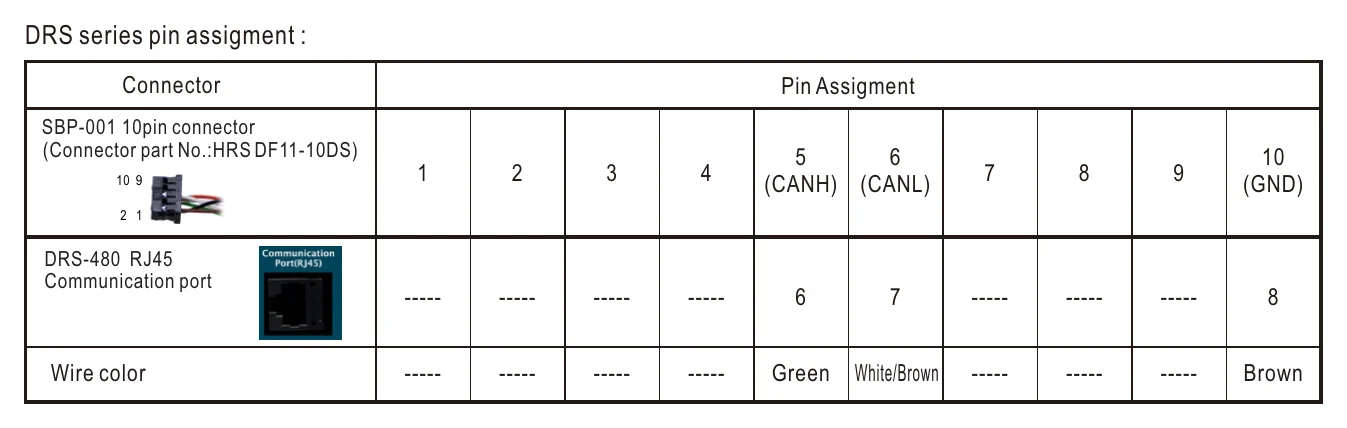

DRS-480-36 DRS series pin assigment — DRS series pin assigment

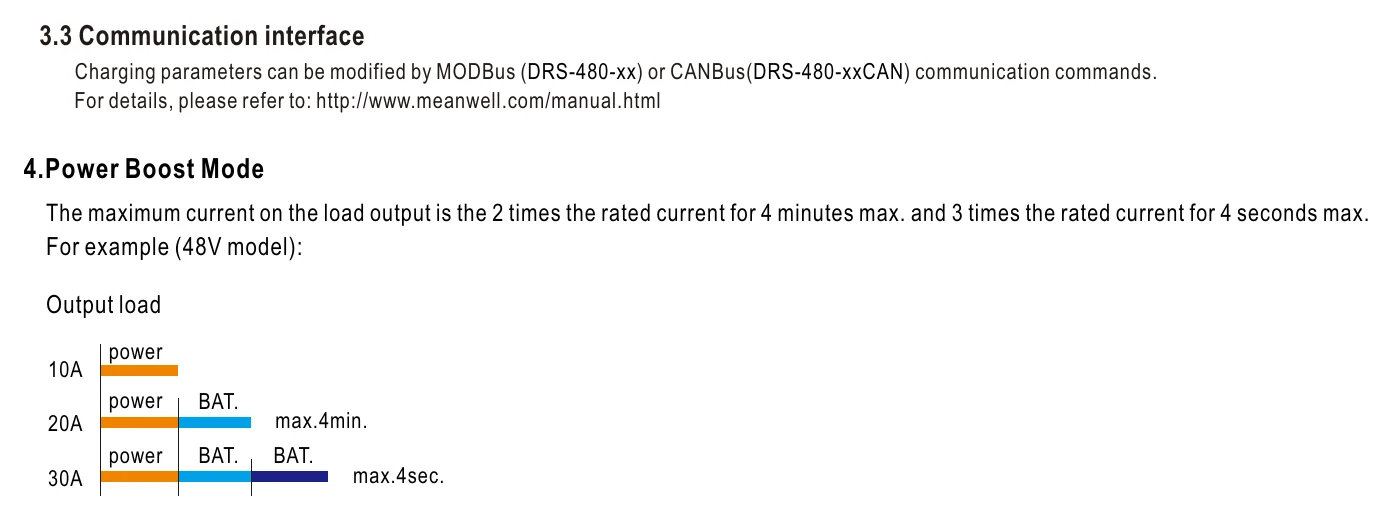

DRS-480-36 3.3 Communication interface — 3.3 Communication interface

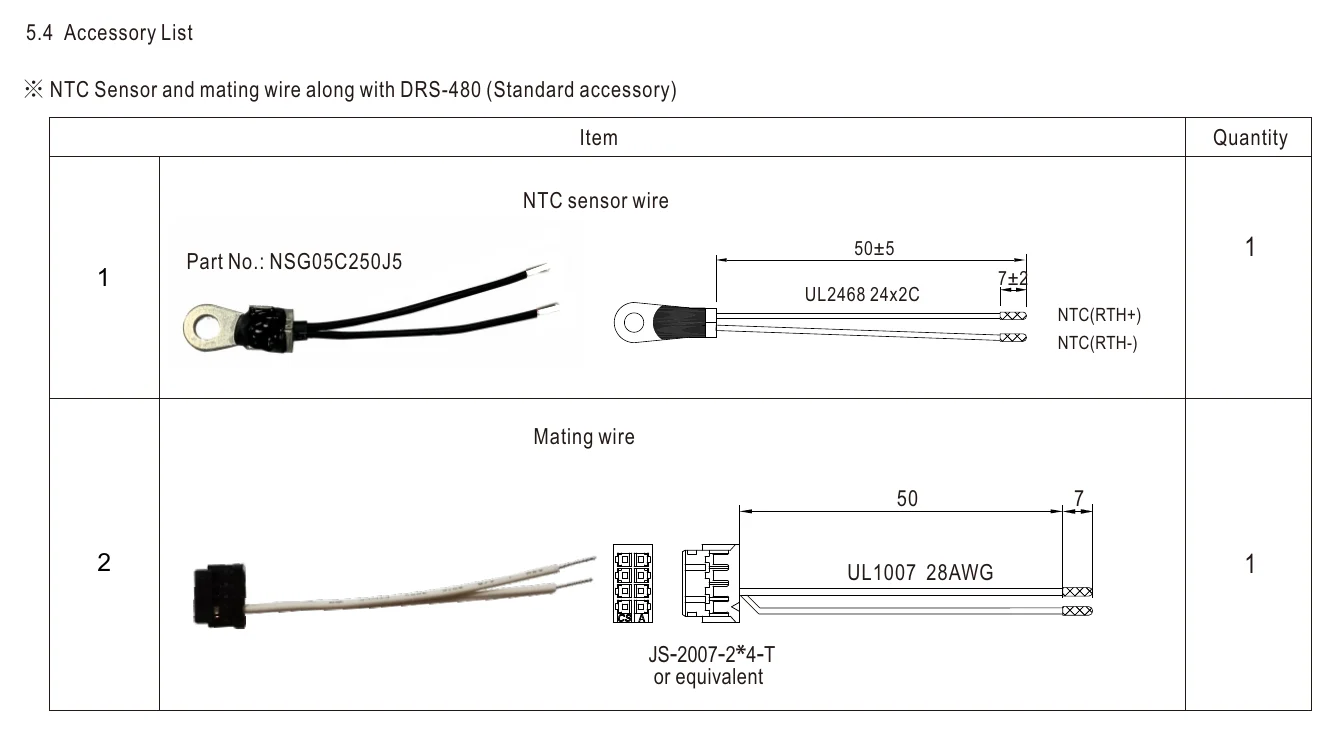

DRS-480-36 5.4 Accessory List — 5.4 Accessory List

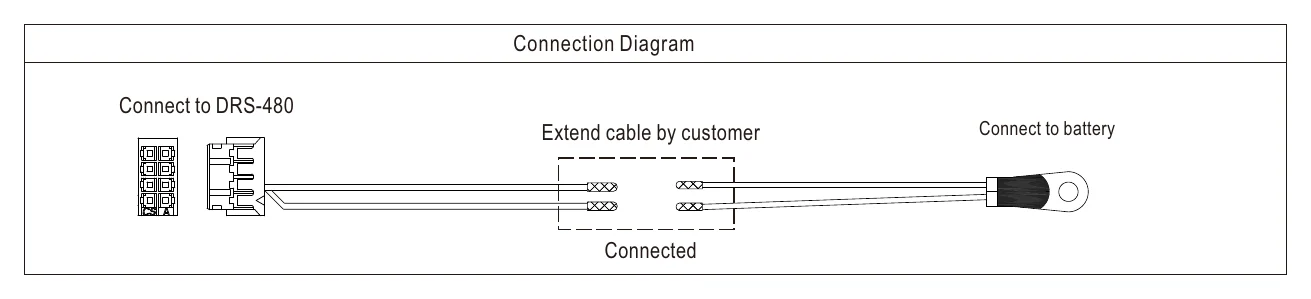

DRS-480-36 Connection Diagram — Connection Diagram

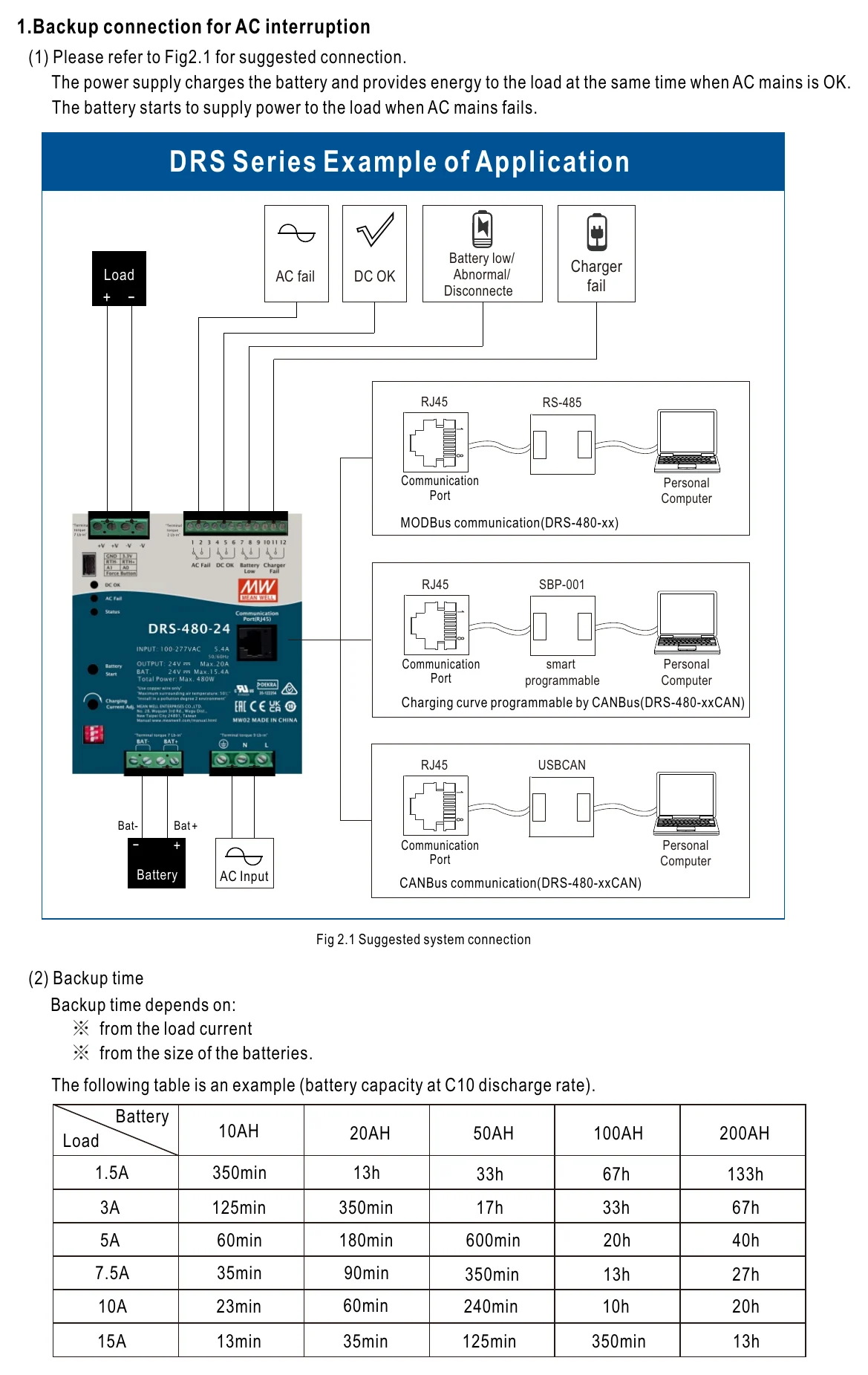

DRS-480-36 Suggested Application — Suggested Application

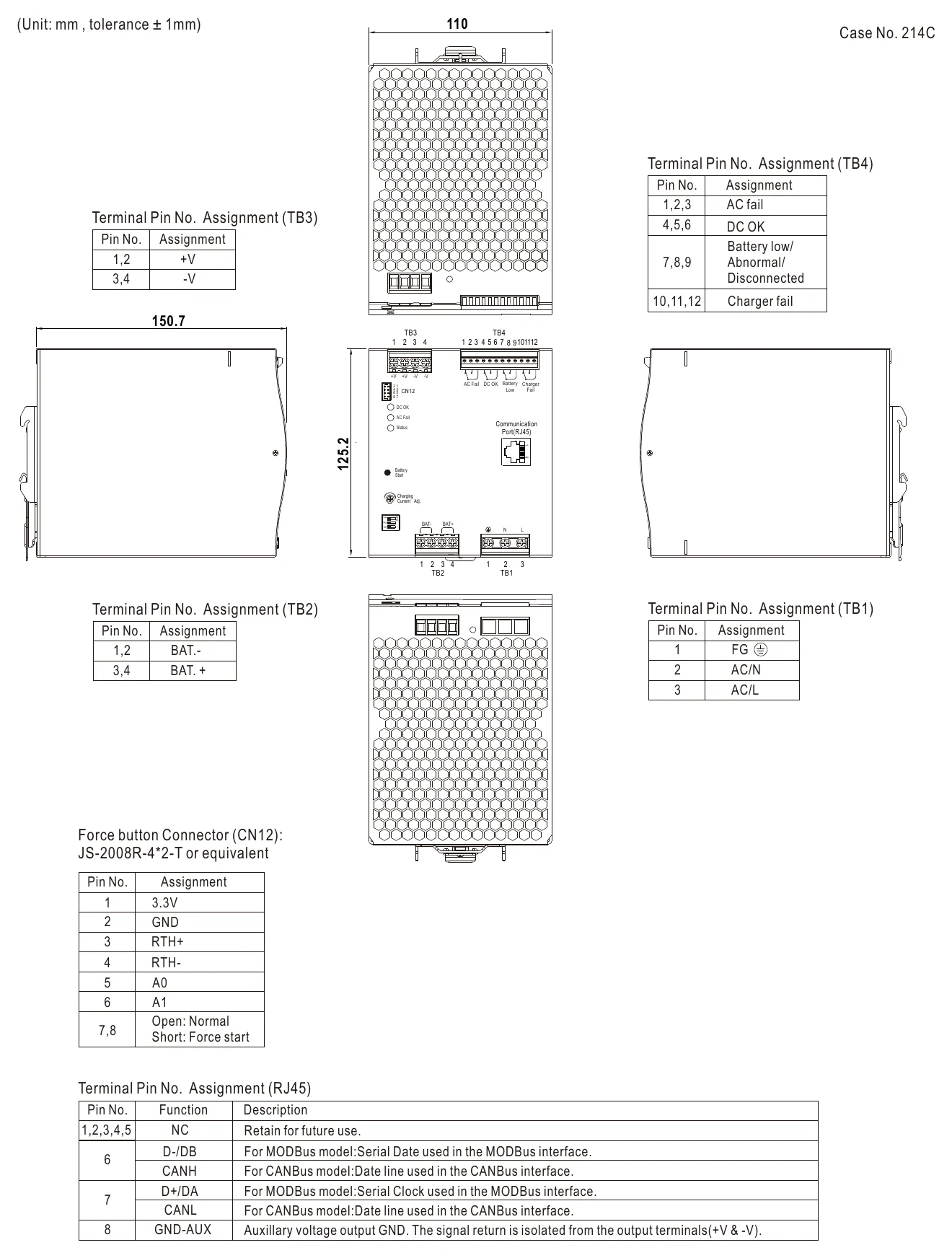

DRS-480-36 Mechanical Specification — Mechanical Specification

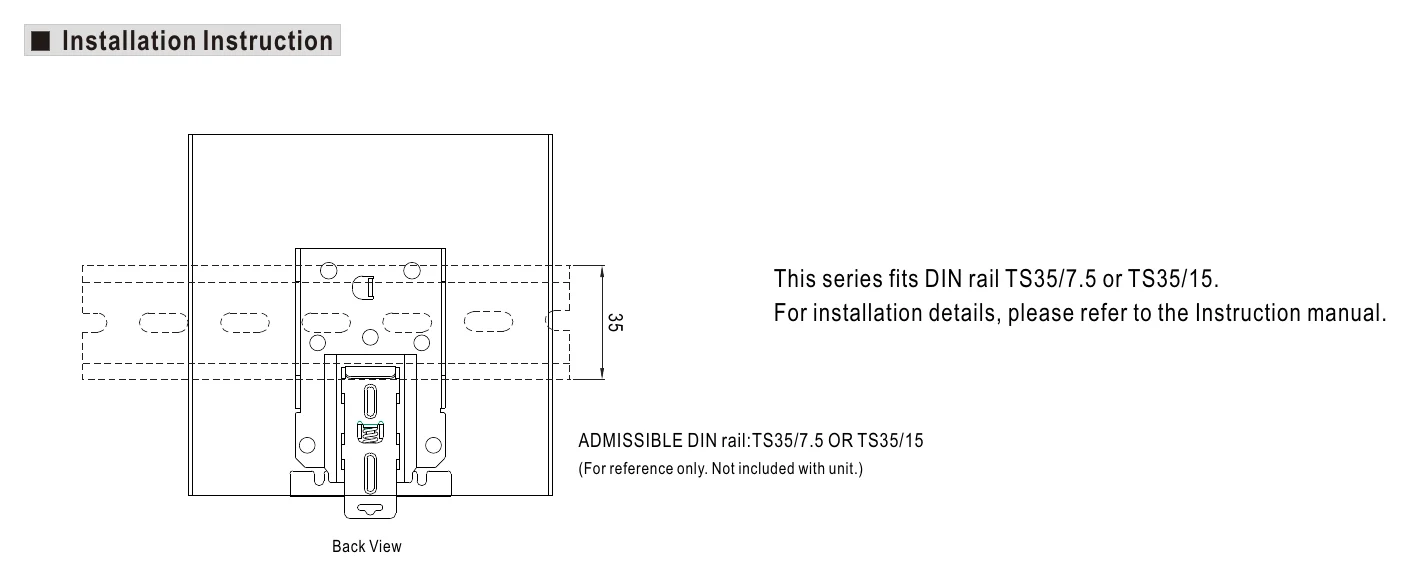

DRS-480-36 Installation Instruction — Installation Instruction

Typical applications

Public safety battery back-up (Red box)
Security system
Emergency lighting system
Alarm system
Uninterruptible DC-UPS system, battery detection system
Central monitoring system
Industrial automation

Downloads

Datasheet1

DRS-480-36 datasheetDRS_480_spec.pdf · 2026-09-09 edition PDF Download

FAQ

What is the Mean Well DRS-480-36 designed for?

The DRS-480-36 is an all-in-one intelligent security power unit that combines a 480W power supply, DC-UPS, battery charger, and status monitoring in one compact DIN rail form factor. It is suited to security and related backup-power applications where continuous 36V DC output and battery-supported operation are important.

What are the main electrical ratings of the DRS-480-36?

This model is rated for 480W total output at 36V DC with a load current range of 0 to 13.3A and a maximum battery charging current of 10.2A. It accepts a wide 90 to 305VAC input range, with 127 to 431VDC also supported on the input side.

How is the DRS-480-36 different from a standard DIN rail power supply?

Unlike a standard DIN rail PSU that only provides DC output, the DRS-480-36 also integrates DC-UPS functionality, battery charging, and status monitoring. It includes relay contacts and LED indicators for AC fail, battery low, charger fail, and DC-OK, making it more suitable for monitored critical-power applications.

Is the DRS-480-36 compatible with different battery types?

Yes, the DRS-480-36 is suitable for both lead acid and lithium-ion batteries. It also supports selectable 2-stage or 3-stage charging, and the charging current is adjustable from 20% to 100% by VR.

Can the DRS-480-36 be used in demanding temperature conditions?

This model has a working temperature range of -30 to +70 degrees C (refer to the derating curve). It includes over-temperature protection with derating control, which helps it operate in tougher industrial and security environments.

What monitoring and communication features does the DRS-480-36 include?

The DRS-480-36 includes built-in ModBus protocol support, with CANBus available as an option. It also provides Form C relay contacts and LED status indication for key power and battery conditions, which is useful where remote status visibility matters.

What protection features are built into the DRS-480-36?

This unit includes protection for short circuit, overload, over voltage, over temperature with derating, battery reverse polarity, and battery cut off. Its overload protection is specified at 105% to 135% of rated output power, and over-voltage protection on the load output is specified at 48.6V to 55.9V.

What approvals does the DRS-480-36 have?

The DRS-480-36 is approved to UL62368-1, Dekra BS EN/EN62368-1, RCM AS/NZS 62368.1 and EAC TP TC 004 safety standards. It also complies with BS EN/EN54-4 for fire detection and fire alarm systems.
