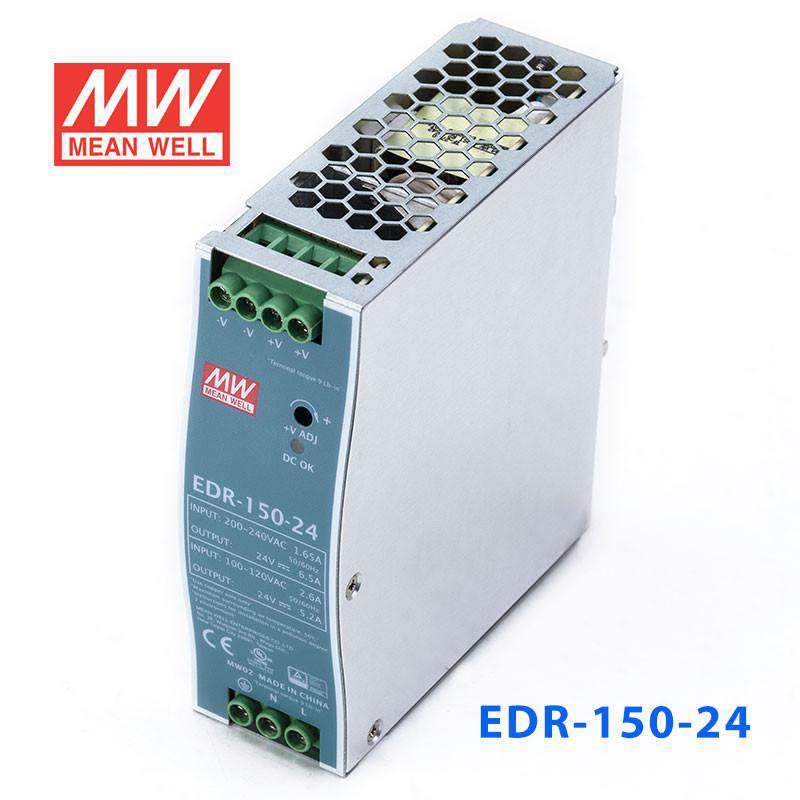

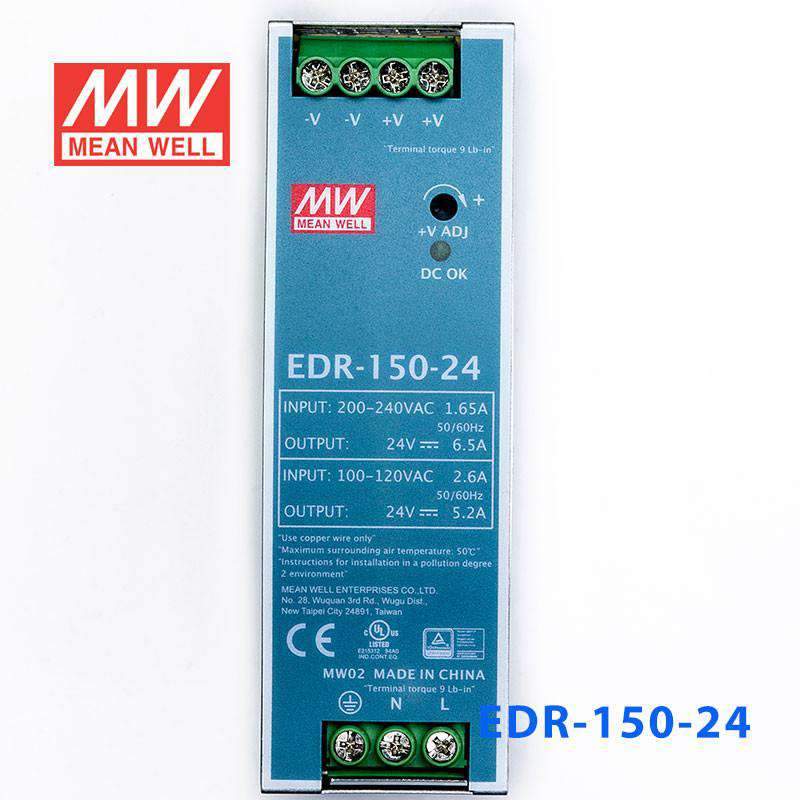

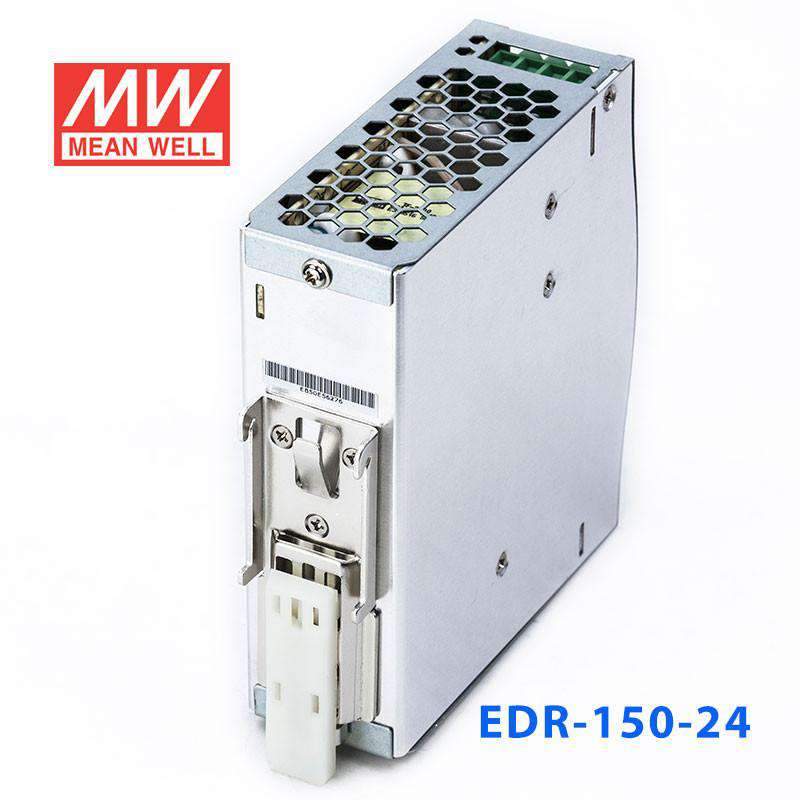

Mean Well EDR-150-24 Single Output Industrial Power Supply 150W 24V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well EDR-150-24 Single Output Industrial Power Supply 150W 24V...
Description
Description
Features
| Universal AC input / Full range |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Cooling by free air convection |

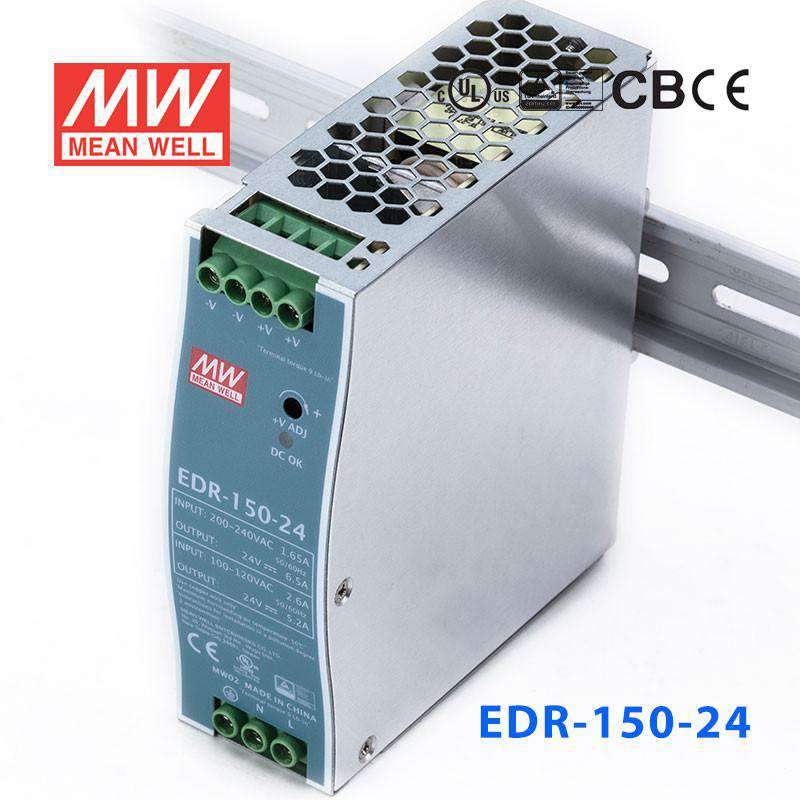

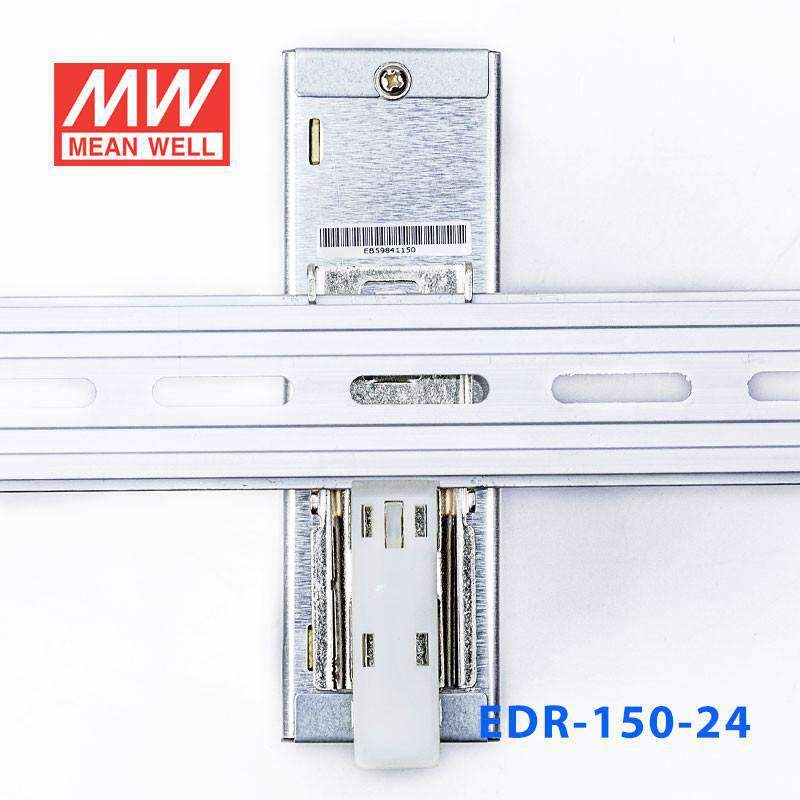

| Can be installed on DIN rail TS-35 / 7.5 or 15 |
| UL508 (industrial control equipment) listed |
| EN61000-6-2 (EN50082-2) industrial immunity level |
| 100% full load burn-in test |
| Low cost |
| 2 years warranty |
General Specification
| AC input voltage range | 90~264VAC; 127~370VDC |
| AC inrush current (max.) | Cold start, 35A at 230VAC |
| Current adjustment range | 10%~100% rated output current adjustable by 1~10Vdc, PWM signal or resistance |
| Overload protection | 105%~130% rated output voltage |
| Over voltage protection | 110%~140% rated output voltage,recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -20~+60°C (refer to output derating curve ) |
| Safety standards | UL508, TUV EN60950-1 approved |
| EMC standards | EN55022(CISPR22) classA, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2),EN55024 |
| Connection (screw DIN terminal) | I/P: 3 poles, O/P: 4 poles |
| Dimension (LxWxH) (mm) | 40x 125.2x 113.5 |
Specifications
Specifications
-
BrandMean Well
-
SeriesEDR Series
-
Power Rating156 Watt
-
Output Voltage24 Volt
-
Rated Current6.5 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length4.93 in
-
Width4.47 in
-
Height1.57 in
-
Weight1.32 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the EDR-150-24 for a 24V PLC control panel?
Yes. The EDR-150-24 provides 24V output at 6.5A for 156W, which suits many 24V PLC control panels and associated cabinet power needs. Its DIN rail format and slim 32~40 mm width are useful where panel space is limited.
Is the EDR-150-24 suitable for industrial automation cabinets with 24V DC loads?
It is a practical fit for industrial automation cabinets that standardize on 24V DC and stay within 6.5A total output current. The metal case and DIN rail mounting are aligned with enclosed industrial panel use. Its 125.2 × 113.5 × 40.0 mm body also supports compact cabinet layouts.
Can this power supply be used in building management or control enclosures?
Yes, for building management or control enclosures that need a 24V DIN rail power supply up to 156W. The wide 90-264VAC input also helps when the supply needs to fit common AC input ranges. Its slim size is especially useful in crowded enclosure designs.
Is the EDR-150-24 a good option when I need a slim 24V DIN rail supply?
Yes. This model combines 24V output, 6.5A current, and 156W capacity with a slim 32~40 mm width, making it suitable for narrow DIN rail spaces. That makes it easier to use in dense control cabinets without moving to a lower-power class.
How does the EDR-150-24 compare with the smaller EDR series models?
Within the sibling list, EDR-120-12 is 120W, 12V, 10A, EDR-120-24 is 120W, 24V, 5A, EDR-120-48 is 120W, 48V, 2.5A, EDR-75-12 is 75.6W, 12V, 6.3A, EDR-75-24 is 76.8W, 24V, 3.2A, and EDR-75-48 is 76.8W, 48V, 1.6A. The EDR-150-24 steps above those listed siblings at 156W, 24V, and 6.5A. The main differences are output voltage, output current, and total wattage.
Is the EDR-150-24 intended for open-air use, or should it be installed in a cabinet?
It is better suited to control cabinets or enclosures. The operating temperature range is -20°C to +60°C, and the metal-case DIN rail design is aligned with enclosed industrial or building control environments. The EMC rating is EN55022 class A, which also points to industrial cabinet use rather than general open-area consumer environments.
