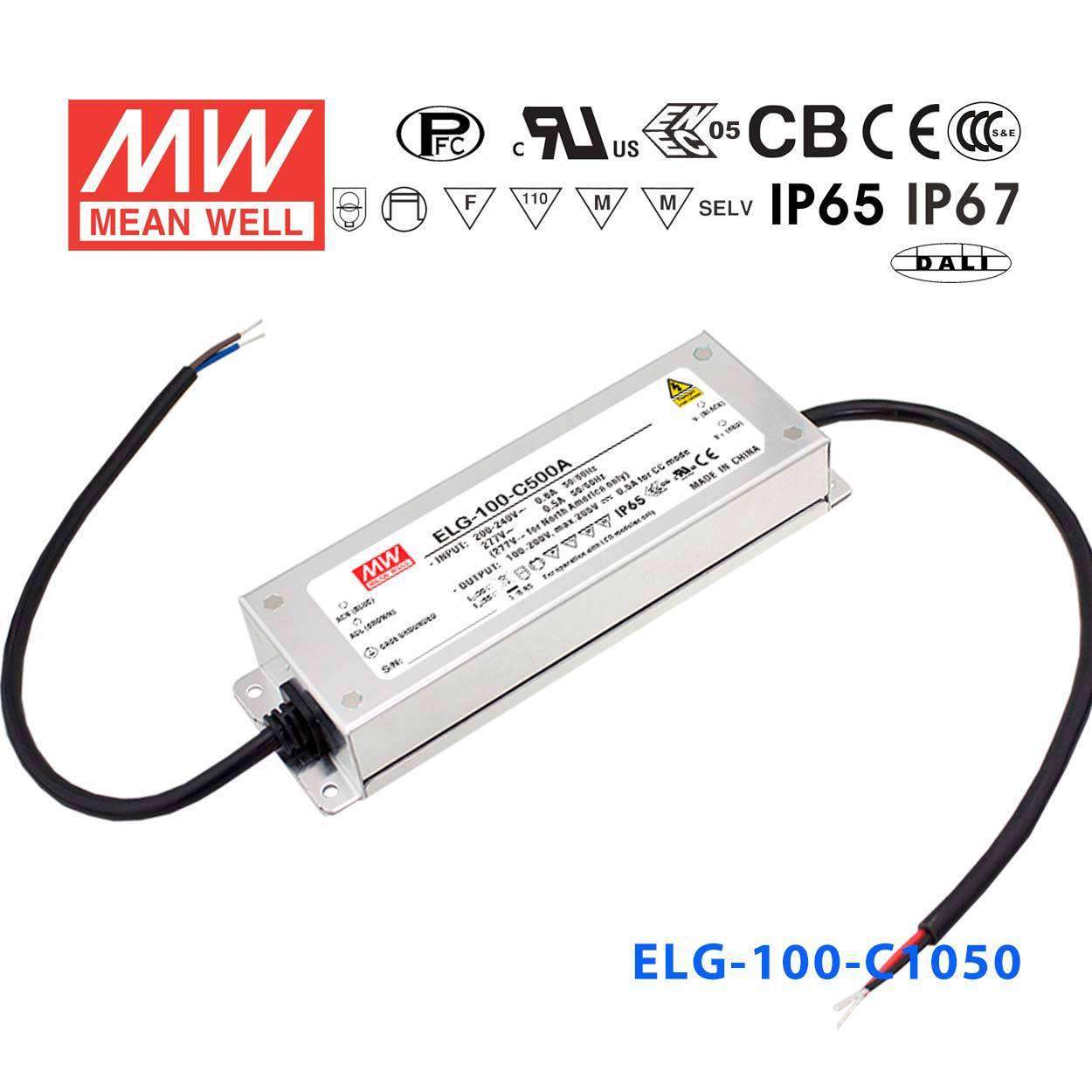

Mean Well ELG-100-C1050DA Power Supply 100W 1050mA - DALI
The ELG-100 is a 100W Mean Well power converter (input range: 100~305VAC).
Key Features
- ✓ Input voltage range: 100~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: IEC62386-101, 102, 207 for DA-Type only
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating99.75 Watt
-
Output Voltage105 Volt
-
Rated Current1.05 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDALI
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
::specification::
Frequently Asked Questions
Can the ELG-100-C1050DA be integrated into a DALI lighting control system for smart building use?
Yes. The 'DA' suffix indicates a DALI-capable interface, allowing the driver to be controlled and addressed within a DALI digital lighting control network. This enables per-fixture dimming, scene recall, and fault monitoring from a DALI controller.
Is the ELG-100-C1050DA rated for outdoor use in wet environments?
Yes. The ELG-100-C1050DA carries an IP67 waterproof rating, making it suitable for outdoor luminaires and applications where the driver may be exposed to rain, splashing, or temporary water contact.
Can I use the ELG-100-C1050DA to power LED downlights in an office building with centralized dimming?
Yes. The DALI interface of this driver supports central dimming control from a building management system, making it practical for office environments that require zoned or scene-based lighting. It operates at 99.75W and 1050mA constant current.
What LED string forward voltage range is compatible with the ELG-100-C1050DA?
The CC output voltage range is 48–95V. LED series strings with a combined forward voltage within this window are compatible; the number of LEDs per series string depends on each LED's individual forward voltage specification.
Is the ELG-100-C1050DA suitable for LED signage in a retail environment that requires centralized brightness control?
Yes. DALI-based dimming allows a retail lighting controller to adjust the sign brightness by zone or schedule, and the constant current output ensures consistent LED brightness across the sign panel. The driver handles 99.75W across a 48–95V CC range.
How does the ELG-100-C1050DA compare to the ELG-100-C1050D2?
Both variants add digital dimming to the base ELG-100-C1050 platform at 99.75W / 1050mA / 48–95V CC. The ELG-100-C1050DA uses a DALI (version 1 compatible) interface, while the ELG-100-C1050D2 is certified to the newer DALI-2 standard, which adds stricter interoperability requirements. Both are rated IP67.
