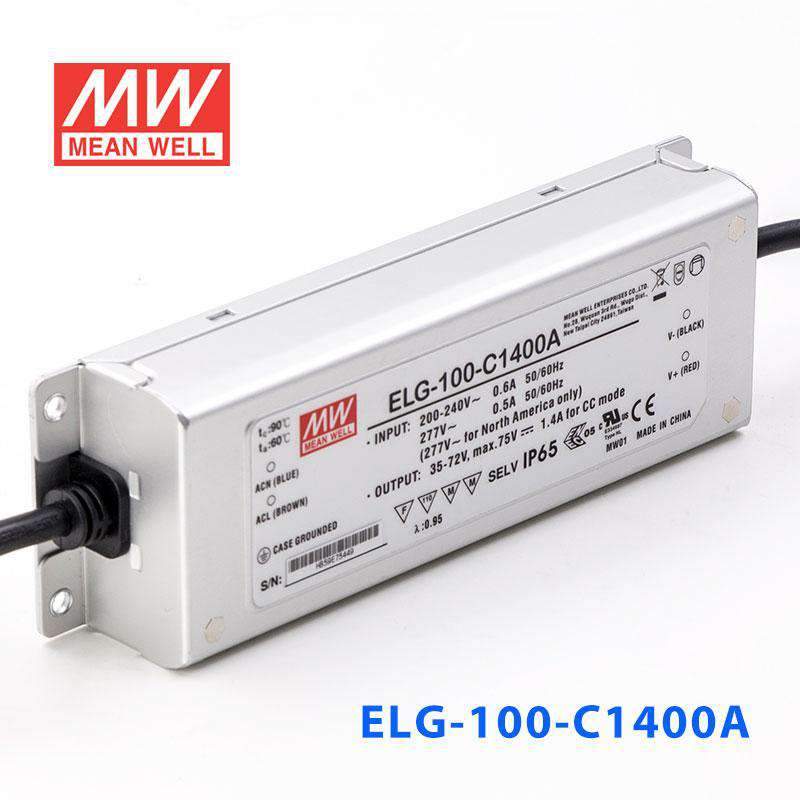

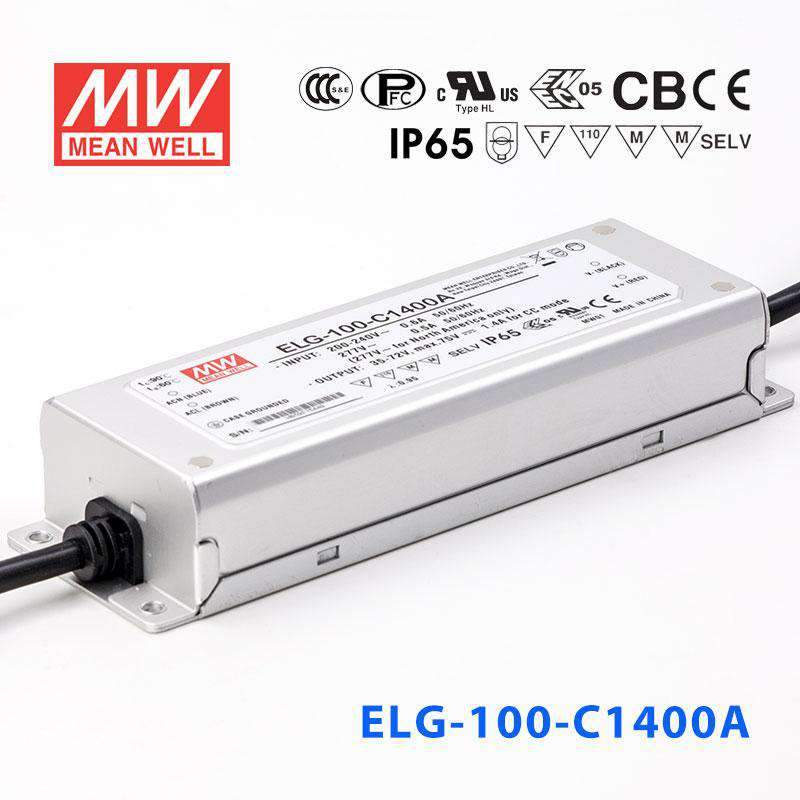

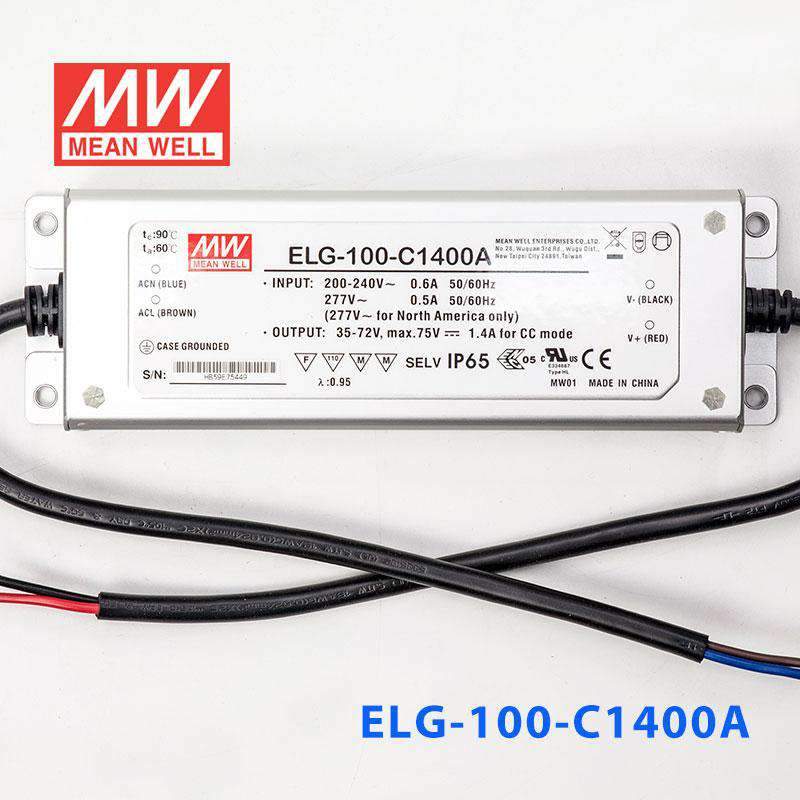

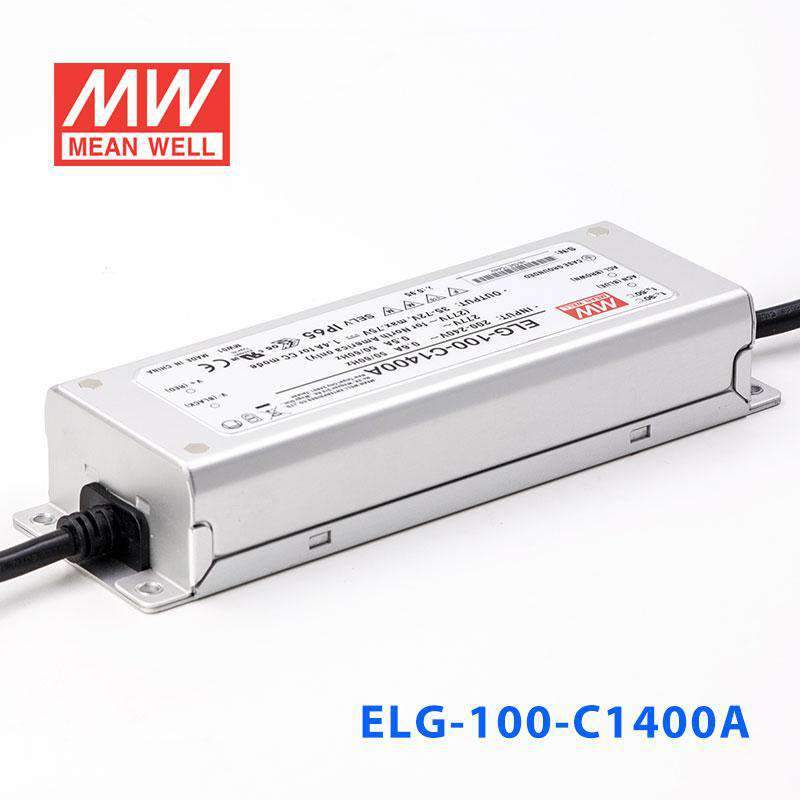

Mean Well ELG-100-C1400A Power Supply 100W 1400mA - Adjustable
Description
Description
Features
| 100~305VAC wide input range |
| Built-in active PFC |
| Protections: Short circuit / Over voltage/Over temperature |
| No load power consumption <0.5W |
| High efficiency up to 92% |
| Suitable for LED lighting and street lighting applications |
| Cooling by free air convection |
| 100% full load burn-in test |
| 5 years warranty |
General Specification
| AC input voltage range | 100~305VAC;142~431VDC |
| AC inrush current | Cold start, 40 at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Over voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 500ms |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750 approved |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1 |
| Dimension (LxWxH) | 199x63x35.5 |
| Packing | 16pcs / 14.2kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating100.8 Watt
-
Output Voltage75 Volt
-
Rated Current1.4 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the ELG-100-C1400A to power LED downlights in a commercial retrofit project?
Yes. The ELG-100-C1400A delivers a constant 1400mA output up to 100.8W, making it suitable for driving higher-power LED downlight arrays used in commercial retrofits. Its operating voltage range of 35–72V accommodates a variety of LED module configurations depending on the forward voltage of the LEDs selected. The IP65 water-resistant rating also allows installation in damp or humid ceiling plenum environments.
Is the ELG-100-C1400A suitable for outdoor LED signage applications?
The ELG-100-C1400A carries an IP65 water-resistant rating, which provides protection against dust ingress and low-pressure water jets, making it appropriate for outdoor LED signage cabinets with adequate enclosures. It accepts a wide input range of 100–305VAC and operates reliably from -40°C to +90°C, supporting a range of outdoor climates. For fully exposed or submersible outdoor installations, the IP67-rated ELG-100-C1400B may be a better fit.
Can this driver power a series string of LED modules in an architectural lighting cove?
Yes, the ELG-100-C1400A is a constant current driver that maintains a fixed 1400mA output, which is well suited for series-connected LED module strings used in cove or linear architectural lighting. The output voltage self-adjusts within the 35–72V range to match the combined forward voltage of the LED string. The number of modules that fit in series depends on the forward voltage of each individual LED module.

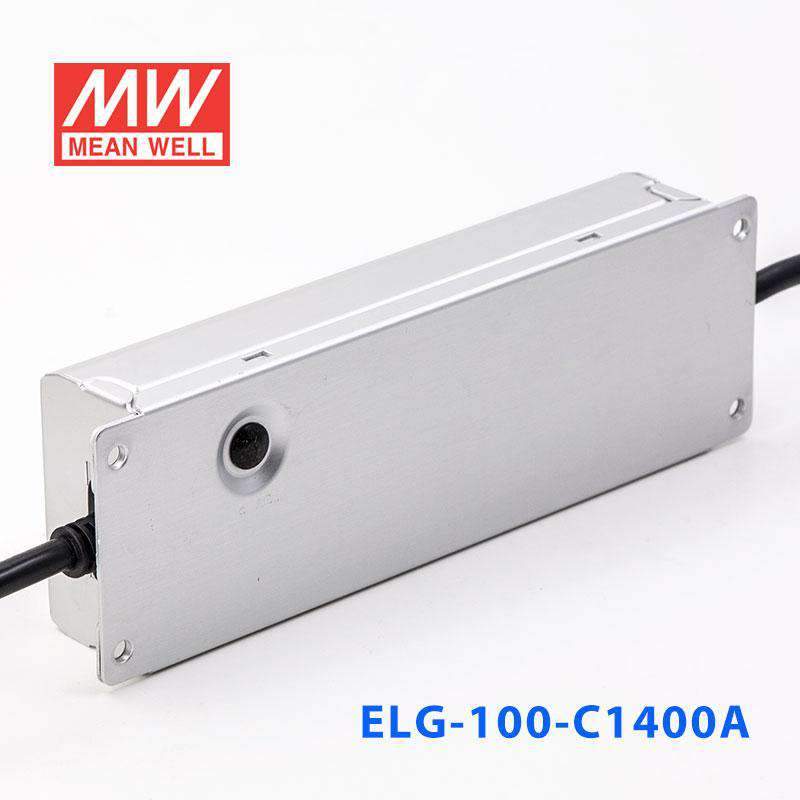

What adjustment capability does the 'A' suffix provide on the ELG-100-C1400A?
The 'A' suffix indicates the driver includes a built-in potentiometer that allows the output current to be trimmed within a defined range, giving installers the ability to fine-tune light output without replacing the driver. This is useful when matching output to LEDs with specific current tolerances or when a small dimming range is needed without an external control interface. It operates in constant current mode and does not support external dimming signals.
Can the ELG-100-C1400A be installed in wet or wash-down locations?
The ELG-100-C1400A is rated IP65, meaning it is protected against dust and low-pressure water spray from any direction. It is suitable for damp locations and covered outdoor areas, but not for direct water immersion or high-pressure wash-down environments. For those conditions, the IP67-rated variant ELG-100-C1400B provides a higher level of water ingress protection.
How does the ELG-100-C1400A differ from the ELG-100-C1400B and ELG-100-C1400AB within the same family?
All three variants share the same 100.8W output, 1400mA constant current, 35–72V operating range, and 199×63×35.5mm form factor. The ELG-100-C1400A (this unit) is adjustable via a built-in potentiometer and carries an IP65 rating. The ELG-100-C1400B is dimmable via external signal and is rated IP67. The ELG-100-C1400AB combines both adjustability and external dimming and is also rated IP65.
