Mean Well

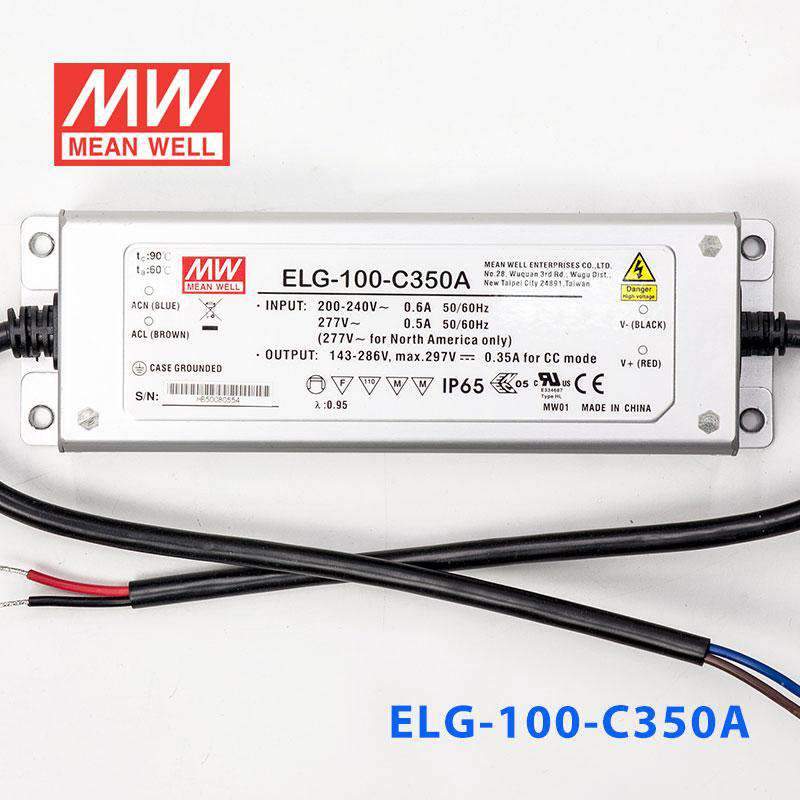

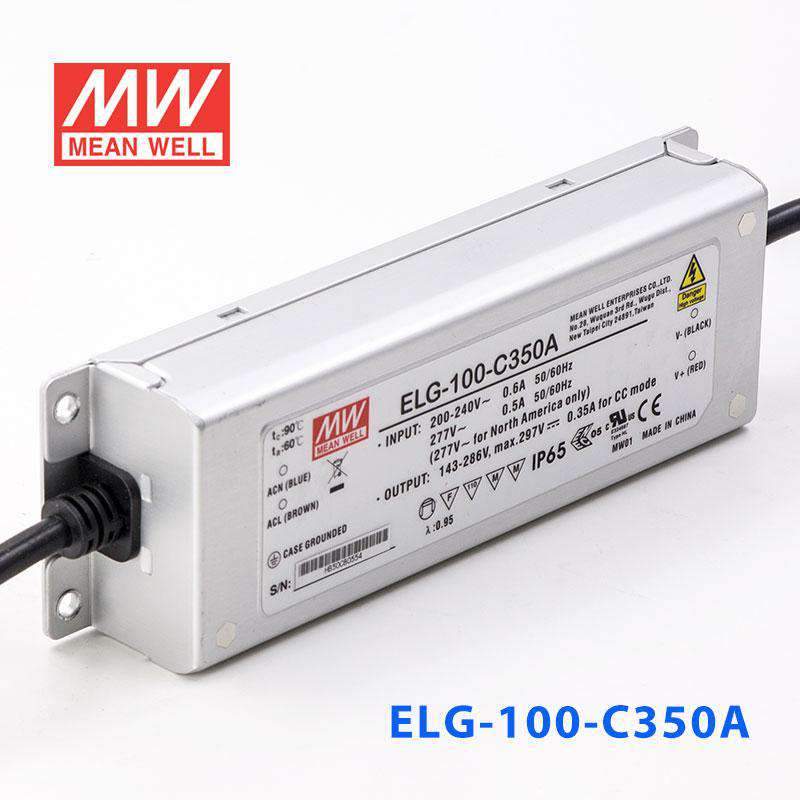

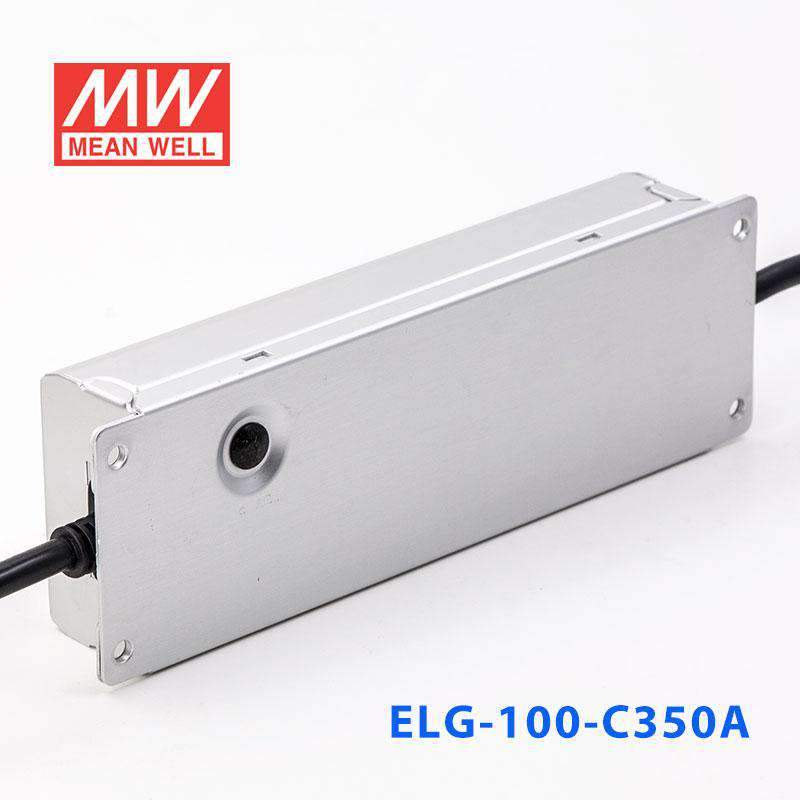

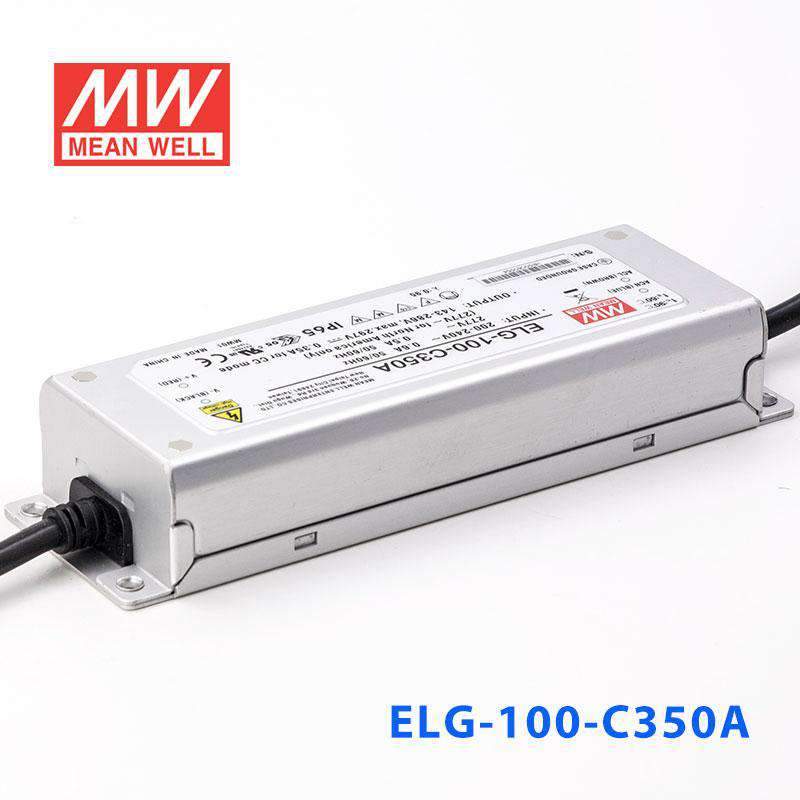

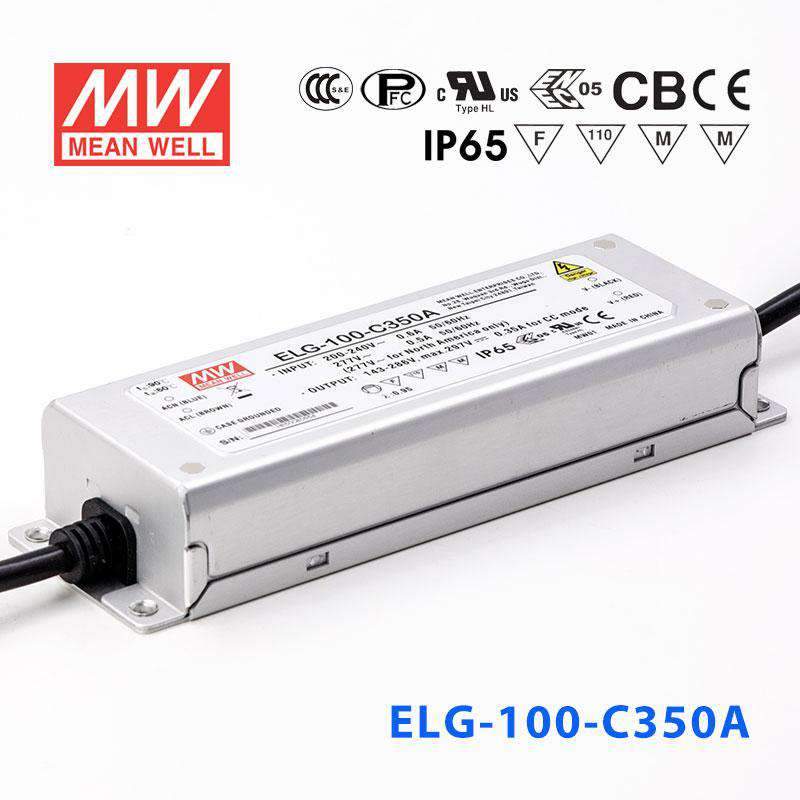

Mean Well ELG-100-C350A Power Supply 100W 350mA - Adjustable

Name: Mean Well ELG-100-C350A Power Supply 100W 350mA - Adjustable
Brand: Mean Well
SKU: ELG-100-C350A
Price: 37.58 USD
Availability: InStock

Mean Well ELG-100-C350A Power Supply 100W 350mA - Adjustable

On Backorder

$37.58 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

View full details

AC input voltage range	100~305VAC;142~431VDC
AC inrush current	Cold start, 40 at 230VAC
DC adjustment range	±10% rated output voltage
Over voltage protection	110%~140% rated output voltage
Setup, rise, hold up time	500ms
Withstand voltage	I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC
Working temperature	-40~+80°C (refer to output derating curve)
Safety standards	UL8750 approved
EMC standards	EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1
Dimension (LxWxH)	199x63x35.5
Packing	16pcs / 14.2kg
