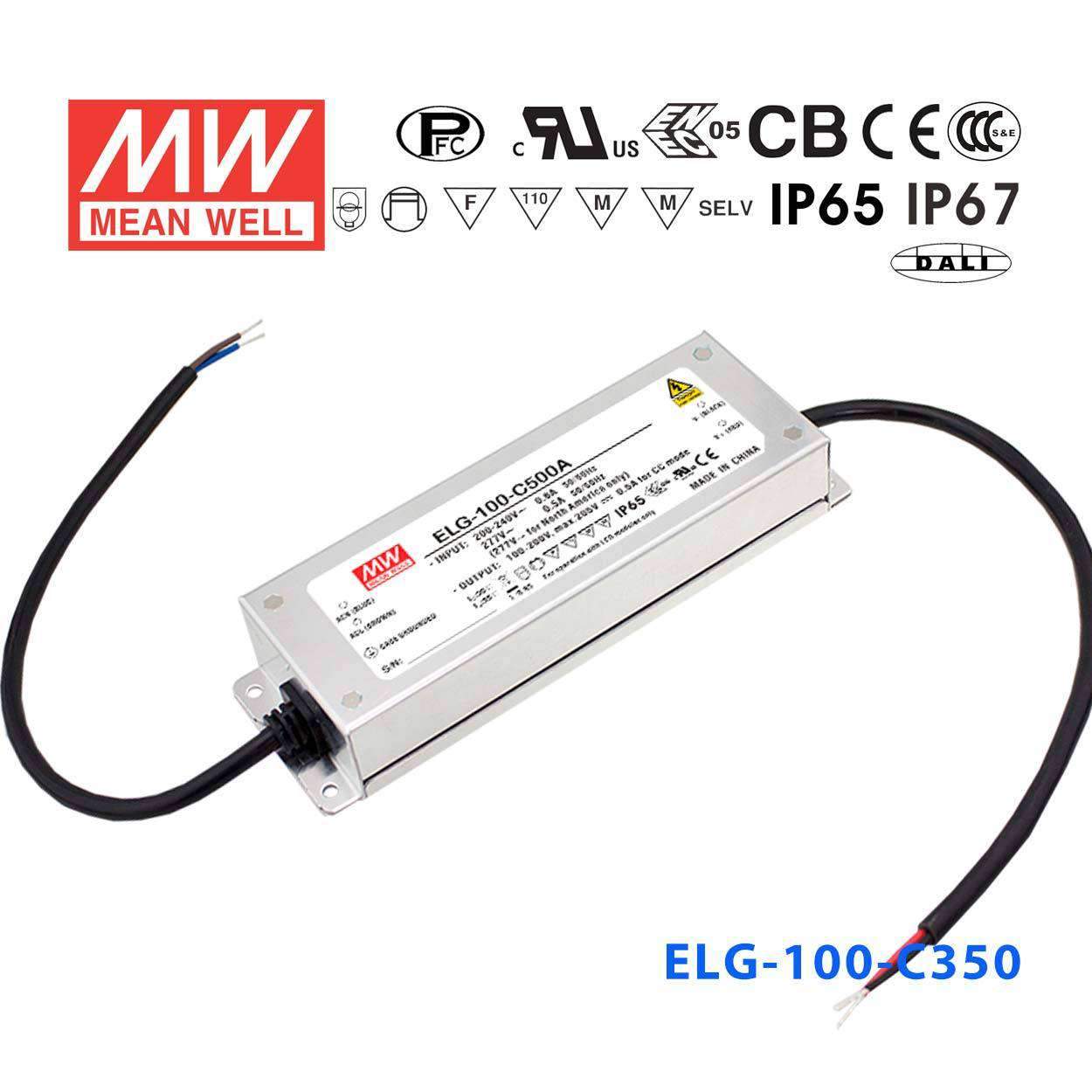

Mean Well ELG-100-C350AB Power Supply 100W 350mA - Adjustable and Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well ELG-100-C350AB Power Supply 100W 350mA - Adjustable and D...
Description
Description
Features
| 100~305VAC wide input range |
| Built-in active PFC |
| Protections: Short circuit / Over voltage/Over temperature |
| No load power consumption <0.5W |
| High efficiency up to 92% |
| Suitable for LED lighting and street lighting applications |
| Cooling by free air convection |
| 100% full load burn-in test |
| 5 years warranty |
General Specification
| AC input voltage range | 100~305VAC;142~431VDC |
| AC inrush current | Cold start, 40 at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Over voltage protection | 110%~140% rated output voltage |
| Setup, rise, hold up time | 500ms |
| Withstand voltage | I/P-O/P: 3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.5kVAC |
| Working temperature | -40~+80°C (refer to output derating curve) |
| Safety standards | UL8750 approved |
| EMC standards | EN55015, EN61000-3-2 class C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743,GB17625.1 |
| Dimension (LxWxH) | 199x63x35.5 |
| Packing | 16pcs / 14.2kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesELG-C Series
-
Power Rating100.1 Watt
-
Output Voltage297 Volt
-
Rated Current0.35 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming Control0-10V,10V PWM,Resistance
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length7.83 in
-
Width2.48 in
-
Height1.4 in
-
Weight1.87 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the ELG-100-C350AB be used to drive dimmable LED downlights in a retail environment?
Yes. The ELG-100-C350AB provides a constant 350mA with a built-in dimming interface, making it suited for dimmable LED downlight systems in retail or hospitality spaces. The CC voltage range spans 143–286V to accommodate series LED strings with varying forward voltages.
Is this driver suitable for dimmable LED signage modules in an outdoor sign cabinet?
The ELG-100-C350AB is rated IP65 for water resistance and supports dimming control, so it can be used in outdoor sign cabinets where brightness adjustment is needed. The 100.1W output at 350mA supports series LED module strings with total forward voltage between 143V and 286V.
Can I use the ELG-100-C350AB for architectural LED accent lighting that requires dimming?
Yes. With 100.1W of power and a dimmable constant-current output at 350mA, the ELG-100-C350AB is a good match for architectural accent LED arrays that need dimming capability. The LED string's total forward voltage must fall within the 143–286V CC range.
How does the CC voltage range affect LED compatibility with the ELG-100-C350AB?
The driver maintains constant current at 350mA as long as the total LED string forward voltage is between 143V and 286V. The actual number of LEDs in the string depends on each LED's individual forward voltage — you need to calculate the string voltage based on your specific LEDs' Vf.
Can the ELG-100-C350AB be installed in an outdoor location exposed to rain?
Yes, the IP65 rating provides protection against dust and low-pressure water jets, so the driver can be installed in outdoor locations subject to rain. It is not rated for submersion or high-pressure water exposure.
What operating temperature range does the ELG-100-C350AB support?
The ELG-100-C350AB operates from -40°C to +90°C, making it suitable for both cold-climate outdoor installations and warm indoor environments such as enclosed luminaire housings.
