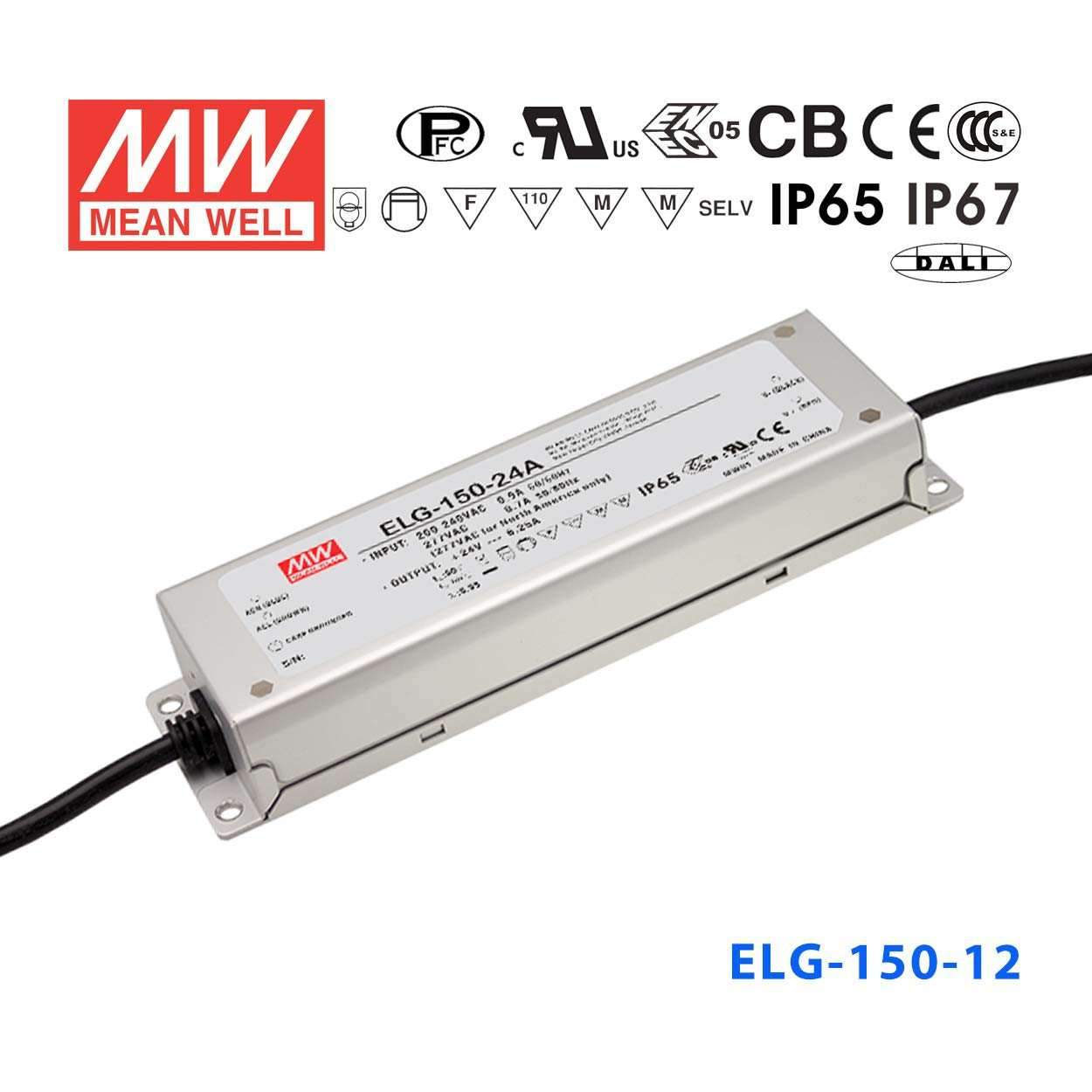

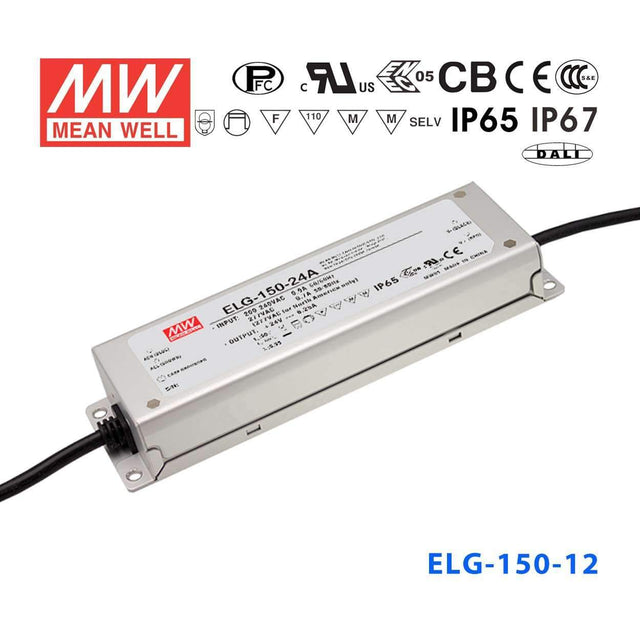

Mean Well ELG-150-12D2 AC-DC Single output LED Driver Mix Mode (CV+...
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating150 Watt
-
Output Voltage12 Volt
-
Rated Current10 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlDimmable
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can the ELG-150-12D2 be controlled by a DALI-2 lighting controller?
Yes. The 'D2' suffix designates DALI-2 digital dimming compatibility, so this driver can be addressed and dimmed individually by any DALI-2 compliant controller. This makes it well suited for smart building lighting systems that manage individual luminaire zones.
Is the ELG-150-12D2 suitable for museum display case lighting where precise dimming control is required?
Yes. DALI-2 protocol allows per-address digital dimming with fine resolution, making the ELG-150-12D2 appropriate for museum showcases or gallery fixtures where consistent, repeatable light levels matter. It outputs 150W at 12V with a 10A maximum current.
Can I install the ELG-150-12D2 in an outdoor enclosure exposed to rain?
Yes. The IP67 rating means the driver is sealed against dust and temporary water immersion, making outdoor enclosure installation feasible for signage or architectural lighting exposed to rain. The -40°C to +90°C operating range covers most outdoor conditions.
How many meters of 12V LED strip will the ELG-150-12D2 support?
The ELG-150-12D2 provides 150W at 12V. For a 14.4 W/m strip: 150 ÷ 14.4 ≈ 10.4 m at full rated load; derated to 80% for continuous use that is approximately 8.3 m. Always verify your strip's rated power per meter before finalizing the run length.
Can the ELG-150-12D2 work on both 110V and 277V AC inputs?
Yes. The input range is 100–305VAC, covering 110V, 120V, 208V, 240V, and 277V supplies without any manual switching. This makes it compatible with both North American and international electrical standards.
How does the ELG-150-12D2 differ from the ELG-150-12B in dimming method?
The ELG-150-12D2 uses DALI-2 digital dimming and push-dimming, which requires a DALI bus and controller for full addressable control. The ELG-150-12B uses 3-in-1 analog dimming (0/1–10V, PWM, or resistance), which works with simpler analog dimmer panels. The D2 also has a slightly higher rated power of 150W versus 120W for the B variant.
Is the ELG-150-12D2 suitable for powering 12V LED strips in a commercial kitchen with humidity?
The IP67 rating provides protection against water ingress from steam and humidity typical in commercial kitchen environments. Always confirm that the full installation, including conduit and connectors, meets the required protection class for your local code.
