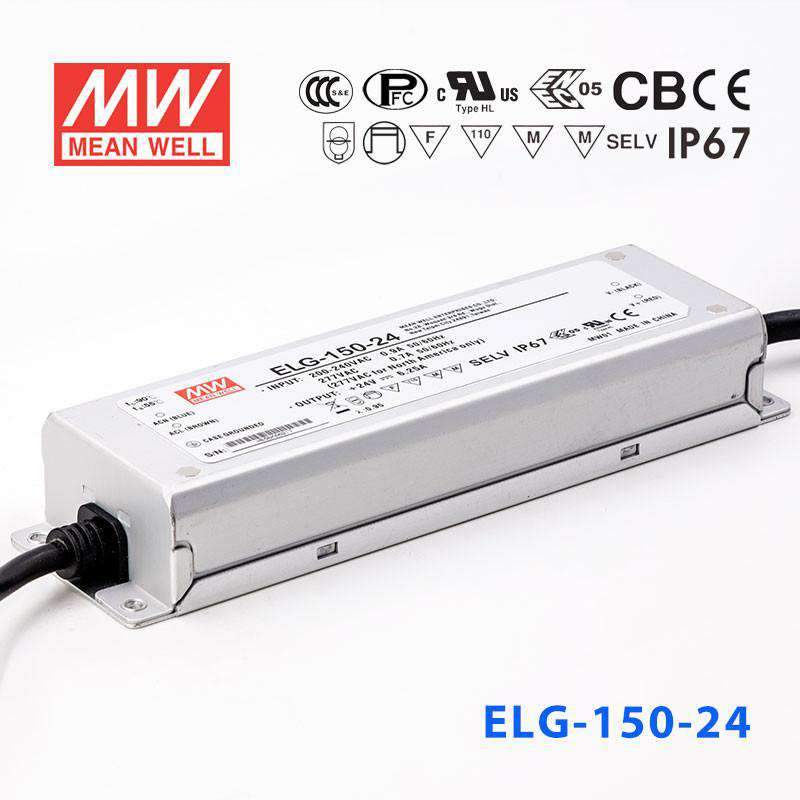

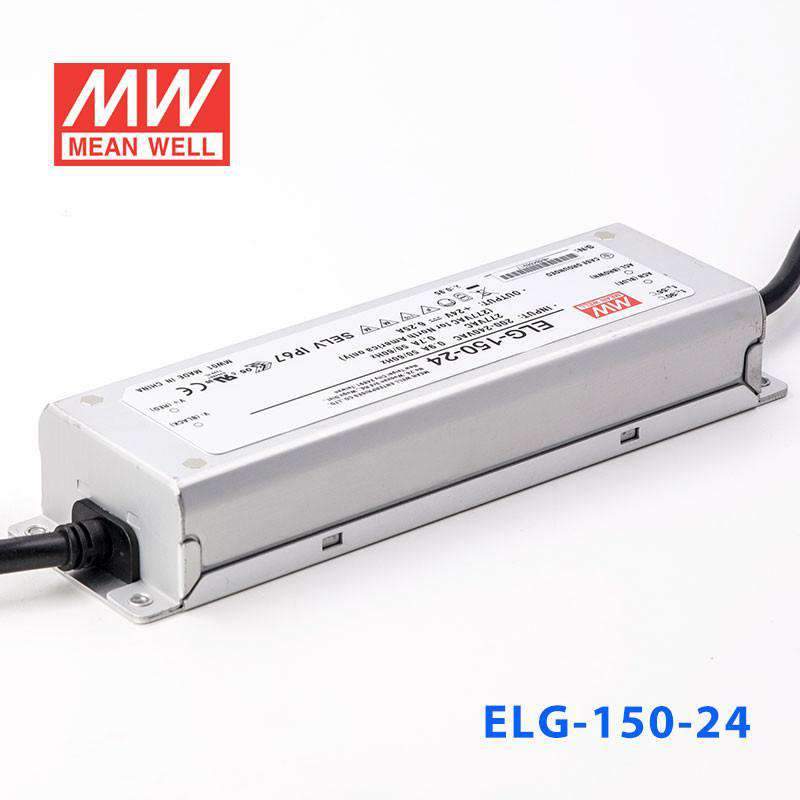

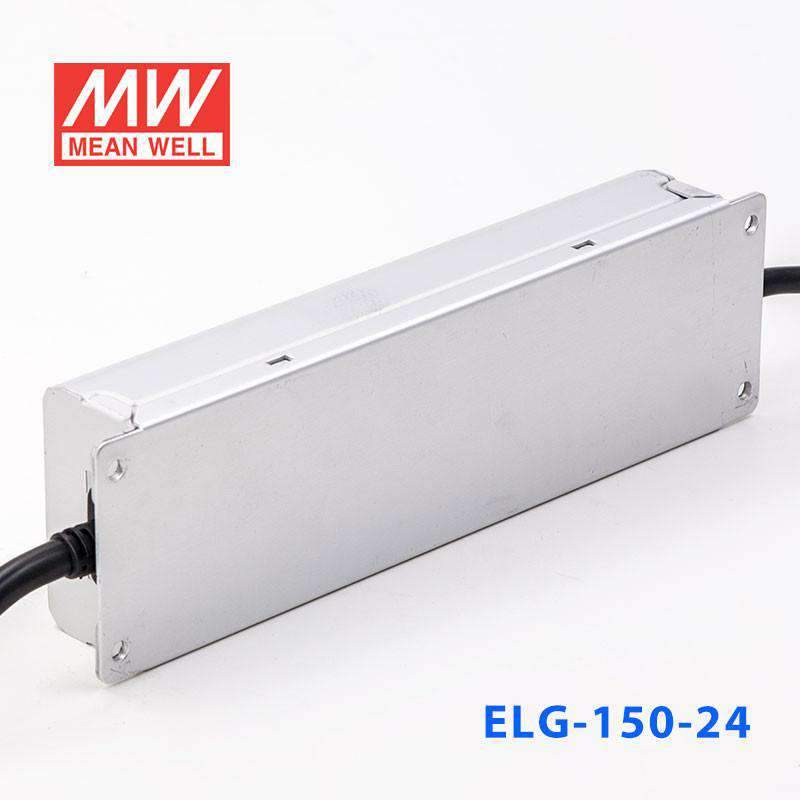

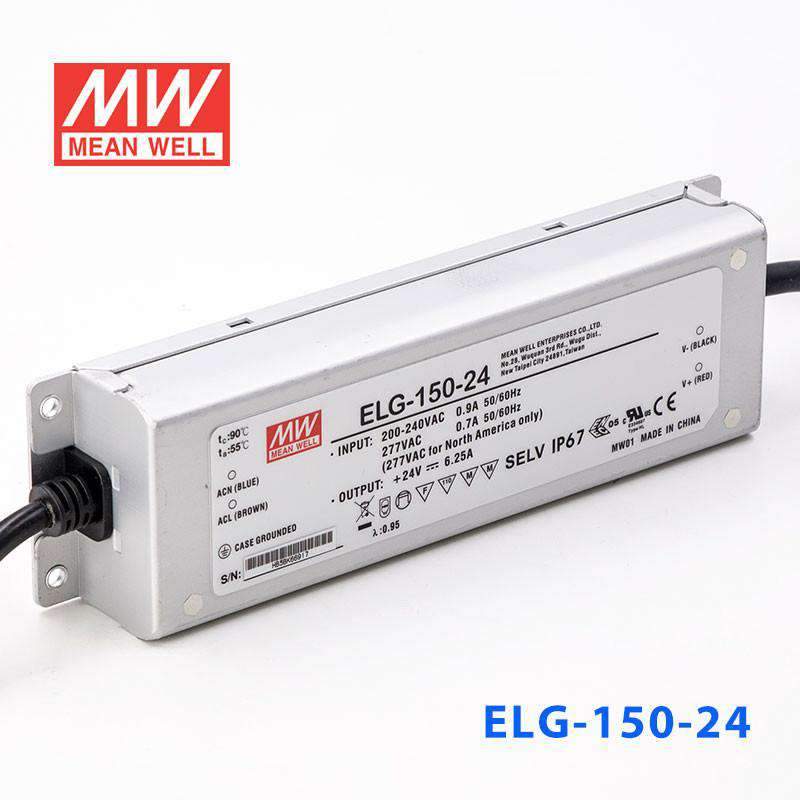

Mean Well ELG-150-24 Power Supply 150W 24V
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating150 Watt
-
Output Voltage24 Volt
-
Rated Current6.25 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can I use the ELG-150-24 to power 24V LED strip lighting in a commercial interior?
Yes. The ELG-150-24 outputs 150W at 24V, which is the standard voltage for high-density 24V LED strip used in commercial interiors such as coves, under-cabinet lighting, and suspended luminaires. Its IP67 rating also allows installation in damp locations if needed.
How many meters of 24V LED strip can the ELG-150-24 support?
The driver supplies 150W at 24V. For a 20 W/m strip: 150 ÷ 20 = 7.5 m at full load; at 80% continuous derating that is 6 m per driver. Always confirm your strip's rated power per meter before finalizing the run.
Is the ELG-150-24 suitable for outdoor signage or façade lighting exposed to rain?
Yes. The IP67 waterproof enclosure is designed for outdoor use and can withstand rain and splashing water. The -40°C to +90°C operating range handles most outdoor climate conditions worldwide.
Can the ELG-150-24 power LED strips inside a food processing plant that requires frequent wash-down?
The IP67 rating protects against temporary water immersion and is generally suitable for hose-down environments. Verify that all conduit entries, connectors, and the mounting location also maintain the required IP level as required by your safety code.
Is the ELG-150-24 a good choice for powering 24V LED tape in a hotel corridor with long continuous runs?
Yes. At 150W the driver can power a substantial length of 24V strip in a single run, and its wide 100–305VAC input range accommodates different electrical systems found in international hotel projects. The 5-year warranty also aligns with typical construction warranty requirements.
Can I use the ELG-150-24 with a 24V LED module for illuminated outdoor signage boxes?
Yes. The 24V output matches standard 24V LED sign modules, and the IP67 enclosure makes it suitable for mounting inside or adjacent to outdoor sign cabinets. It accepts 100–305VAC input, covering both single-phase and certain three-phase leg supplies.
How does the ELG-150-24 compare to the ELG-150-24A and ELG-150-24B variants?
All three share 150W at 24V with 6.25A output. The base ELG-150-24 has no built-in dimming control. The ELG-150-24A adds an output voltage/current trim potentiometer for manual adjustment. The ELG-150-24B adds 3-in-1 dimming (0/1–10V, PWM, or resistance) for remote dimmer control. Choose based on whether dimming is required.
