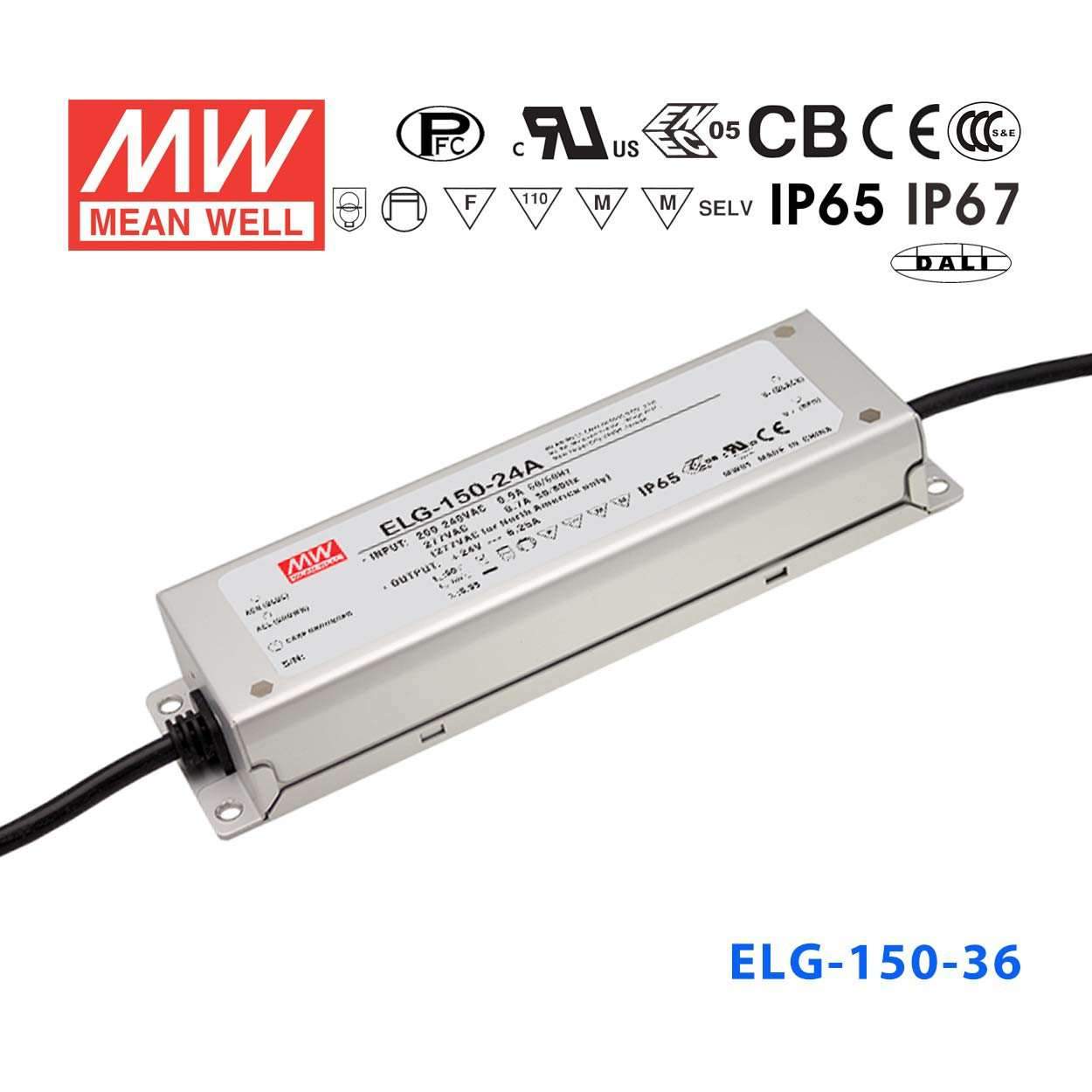

Mean Well ELG-150-36 Power Supply 150W 36V
The ELG-150 is a 150W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL8750 (type”HL”), EN61347-1, EN61347-2-13 independent, EN62384, IP65 or IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesELG Series
-
Power Rating150.1 Watt
-
Output Voltage36 Volt
-
Rated Current4.17 Ampere
-
Input Voltage100V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetBSI,CB,CCC,CE,EAC,ENEC,KC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length8.62 in
-
Width2.48 in
-
Height1.4 in
-
Weight2.09 lb
::specification::
Frequently Asked Questions
Can the ELG-150-36 power 36V LED strips or modules in outdoor signage?
Yes. The ELG-150-36 outputs 36V at 4.17A (150.1W) and is rated IP67 waterproof, making it suitable for outdoor sign cabinets using 36V LED modules or strips. The sealed metal case and -40°C to +90°C operating range support year-round outdoor service.
Is the ELG-150-36 suitable for powering LED retrofit lamps or fixtures in a damp outdoor location?
Yes. The IP67 rating covers exposure to rain and temporary water immersion, so the ELG-150-36 can be housed in outdoor luminaires or weatherproof enclosures in damp or wet locations. Ensure the load operates at 36V and stays within 150.1W.
How much 36V LED strip can the ELG-150-36 support?
The driver delivers up to 150.1W at 36V. For a 14.4 W/m strip, this allows approximately 10.4 m (150.1 ÷ 14.4). For an 18 W/m strip, about 8.3 m (150.1 ÷ 18). Check your strip's rated power per meter to confirm the maximum length before installation.
Can the ELG-150-36 be used for landscape lighting running 36V LED fixtures along a garden path?
Yes. 36V LED path and landscape fixtures are a practical application for the ELG-150-36. Its IP67 protection allows burial in a weatherproof junction box outdoors, and 150.1W is enough to run a series of low-wattage fixtures totaling up to that power.
Does the ELG-150-36 support any built-in dimming control?
No. The base ELG-150-36 (no letter suffix) does not include a dimming interface. Output voltage and current can be trimmed via an internal potentiometer within the CC voltage range of 18–36V, but no external PWM, 0–10V, or DALI dimming signal input is available on this variant.
Can the ELG-150-36 drive 36V LED strips for interior commercial cove or under-cabinet lighting?
Yes. For interior installations such as commercial cove lighting or under-cabinet strips, the ELG-150-36 provides a stable 36V, 4.17A supply sufficient for medium-length strip runs. IP67 is not required indoors but adds robustness against dust and incidental moisture in kitchen or industrial settings.
How does the ELG-150-36 compare to the ELG-150-36A sibling?
Both models are 150.1W, 36V, 4.17A drivers with the same physical dimensions (219 × 63 × 35.5 mm) and operating temperature. The ELG-150-36 is IP67 waterproof with no external dimming interface, while the ELG-150-36A is IP65 water-resistant and adds an adjustable output trimmer plus dimming input (A suffix). Choose IP67 for fully exposed wet locations; choose the 36A if output adjustment or dimming is needed.
